Loosen bleed screw.
1.
Slowly open valve.
2.
Purge air from sensor
3.
(collect oil in bucket).
Tighten bleed screw.
4.
Wipe oil from valve and
5.
sensor using rag.
Note: The clamp ring is not
shown for clarity purposes.
Note: Prior to installing the Hydran M2-X onto the transformer valve, it is
recommended to drain approximately 2-4 liters of oil from the valve. This clears any
contaminants and moisture that may have accumulated inside the transformer valve.

Installing the Hydran M2-X on the Sensor

4.3.7
Proceed as follows (see Figure 4-9 on the next page):
1. Push the sensor cable connector into the sensor connector.
2. Rotate the connector clockwise (approximately 1/8 of a turn).
3. Position the enclosure and push the Hydran M2-X onto the sensor.
Page 84

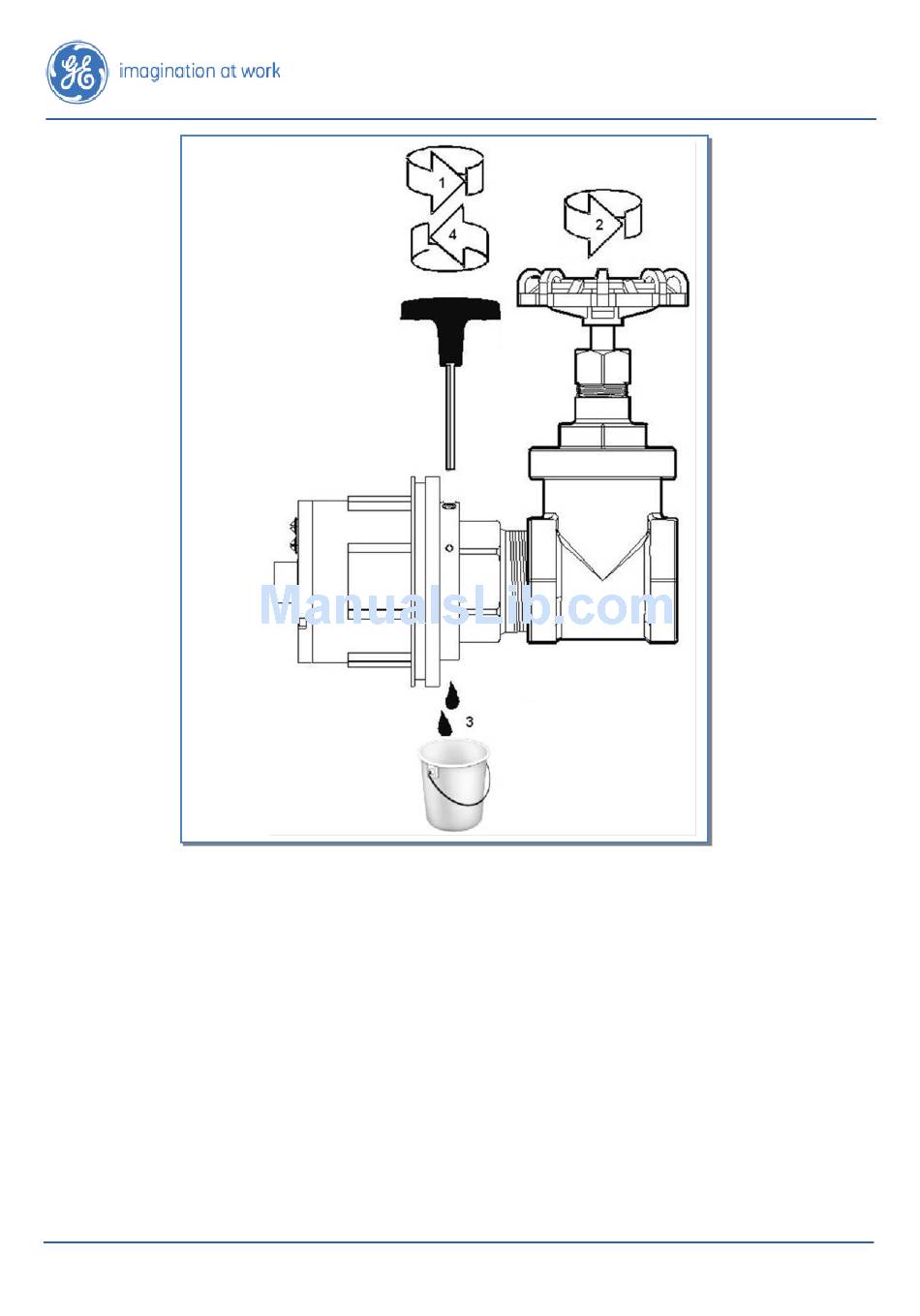

Figure 4-8: Opening the Valve and Purging the Air from the Sensor
Hydran* M2-X Instruction Manual
MA-029 Rev. 1.0, 30-Jul-18
