Hydran* M2-X Instruction Manual
2. Do not touch the membrane located inside the threaded extremity of the sensor
with a finger or an object (see Figure 1-2). The membrane is easily impaired;
impairing the membrane damages the sensor permanently, thus voiding the
warranty.
3. Do not block the sensor's breathing hole or puncture the breathing hole's
membrane (see Figure 1-3). Located above the sensor's connector, this opening
provides oxygen to the gas detector (inside the sensor). Blocking this opening or
puncturing its membrane damages the sensor permanently, thus voiding the
warranty

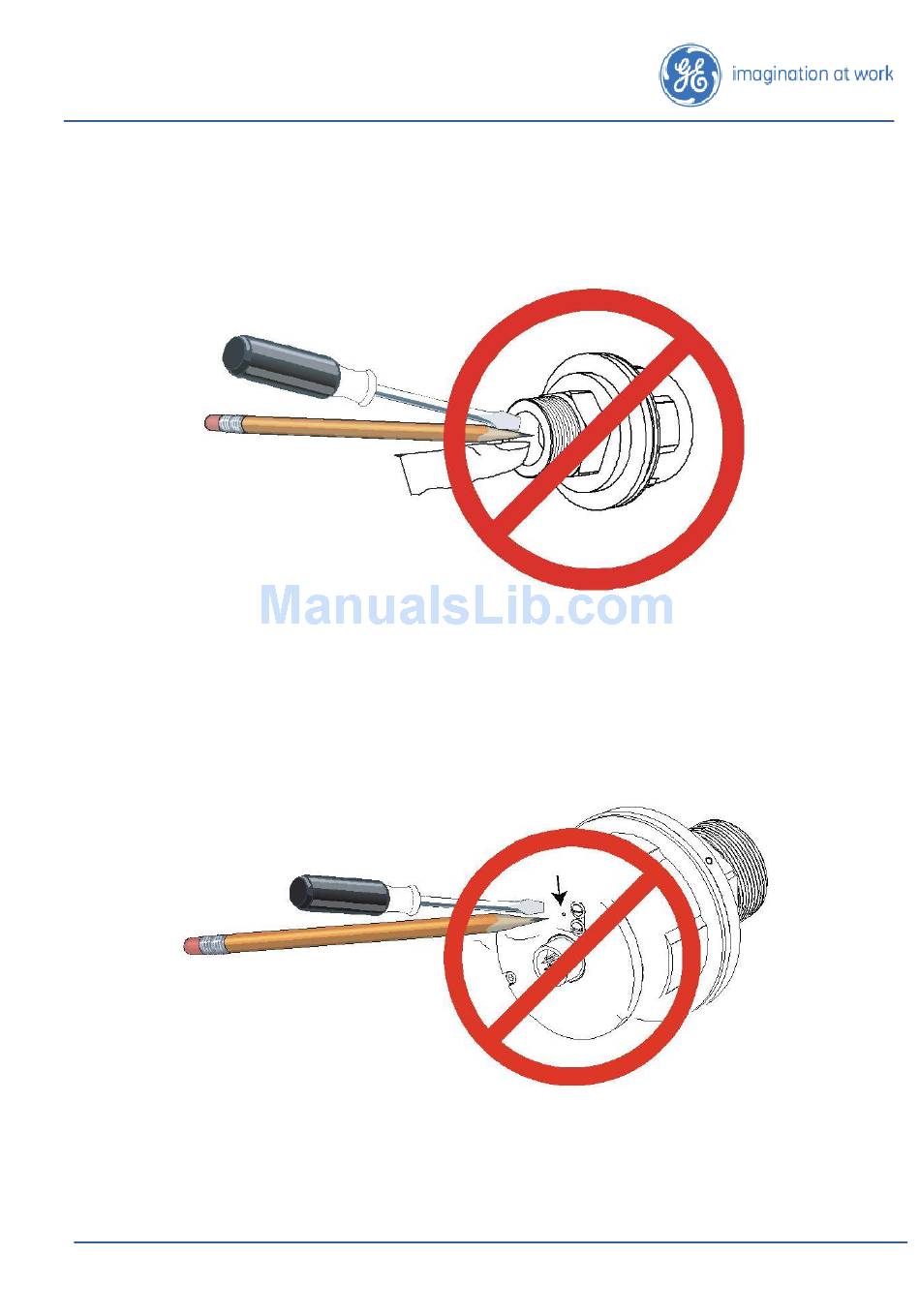

Figure 1-3: Do Not Block the Sensor's Breathing Hole or Puncture the Breathing Hole's Membrane
MA-029 Rev. 1.0, 30-Jul-18
Figure 1-2: Do Not Touch the Sensor's Membrane with a Finger or an Object
Page 17
