• Screen 1 (below) displays gas-related information (for more information, see
Section 3.2.8.1):
• Gas Level: The gas level in ppm.
• Gas Hourly Tr.: The gas hourly trend in ppm/x hours.
• Gas Daily Tr.: The gas daily trend in ppm/x days.
• Screen 2 (below) displays moisture-related information (for more information,
see Section 3.2.8.2):
• %RH Level: The relative humidity in percentage.
• Average: The relative humidity average in percentage.
• PPM H2O Level: The moisture level in ppm.
• Average: The average moisture level in ppm.
• Sensor Temp: The temperature of the sensor in °C.
• Screen 3 (see following page) displays the readings performed through the
optional analog input(s) (if present).
Note: The I/O names and units values are set in Setup > I/O Setup > An. Input
Setup > IO#x(In.4-20mA) > Configuration > Identification.
Page 38

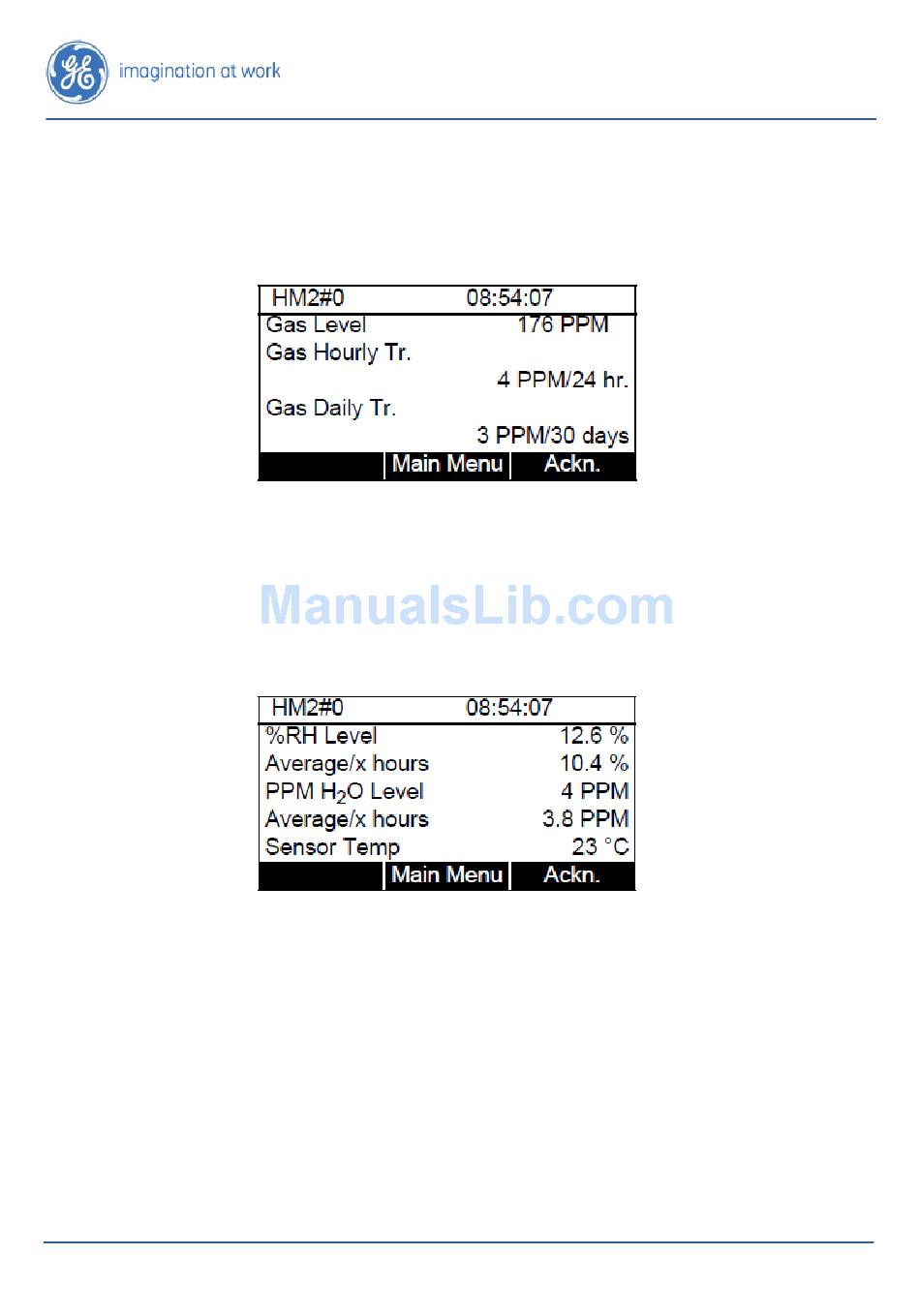

Figure 3-4: Screen 1 of Main Display Mode - Gas Readings Screen
Figure 3-5: Screen 2 of Main Display Mode - Moisture Readings Screen
Hydran* M2-X Instruction Manual
MA-029 Rev. 1.0, 30-Jul-18
