Appendix D. External Connections

D-1. TDM and RS-485 Network Link Terminal Block

This terminal block is located on the right side of the electronic card cage (see
Figure D-1).
To RS-485 In of
other Hydran
M2-X
or Hydran 201Ci
The RS-485 link requires instrumentation grade or armored cables (shielded
triad).
Table D-1 on the next page describes the connections for the TDM and RS-485
network link terminal block.
Page 166

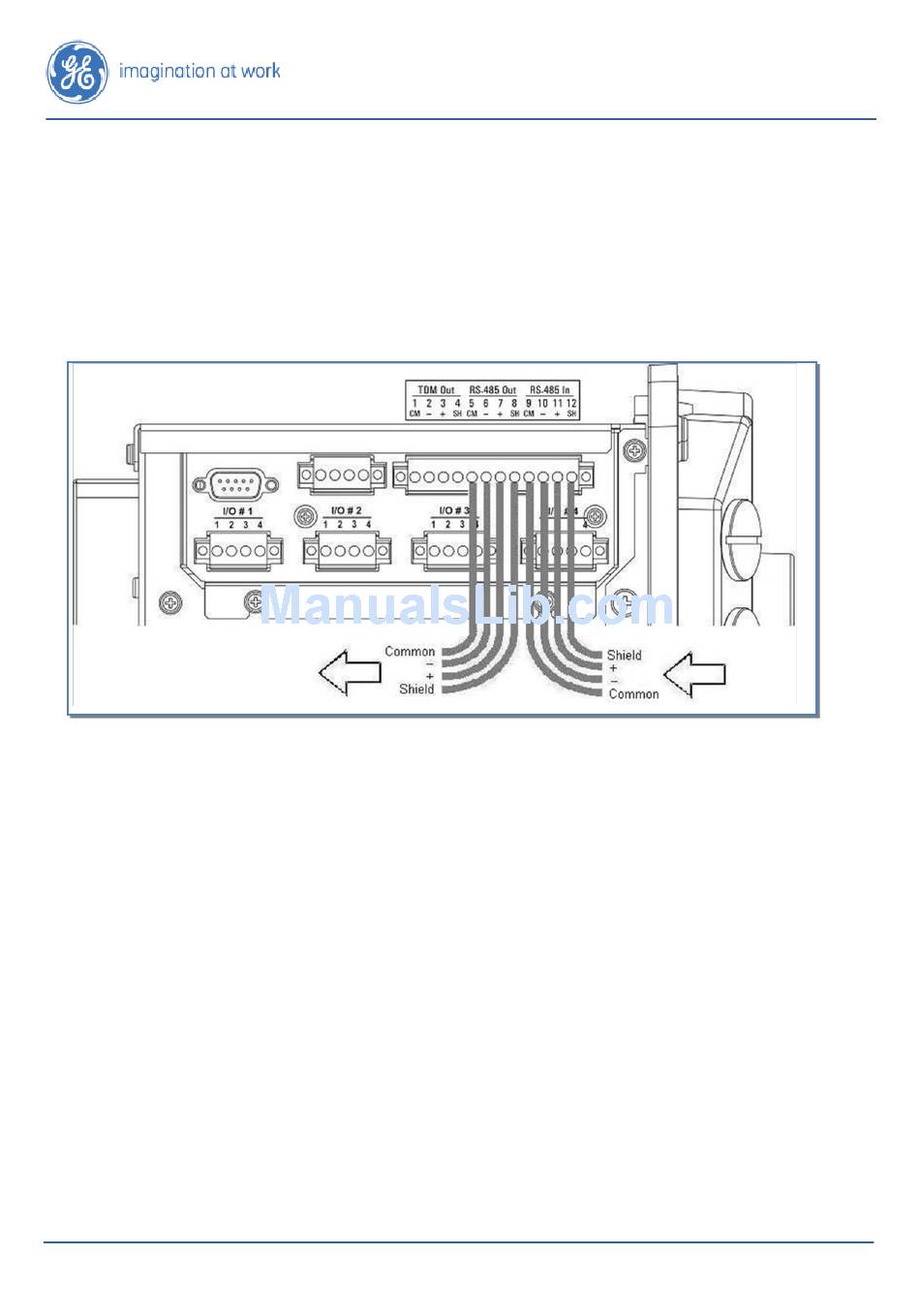

Figure D - 1: General Wiring of the RS-485 Terminal Block
Hydran* M2-X Instruction Manual
From RS-485
Out of other
Hydran M2-X
MA-029 Rev. 1.0, 30-Jul-18
