D-3. Analog Output Terminal Blocks

These terminal blocks are located on the right side of the electronic card cage
(see Figure D-11).
Page 172
2-wire 4-20mA
Loop-powered
Sensor
3-wire, 4-20mA
Loop-powered
Sensor

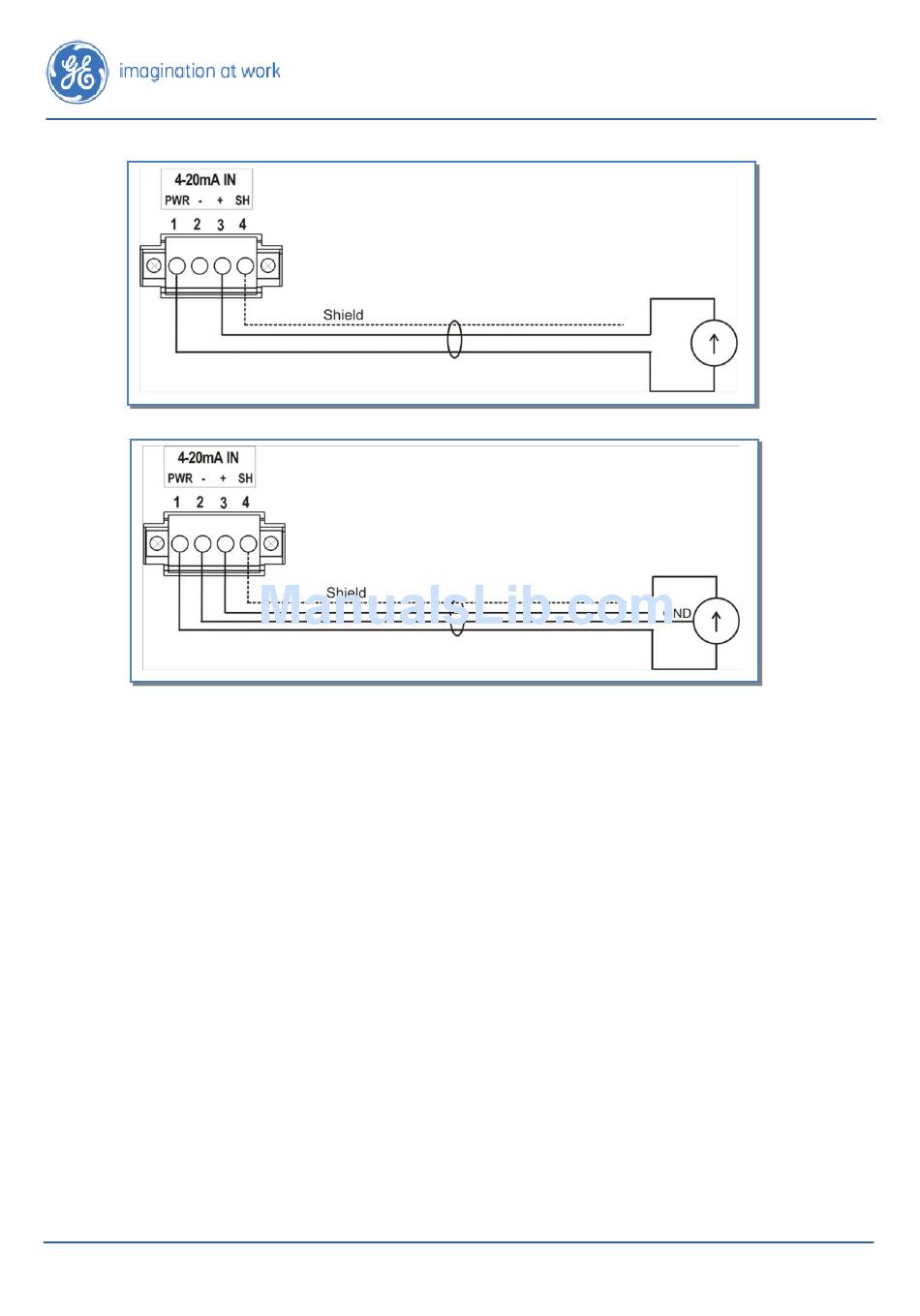

Figure D - 9: Wiring of Two-Wire, Loop-Powered, Analog Inputs
Figure D - 10: Wiring of Three-Wire, Loop-Powered, Analog Inputs
Hydran* M2-X Instruction Manual
MA-029 Rev. 1.0, 30-Jul-18
