User
In addition, User can select [User] in [Preset], which allows user to custom the color value by
setting Red Min, Red Max, Green Min, Green Max, Blue Min and Blue Max values.
Note:
DSK applies to the Normal Mode only;

The cutout will display the overlapped picture of the background layer (Layer 2);


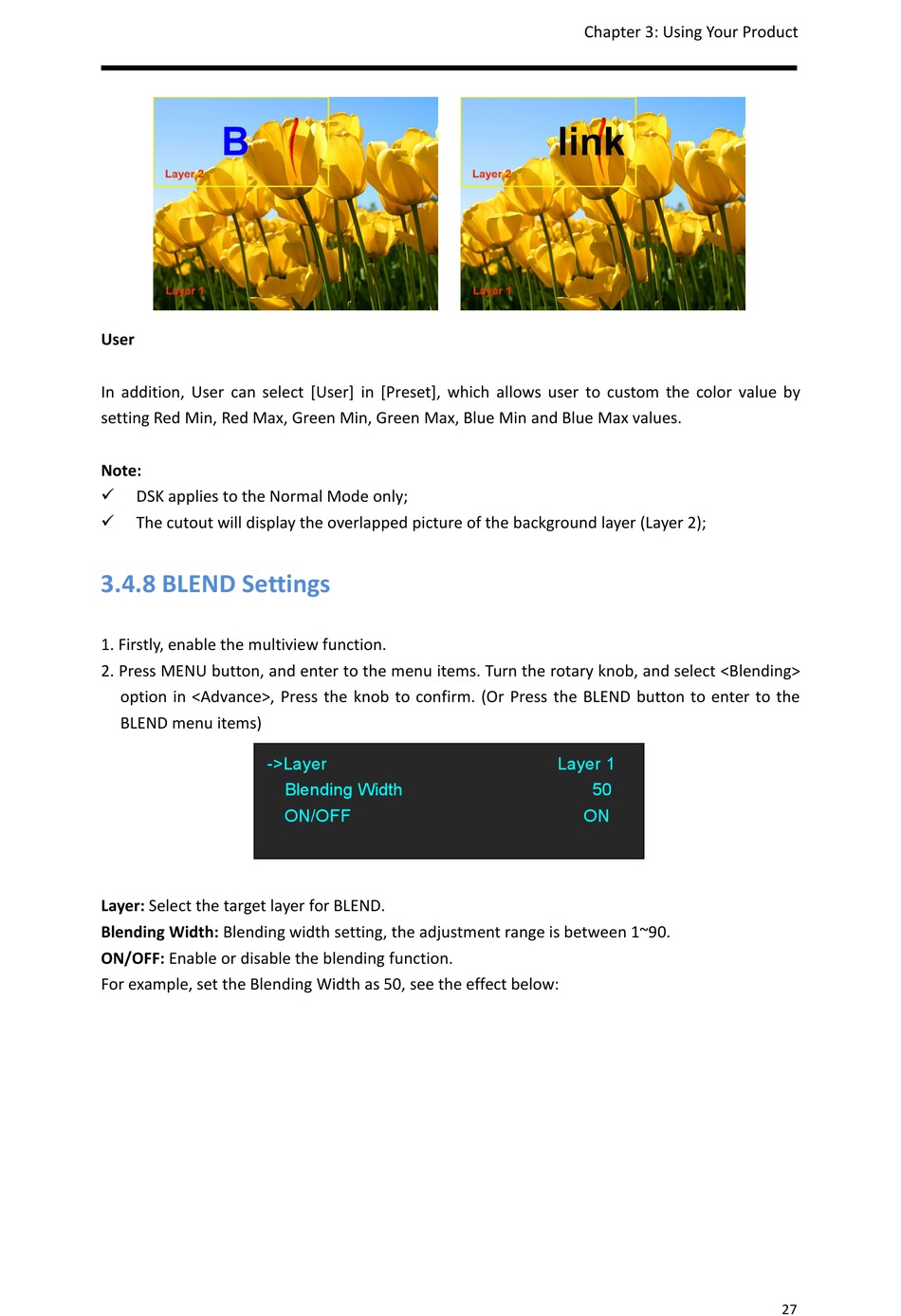

3.4.8 BLEND Settings

1. Firstly, enable the multiview function.
2. Press MENU button, and enter to the menu items. Turn the rotary knob, and select <Blending>
option in <Advance>, Press the knob to confirm. (Or Press the BLEND button to enter to the
BLEND menu items)
->Layer
Layer: Select the target layer for BLEND.
Blending Width: Blending width setting, the adjustment range is between 1~90.
ON/OFF: Enable or disable the blending function.
For example, set the Blending Width as 50, see the effect below:
Blending Width
ON/OFF
Chapter 3: Using Your Product
Layer 1
50
ON
