mini-edge
5 Channel All-in-One Switcher
Quick Start

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the mini-edge and is the answer not in the manual?

Questions and answers

Related Manuals for RGBlink mini-edge

Summary of Contents for RGBlink mini-edge

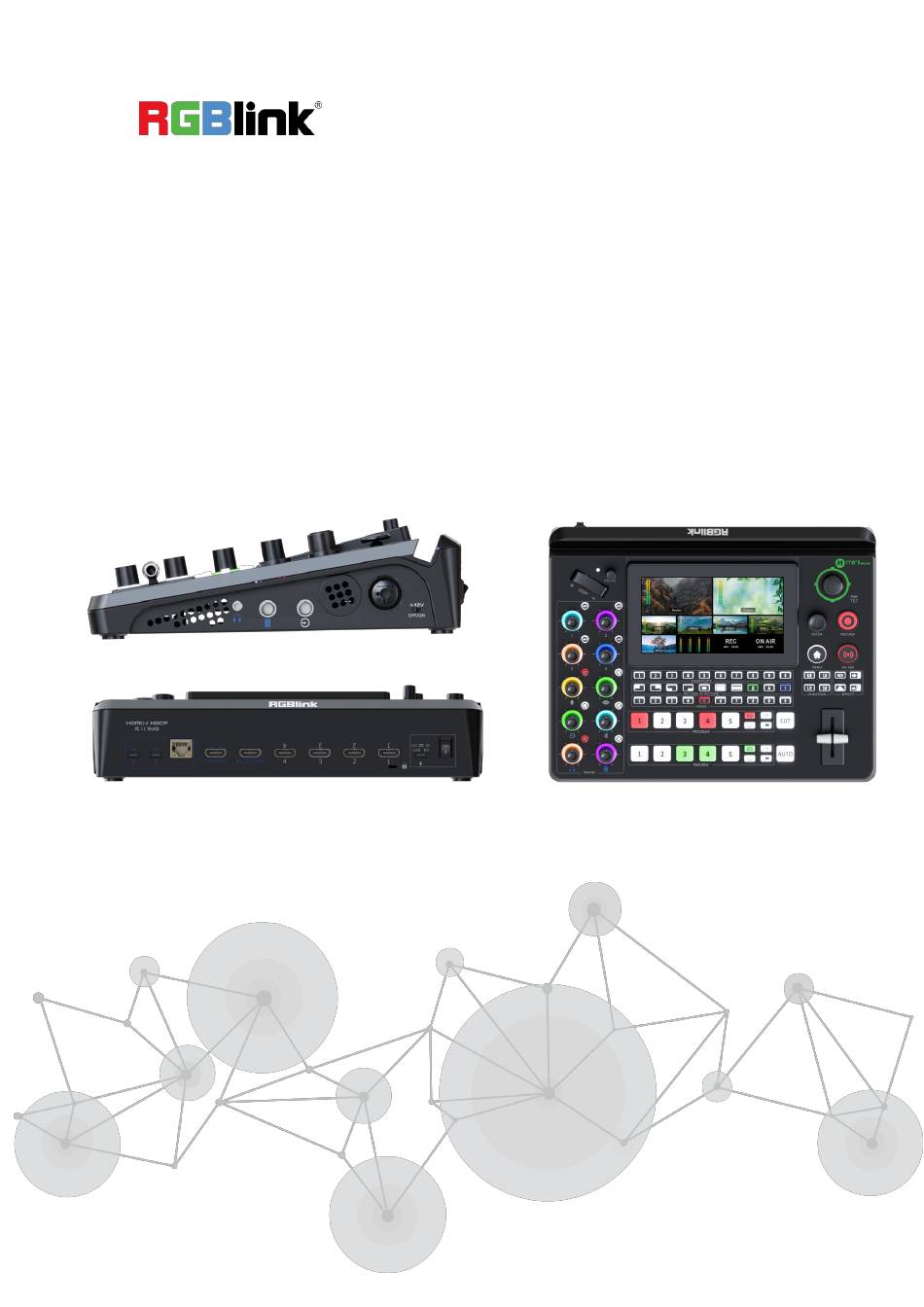

  • Page 1 5 Channel All-in-One Switcher Quick Start...

  • Page 2: Table Of Contents

    Content Product Overview .......................... 1 Key Features ..........................1 Interface Panel ........................2 Front Panel ..........................3 Using mini-edge ...........................10 Adding Background ......................10 Adding Layer A ........................11 Adding Layer B ........................12 Adding Logo ......................... 13 Controlling PTZ Cameras ....................15 Saving Scenes ........................

  • Page 3: Product Overview

    ● Built-in 5.5 inch LCD screen ● 4-CH HDMI 2.0 inputs (HDCP compliance), resolution up to 4K@60 ● 1-CH USB (UVC) input supports camera source from RGBlink vue PTZ and webCAM ● 8-CH audio inputs, including with 4-CH HDMI 2.0 embedded audio inputs and 4-CH external audio inputs (one MIC, one LINE, one Bluetooth and one Type-C digital audio) ●...

  • Page 4: Interface Panel

    48V Phantom Power supported. Defaults to OFF. ： Tips [1] ONLY choose one of functions to use; does not support USB HUB. [2] Except condenser microphones that require phantom power, please Turn OFF phantom power switch when connecting other devices. www.rgblink.com...

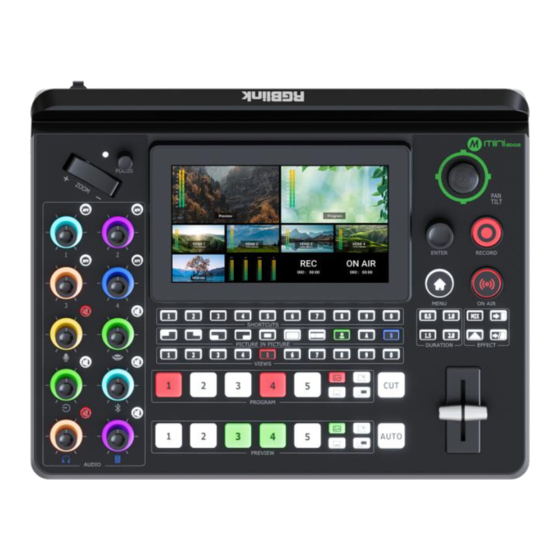

  • Page 5: Front Panel

    ● PROGRAM Source Row ● 5-Direction Joystick ● PROGRAM Layer Button Volume Control ● PROGRAM FTB Button ● PREVIEW Source Row ● Volume Control Knob ● PREVIEW Layer Button ● AFV Button ● PREVIEW Clear Button ● Mute Button www.rgblink.com...
  • Page 6 ○ to change a setting value. ● Short Press ○ to accept the selected item or apply changes to a setting. ○ to edit. ○ to enter the next higher level of menu. ○ to enable or disable a function. www.rgblink.com...
  • Page 7 ○ Manual Focus: indicator unlit. ○ Auto Focus: indicator lit blue. ● FOCUS Button ○ Rotate button for manual focus. ○ Press button for auto focus. █ Toggle ● Size adjustment for Layer A and Layer B. ● Zoom in/out for PTZ control. www.rgblink.com...
  • Page 8 ○ Long Press: to enter AUDIO. Transition Area Description █ Transition Effect Selection Button ● Default: MIX. ● Button Lit White: selected transition effect. █ Transition Duration Selection Button ● Default: 1.0 second. ● Button Lit White: selected transition duration. www.rgblink.com...
  • Page 9 ● Short Press：to enable or disable Chroma Key. ● Long Press：to enter Chroma Key Interface. █ Preset Loading Button ● Button Color Description ○ Button Unlit: no view contained. ○ Button Lit Green: view contained. ○ Button Lit Red: view being loaded. www.rgblink.com...
  • Page 10 ● Button Operation ○ Press Button Unlit: to fade the current source to b lack, and the button turns red. ○ Press Button Lit Red: to act in reverse from black to the currently selected source, and button goes dark. www.rgblink.com...
  • Page 11 ○ Button Lit Green: no layer on PVW. Button goes dark afer layer added. ● Button Operation ○ Short Press Button Unlit: to clear layer on PVW and save it to view. Button turns green. ○ Short Press Button with View: to load view to PVW. www.rgblink.com...

  • Page 12: Using Mini-Edge

    Using mini-edge Adding Background Inserting a U Disk Insert a U disk into the USB port labeled number 1 to import background sources. How to Enter Background Interface The user can gain access to Background Interface through the following methods: Long press BKG button along the PREVIEW Outputs Row.

  • Page 13: Adding Layer A

    Source row to add it to the PGM view and the selected PGM button will be illuminated Red. Adjusting Size and Position Use the toggle on the control panel for layer zoom-in and zoom-out and the joystick to set the position for more detailed adjustment. www.rgblink.com...

  • Page 14: Adding Layer B

    Select required layout for Layer A and place it on the background. Layer Scaling and Cropping mini-edge supports layer scaling and cropping. Rotate ENTER knob to move the cursor to SCALE or CROP icon, press ENTER knob again to enter the interface for more specific parameters.

  • Page 15: Adding Logo

    Layer B. Long press the button to set parameters for the actual use. Adding Logo Inserting a U Disk Insert a U disk into the USB port labeled number 1 to import logo sources. www.rgblink.com...
  • Page 16 If the Logo button along the Program Source Row illuminates White, press the button to place a logo on Program screen and the button will be illuminated Red. Press button illuminated red to remove, and the button indicator changes to white. www.rgblink.com...

  • Page 17: Controlling Ptz Cameras

    Check if port number of camera is set to 1259. If not, enter correct port number of the controlled camera. Setting IP Address Manually The IP address of mini-edge and camera controlled should be in the same LAN. Please follow the steps outlined as follows to set IP address.

  • Page 18: Saving Scenes

    ENTER knob to move the cursor to SCENE icon, press ENTER knob again to enter. Saving Scenes mini-edge allows user to save 10 presets in total. Rotate ENTER knob to View 1~10: 1. If the selected window does not contain a preset, press ENTER knob to choose whether to form a static picture of the current scene and save it.

  • Page 19: Loading And Switching Scenes

    EFFECTS menu as shown in the left or from the control panel buttons. Selecting Transition Mode mini-edge provides 2 transition modes, including T-Bar PVW Mode and CUT Mode. Tap the Setting icon on Menu or Button 8, then ‘ System ’ > ‘ Mode ’.
  • Page 20 T-Bar Mode Preview and Program views can be transitioned by pushing T-bar. CUT Mode Press 1~5 number button along the Preview Source Row or Program Source Row for signal switch. www.rgblink.com...

  • Page 21: Audio Mixer

    AUDIO and then press the knob to gain access to audio setting interface mini-edge has eight separate inputs for connecting various devices and audio sources: two XLR/TRS jacks for connecting microphones, computers and audio consoles; one USB (UVC) input supports camera source from RGBlink vue PTZ and webCAM;...

  • Page 22: Understanding The Audio Outputs

    Headphone Output and one Program Output. Using Control Knob and Mute Button mini-edge features two volume control knobs to adjust audio outputs. Same operations as described before: use the knobs to adjust the level for the output channel and the volume of that channel will be mirrored in virtual fader position on AUDIO.

  • Page 23: Streaming And Recording

    MENU button to enter Menu, then‘SETTINGS’ >‘Network’ >‘Cable’） Recording Connecting a USB Storage Device mini-edge supports recording streaming media content to an external USB storage device, such as U disk or SSD through the USB port labeled number 1. Tips: Format SSD, U-disk before recording.

  • Page 24: Tao Cloud Device Access

    Cloud”. Follow the steps in the box to get verification code. Binding a Device Enter TAO Cloud homepage. Click“All Appliances”> “Binding Devices”to enter interface shown in the left. Enter device name and verification code, then click “Bind”to confirm. www.rgblink.com...
  • Page 25 Watching Streaming On TAO Cloud Enter TAO Cloud platform by scanning the QR code. TAO Cloud supports private cloud live streaming and multi-platform streaming. If you have any questions or need further assistance, go to http://www.rgblink.com and contact us. www.rgblink.com...
  • Page 26 Xiamen RGBlink Science & Technology Co Ltd. ● Tel: +86-592-5771197 ● Fax: +86-592-5788216 ● Customer Hotline: 4008-592-315 ● Web: http://www.rgblink.com ● E-mail：support@rgblink.com ● Headquarter: Room 601A, No. 37-3 Banshang community, Building 3, Xinke Plaza, Torch Hi-Tech Industrial Development Zone, Xiamen, China...
