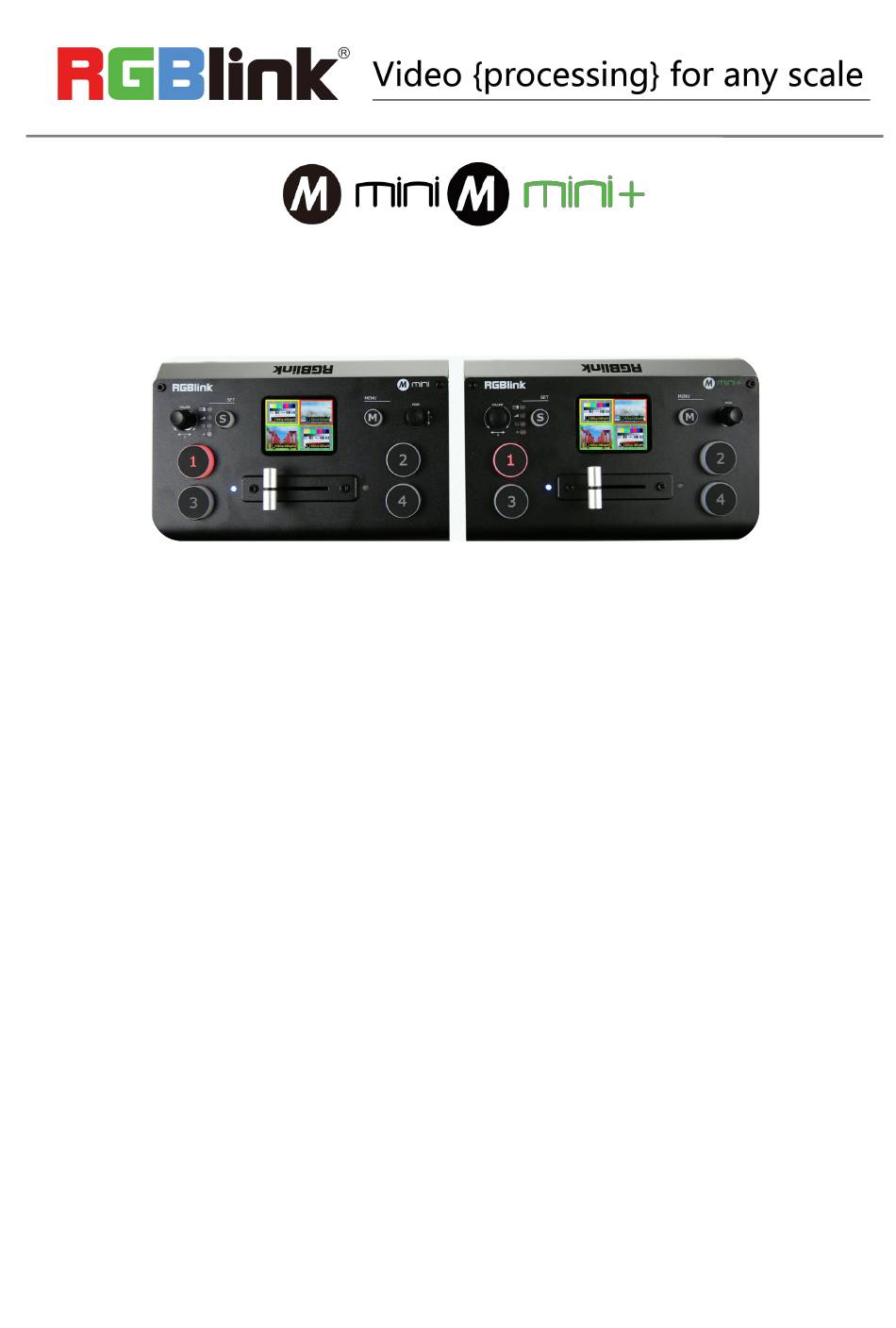

RGBlink Mini Quick Start Manual

Hide thumbs Also See for Mini:
Table of Contents

Advertisement

Quick Links

Quick Start
● USB capture video complying with UVC for live streaming
● 4CH HDMI inputs
● 2''TFT display on board to Live preview four inputs
● Auto cut and manual switch (T-Bar)
● 14 transition effects on T-Bar
● Support PIP （Picture-In-Picture)
● Audio offers embedded or external source to select
● Support switch between 6-Picture PVW and PGM to HDMI Out
● Advanced features on mini+
◎ Logo
◎ Chroma Key
◎ PTZ control
● Control by PC or mobile phone (via APP)
● Compact design

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mini and is the answer not in the manual?

Questions and answers

Related Manuals for RGBlink Mini

Summary of Contents for RGBlink Mini

  • Page 1 ● 14 transition effects on T-Bar ● Support PIP （Picture-In-Picture) ● Audio offers embedded or external source to select ● Support switch between 6-Picture PVW and PGM to HDMI Out ● Advanced features on mini+ ◎ Logo ◎ Chroma Key ◎ PTZ control ●...

  • Page 2: Table Of Contents

    PIP (Picture-In-Picture or Picture by Picture) Operation.................. 11 Software Operation............................12 OBS Streaming..............................24 OBS Setting..............................24 Streaming Setting.............................. 26 Upgrade................................28 Contact Information..............................34 © Xiamen RGBlink Science & Technology Co., Ltd. 1 / 35 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...

  • Page 3: Product Introduction

    Product Introduction mini/mini+ is a “mini” signal switcher and mixer which is able stream 6-picture PVW or PGM from any one out of the 4 HDMI inputs to any live broadcasting platform via third party live streaming software such as OBS. It adopts compact design, equipped with a 2 inch TFT screen to preview the 4 inputs in real time.

  • Page 4: Packing Configuration

    Packing Configuration Power Adapter USB3.0 Cable Note: Power adapter of US/EU standard supplied as standard accessory. © Xiamen RGBlink Science & Technology Co., Ltd. 3 / 35 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...

  • Page 5: Hardware Orientation

    PVW and PGM when TFT is under the state of previewing 4 inputs. PUSH/Y 3. On mini+, control camera lens position, moving up and down under PTZ control menu-Pos. 4. On mini+, control camera lens zoom in and out under PTZ control menu-Zoom. M( menu) Menu and Back Button...

  • Page 6: Interface Panel

    AUDIO IN/OUT AUDIO In, analog audio input port, connect to microphone AUDIO OUT, analog audio output port, connect to loudspeaker. © Xiamen RGBlink Science & Technology Co., Ltd. 5 / 35 Ph: +86 592 5771197 | support@rgblink.com...

  • Page 7: Use Your Product

    Use Your Product MENU When mini is power on, the native TFT display show starting up page. Main Menu Input Push MENU and select the first menu item <Input> Push knob to enter <Input> menu © Xiamen RGBlink Science & Technology Co., Ltd.

  • Page 8: Hdmi

    USB3.0 means USB3.0 output ， push knob to enter <USB3.0>menu，select Preview output and PGM output for HDMI. Output：Choose PGM or Preview Format：1920×1080@60 Audio Choose <AUDIO> SOURCE：EMBEDED or EXTREANAL AUDIO BAR：ON/OFF © Xiamen RGBlink Science & Technology Co., Ltd. 7 / 35 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...

  • Page 9: Ip Setting

    IP Setting Manually set IP address LANGUAGE LANGUGE, select Chinese or English Factory Reset Factory Reset: Yes or No © Xiamen RGBlink Science & Technology Co., Ltd. 8 / 35 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...

  • Page 10: Info

    On mini push button S, the TFT will show the transition effect menu <MIX>.The <MIX> led indicator beside will light up. Push again, it will skip to next menu MODE, and again to PIP and again back to MIX . On mini+, pushing S button is also to open up <MIX>, <MODE>, <PIP>...

  • Page 11: Mode

    Push Button S three time to open PIP menu. PIP menu offers 9 layouts for main picture and sub picture. FX only works on mini+ and it leads to PTZ control menu on device. Camera：choose the desired camera from index 1~8，or ALL. One mini+ is able to connect up to 8 PTZ cameras.

  • Page 12: Switch Input Source

    4. After switching, the selected green button turns to red. after PIP mode is selected, the background can not be changed unless turn off the PIP mode and restart the above steps. © Xiamen RGBlink Science & Technology Co., Ltd. 11 / 35 Ph: +86 592 5771197 | support@rgblink.com...

  • Page 13: Software Operation

    XPOSE and login the software. Click Search to search mini device. After searching, all available mini devices in the sub-net can be found, up to 128 devices can found if there are. © Xiamen RGBlink Science & Technology Co., Ltd.
  • Page 14 For example, clicking Button M can open up menu as on the device. If it is the first time for you to use mini/mini+ we suggest you watch our User Guide video. Click the drop down arrow and click to play the user guide video.
  • Page 15 INPUT INFO HDMI Output USB3.0 Output © Xiamen RGBlink Science & Technology Co., Ltd. 14 / 35 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
  • Page 16 Choose switch time and transition effect. © Xiamen RGBlink Science & Technology Co., Ltd. 15 / 35 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
  • Page 17 OBS: slide on to start streaming. Note: H.265 and OBS cannot work at the same time. User choose either H.265 or OBS, not both. © Xiamen RGBlink Science & Technology Co., Ltd. 16 / 35 Ph: +86 592 5771197 | support@rgblink.com...
  • Page 18 AUDIO TEST PATTERN © Xiamen RGBlink Science & Technology Co., Ltd. 17 / 35 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
  • Page 19 HDMI Output Setting Password Protection Set password for the device. After password is set, password will be required when enter the software operation interface. © Xiamen RGBlink Science & Technology Co., Ltd. 18 / 35 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
  • Page 20 IP Setting Manually set Gateway, MASK and IP for the device. © Xiamen RGBlink Science & Technology Co., Ltd. 19 / 35 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
  • Page 21 On mini+, FX contains 3 features: DSK Setting, PTZ Camera Control and Logo Chroma Key Preset: Customize, black background, red background, blue background, green background , and white background . Switch: On/Off Mode: Select Key In or Key Out. Alpha: The adjustment range is between 0~255.
  • Page 22 Port: Set port number for PTZ camera. PTZ control support Visca protocol, port number is 1259 by default. mini+ support control PTZ cameras in same IP address with different port number. Note: Not all cameras can be set IP and port number on XPOSE, for those cameras, IP and port number set can be done on web.
  • Page 23 Logo Path：choose logo bin from local computer or U disk. Color：Adjust Red Green Blue value Transparent Switch：On/Off X，Y：adjust logo position © Xiamen RGBlink Science & Technology Co., Ltd. 22 / 35 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
  • Page 24 Version Info T-Bar Calibration Factory Reset © Xiamen RGBlink Science & Technology Co., Ltd. 23 / 35 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...

  • Page 25: Obs Streaming

    OBS Streaming OBS Setting mini is compatible with many third party steaming software, we recommend OBS, which is available to https://obsproject.com/download. download on Download the software and update to the latest version. 1.Click”+”icon 2.choose video capture device 3.Click video capture device to open up setting page 4.Choose :RGBlink USB 3.0 Capture...
  • Page 26 OBS. 1.Set Default for the audio source. 2. Audio setting on OBS. Choose Audio, click Setting and choose audio device (Mic/Auxiliary Audio Device) © Xiamen RGBlink Science & Technology Co., Ltd. 25 / 35 Ph: +86 592 5771197 | support@rgblink.com...

  • Page 27: Streaming Setting

    Service” or “Custom Streaming Server” . If choose “Streaming Service”, there is a list of streaming service name available in the drop down list of Service. If the streaming service is in the list, choose it from the list. © Xiamen RGBlink Science & Technology Co., Ltd. 26 / 35 Ph: +86 592 5771197 | support@rgblink.com...
  • Page 28 4. Paste the RMTP URL to Server or URL and Stream Key to Stream Key. 5. Click “Start Streaming”. 6. Go back to live broadcast website and check the broadcasting. © Xiamen RGBlink Science & Technology Co., Ltd. 27 / 35 Ph: +86 592 5771197 | support@rgblink.com...

  • Page 29: Upgrade

    2.1 Power on the device connect LAN ports between PC and device by Cat6 cable； 2.2 RGBLink device default IP address is 192.168.0.99，to make sure the LAN communication, IP of PC must be under the same IP section, which means the IP of PC must be 192.168.0.XXX (but must not be completely same as the device).
  • Page 30 2.3 Open XTOOL on PC，Click Communication 2.4 Choose Net Comm in pop up window and confirm © Xiamen RGBlink Science & Technology Co., Ltd. 29 / 35 Ph: +86 592 5771197 | support@rgblink.com...
  • Page 31 User can also manually choose MCU or FPGA bin file to upgrade. After selecting, click upgrade. © Xiamen RGBlink Science & Technology Co., Ltd. 30 / 35 Ph: +86 592 5771197 | support@rgblink.com...
  • Page 32 2.5.1 During the process of upgrading, each upgrading status and upgrade result of each program file is showing. © Xiamen RGBlink Science & Technology Co., Ltd. 31 / 35 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
  • Page 33 2.5.3 Click “Version” XTOOL will show the latest version info of the device so that users can check if the upgrade is successful or not. © Xiamen RGBlink Science & Technology Co., Ltd. 32 / 35 Ph: +86 592 5771197 | support@rgblink.com...
  • Page 34 © Xiamen RGBlink Science & Technology Co., Ltd. 33 / 35 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...

  • Page 35: Contact Information

    All video products are designed and tested to the highest quality standard and backed by full 1 years parts and labor warranty. Warranties are effective upon delivery date to customer and are non-transferable. RGBlink warranties are only valid to the original purchase/owner. Warranty related repairs include parts and labor, but do not include faults resulting from user negligence, special modification, lighting strikes, abuse(drop/crush), and/or other unusual damages.

This manual is also suitable for:

Mini+
