Adjustments
Accessing the Internal Adjustments
NOTE.
Only probes with serial numbers C020000 and above have internal adjustments. (See Figure 14.) Probes with serial
numbers C019999 and below that require adjustments (other than offset zero) must be returned to Tektronix for service.
1. Remove the reusable back-panel label shown below to gain access to the adjustments. Store the label in a safe place to
preserve the adhesive backing for reuse.

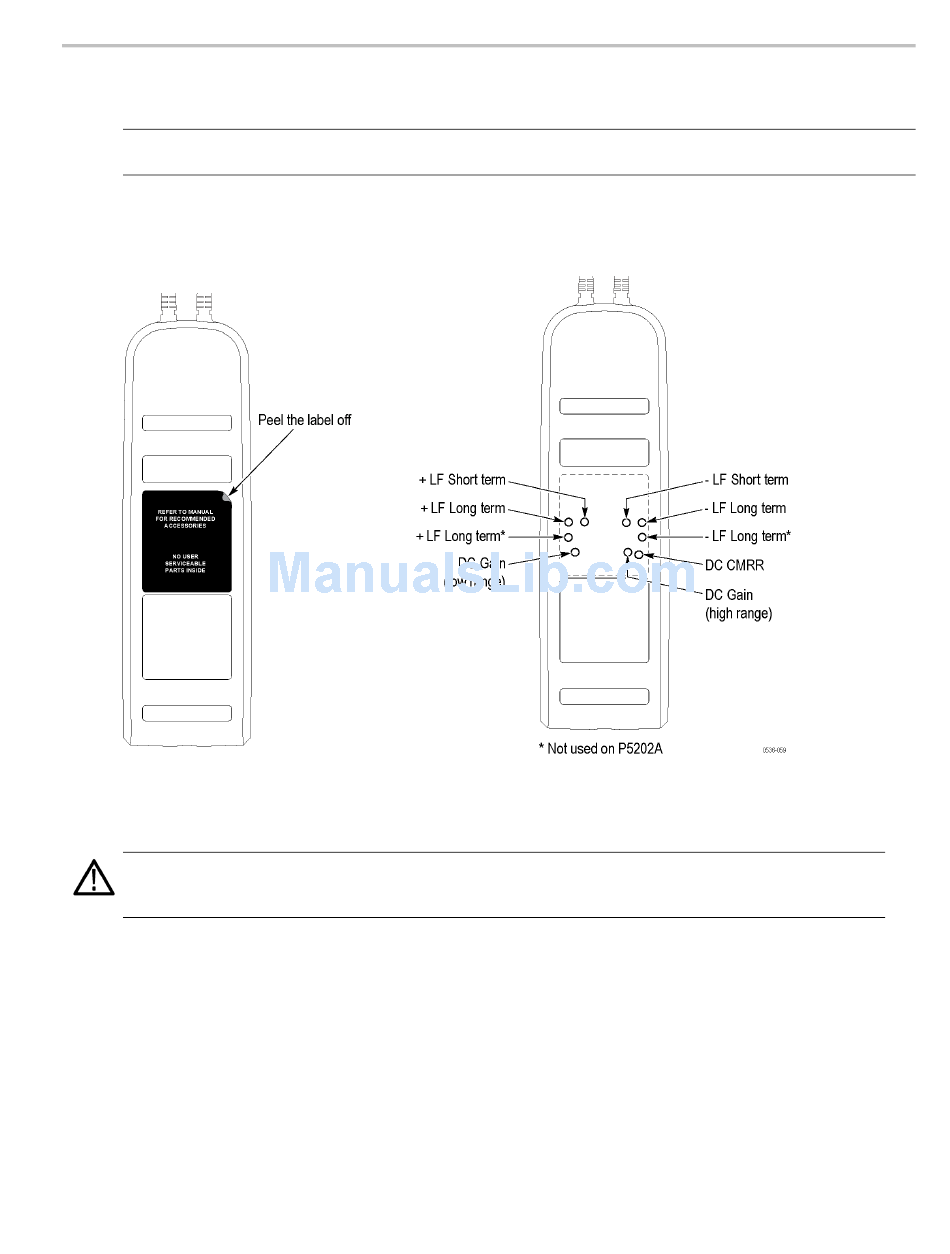

Figure 14: Internal adjustment locations (S/N C020000 and above only)
CAUTION.
You must replace the reusable label after you complete the adjustment procedures. Failure to do so may subject
the user to high voltages present in the probe during measurements. If you need a replacement label, refer to the Equipment
Required table for the Tektronix replacement part number. (See Table 15 on page 43.)
P5200A Series High Voltage Differential Probes Instruction Manual
46
