Performance Verification
Rise Time
1. Verify that the pulse generator output is off and then connect the probe to the oscilloscope.

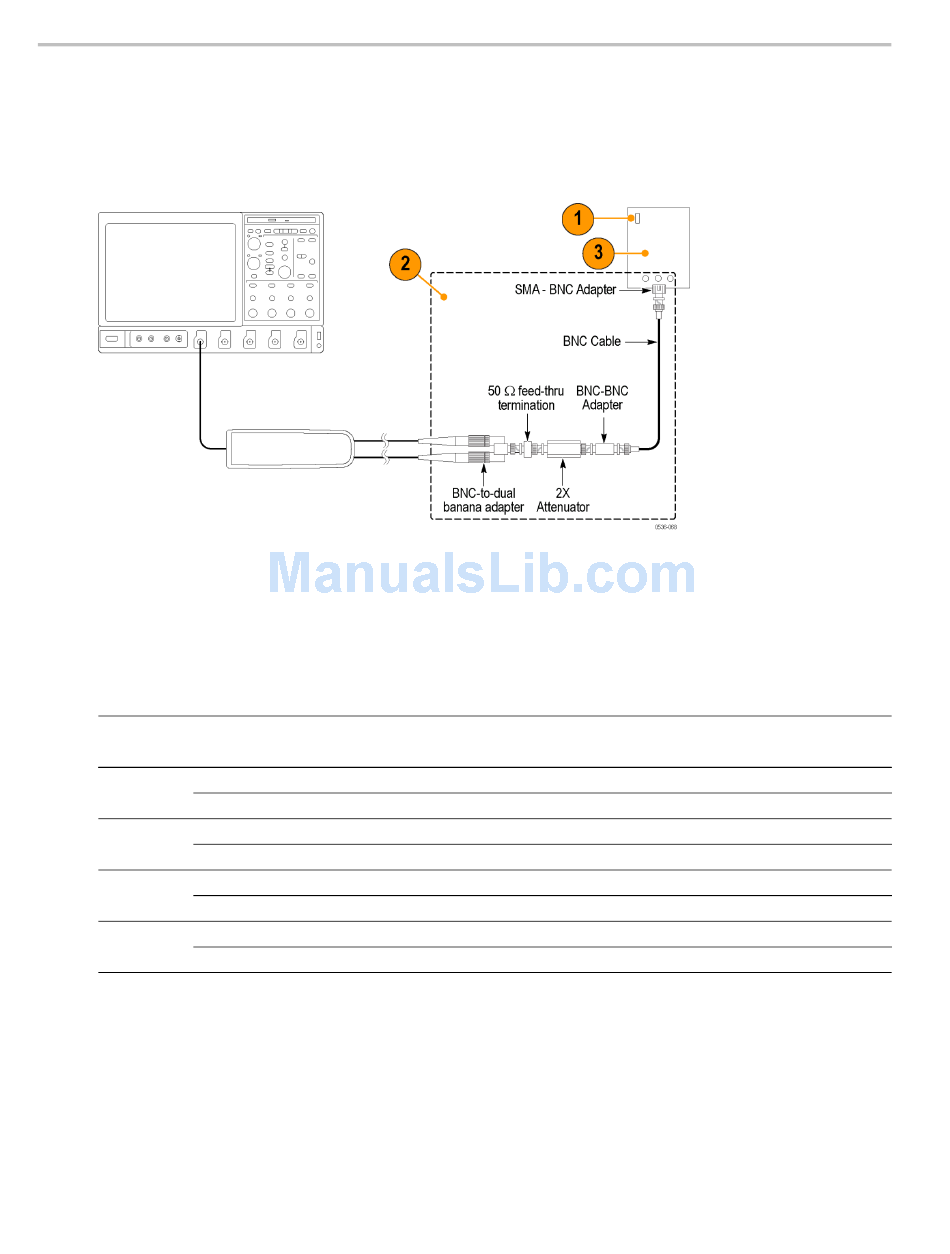

2. Connect the probe inputs, through the adapters shown below, to the pulse generator output. Set the probe input leads
straight and parallel for best signal response.
3. Set the output of the pulse generator to 50 V, 1 kHz, and a 200 ns pulse output. (The probe input voltage will be
25 V due to the 2X attenuator in the circuit.)
4. Set the oscilloscope to 5 V/div, 10 ns/div, BW = full, average = 16.
5. Set the probe bandwidth to full and the attenuation to the first range listed in the table.
Table 12: Rise time test equipment settings
Probe
Model Range
P5200A 50X
500X
P5202A 20X
200X
P5205A 50X
500X
P5210A 100X
1000X
6. Enable the generator output and check that the rise time does not exceed the target rise time value listed in the table.
Use the auto-measure feature of the oscilloscope to determine the rise time.
7. Record the rise time in the test record.
8. Set the probe attenuation to the next range and adjust the vertical volts/div to display the signal.
9. Record the rise time in the test record and disable the generator output.
39
Generator output
Voltage Frequency
50 V 1 kHz
50 V 1 kHz
50 V 1 kHz
50 V 1 kHz
50 V 1 kHz
50 V 1 kHz
50 V 1 kHz
50 V 1 kHz
P5200A Series High Voltage Differential Probes Instruction Manual
Measurement
Target rise time Measured
≤7 ns
≤7 ns
≤3.5 ns
≤3.5 ns
≤3.5 ns
≤3.5 ns
≤7 ns
≤7 ns
