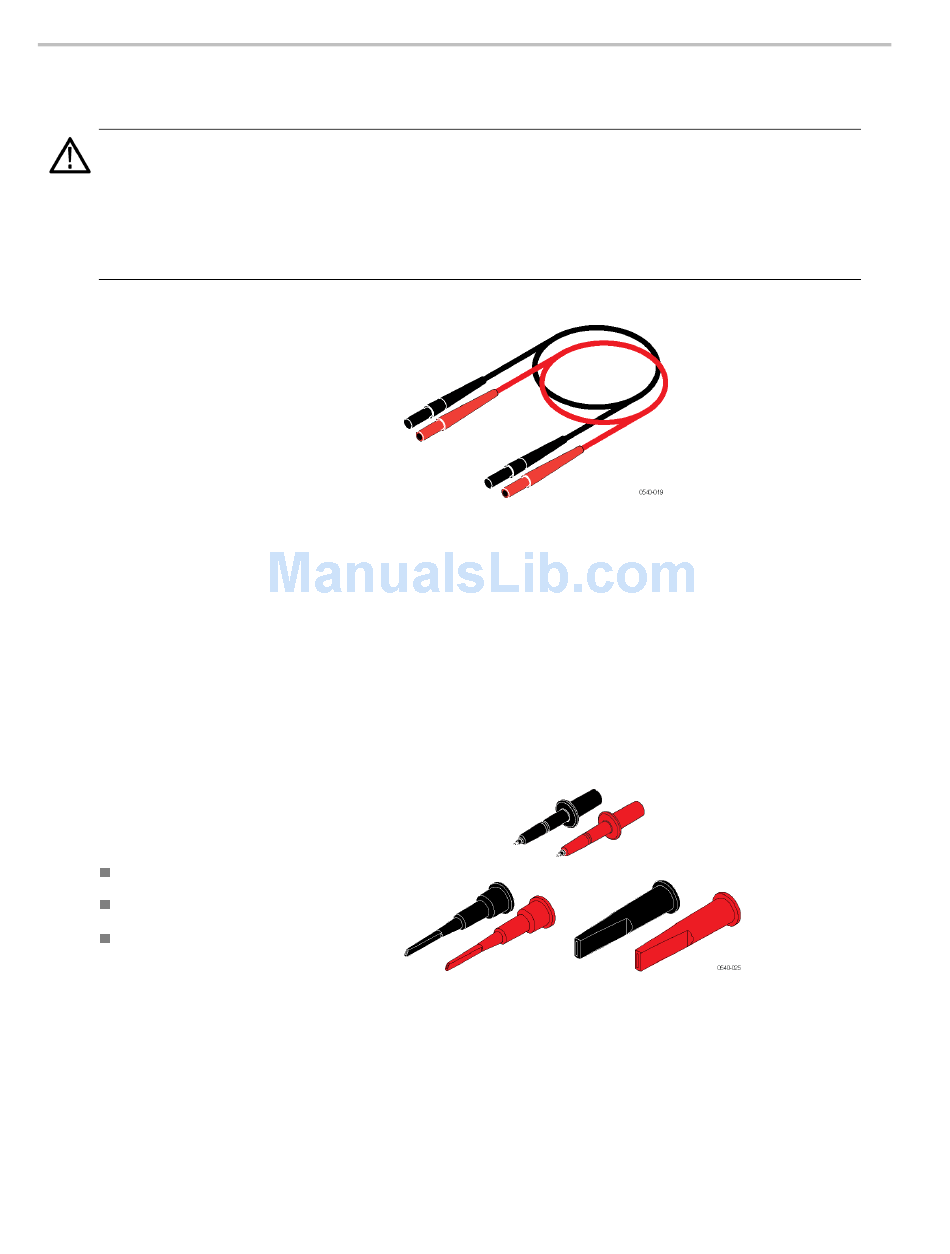

Accessories
P5210A Probe Standard Accessories
WARNING. To avoid risk of electric shock or fire, do not use the P5210A test probe or hook tip accessories on CAT III or
CAT IV circuits. Refer to the ratings tables in the beginning of the manual. (See Table i on page x.) (See Table ii on page xiii.)
To avoid risk of electric shock or fire, when using the P5210A test probe or hook tip accessories with the P5200A, P5202A
and P5205A probes, do not use on circuits above 1000 V.
Use only accessories that are rated for the application. Substitution of other accessories may create a shock or burn hazard.
Keep the probe body and accessories clean to reduce the risk of shock due to surface conduction.
Extender Leads
These leads extend the reach of the probes
by ~67 in (1.5 m), which allow you to reach
connections as far as 3 m apart. Be sure to
use both extension leads so that the input
leads are the same length.
However, with longer lead length, differential
noise induced into the input leads is greater.
Also, because of the added inductance of the
leads, voltage measurements at frequencies
above approximately 10 MHz may not be
as precise. For best performance, use the
20 MHz or lower-bandwidth filter on your
oscilloscope.
The male banana-plug ends connect to the
test probes that are included with the probes.
Maximum ratings:
1000 V CAT III
600 V CAT IV
Reorder Tektronix part number: 196-3523-xx
(one pair)
P5210A Accessory Kit
Kit includes one pair of each of the
accessories shown on the following pages:
Test Probes (TATP)
Small Hook Tips (TASH)
Large Hook Tips (TALH)
Reorder Tektronix part number: 020-3070-xx
