Adjustment Procedures

WARNING. These procedures require the application of high voltage to the inputs of the probes. Only qualified personnel
should perform any testing with voltage levels exceeding 30 V
voltage measurements should be followed and adhered to.
WARNING. These procedures require you to remove a reusable label from the back of the probe. You must replace the
label after you complete the probe adjustments. Failure to do so may subject the user to high voltages present in the
probe during measurements. If you need a replacement label, refer to the Equipment Required table for the Tektronix part
number. (See Table 15 on page 43.)
WARNING. These procedures require the application of high voltages to the probes. Use only an insulated tool to make the
adjustments described in the procedures. Failure to do so presents a potential shock hazard.

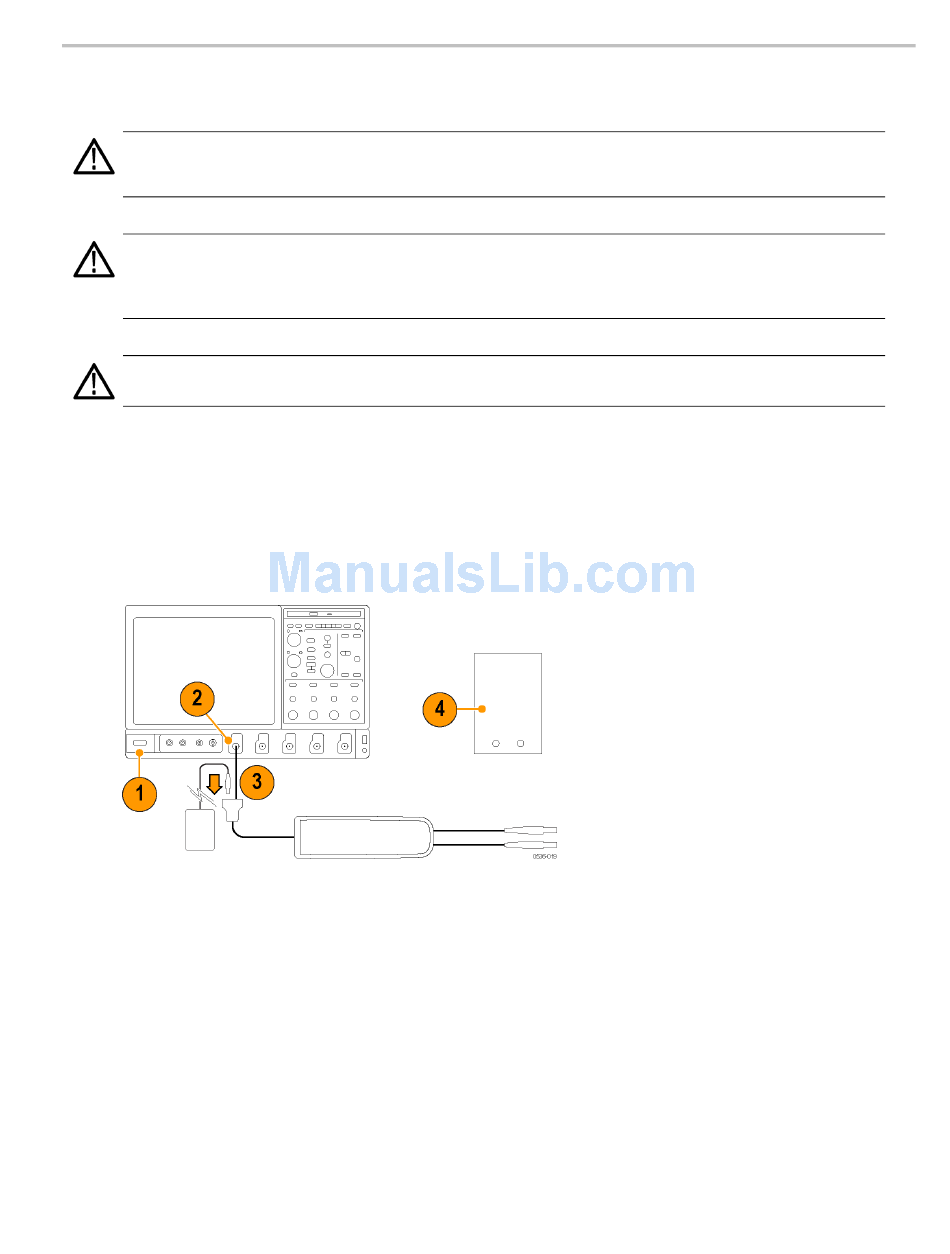

Test Setup
1. Turn on the oscilloscope.
2. Connect the output of the probe to channel 1 of the oscilloscope.
3. If you are testing a P5200A probe, connect the 9 VDC output plug of the AC adapter to the DC input jack of the probe,
and then connect the AC adapter to the correct line voltage.
4. Turn on the generators and let the probe and test equipment warm up for 20 minutes.
P5200A Series High Voltage Differential Probes Instruction Manual
. All pertinent safety rules and guidelines for elevated
rms
Adjustments
44
