Performance Verification

Test Procedures

WARNING. These procedures require the application of high voltage to the inputs of the probes. Only qualified personnel
should perform any testing with voltage levels exceeding 30 V
voltage measurements should be followed and adhered to.

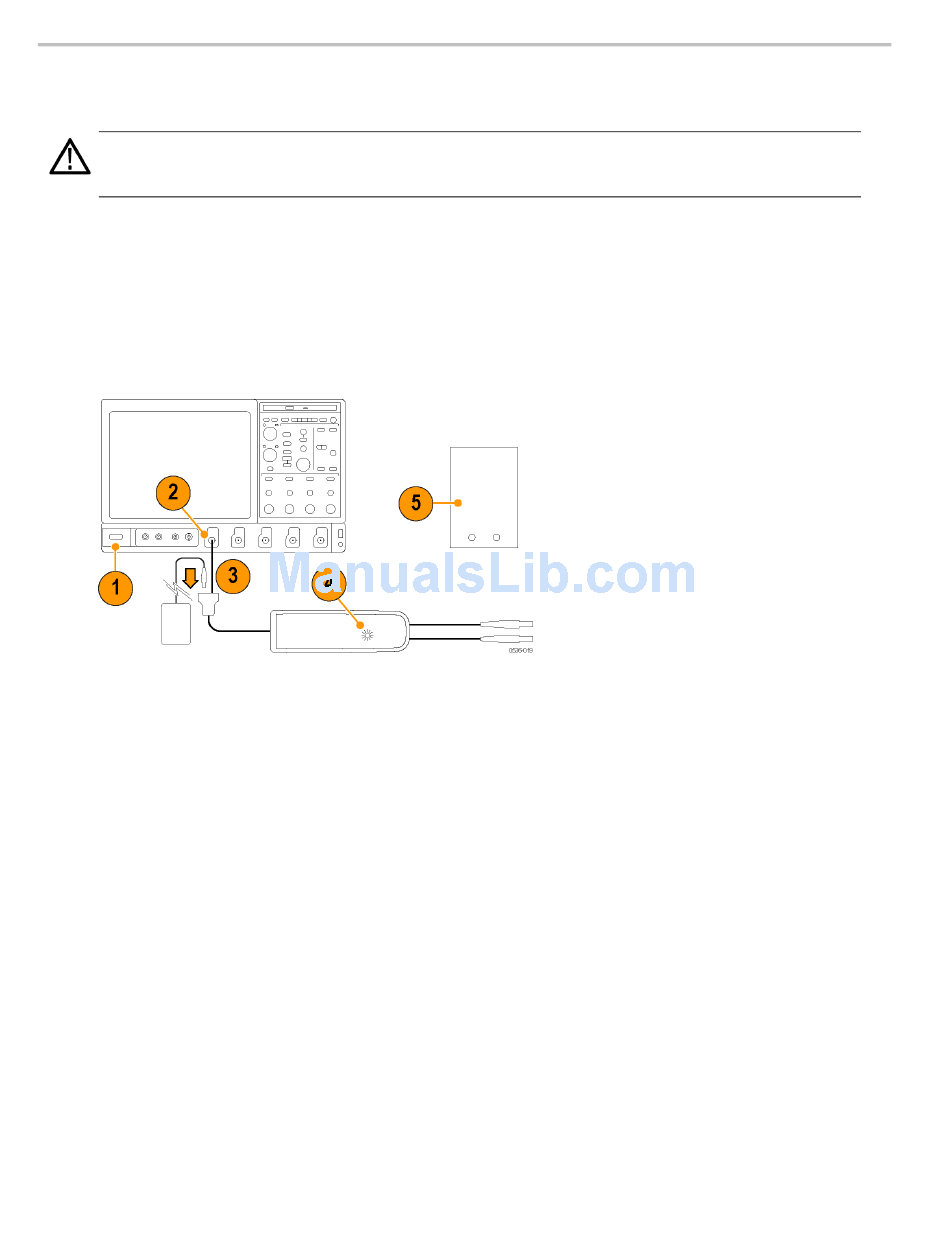

Test Setup
1. Turn on the oscilloscope.
2. Connect the probe to any channel of the oscilloscope (for warm-up). Use the TPA-BNC Adapter if necessary.
3. If you are testing a P5200A probe, connect the 9 VDC output plug of the AC adapter to the DC input jack of the probe,
and then connect the AC adapter to the correct line voltage.
4. Verify that the LEDs light on the probe.
5. Turn on the remaining test equipment and let the probe and equipment warm up for 20 minutes.
6. Make a copy of the test record to tabulate the test results. (See Table 13 on page 40.)
37
. All pertinent safety rules and guidelines for elevated
rms
P5200A Series High Voltage Differential Probes Instruction Manual
