Tektronix P5200A Instruction Manual page 34

Accessories
P5200A Series Probes Optional Accessories
WARNING. To reduce risk of shock or fire, do not exceed either the voltage rating or category ratings of the probe or the
probe accessory, whichever is the lesser of the two. Use only the accessories provided with the probe or the optional
accessories shown below.
To avoid electric shock when using the probe or accessories, keep your fingers behind the finger guard of the probe body and
away from the shaded area shown in the accessory illustrations below.
To avoid electrical shock or fire, make sure the test leads are in good condition. The input leads and extender leads have a
jacket wear indicator which becomes visible if the wire jacket becomes excessively worn. If the wear indicator is visible, do
not use the probe. Contact Tektronix Service for repair or replacement.
To avoid electrical shock or fire, keep the probe body and output cable of the probe away from the circuits being measured.
The probe body and output cable are not intended to be in contact with the circuits being measured.

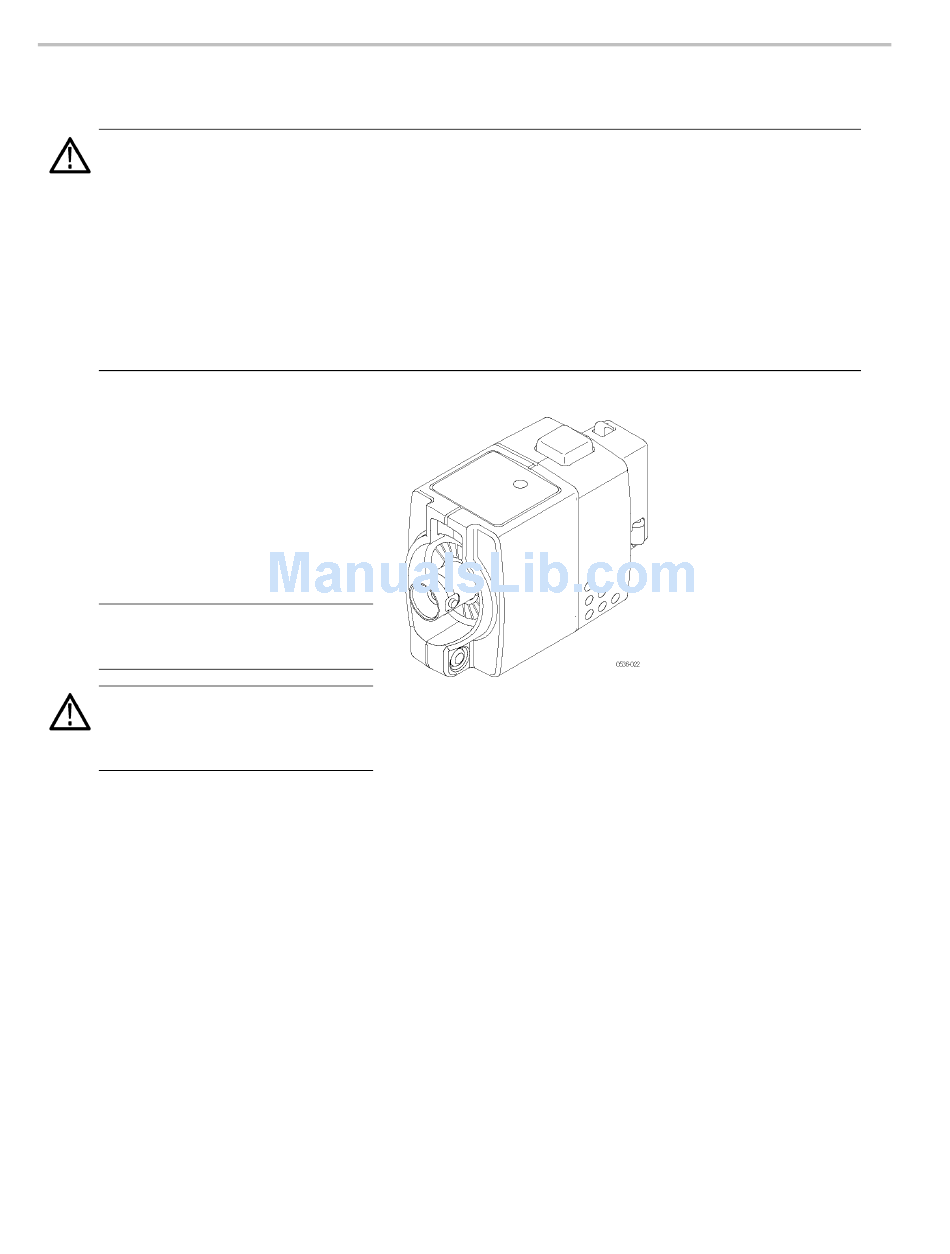

TPA-BNC Adapter
This optional accessory enables you to use
the P5202A, P5205A, and P5210A probes
with oscilloscopes that feature the TekVPI
probe interface.
The TPA-BNC Adapter allows the
oscilloscope to recognize and provide
power and communication to these
TekProbe-interface probes.
NOTE. The P5200A probes connect
directly to the BNC connector on the TekVPI
interface, so they do not require this adapter.
WARNING. To reduce risk of shock or fire,
do not exceed the ratings of the TPA-BNC
adapter. Do not connect the adapter to
voltages above 30 VAC, 42 Vpk, or 60 VDC.
15 P5200A Series High Voltage Differential Probes Instruction Manual
