Accessories

The P5200A Series probes include standard accessories that make connecting to your circuit an easier task. Other
accessories are available and are described in the Optional Accessories section. (See page 15, P5200A Series Probes
Optional Accessories.)

Connecting to the Circuit

Make the connections to your circuit using the integral input leads or the accessories that best fit your application.
WARNING. To reduce risk of shock or fire, do not exceed either the voltage rating or category ratings of the probe or the
probe accessory, whichever is the lesser of the two. Use only the accessories provided with the probe.
To avoid electric shock when using the probe or accessories, keep your fingers behind the finger guard of the probe body and
away from the shaded area shown in the accessory illustrations below.
To avoid electrical shock or fire, make sure the test leads are in good condition. The input leads and extender leads have a
jacket wear indicator which becomes visible if the wire jacket becomes excessively worn. If the wear indicator is visible, do
not use the probe. Contact Tektronix Service for repair or replacement.
To avoid electrical shock or fire, keep the probe body and output cable of the probe away from the circuits being measured.
The probe body and output cable are not intended to be in contact with the circuits being measured.

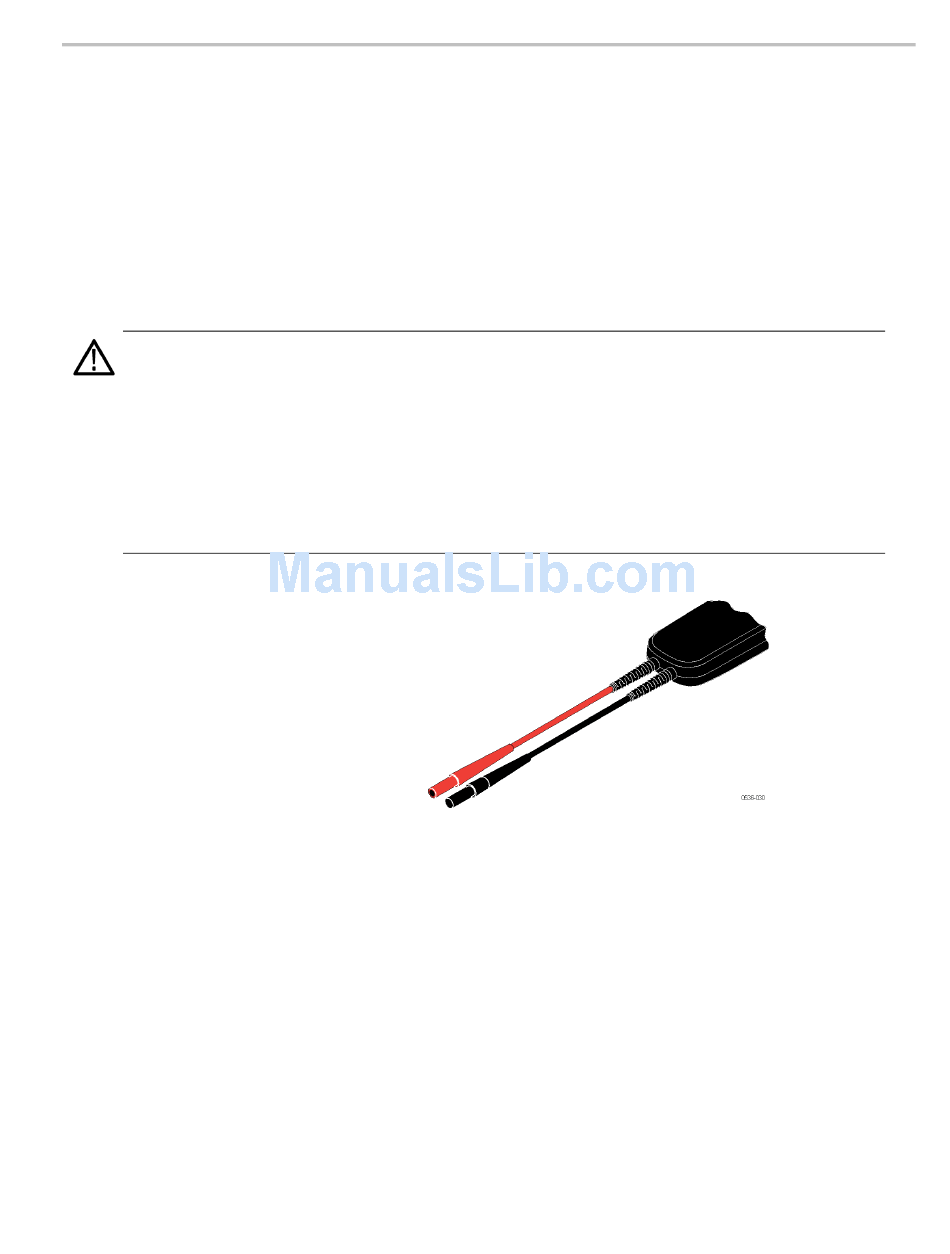

Integral Input Leads
The integral input leads extend ~9 in (0.23 m)
from the probe body and have shrouded
male banana plugs. Connect the leads
directly to your circuit, or use the extender
leads and the other accessories shown on
the following pages.
