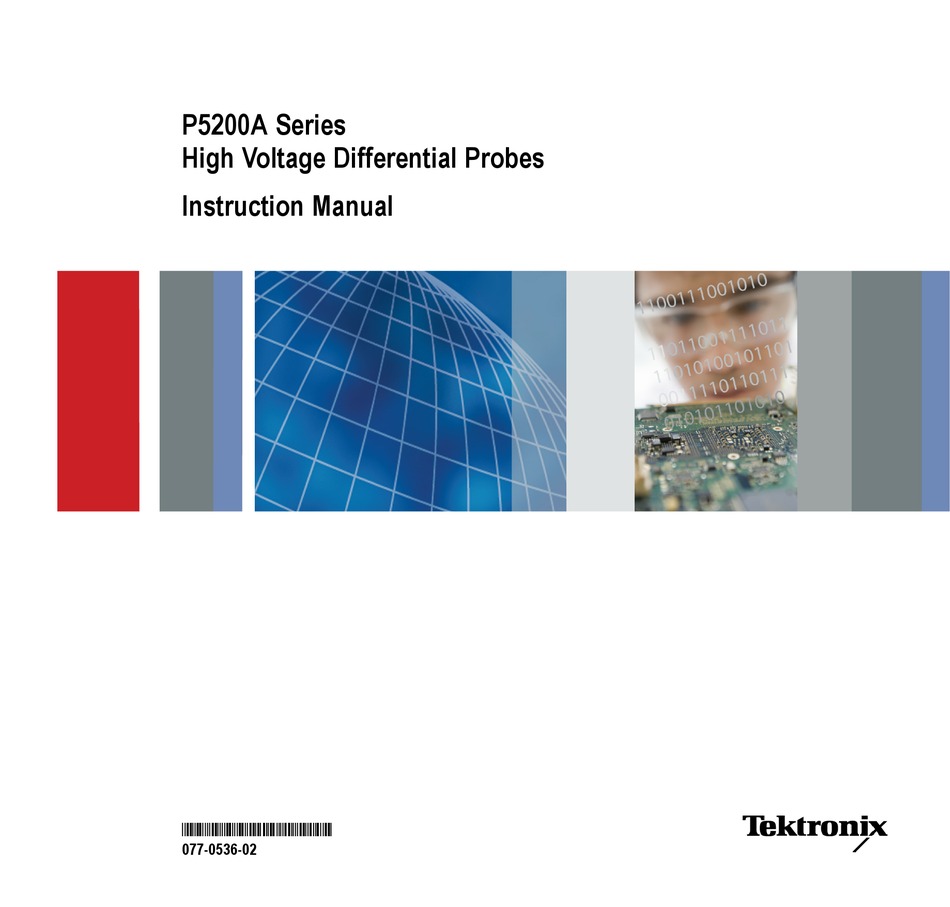

- Page 1 P5200A Series High Voltage Differential Probes Instruction Manual *P077053602* 077-0536-02...
- Page 3 P5200A Series High Voltage Differential Probes Instruction Manual Revision B www.tektronix.com 077-0536-02...
- Page 4 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
- Page 5 Warranty Tektronix warrants that this product will be free from defects in materials and workmanship for a period of one (1) year from the date of shipment. If any such product proves defective during this warranty period, Tektronix, at its option, either will repair the defective product without charge for parts and labor, or will provide a replacement in exchange for the defective product.
-
Page 7: Table Of Contents
Service......................... .. Index P5200A Series High Voltage Differential Probes Instruction Manual... - Page 8 Table of Contents P5200A Series High Voltage Differential Probes Instruction Manual...
-
Page 9: General Safety Summary
Use proper AC adapter. Use only the AC adapter specified for this product. Do not operate in wet/damp conditions. Do not operate in an explosive atmosphere. Keep product surfaces clean and dry. P5200A Series High Voltage Differential Probes Instruction Manual... - Page 10 DANGER indicates an injury hazard immediately accessible as you read the marking. WARNING indicates an injury hazard not immediately accessible as you read the marking. CAUTION indicates a hazard to property including the product. The following symbol(s) may appear on the product: P5200A Series High Voltage Differential Probes Instruction Manual...
-
Page 11: Compliance Information
EMC Compliance EC Declaration of Conformity – EMC (Applies Only to the P5200A Probe) Meets intent of Directive 2004/108/EC for Electromagnetic Compatibility. Compliance was demonstrated to the following specifications as listed in the Official Journal of the European Communities: EN 61326-1:2006, EN 61326-2-1:2006. -
Page 12: Safety Compliance
Pollution Degree 4. Pollution that generates persistent conductivity through conductive dust, rain, or snow. Typical outdoor locations. Pollution Degree Pollution Degree 2 (as defined in IEC 61010-1). Note: Rated for indoor use only. P5200A Series High Voltage Differential Probes Instruction Manual... - Page 13 Measurement Category II. For measurements performed on circuits directly connected to the low-voltage installation. Measurement Category I. For measurements performed on circuits not directly connected to MAINS. Overvoltage Category (AC Adapter) Overvoltage Category II (as defined in IEC 61010-1) P5200A Series High Voltage Differential Probes Instruction Manual...
-
Page 14: Environmental Considerations
This symbol indicates that this product complies with the applicable European Union requirements according to Directives 2002/96/EC and 2006/66/EC on waste electrical and electronic equipment (WEEE) and batteries. For information about recycling options, check the Support/Service section of the Tektronix Web site (www.tek.com). -
Page 15: Preface
Preface Preface This document provides operating information and specifications for the Tektronix P5200A Series high voltage differential probes. The probes share similar functions, properties, and operating procedures, and are discussed in the first part of the manual. The specifications and performance verification procedures for the probes follow. - Page 16 600 V CAT III 1000 V CAT III The P5200A, P5202A & P5205A standard accessories can also be used with the P5210A probe, but only at the reduced voltage levels listed here. P5200A Series High Voltage Differential Probes Instruction Manual...
- Page 17 Preface Figure ii: P5202A High Voltage Differential Probe with accessories P5200A Series High Voltage Differential Probes Instruction Manual...
- Page 18 Preface Figure iii: P5205A High Voltage Differential Probe with accessories P5200A Series High Voltage Differential Probes Instruction Manual...
- Page 19 300 V CAT II 600 V CAT II 1000 V CAT II The P5210A standard accessories can be used with these probes at the reduced voltage levels listed in this table. P5200A Series High Voltage Differential Probes Instruction Manual xiii...
-
Page 20: Probe Operating Information
BNC – this connection is a shielded 50 Ω coaxial cable with an outer ground connection and center signal pin. The BNC interface is used on the P5200A probe, which allows you to connect directly to most ground-referenced oscilloscopes. TekProbe Level 2 – this interface adds probe communications with the oscilloscope to accomplish calibrated offset at the probe tip. -
Page 21: Connecting To The Instrument
4. Adjust the vertical offset (or position) of the measurement instrument input. 5. Select the proper range setting. For example, when using the P5200A probe, to achieve higher resolution and less noise when measuring signals below 130 V , switch the attenuation to 50X. - Page 22 If the wear indicator is visible, do not use the probe. Contact Tektronix Service for repair or replacement. 6. Using the appropriate probe accessories, connect the inputs of the probe to the circuit points to be measured.
- Page 23 1.Turn the probe connector counterclockwise. 2. Pull straight out. P5202A, P5205A, P5210A 1. Turn the probe connector counterclockwise. 2. Pull straight out. 3. Press the latch button on the adapter. 4. Pull straight out. P5200A Series High Voltage Differential Probes Instruction Manual...
-
Page 24: Probe Controls
Probe Operating Information Probe Controls The P5200A Series probes have several features that make probing and measurement a simpler task. Familiarize yourself with the controls shown on the following pages. The attenuation ranges differ between probe models. Overrange Indicator The overrange indicator lights red if the voltage of the input signal exceeds the linear range of the range setting. - Page 25 Press the button to light the ON LED and enable an audible alarm that indicates when the measured signal exceeds the selected range. Press the button again to light the OFF LED and disable the audible feature. P5200A Series High Voltage Differential Probes Instruction Manual...
-
Page 26: Functional Check
Probe Operating Information Functional Check Using accessories that are shipped with your P5200A Series probe and a source that supplies AC line voltage, perform the following procedure. WARNING. To reduce risk of shock or fire, ensure that the accessories are fully mated before you connect to voltage sources above 42 Vpk. -
Page 27: Accessories
Accessories Accessories The P5200A Series probes include standard accessories that make connecting to your circuit an easier task. Other accessories are available and are described in the Optional Accessories section. (See page 15, P5200A Series Probes Optional Accessories.) Connecting to the Circuit Make the connections to your circuit using the integral input leads or the accessories that best fit your application. - Page 28 Maximum ratings: 1000 V CAT III 600 V CAT IV One pair of hook clips is included with the probes. Reorder Tektronix part number: AC280-FL (one pair) P5200A Series High Voltage Differential Probes Instruction Manual...
- Page 29 These large insulated alligator clips connect to many circuit components. Maximum ratings: 1000 V CAT III 600 V CAT IV One pair of clips is included with the probes. Reorder Tektronix part number: AC285-FL (one pair) P5200A Series High Voltage Differential Probes Instruction Manual...
- Page 30 CAT IV circuits. Refer to the ratings tables in the beginning of the manual. (See Table i on page x.) (See Table ii on page xiii.) To avoid risk of electric shock or fire, when using the P5210A test probe or hook tip accessories with the P5200A, P5202A and P5205A probes, do not use on circuits above 1000 V.
- Page 31 Use TASH for probing in hard to reach areas. WARNING. To prevent arc flash, do not use the test probe or hook tips on CAT III circuits. To probe CAT III circuits, use the AC280-FL, AC283-FL, or AC285-FL. P5200A Series High Voltage Differential Probes Instruction Manual...
- Page 32 fingers behind the tactile indicator. Maximum ratings: 2300 V CAT I* 1000 V CAT II * See Specifications for the Over-Voltage Transient (OVT) rating for the probe that you are using. P5200A Series High Voltage Differential Probes Instruction Manual...
- Page 33 Accessories P5200A Probe Power Supply and Power Cord Options The P5200A Probe requires an external DC power supply, which is included with the probe. Power cord options are available for international locations and are listed in the table below. Table 1: P5200A power supply and power cord options...
- Page 34 If the wear indicator is visible, do not use the probe. Contact Tektronix Service for repair or replacement. To avoid electrical shock or fire, keep the probe body and output cable of the probe away from the circuits being measured.
- Page 35 Do not use in the unlocked neutral position. Ratings: 1000 V CAT II 1000 V CAT III 10 A Order Tektronix part number: TP175-FL (one pair) P5200A Series High Voltage Differential Probes Instruction Manual...
- Page 36 Maximum ratings: 150 V CAT II 0.1 A Reorder Tektronix part number: 020-3107-xx (includes 2 Tip Adapters, 2 Cone-Tip Pogo Pins, & 2 Serrated-Tip Pogo Pins) P5200A Series High Voltage Differential Probes Instruction Manual...
- Page 37 The clips screw on to the threaded tips of the handheld probes. Maximum ratings: 1000 V CAT III 10 A One pair of clips is included with the probes. Order Tektronix part number: 344-0670-xx (one pair) P5200A Series High Voltage Differential Probes Instruction Manual...
- Page 38 Accessories Table 2: Voltage derating for P5200A Series probes optional accessories Combined probe and accessory common-mode voltage and input voltage-to-earth ratings Accessory P5202A P5200A & P5205A P5210A Handheld probes 450 V CAT I 1000 V CAT II 1000 V CAT I...
- Page 39 If you are probing circuitry with dense contacts such as IC pins, Tektronix recommends that you use insulated probe tip accessories designed to prevent short-circuiting adjacent IC pins or circuitry. Order Tektronix part number: TPH1000 P5200A Series High Voltage Differential Probes Instruction Manual...
- Page 40 6. Position the probe tips on your test points so that you can set the holder on a stable surface. Order Tektronix part number: THV-Browser P5200A Series High Voltage Differential Probes Instruction Manual...
- Page 41 If the original label becomes damaged or lost, order a replacement label. NOTE. This label is only replaceable on units with serial numbers C020000 and above Order Tektronix part number: 335-2913-xx P5200A Series High Voltage Differential Probes Instruction Manual...
-
Page 42: Options
Option D3. Calibration Data Report, 3 years (with Option C3) Option D5. Calibration Data Report, 5 years (with Option C5) Option R3. Repair Service 3 years Option R5. Repair Service 5 years P5200A Series High Voltage Differential Probes Instruction Manual... -
Page 43: Operating Basics
Operating Basics Operating Basics To help you use the P5200A Series High Voltage Differential Probes safely and effectively, this section provides important information about safety limits, operating characteristics, and probing techniques. Operating Characteristics and Probing Techniques This section explains the operating characteristics of the P5200A Series High Voltage Differential Probes and includes techniques that you can use to maximize the performance of the probe. - Page 44 If both waveforms are at the same voltage potential, then the differential measurement would be 2 times the individual signal inputs (in this example, 2000 V ). Looking at the maximum measurable differential voltage specifications for the P5200A Series probes, the P5210A probe is capable of measuring this signal. (See Table 6 on page 29.) For reference, the rms values of the Common-Mode Voltage and Voltage-to-Earth ratings and Maximum Input Signals for each probe model are shown in the figure above.
- Page 45 P5200A and P5205A probes, so you must use the P5210A. Figure 3: Measuring two equal-amplitude waveforms that are 120 degrees out of phase In these examples with equal-amplitude signals on the inputs, the P5200A and P5205A probes can measure up to 1300 V/2 = 650 V (460 V ) on each input when the signals are 180°...
- Page 46 The lower the impedance of the probe relative to that of the source, the more the probe loads the circuit under test. For a graph of frequency versus input impedance, refer to the Specifications section. As the graph shows, the probes have virtually no loading effect on sources with relatively low impedance and low frequency. P5200A Series High Voltage Differential Probes Instruction Manual...
-
Page 47: Specifications
Specifications Specifications The specifications shown apply to the P5200A Series probes installed on Tektronix MSO/DSO4000 oscilloscopes. When a probe is used with another oscilloscope, the oscilloscope must have an input impedance of 1 MΩ and a bandwidth equal to or greater than the probe. The probe must have a warm-up period of at least 20 minutes and be in an environment that does not exceed the limits described. -
Page 48: Typical Specifications
Applies to CAT I ratings only. The OVT peak is typically measured on top of the Peak Working Voltage. Figure 4: Specification table footnotes referring to the probe input limits shown on each probe label P5200A Series High Voltage Differential Probes Instruction Manual... - Page 49 AC adapter (P5200A only) — — — Input voltage 100 - 240 VAC — — — Frequency 50 - 60 Hz — — — Output voltage and 9 VDC/ 2 A current P5200A Series High Voltage Differential Probes Instruction Manual...
-
Page 50: Nominal Specifications
+ input lead while the – input lead is grounded (by taking a single-ended measurement). P5200A Series High Voltage Differential Probes Instruction Manual... -
Page 51: Performance Graphs
Specifications Performance Graphs Figure 5: P5200A Series impedance plots Figure 6: P5200A and P5205A voltage derating curves P5200A Series High Voltage Differential Probes Instruction Manual... - Page 52 Specifications Figure 7: P5202A voltage derating curve Figure 8: P5210A voltage derating curve P5200A Series High Voltage Differential Probes Instruction Manual...
- Page 53 Specifications Figure 9: P5200A rise time (typical) Figure 10: P5202A rise time (typical) P5200A Series High Voltage Differential Probes Instruction Manual...
- Page 54 Specifications Figure 11: P5205A rise time (typical) Figure 12: P5210A rise time (typical) P5200A Series High Voltage Differential Probes Instruction Manual...
-
Page 55: Performance Verification
Performance Verification Use the following procedures to verify the warranted specifications of the P5200A Series probes. Before beginning these procedures, photocopy the test record and use it to record the performance test results. (See Table 13 on page 40.) The recommended calibration interval is one year. -
Page 56: Test Procedures
2. Connect the probe to any channel of the oscilloscope (for warm-up). Use the TPA-BNC Adapter if necessary. 3. If you are testing a P5200A probe, connect the 9 VDC output plug of the AC adapter to the DC input jack of the probe, and then connect the AC adapter to the correct line voltage. - Page 57 1. Verify that the generator output is off. 2. If you are testing a P5200A probe, connect the probe output directly to the DMM through a BNC-to-male banana jack adapter. Otherwise, connect the probe to the DMM through the Tektronix 1103 power supply.
- Page 58 8. Set the probe attenuation to the next range and adjust the vertical volts/div to display the signal. 9. Record the rise time in the test record and disable the generator output. P5200A Series High Voltage Differential Probes Instruction Manual...
- Page 59 P5200A 7 ns — 500X 7 ns — P5202A 3.5 ns — 200X 3.5 ns — P5205A 3.5 ns — 500X 3.5 ns — P5210A 100X 7 ns — 1000X 7 ns P5200A Series High Voltage Differential Probes Instruction Manual...
-
Page 60: Adjustments
Adjustments Adjustments Use the following procedures to make adjustments to the P5200A Series probes. (For probes with serial numbers C019999 and below, see note and table that follow.) These procedures describe how to make adjustments to the specifications listed below. - Page 61 Adjustments Figure 13: P5200A Series probe serial number and adjustment locations P5200A Series High Voltage Differential Probes Instruction Manual...
-
Page 62: Equipment Required
These procedures require you to remove a reusable label from the back of the probe. You must replace the label after you complete the probe adjustments. Failure to do so may subject the user to high voltages present in the probe during measurements. P5200A Series High Voltage Differential Probes Instruction Manual... -
Page 63: Adjustment Procedures
2. Connect the output of the probe to channel 1 of the oscilloscope. 3. If you are testing a P5200A probe, connect the 9 VDC output plug of the AC adapter to the DC input jack of the probe, and then connect the AC adapter to the correct line voltage. - Page 64 Adjustments Offset Zero This procedure is identical for three of the probes. The fourth probe (P5200A) only uses a digital control for offset, so there is no hardware adjustment. For probes with serial numbers C199999 and below, Offset Zero is the only adjustment that can be done to the probe.
- Page 65 Only probes with serial numbers C020000 and above have internal adjustments. (See Figure 14.) Probes with serial numbers C019999 and below that require adjustments (other than offset zero) must be returned to Tektronix for service. 1. Remove the reusable back-panel label shown below to gain access to the adjustments. Store the label in a safe place to preserve the adhesive backing for reuse.
- Page 66 1. Verify that the generator output is off. 2. If you are adjusting a P5200A probe, connect the probe output directly to the DMM through a BNC-to-male banana jack adapter. Otherwise, connect the probe to the DMM through the Tektronix 1103 power supply. Set the DMM to AC volts.
- Page 67 500 mV ±10 mV 500X 75 V 100 Hz 150 mV ±3 mV P5210A 100X 75 V 100 Hz 750 mV ±15 mV 1000X 75 V 100 Hz 75 mV ±1.5 mV P5200A Series High Voltage Differential Probes Instruction Manual...
- Page 68 Use averaging or hi-res filters to make viewing the 40 Hz signal easier. WARNING. Use only an insulated tool to make the adjustment. Failure to do so presents a potential shock hazard. 8. Disable the generator output. P5200A Series High Voltage Differential Probes Instruction Manual...
- Page 69 Voltage (p-p) Frequency P5200A 353.53 V 1000 V 40 Hz P5202A 200 V 566 V 40 Hz P5205A 353.53 V 1000 V 40 Hz P5210A 100X 353.53 V 1000 V 40 Hz P5200A Series High Voltage Differential Probes Instruction Manual...
- Page 70 P5202A probe.) Repeat this sequence as necessary to optimize the square-wave response. WARNING. Use only an insulated tool to make the adjustment. Failure to do so presents a potential shock hazard. P5200A Series High Voltage Differential Probes Instruction Manual...
- Page 71 Table 18: LF compensation test equipment settings Probe Generator fast-rise output Model Range Voltage (p-p) Frequency P5200A 50 V 10 kHz P5202A 50 V 10 kHz P5205A 50 V 10 kHz P5210A 100X 50 V 10 kHz P5200A Series High Voltage Differential Probes Instruction Manual...
- Page 72 +LF, long-term +LF, long-term +LF*. (The long-term +LF* adjustment is not used in the P5202A probe.) WARNING. Use only an insulated tool to make the adjustment. Failure to do so presents a potential shock hazard. 8. Disable the generator output. P5200A Series High Voltage Differential Probes Instruction Manual...
- Page 73 Generator sine wave output Model Range Voltage (p-p) Frequency P5200A 297 V 100 kHz P5202A 297 V 100 kHz P5205A 297 V 100 kHz P5210A 100X 297 V 100 kHz This completes the adjustment procedures. P5200A Series High Voltage Differential Probes Instruction Manual...
-
Page 74: Troubleshooting
Disconnect the probe from the oscilloscope, power-cycle the oscilloscope, and then reconnect the probe. Connect the probe to a different oscilloscope. If the symptoms remain (they follow the probe), then the probe is defective and must be returned to Tektronix for repair. Signal Display If the probe is connected to an active signal source and you do not see the signal displayed on the oscilloscope: Check that the probe accessories that you are using are fully mated. -
Page 75: Cleaning
Service There are no user-serviceable parts in the P5200A Series probes. If your probe requires service, contact your Tektronix service representative or repair center for instructions on returning your probe for repair. - Page 76 Troubleshooting P5200A Series High Voltage Differential Probes Instruction Manual...
- Page 77 Disconnecting from the Operating limits, 24 Test record, 40 instrument, 4 Options THV-Browser, 21 P5200A Probe power supply & TPA-BNC adapter, 1 cords, 14 TPH1000 probe holder, 20 Oscilloscope interface, 1 Troubleshooting, 55 P5200A Series High Voltage Differential Probes Instruction Manual...
