Tektronix P5200A Instruction Manual page 57

Gain Accuracy
WARNING. Dangerous voltages will be present on the calibration generator output terminals and connection cables. Always
verify that the generator is in the standby mode before you make any connections to the generator.
The equipment and equipment settings for this test differ between probes. Refer to the table for specific settings for the
probe that you are testing.
1. Verify that the generator output is off.

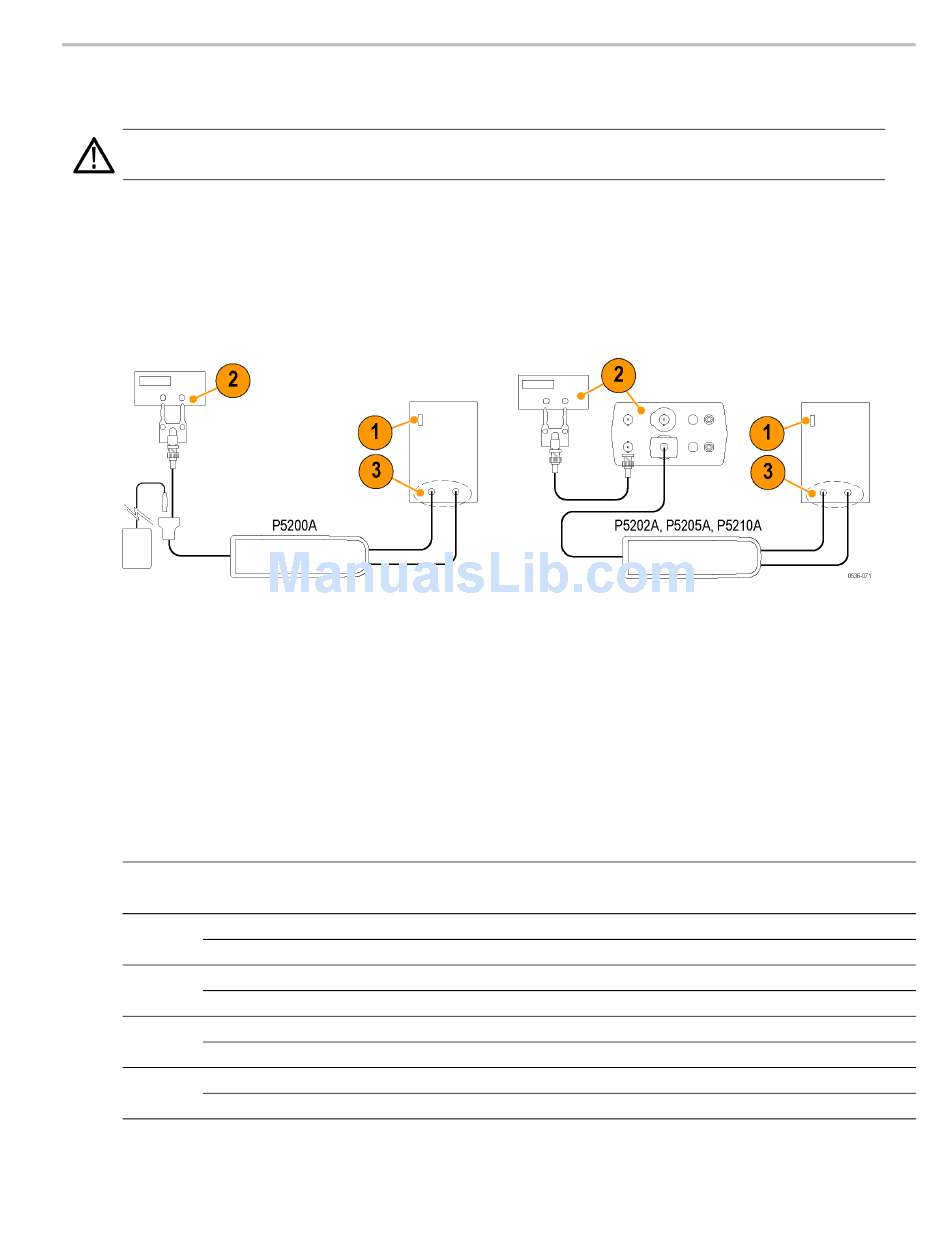

2. If you are testing a P5200A probe, connect the probe output directly to the DMM through a BNC-to-male banana jack
adapter. Otherwise, connect the probe to the DMM through the Tektronix 1103 power supply.
3. Connect the probe inputs to the front outputs of the generator. Set the DMM to AC volts.
4. Set the probe attenuation to the lower range for the probe that you are testing. (See Table 11.)
5. Set the generator square wave output frequency and RMS voltage (on the main display) to the values shown in the table
for the probe that you are testing.
6. Enable the generator output and record the probe output (as displayed on the DMM) in the test record.
7. Disable the generator output.
8. Set the probe attenuation to the next range and then repeat steps 5 through 7.
Table 11: Gain accuracy equipment settings
Probe
Model Range
P5200A 50X
500X
P5202A 20X
200X
P5205A 50X
500X
P5210A 100X
1000X
P5200A Series High Voltage Differential Probes Instruction Manual
Generator output
Voltage (rms) Frequency
25 V 100 Hz
75 V 100 Hz
20 V 100 Hz
60 V 100 Hz
25 V 100 Hz
75 V 100 Hz
75 V 100 Hz
75 V 100 Hz
Performance Verification
Probe output
Expected (rms) Measured (rms)
500 mV ±10 mV
150 mV ±3 mV
1.0 V ±20 mV
300 mV ±6 mV
500 mV ±10 mV
150 mV ±3 mV
750 mV ±15 mV
75 mV ±1.5 mV
38
