UM2036
7.4

Camera module connector CN4

Pin number
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

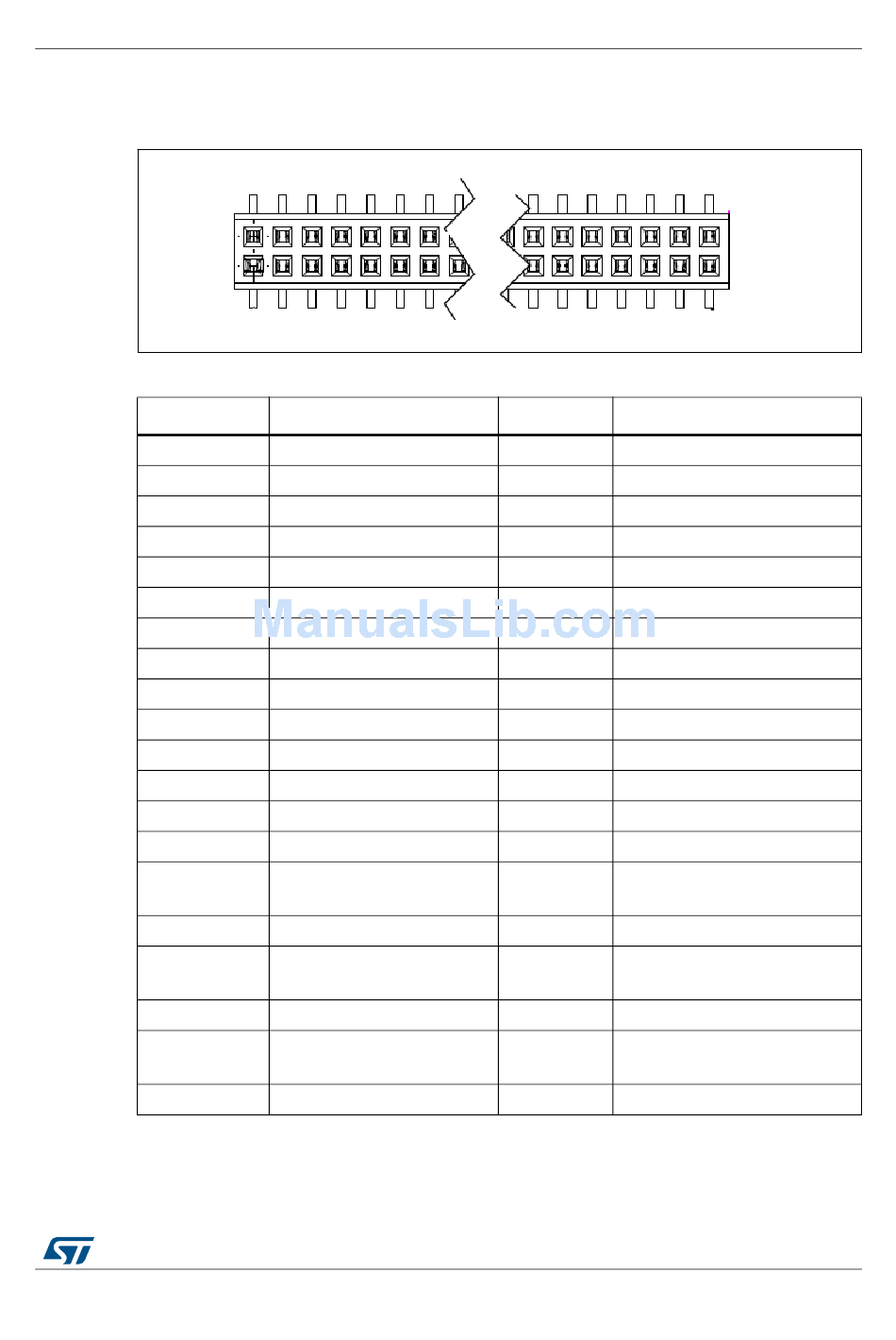

Figure 11. Camera module connector CN4 (Top view)

Table 20. Camera module connector CN4

Description
+1.8V
+1.8V
GND
GND
D10 (PD6)
D11 (PD2)
GND
GND
D8 (PC10)
D9 (PC12)
GND
GND
I2C1_SCL (PB8)
I2C1_SDA (PB9)
Camera_PLUG
(MFX GPIO12)
GND
RST IN
(MFX GPIO11)
Test point 7
XSDN
(MFX GPIO0)
Camera clock
DocID029088 Rev 3
Pin number
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
Connectors
Description
GND
GND
D0 (PC6)
D1 (PC7)
D2 (PC8)
D3 (PC9)
D4 (PC11)
D5 (PD3)
D6 (PE5)
D7 (PE6)
HSYNC (PA4)
VSYNC (PB7)
PCLK (PA6)
Test point8
Test point11
Test point10
GND
GND
+2.8V
+2.8V
33/80
