Hardware layout and configuration
Jumper
JP20
16/80
Table 2. Power-supply-related jumper settings (continued)

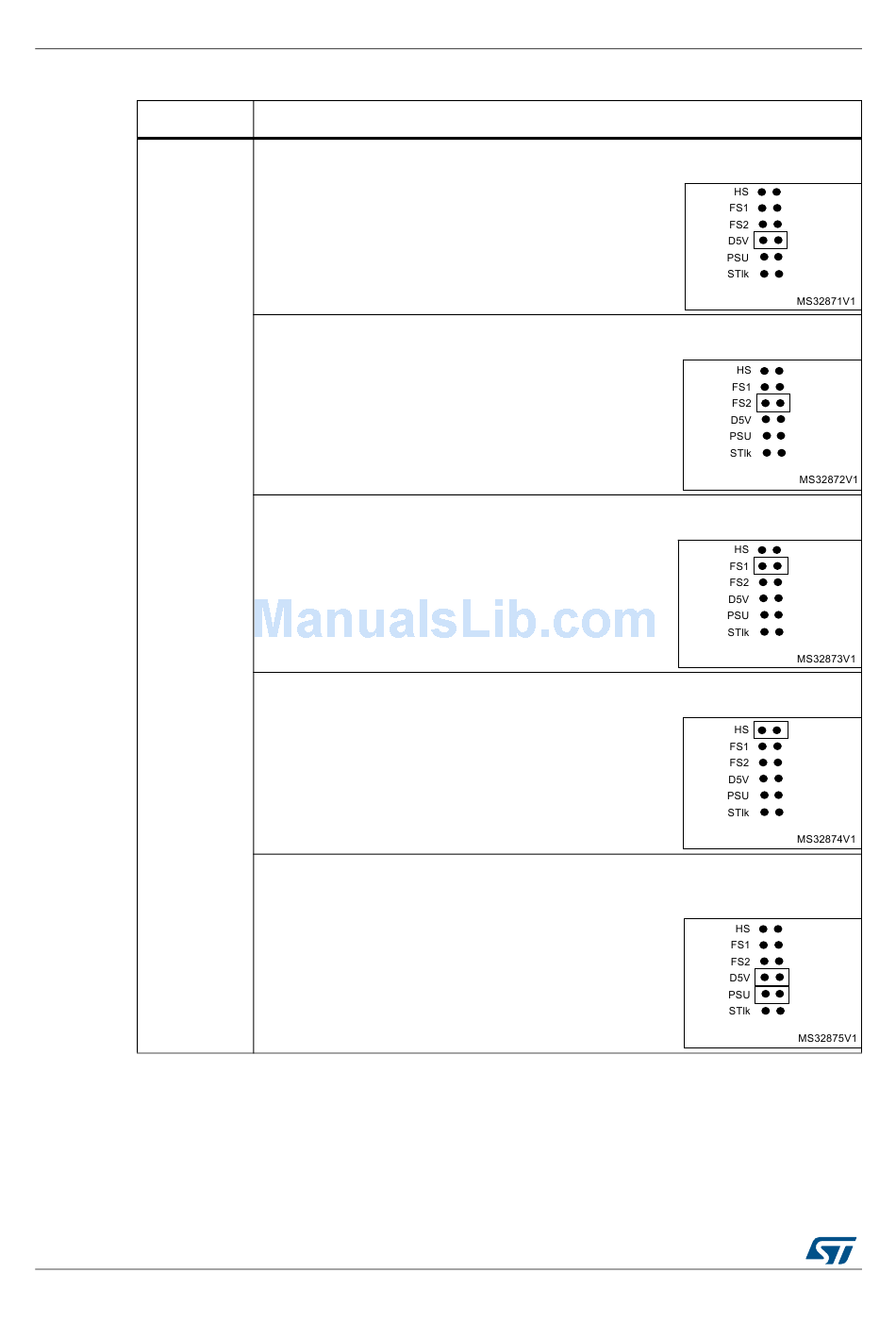

STM32F779I-EVAL is supplied from the daughterboard connectors (CN5 and CN6)
when JP20 is set as shown on the right:
STM32F779I-EVAL is supplied from the USB OTG2 FS (CN14),when JP20 is set as
shown on the right:
STM32F779I-EVAL is supplied from the USB OTG1 FS (CN13), when JP20 is set
as shown on the right:
STM32F779I-EVAL is supplied from the USB OTG2 HS (CN8) when JP20 is set as
shown to the right:
STM32F779I-EVAL is supplied from power supply jack (CN19) and daughterboard
connected on CN5 and CN6, when JP20 is set as shown on the right
(daughterboard must not have its own power supply connected).
