MEMS microphone coupon connectors CN24 and CN25

Figure 22. MEMS microphone coupon connectors CN24 and CN25 (Top view)

Pin number
1
2
3

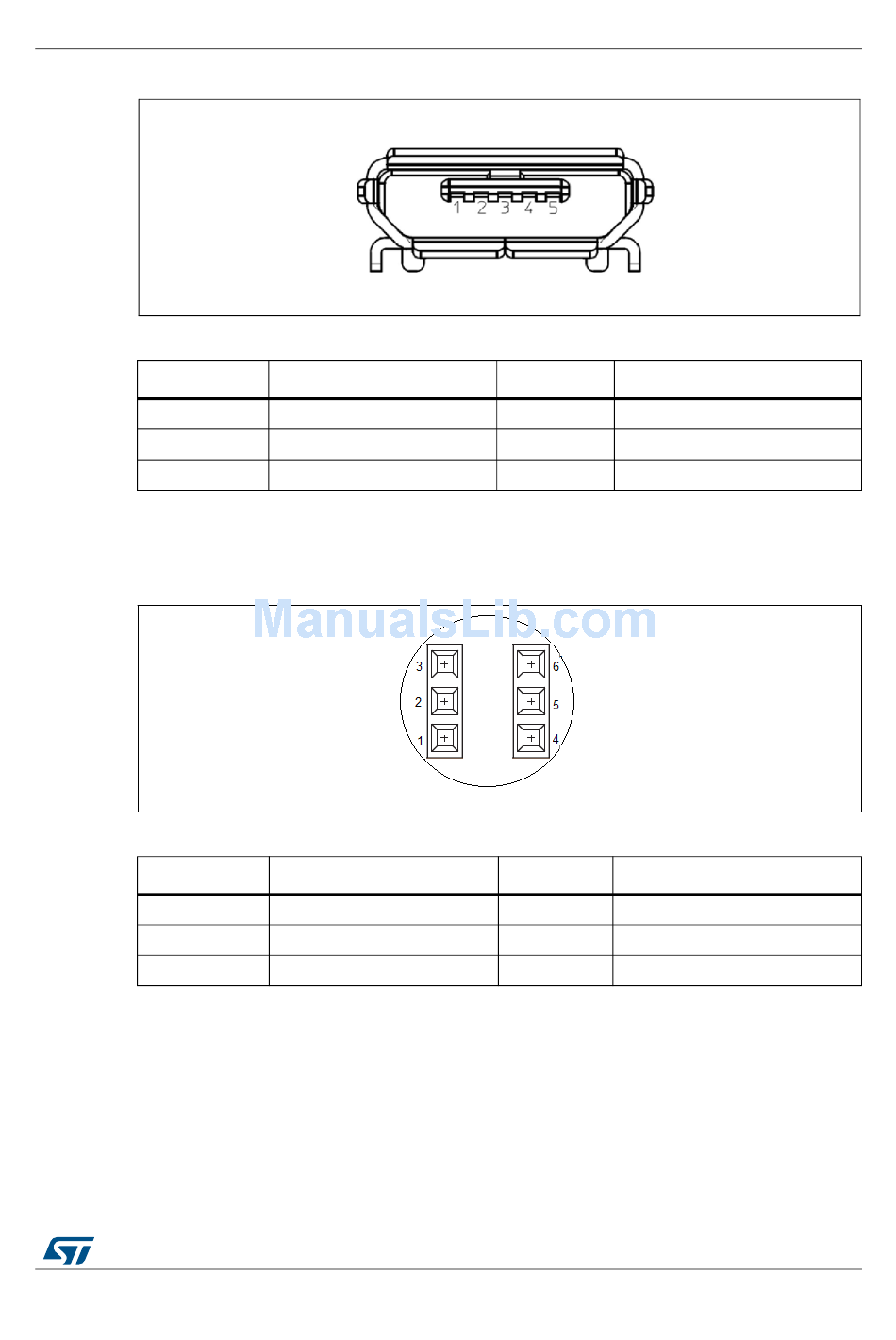

Figure 21. USB Micro-B connector (Front view)

Table 34. USB Micro-B connector CN22

Description
VBUS (power)
DM
DP

Table 35. MEMS microphone coupon connectors CN24 and CN25

Description
DATA
GND
CLK
DocID029088 Rev 3
Pin number
4
5
6,7,8,9,10,11
Pin number
4
5
6
Connectors
Description
ID
GND
Shield
Description
VDD
L/R
NC
