Introduction
The STM32F207IFT6 evaluation board
STM3220F-EVAL is designed as complete
development platform for STMicroelectronic's
ARM Cortex-M3 core-based STM32F207IFT6
microcontroller with digital camera module
interface, High speed USB OTG, Full speed
USB OTG, Ethernet MAC, FSMC interface, two
channels of CAN2.0A/B compliant interface, 2
channels I2S, 3 channels I2C, 6 channels
USART with smart card support, 3 channels SPI,
SDIO, 3 ADC, 2 DAC, internal 128KB SRAM
and 1MB Flash, JTAG&SWD debugging
support.
The full range of hardware features on the
board is able to help you evaluate all
peripherals (USB OTG HS, USB OTG FS,
Ethernet, Motor Control, CAN, MicroSD card,
Smart card, USART, Audio DAC, RS232, IrDA,
PSRAM, OneNAND, MEMS, EEPROM... etc.)
and develop your own applications. Extension
headers make it possible to easily connect a
daughter board or wrapping board for your
specific application.
Features
Four 5V power supply options: Power jack, USB FS connector, USB HS connector or
daughter board.
Boot from User Flash, System memory or SRAM.
I2S Audio DAC, stereo audio jack.
1GByte or more MicroSD card.
Both type A&B Smart card support.
I2C compatible serial interface 64KBit EEPROM, MEMS and IO Expander.
RS232 communication.
IrDA transceiver.
USB OTG HS and FS with Micro-AB connector.
IEEE-802.3-2002 compliant Ethernet connector.
Camera module
4Mbit PSRAM
512Mbit OneNAND
Two channels of CAN2.0A/B compliant connection.
Inductor Motor Control connector.
U
STM3220F-EVAL
Evaluation Board

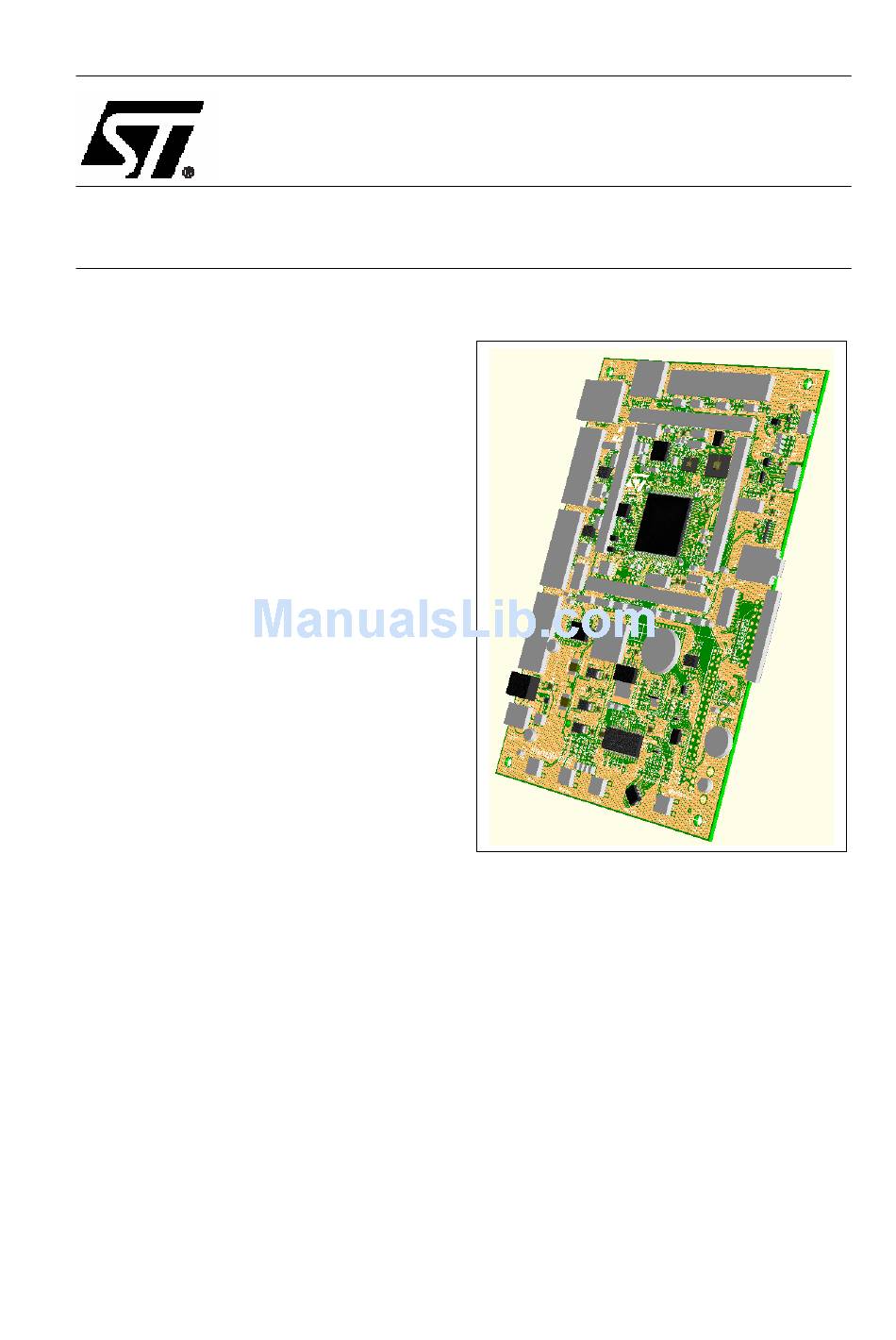

Figure 1:
STM3220F-EVAL evaluation board
UMxxxx
ser Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STM3220F-EVAL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ST STM3220F-EVAL

  • Page 1 Evaluation Board Figure 1: STM3220F-EVAL evaluation board Introduction The STM32F207IFT6 evaluation board STM3220F-EVAL is designed as complete development platform for STMicroelectronic’s ARM Cortex-M3 core-based STM32F207IFT6 microcontroller with digital camera module interface, High speed USB OTG, Full speed USB OTG, Ethernet MAC, FSMC interface, two channels of CAN2.0A/B compliant interface, 2...
  • Page 2 STM3220F-EVAL Board ■ JTAG ,SW and Trace Debug support. ■ 3.2” 240x320 TFT color LCD with touch screen. ■ Joystick with 4-direction control and selector. ■ Reset, Wakeup, Tamper and User button. ■ 4 color LEDs. ■ RTC with backup battery.
  • Page 3: Table Of Contents

    2.15 TFT LCD connector CN19 ..................27 2.16 Smart card connector CN20..................27 3. Known limitations and bugs on PCB rev A................28 4. Schematic ..........................29 Appendix A STM3220F-EVAL IO Assignment ................ 49 Appendix B Document Revision History.................. 53 Qing SHAO Page 3...
  • Page 4: Hardware Layout And Configuration

    STM3220F-EVAL Board 1. Hardware Layout and configuration The STM3220F-EVAL evaluation board is designed around the STM32F207IFT6 in 176-pin TQFP package. The hardware block diagram Figure 2 illustrates the connection between STM32F207IFT6 and peripherals (Camera module, LCD, PSRAM, OneNAND, EEPROM, MEMS, USART, IrDA, USB OTG HS, USB OTG FS, Ethernet, Audio, CAN bus, Smart card,...
  • Page 5 STM3220F-EVAL Board Figure 3: STM3220F-EVAL Evaluation board layout CN17 Motor control CN1-CN4 Extension header MicroSD card RJ45 connector USB OTG FS STM32F207IFT6 USB OTG HS CN10 CAN2 IrDA CN11 Audio Jack CN12 CAN1 CN13 Trace CN14 JTAG CN16 USART3 CN19...
  • Page 6: Power Supply

    STM3220F-EVAL Board 1.1 Power Supply STM3220F-EVAL evaluation board is designed to be powered by 5V DC power supply and to be protected by PolyZen from wrong power plug-in event. It’s possible to configure the evaluation board to use any of following Four sources for the power supply.
  • Page 7: Boot Option

    JP16 need to be re-configured to open for MCU power consumption measurement. Default setting: Fitted The LED LD9 is lit when the STM3220F-EVAL evaluation board is powered by the 5V correctly. 1.2 Boot Option The STM3220F-EVAL evaluation board is able to boot from: ■...
  • Page 8: Clock Source

    X4, 25MHz Crystal with socket for STM32F207IFT6 Microcontroller, it can be removed from socket when internal RC clock is used. 1.4 Reset Source The reset signal of STM3220F-EVAL evaluation board is low active and the reset sources include: ■ Reset button B1 ■...
  • Page 9 STM3220F-EVAL Board Table 6 CAN1 related Jumpers Jumper Description CAN1 transceiver is working in standby mode when JP12 is set as shown to the right: 1 2 3 CAN1 transceiver is working in high-speed mode when JP12 is set as...
  • Page 10: Rs232 & Irda

    RS232. 1.9 Motor Control STM3220F-EVAL evaluation board supports three-phase brushless motor control via a 34- pins connector CN17, which provides all required control and feedback signals to and from motor power-driving board. Available signals on this connector includes emergency stop, motor speed, 3 phase motor current, bus voltage, Heatsink temperature coming from the motor driving board and 6 channels of PWM control signal going to the motor driving circuit.
  • Page 11: Smart Card

    Note: MicroSD card must be removed from CN6 for Motor control application. 1.10 Smart Card STMicroelectronics Smart card interface chip ST8024 is used on STM3220F-EVAL board for asynchronous 3V and 5V smart cards. It performs all supply protection and control functions...
  • Page 12: Microsd Card

    Description of JP22 is in chapter 1.8 RS232 & IrDA. 1.12 MEMS A ST MEMS device LIS302DL is connected to I2C1 bus of STM32F207IFT6 on the board. 1.13 Analog Input One BNC connectors CN17 is connected to PF8 of STM32F207IFT6 as external analog input when Motor control connector is not used.
  • Page 13: Usb Otg Fs

    USB connection at 5V DC with 500mA current limitation. The LED LD6 will be light when power switch (U1) is ON and STM3220F-EVAL works as a USB host or if VBUS is powered by another USB host when STM3220F-EVAL works as a USB device.
  • Page 14: Usb Otg Hs

    VBUS. The evaluation board can be powered by this USB connector (CN9) at 5V DC with 500mA current limitation. The LED LD7 will be light when power switch (U4) is ON and STM3220F-EVAL works as a USB host or if VBUS is powered by another USB host when STM3220F-EVAL works as a USB device.
  • Page 15: Idd Measurement And Comparator

    PD13 FSMC_D11 IO expander 1.21 IDD measurement and comparator For IDD measurement the circuit below is implemented on STM3220F-EVAL. Figure 4: STM3220F-EVAL IDD measurement circuit In Run mode, IDD current is measured thanks to TSC101BILT (U14) connected to the 1ohm shunt resistor.
  • Page 16 STM3220F-EVAL Board Halt mode IDD measurement timing R u n W ake-up ID D Measu re C lear C N T H alt MC U mo de 150mS 300mS 450mS ID D_C N T_EN (PI8) Q13= L OW _POW ER _EN...
  • Page 17: Connector

    STM3220F-EVAL evaluation board. All total GPI/Os are available on it. Each pin on CN1,2,3 and CN4 can be used by a daughter board after disconnecting it from the corresponding function block on STM3220F-EVAL evaluation board. Please refer to table table 20 for detail.
  • Page 18 Remove R18 erSwitchOn APP_3V3 Table 18 Daughter board extension connector CN2 Description Alternative How to disconnect with function block Function on STM3220F-EVAL board ULPI_D0 ULPI_CLK Can not be used on daughter board MII_RX_DV Remove RS2, JP8 open MII_RXD1 Remove RS2 ULPI_D1...
  • Page 19 Remove camera module from CN15 Disconnect Motor Control board from CN5 Table 19 Daughter board extension connector CN3 Description Alternative How to disconnect with function block Function on STM3220F-EVAL board I2S_CK PH15 SmartCard_3/5 Disconnect Motor Control board from CN5 V & MC PH13 MicroSDCard_ Remove MicroSD card from CN6 defect &...
  • Page 20 Table 20 Daughter board extension connector CN4 Description Alternative How to disconnect with function block Function on STM3220F-EVAL board DCMI_D6 & Remove camera module from CN15 Disconnect Motor Control board from CN5 DCMI_D5 & Remove camera module from CN15 JP4 open FSMC_BL0 MII_TXD3 &...
  • Page 21: Motor Control Connector Cn5

    STM3220F-EVAL Board FSMC_A14 FSMC_D3 & JP14 open CAN1_TX PC12 MicroSDCard_ Remove MicroSD card from CN6 PC10 MicroSDCard_ Remove MicroSD card from CN6 D2 & RS232/IrDA_T PA14 TCK/SWCLK I2S_DIN Note: The 0ohm resister will added on PCB rev.B for PI11(ULPI_DIR), PA5(ULPI_CLK) &...
  • Page 22: Microsd Connector Cn6

    STM3220F-EVAL Board temperature PFC SYNC PH10 and PH11 VDD_Micro PFC PWM PH12 Encoder A Encoder B PD13 Encoder Index 2.3 MicroSD connector CN6 Figure 7 MicroSD connector CN6 Viewed from front Table 22 MicroSD connector CN6 Pin number Description Description...
  • Page 23: Usb Otg Fs Micro-Ab Connector Cn8

    STM3220F-EVAL Board Table 23 RJ45 connector CN7 Pin number Description Description number TxData+ TxData- RxData+ Shield Shield RxData- Shield Shield 2.5 USB OTG FS Micro-AB connector CN8 Figure 9 USB OTG FS Micro-AB connector CN8 Viewed from front Table 24...
  • Page 24: Can D-Type 9-Pins Male Connector Cn10(Can2) & Cn12(Can1)

    CANL 3,5,6 2.8 Audio connector CN11 A 3.5mm Stereo audio jack CN11 with plug-detection feature connected to audio DAC is available on STM3220F-EVAL board. 2.9 Trace debugging connector CN13 Figure 12 Trace debugging connector CN13 19 17 15 13 11 9 7 5...
  • Page 25: Jtag Debugging Connector Cn14

    STM3220F-EVAL Board 2.10 JTAG debugging connector CN14 Figure 13 JTAG debugging connector CN14 19 17 15 13 11 9 7 5 20 18 16 14 12 10 8 6 Viewed from above PCB Table 28 JTAG debugging connector CN14 Pin number...
  • Page 26: Rs232 Connector Cn16

    Analog input PF8 2.14 Power connector CN18 Your STM3220F-EVAL evaluation board can be powered from a DC 5V power supply via the external power supply jack (CN18) shown in Figure17. The central pin of CN18 must be positive. Figure 17...
  • Page 27: Tft Lcd Connector Cn19

    STM3220F-EVAL Board DC +5V Viewed from front 2.15 TFT LCD connector CN19 One 34-pin male header CN19 is available on the board to connect LCD module board MB785. Please refer to chapter 1.20 for detail. 2.16 Smart card connector CN20...
  • Page 28: Known Limitations And Bugs On Pcb Rev A

    STM3220F-EVAL Board 3. Known limitations and bugs on PCB rev A • When using MB760 adapter to connect the board to the STice some precautions need to be considered to avoid short-circuits between MB760 PCB and the daughter boards connectors CN2, CN3 and CN4 pins. An adhesive strip on bottom side of MB760 used as isolation may be damaged when the MB687 (flexPCB) is plugged on MB760 J2 connector.
  • Page 29: Schematic

    STM3220F-EVAL Board 4. Schematic Qing SHAO Page 29 03/06/2009...
  • Page 30 STM3220F-EVAL Board Qing SHAO Page 30 03/06/2009...
  • Page 31 STM3220F-EVAL Board Qing SHAO Page 31 03/06/2009...
  • Page 32 STM3220F-EVAL Board Qing SHAO Page 32 03/06/2009...
  • Page 33 STM3220F-EVAL Board Qing SHAO Page 33 03/06/2009...
  • Page 34 STM3220F-EVAL Board Qing SHAO Page 34 03/06/2009...
  • Page 35 STM3220F-EVAL Board Qing SHAO Page 35 03/06/2009...
  • Page 36 STM3220F-EVAL Board Qing SHAO Page 36 03/06/2009...
  • Page 37 STM3220F-EVAL Board Qing SHAO Page 37 03/06/2009...
  • Page 38 STM3220F-EVAL Board Qing SHAO Page 38 03/06/2009...
  • Page 39 STM3220F-EVAL Board Qing SHAO Page 39 03/06/2009...
  • Page 40 STM3220F-EVAL Board Qing SHAO Page 40 03/06/2009...
  • Page 41 STM3220F-EVAL Board Qing SHAO Page 41 03/06/2009...
  • Page 42 STM3220F-EVAL Board Qing SHAO Page 42 03/06/2009...
  • Page 43 STM3220F-EVAL Board Qing SHAO Page 43 03/06/2009...
  • Page 44 STM3220F-EVAL Board Qing SHAO Page 44 03/06/2009...
  • Page 45 STM3220F-EVAL Board Qing SHAO Page 45 03/06/2009...
  • Page 46 STM3220F-EVAL Board Qing SHAO Page 46 03/06/2009...
  • Page 47 STM3220F-EVAL Board Qing SHAO Page 47 03/06/2009...
  • Page 48 STM3220F-EVAL Board Qing SHAO Page 48 03/06/2009...
  • Page 49: Appendix A Stm3220F-Eval Io Assignment

    STM3220F-EVAL Board Appendix A STM3220F-EVAL IO Assignment Pin Name STM3220F-EVAL IO Assignment TRACE_CLK / FSMC_A23 TRACE_D0 / FSMC_A19 TRACE_D1 / FSMC_A20 TRACE_D2 / FSMC_A21 TRACE_D3 / FSMC_A22 VBAT VBAT PI8- ANTI IDD_CNT_EN TAMP2 PC13- ANTI-TAMPER_BUTTON ANTI_TAMP PC14-OSC32_IN 32K_OSC PC15- OSC32_OUT...
  • Page 50 STM3220F-EVAL Board USB_HS_NXT USB_FS_POWER_ON USB_HS_D0 VSS_4 VDD_4 Audio_DAC_OUT USB_HS_CK CAM_PIXCK ETHER_DV ETHER_RXD0 ETHER_RXD1 USB_HS_D1 USB_HS_D2 BOOT1 / PF11 USB_FS_OVERCURRENT PF12 FSMC_A6 VSS6 VDD_6 PF13 FSMC_A7 PF14 FSMC_A8 PF15 FSMC_A9 FSMC_A10 FSMC_A11 FSMC_D4 FSMC_D5 FSMC_D6 VSS_7 VDD_7 PE10 FSMC_D7 PE11 FSMC_D8...
  • Page 51 STM3220F-EVAL Board PD12 FSMC_A17 PD13 MC_TIM4_CH2 pin 33 (EnB) VSS_8 VDD_8 PD14 FSMC_D0 PD15 FSMC_D1 FSMC_A12 FSMC_A13 FSMC_A14 FSMC_A15 LED0 SmartCard_CK LED1 VSS_9 VDD_9 SmartCard_IO / Audio_I2S_ MCK LED3 SDIO_D0/ MC_TIM3_CH3 pin23 (Dissipative Brake) SDIO_D1 / MC_TIM5_CH3 pin 34 (Index)
  • Page 52 STM3220F-EVAL Board PG12 SmartCard_CMDVCC PG13 ETHER_TXD0 PG14 ETHER_TXD1 VSS_11 VDD_11 PG15 USER_BUTTON JTAG_TDO JTAG_TRST CAN2_RX / ETHER_PPS_OUT / ULPI_D7 I2C1_SCL FSMC_NL BOOT0 BOOT0 ETHER_TXD3 / MC_TIM4_CH3 pin 31 (EnA) I2C1_SDA FSMC_NBL0 FSMC_NBL1 VSS_3 VDD_3 CAM_D5 / MC_TIM8_BKIN pin 1 (Stop)
  • Page 53: Appendix B Document Revision History

    STM3220F-EVAL Board Appendix B Document Revision History Table Document Revision History Date Version Revision Details 09,Apr.2009 First version 28,May.2009 Updated after review and completed with PCB rev A known limitations Qing SHAO Page 53 03/06/2009...
  • Page 54 STMicroelectronics products are not authorized for use as critical components in life support devices or systems without express written approval of STMicroelectronics. The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.
