Connectors
7.20
CAN D-type 9-pin male connector CN26
Pin number
1,4,8,9
2
7.21
Audio jack (speaker) CN27
A 3.5mm stereo audio jack CN27 for speaker out is available on the STM32F779I-EVAL
evaluation board to support external speaker.
7.22
Audio jack CN28
A 3.5mm stereo audio jack CN28 is available on the STM32F779I-EVAL evaluation board to
support headset (headphone and microphone integrated).
48/80

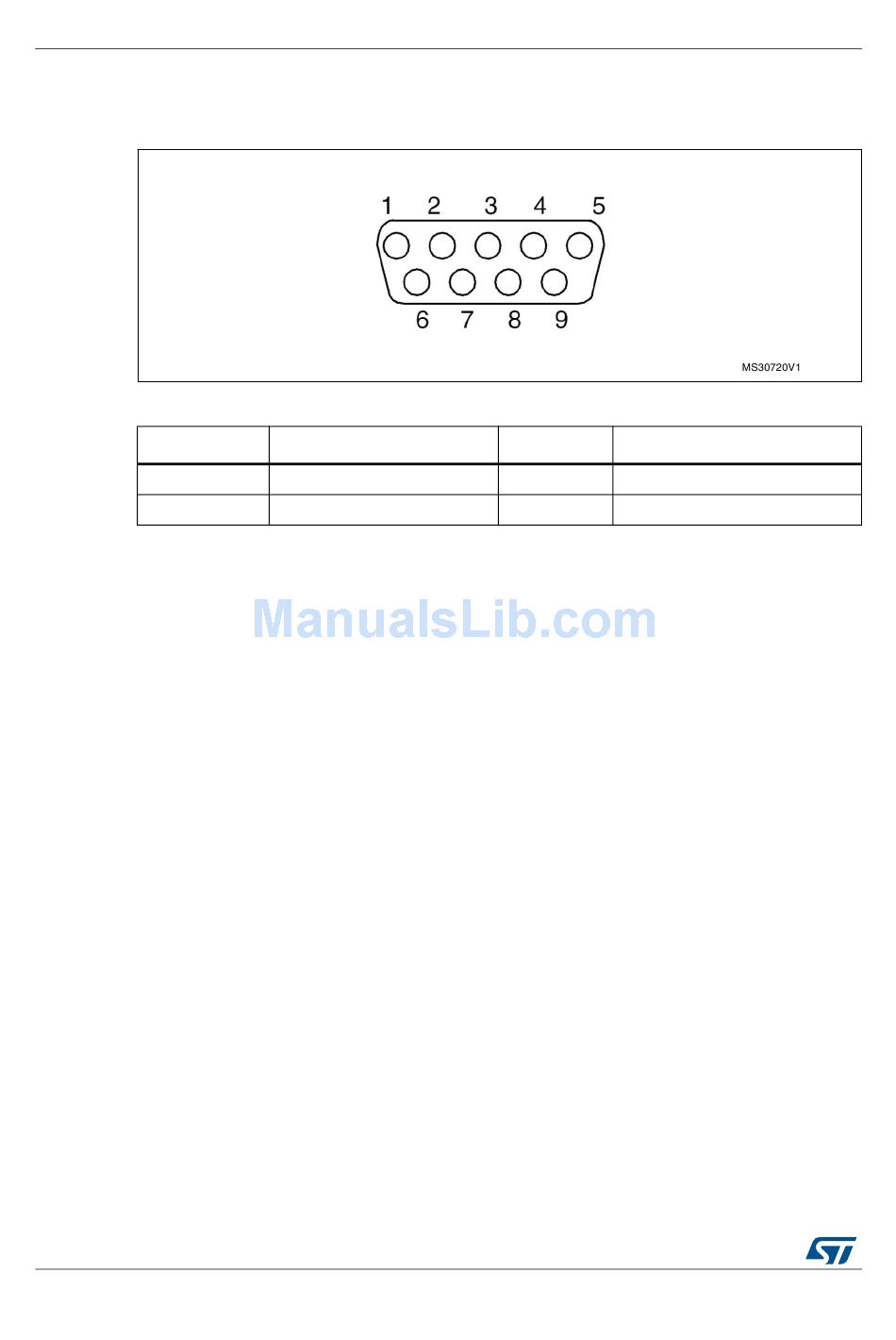

Figure 23. CAN D-type 9-pin male connector (Front view)
Table 36. CAN D-type 9-pin male connector CN26
Description
NC
CANL
DocID029088 Rev 3
Pin number
7
3,5,6
UM2036
Description
CANH
GND
