ALL: Press this button to select all outputs simultaneously for routing.
9
Next, press the "IN" key of the input (1~8) you wish to route to all
outputs. Finally, press "CONFIRM" to confirm your selection and
execute the routing change.
PRESET: Press to enter the preset recall menu in the LCD window.
10
Press the "+/-" buttons followed by the "ENTER" button to select
and activate the preferred preset.
11 LOCK: Press to lock all button functions on the front panel. Press
and hold for 3 seconds to release the lock function. The LCD will
display "Lock" when the function is active.
MUTE: The "MUTE" button functions as a blank audio/video source.
12
To use it, follow the standard matrix routing instructions, but use
the "MUTE" button as the input to blank out the selected outputs.
When a "MUTE" input is in use it will show up as "M" within the
routing display.
LCD WINDOW: Displays the unit's menu, settings and information.
13

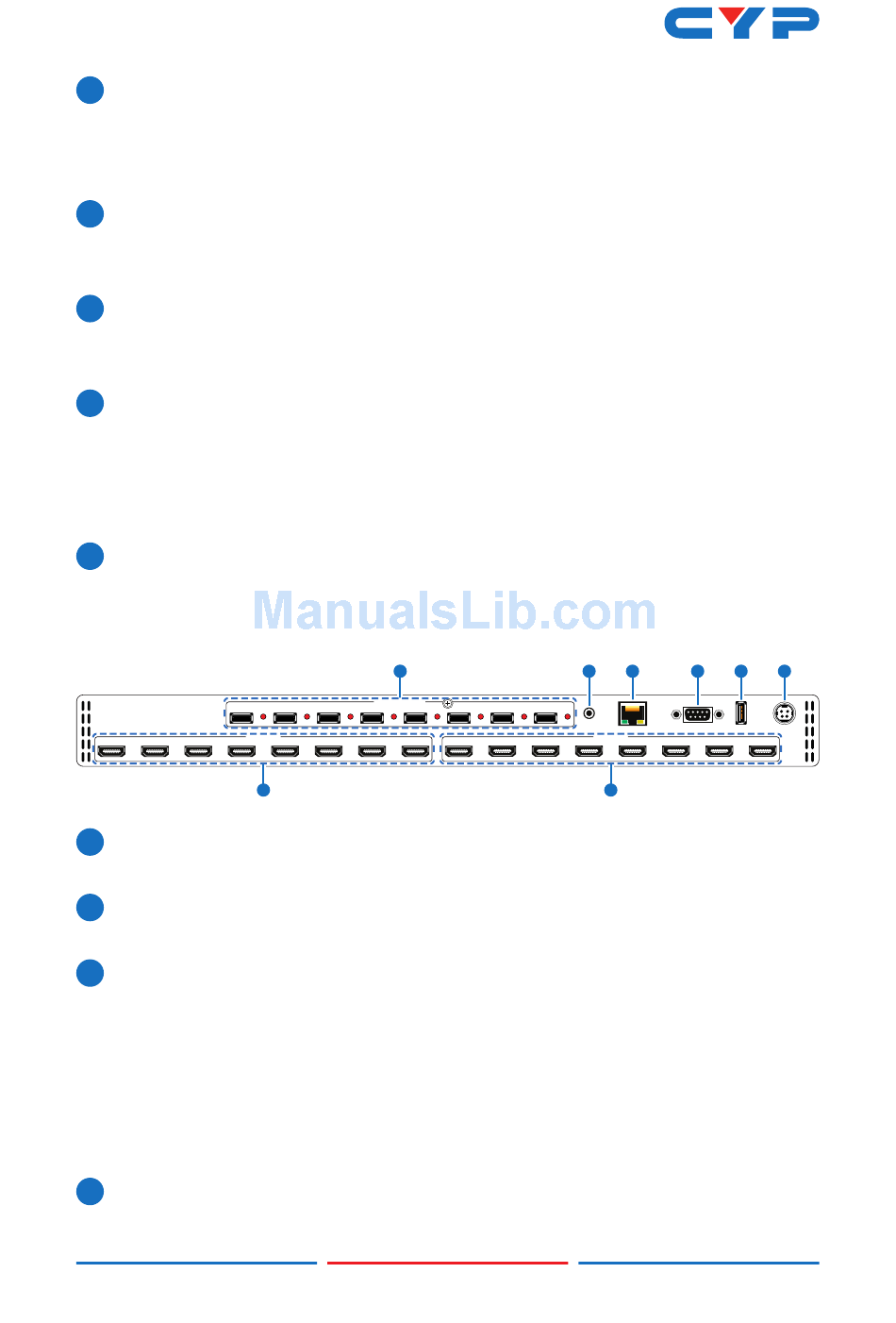

6.2 Rear Panel

1
1 2 3 4
HDMI IN 1~8: Connect to HDMI source equipment such as media
1
players, game consoles or set-top boxes.
2 HDMI OUT A~H: Connect the HDMI outputs to devices such as
HDMI TVs, monitors or amplifiers for digital video and audio output.
USB POWER OUTPUT 1~ 8: Each USB port provides 5V/1A of power
3
intended for use with HDMI over AOC (Active Optical Cables)
fiber optic video extension cables. Power on each port may be
individually enabled/disabled.
Note: If a USB device requiring more than 1A is connected, the
port will automatically shut off to prevent an overload and the red
LED will turn on.
IR IN: Connect to the provided IR Extender to extend the IR control
4
range of the unit. Ensure that the remote being used is within direct
3
USB 5V/1A OUT
2 3 4 5
HDMI IN
5 6 7 8
1
4
6 7 8
IR IN
CONTROL
HDMI OUT
A B C D
2
5 6 7 8
RS232 SERVICE DC 24V
E F G H
4
