- Page 1 CPLUS-V4H2HP 6G UHD 4 to 2 HDMI Matrix with HDCP2.2 Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..............1 2. Applications ...............1 3. Package Contents ............1 4. System Requirements ..........1 5. Features ..............2 6. Operation Controls and Functions ......3 6.1 Front Panel ............3 6.2 Rear Panel .............4 6.3 WebGUI ..............5 6.3.1 WebGUI Control Page ........6 6.3.2 Power On/Off ............6 6.3.3 Routing ...............7 6.3.4 Source Detect ..........7... -
Page 6: Introduction
1. INTRODUCTION This 6G UHD 4 by 2 HDMI Matrix allows customer to route up to four 6G HDMI input signals to any of two 6G HDMI outputs. This unit supports 4K@60Hz (YUV 4:4:4), 48-bit Deep Color, HDR (High Dynamic Range), HD audio formats and other features defined by the HDMI 2.0 specification. -
Page 7: Features
5. FEATURES • HDMI 2.0, HDCP 2.2 and DVI 1.0 compliant • Supports matrix routing of four 6G HDMI inputs to two 6G HDMI outputs • Supports HDTV resolutions up to 4K UHD (3840x2160@24/25/30/50/60 & 4096x2160@24/25/30/50/60Hz) • Maximum data rate up to 6Gbps with Deep Color support up to 1080p 48-bit •... -
Page 8: Operation Controls And Functions

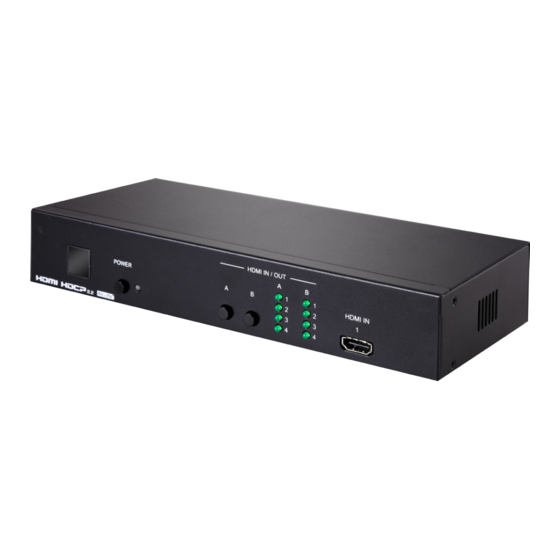

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel HDMI IN / OUT POWER HDMI IN IR window: Accepts IR signals from the included IR remote for control of this unit only. POWER: Press this button to power on the unit or place it into stand- by mode. -
Page 9: Rear Panel
6.2 Rear Panel HDMI IN HDMI OUT SERVICE CONTROL RS-232 IR IN DC 5V HDMI In : Connect to HDMI source equipment such as a media player, game console or set-top box. DVI source equipment may be connected by using an HDMI to DVI adapter. HDMI Out: Connect to HDMI TVs, monitors or amplifiers for digital video and audio output. -
Page 10: Webgui
6.3 WebGUI Install the IP Discovery Tool: Please obtain Device Discovery software from your authorized dealer and save it in a directory where you can easily find it. Note: The unit’s default IP address is 192.168.1.50 Connect the unit and your PC/Laptop to the same active network and execute the Device Discovery software. -
Page 11: Webgui Control Page
Once you are satisfied with the network settings, you may use them to connect via telnet or WebGUI. The network information window provides a convenient link to launch the WebGUI directly. 6.3.1 WebGUI Control Page All functions, including power, input selection, EDID management, HDCP management, output adjustments, Ethernet settings, volume adjustments, and reset/firmware functions, are presented on a single web page to allow for intuitive operation. -
Page 12: Routing
6.3.3 Routing This tab allows for the selection of the input source. Four HDMI inputs and two HDMI output are available for selection. 6.3.4 Source Detect When a live input source is connected one of the 4 HDMI inputs the corresponding input port in this tab will display “ON”. -
Page 13: Status
6.3.5 Status This tab displays the currently selected HDMI input source and the unit’s firmware version as well as allowing for resetting or rebooting the unit. 1) To perform a factory reset on the unit, please click the “RESET” button. 2)To reboot the unit, please click “REBOOT”... -
Page 14: Hdcp Control
6.3.7 HDCP Control This tab allows for the HDCP mode to be switched between “Standard” and “Apple” mode. “Apple” mode allows for the display of non-HDCP required content from Apple devices on non-HDCP displays. This setting can be assigned individually to each input. -
Page 15: Firmware Update
6.3.8 Firmware Update 1) BROWSE: Click the browse tab to select the updated firmware bin file which save in PC or USB thumb drive. 2) UPDATE: Click the update tab to update the firmware. 6.3.9 HDMI Out A Info & HDMI Out B Info Two HDMI output (output A &... -
Page 16: Naming
6.3.10 NAMING This tab allows for the renaming of the four HDMI input ports and the HDMI output ports. Please click the “SAVE” button to store the changes. 6.3.11 Network Setting This tab provides control over the unit’s network settings. The IP mode can be set to DHCP for automatic IP configuration, if your local network supports it, or it can be placed in Static mode and the IP address, netmask and gateway can be defined manually. -
Page 17: Telnet Control
6.4 Telnet Control Before attempting to use telnet control, please ensure that both the unit and the PC/Laptop are connected to the same active networks. To access Telnet in Windows 7, click on the “Start” menu and type “cmd” in the search field, then press “Enter”. Under Windows XP go to the “Start”... - Page 18 This will connect us to the unit we wish to control. Type “help” to list the available commands.
-
Page 19: Rs-232 Command
6.5 RS-232 Command Command command description parameter Name HELP/? Print this message, code NONE entry is not CASE SENSITIVE. POWER OFF NONE POWER ON NONE INNAME SET/SHOW ALL INPUT NAMEIN NAME [1~4] [8 char] OUTNAME SET/SHOW HDMI OUTPUT OUTNAME [A/B] [8 char] NAME SET/SHOW OUTA SOURCE A [1~4]... - Page 20 IPCONFIG DISPLAY THE CURRENT NONE IPCONFIG SIPADDR SET ETHERNET IP ADDRESS SIPADDR X.X.X.X (X:0~255) SNETMASK SET ETHERNET NETMASK SNETMASK X.X.X.X (X:0~255) SGATEWAY SET ETHERNET GATEWAY SGATEWAY X.X.X.X (X:0~255) HTTPPORT SET HTTP PORT NUMBER HTTPPORT N (N=0~65535) TELNETPORT SET TELNET PORT NUMBER TELNETPORT N (N=0~65535) IPMODE...
-
Page 21: Ir Cable Pin Assignment
6.6 IR Cable Pin Assignment IR Extender IR Signal Power Grounding 6.7 D-sub 9 Pin Definition Define TX / RX TxD/RxD RxD/TxD... -
Page 22: Connection Diagram
7. CONNECTION DIAGRAM Blu-ray Player Satellite Receiver Set-top Box Media Player HDMI Inputs HDMI IN / OUT POWER HDMI IN Power Supply HDMI IN HDMI OUT SERVICE CONTROL RS-232 IR IN DC 5V RS-232 Equipped IR Extender PC or Notebook RS-232 Connection HDMI Output... -
Page 23: Specifications
8. SPECIFICATIONS Video Bandwidth 600MHz/6Gbps Input Ports 4 x HDMI 1 x IR In Output Ports 2 x HDMI Others 1 x Control 1 x Service 1 x RS232 Supported Resolutions 480i to 4K2K@24/50/60 HDMI Sampling Rate 32kHz ~ 192 kHz IR Frequency 38kHz Baud Rate... -
Page 24: Support Timing Table & Hdmi Cable Length
9. SUPPORT TIMING TABLE & HDMI CABLE LENGTH 9.1 Support Timing Table HDMI RESOLUTION SUPPORTED 480i 576i 480p 576p 640x480 720p @50&60 800x600 1080i @50&60 1080p@24&50&60 1024x768 1366x768 1280x1024 ... -
Page 25: Hdmi Cable Length
9.2 HDMI Cable Length HDMI CABLE LENGTH (MAX) 8-bit 1080p 12-bit 1080p Input Output Input Output HI SPEED 4K2K CABLE LENGTH (MAX) 4K2K HDMI In HDMI Out 3840x2160p24 3840x2160p60 10 REMOTE CONTROL POWER POWER: Press Power key to turn on the device or set to standby mode. - Page 28 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-V4H2HP...
