MENU/CANCEL: Press the "MENU/CANCEL" button to enter the
5
OLED menu, or to back out from menu items. For a description of
the menu tree, please refer to section 6.6.
6
ENTER: Press this button to confirm selections.
+/IN: Within the menu, this button moves you up within the menu
7
tree. Otherwise, in routing mode, this button allows you to make
your input source selection.
-/OUT: Within the menu, this button moves you down within the
menu tree. Otherwise, this button starts routing mode and allows
you to begin your output destination selections.
8
PRESET: Press this button to recall saved presets. A maximum of 8
presets can be stored in the unit. Presets are created and stored
via the WebGUI. Please refer to section 6.10.1 for advanced preset
settings.
LOCK: Press and hold this button for 3 seconds to lock/unlock
9
all buttons on the front panel. The OLED will display an "L" in the
upper right corner to indicate the front panel is locked.
OLED WINDOW: Displays the unit's menu, settings and information.
10

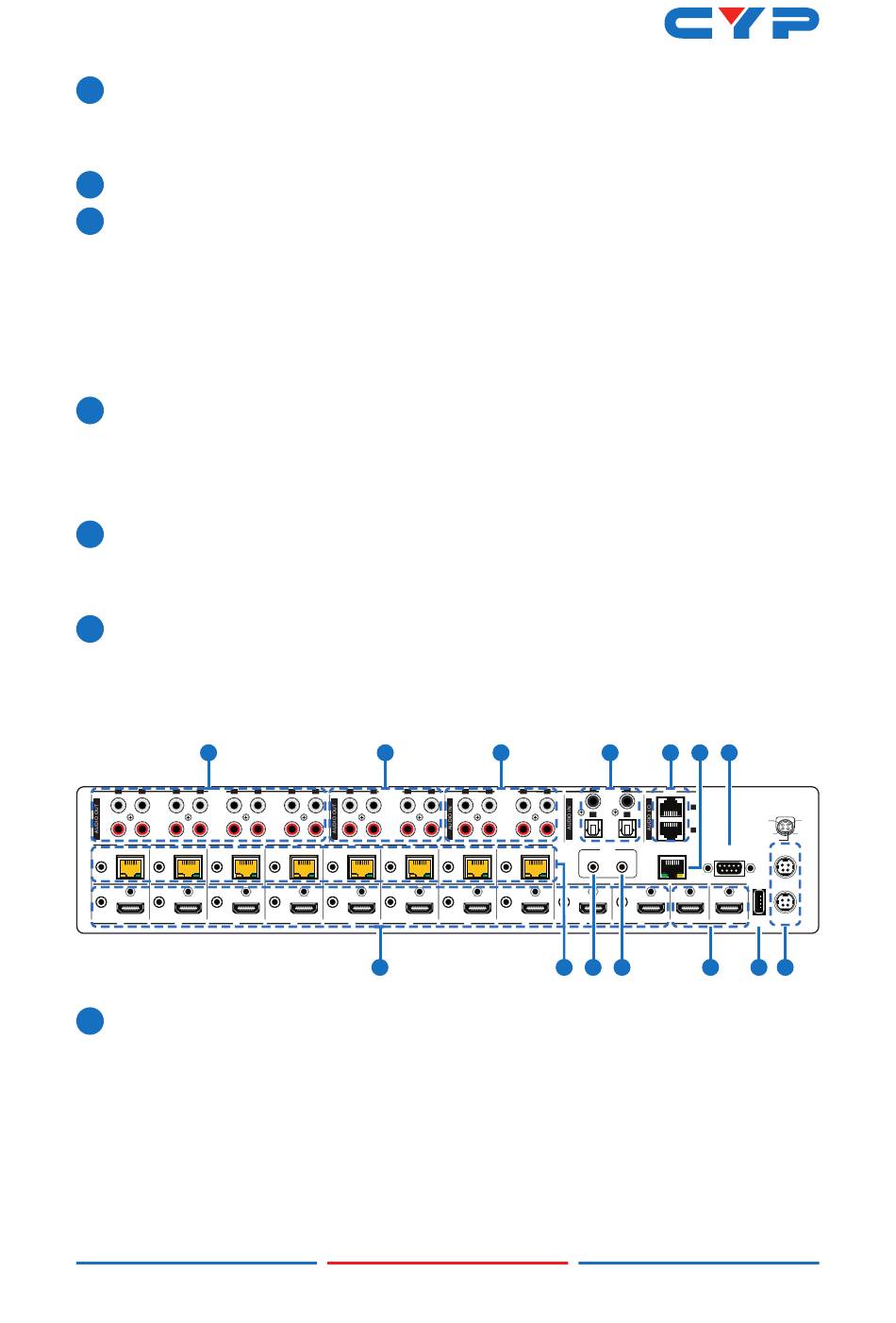

6.2 Rear Panel
6
C
D
A
B
ZONE
E
L
L
R
R
A
B
C
CAT5e/6 OUT
CAT5e/6 OUT
CAT5e/6 OUT
IR IN
IR IN
IR IN
IR OUT
IR OUT
IR OUT
HDMI IN
HDMI IN
HDMI IN
1
2
3
1
HDMI IN & IR OUT 1~10: Connect up to 10 source devices to the
HDMI ports using appropriate quality HDMI cables. Input source
devices include Blu-ray players, set-top boxes, game systems
and so on. These inputs are DVI-D compliant (with the use of
DVI to HDMI adapters or cables). Attach IR blasters to the IR Out
ports to transmit the IR signals received from connected HDBaseT
Receivers. The IR signal routing follows the HDMI signal routing.
Note: The use of "Premium High Speed HDMI" cables is highly
7
EXTENDED
F
G
H
1
2
3
L
L
R
R
D
E
F
CAT5e/6 OUT
CAT5e/6 OUT
CAT5e/6 OUT
IR IN
IR IN
IR IN
IR OUT
IR OUT
IR OUT
HDMI IN
HDMI IN
HDMI IN
4
5
6
1
8
ANALOG
1
4
1
2
3
4
L
3
R
G
H
CAT5e/6 OUT
CAT5e/6 OUT
IR IN
IR IN
IR IN
IR OUT
IR OUT
IR OUT
HDMI IN
HDMI IN
HDMI IN
7
8
9
2
3
9
10
11
12
DIGITAL
2
CAT
1
4
GND
2
ALL
LAN
RS-232
IR OUT
SERVICE
IR OUT
HDMI IN
HDMI OUT
HDMI OUT
10
I
J
4
5
13 14
GND
2
1
4
3
V+
+
V
GND
POH 24V
MAIN 24V
5
