CYP CPLUS-V4H2HUSB Operation Manual

4k@60 4x2 seamless matrix with usb docking
Hide thumbs

Advertisement

Quick Links

Download this manual
CPLUS-V4H2HUSB
4K@60 4x2 Seamless Matrix with USB Docking
Operation Manual
Operation Manual
Ver 1.00

Advertisement

loading
Need help?

Need help?

Do you have a question about the CPLUS-V4H2HUSB and is the answer not in the manual?

Questions and answers

Related Manuals for CYP CPLUS-V4H2HUSB

Summary of Contents for CYP CPLUS-V4H2HUSB

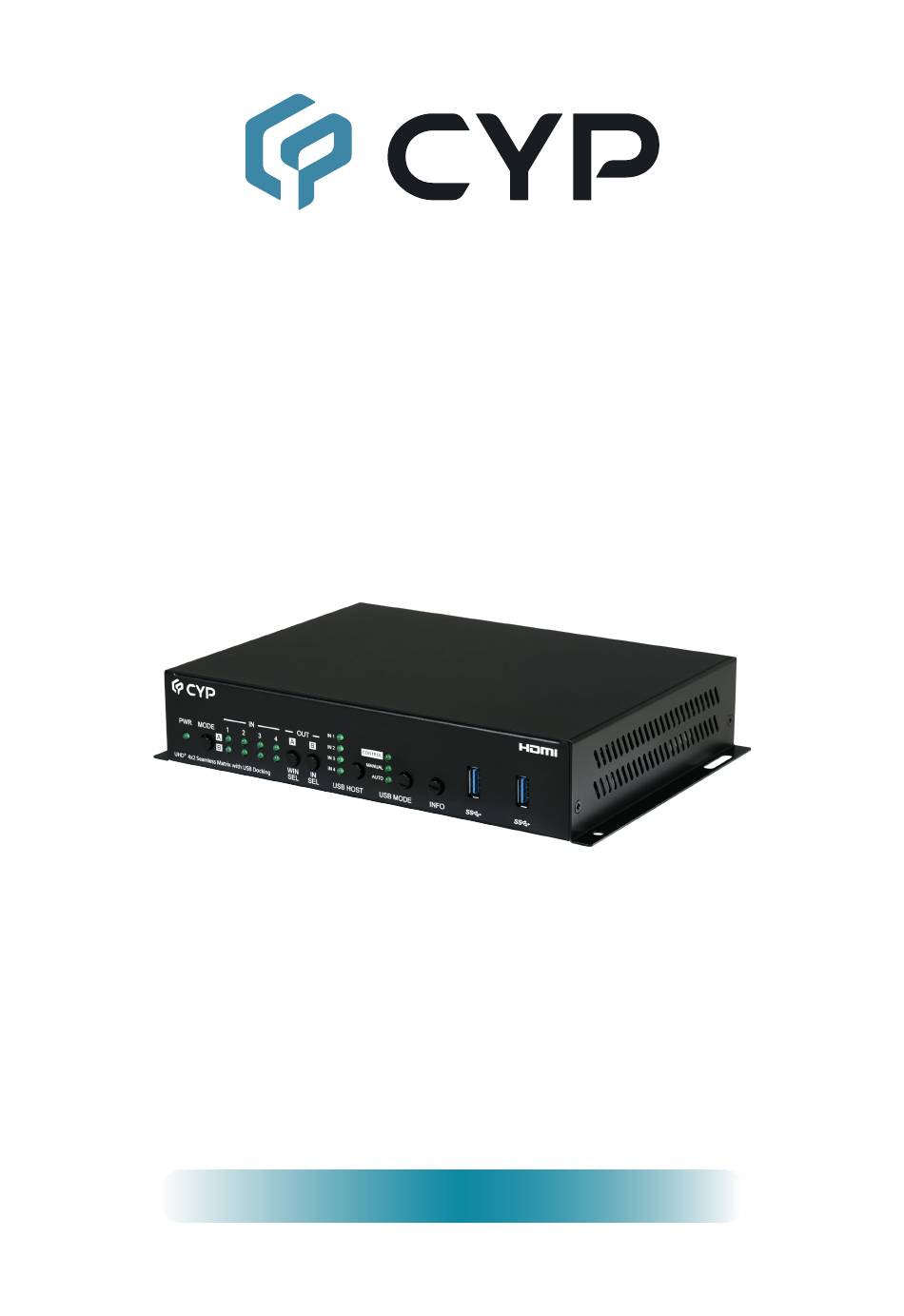

  • Page 1 CPLUS-V4H2HUSB 4K@60 4x2 Seamless Matrix with USB Docking Operation Manual Operation Manual Ver 1.00...

  • Page 3: Copyright Notice

    DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Version History

    VERSION HISTORY REV. DATE SUMMARY OF CHANGE Ver 1.00 2024/12/6 Initial Release...

  • Page 6: Table Of Contents

    CONTENTS 1. Introduction ............1 2. Applications ............. 1 3. Package Contents ........... 1 4. System Requirements ........1 5. Features............2 6. Operation Controls and Functions ....3 6.1 Front Panel ..........3 6.2 Rear Panel........... 5 6.3 Serial Pinout and Defaults ......6 6.4 USB Control..........

  • Page 7: Introduction

    1. INTRODUCTION This 4K@60 4 by 2 Matrix is a high performance HDMI/USB-C matrix switcher with integrated scaling, multi-window mode, and USB with mouse control interface. With the seamless switch feature, it is an ideal solution for monitoring or displaying multiple sources simultaneously for control rooms, conference rooms or classrooms.

  • Page 8: Features

    5. FEATURES • 2 HDMI inputs, 2 USB(Type-C) inputs and 2 HDMI outputs up to 4K@60 4:4:4 • Controllable via front panel buttons, Telnet, RS-232, and OSD via USB mouse and keyboard • 2 USB Type-C Inputs support USB3.1 Gen1 to Ethernet and DP video •...

  • Page 9: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel IN 1 CONTROL IN 2 MODE IN 3 MANUAL IN 4 AUTO UHD + 4x2 Seamless Matrix with USB Docking USB HOST USB MODE INFO PWR LED: This LED will illuminate to indicate the unit is on and receiving power.
  • Page 10 Note: This button is disabled when USB mode is set to Auto. IN 1~4 LEDs: The illuminated LED indicates which USB host port is currently active. USB MODE Button: Press this button to enable or disable the automatic selection of the USB host port. MANUAL &...

  • Page 11: Rear Panel

    6.2 Rear Panel LINE OUT SERVICE IN 1 IN 2 IN 3 IN 4 OUT A OUT B RS-232 DC 24V USB-C IN 1~2 Ports: Connect to USB Type-C host or video source equipment such as a PCs or laptops. When the USB-C port has “USB3.2” support active, this port can support 4K60 A/V, Ethernet, and USB simultaneously.

  • Page 12: Serial Pinout And Defaults

    LAN Port: Connect directly, or through a network switch, to your PC/ laptop to control the unit via Telnet and to extend the network across the USB Type-B and Type-C ports. DC 24V Port: Plug the 24V DC power adapter into this port and connect it to an AC wall outlet for power.

  • Page 13: Usb Control

    6.4 USB Control 6.4.1 USB Mouse Some functions such as source selection, window reposition and resizing can be controlled by using the USB mouse which connect to the back of the unit. 1) Input Select: Right click on the mouse to select the video source for the border highlighted window.
  • Page 14 „ [Alt] + [W] + [4]: Switch to 4 Display mode. 2) Recall Preset: Select a preset to activate. „ [Alt] + [R] + [1]: Recall preset 1. „ [Alt] + [R] + [2]: Recall preset 2. „ [Alt] + [R] + [3]: Recall preset 3. 3) Switch USB Host: Select the preferred window to control.

  • Page 15: Osd Toolbar

    6.4.3 OSD Toolbar Some functions of this unit can be controlled by using the OSD (On Screen Display) toolbar which is activated by double clicking the mouse wheel, or use the keyboard hotkey [Alt] + [T]. Use the mouse navigate the OSD menu. MAIN MENU SETUP 2 DISPLAY...
  • Page 16 SETUP 2ND LEVEL 3RD LEVEL Audio Out IN 1 (USB-C) IN 2 (USB-C) IN 3 (HDMI) IN 4 (HDMI) By Mouse Level 0 PIP Blending Level 1 (Pip Layout Only) Level 2 Level 3 Level 4 Level 5 IN 1. USB3.2 IN 2.
  • Page 17 MAIN MENU 2ND LEVEL 3RD LEVEL 3 Display 4 Display Dual Monitor (Matrix Mode) Preset 1~3 Save Preset1 Preset2 Preset3...

  • Page 18: Firmware Update

    1) 2~4 Display: Select the preferred layout mode of the unit. Note: Both outputs will always output the same video. 2) Dual Monitor: Select the preferred layout mode of the unit. 3) Preset 1~3: Click a preset to activate the currently selected preset. 4) Save Preset 1~3: Click a preset to store the unit’s current video window configuration to the currently selected preset.

  • Page 19: Telnet Control

    6.5 Telnet Control Before attempting to use Telnet control, please ensure that both the unit and the PC are connected to the same active networks. Start your preferred Telnet/Console client, or use the built in client provided by most modern computer operating systems. After starting the client, connect by using the current IP address of the unit and port 23 (if the communication port number used by the unit has not been changed previously).
  • Page 20 COMMAND Description and Parameters get command ver Show the unit’s current command version get model name Show the unit’s model name. get model type Show the unit’s product type. set system reboot Reboot the unit. set factory default Reset the unit to the factory defaults. get update filename...
  • Page 21 COMMAND Description and Parameters set local echo N1 Enable or disable the local echo display of typed characters. Available values for N1: [Enable] [Disable] get local echo Show the current local echo display setting. set uart 1 baudrate N1 Set the baud rate of the RS-232 port. Available values for N1: 4800 [4800 baud]...
  • Page 22 COMMAND Description and Parameters get ipaddr Show the unit’s current IP address. get netmask Show the unit’s current netmask. get gateway Show the unit’s current gateway address. set static ipaddr N1 Set the unit’s static IP address. N1 = X.X.X.X [X = 0~255, IP address] get static ipaddr...
  • Page 23 COMMAND Description and Parameters get telnet username Show the current Telnet login username. set telnet password N1 Set the Telnet login password. N1 = {ASCII string} [Telnet password] get telnet password Show the current Telnet login password. set telnet port N1 Set the unit’s Telnet access port.
  • Page 24 COMMAND Description and Parameters set telnet timeout N1 Set the Telnet inactivity timeout value. Available values for N1: [Disabled] 1~65535 [Timeout in minutes] get telnet timeout Show the current Telnet inactivity timeout value. set out N1 route N2 Route the specified input to the specified output. N1 = A~B [HDMI output port] Available values for N2:...
  • Page 25 COMMAND Description and Parameters set usb host N1 route 1 Route the specified USB host to the specified USB devices. Available values for N1: [USB-C input 1] [USB-C input 2] [HDMI input 3] [HDMI input 4] Note: Valid in USB manual mode only. get usb host N1 route...
  • Page 26 COMMAND Description and Parameters get usbc N1 3.0 mode Show the current USB3.2 support state for the specified USB-C port. N1 = 1~2 [USB-C input port] set out A timing N1 Set the output resolution to use for both outputs. Available values for N1: [3840x2160 60Hz(4K60)] [3840x2160 30Hz(4K30)]...
  • Page 27 COMMAND Description and Parameters get window layout mode Show the unit’s current window layout mode. set window N1 route N2 Set the input to route to the specified window in multiview. N1 = 1~4 [Window number] Available values for N2: [USB-C input 1] [USB-C input 2] [HDMI input 3]...
  • Page 28 COMMAND Description and Parameters get audio out A route Show the current audio input routed to both audio outputs. get in N1 hdcp status Show the current HDCP status of the specified input. Available values for N1: [USB-C input 1] [USB-C input 2] [HDMI input 3] [HDMI input 4]...
  • Page 29 COMMAND Description and Parameters get in N1 hdcp ability Show the HDCP compliance level of the source connected to the speci- fied input. Available values for N1: [USB-C input 1] [USB-C input 2] [HDMI input 3] [HDMI input 4] Possible response values: [No HDCP support] [HDCP 1.x supported] [HDCP 2.2 supported]...

  • Page 30: Connection Diagram

    7. CONNECTION DIAGRAM IPad Laptop USB Carmera Mouse Keyboard USB Flash Disk IN 1 CONTROL MODE IN 2 IN 3 MANUAL AUTO IN 4 UHD + 4x2 Seamless Matrix with USB Docking USB HOST USB MODE INFO LINE OUT SERVICE Earphone Earphone IN 1...

  • Page 31: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 18Gbps USB-C Bandwidth 21.6Gbps Input Ports 2×HDMI (Type-A) 2×USB (Type-C) Output Ports 2×HDMI (Type-A) 2×Stereo Audio (3.5mm) Pass-through Ports 2×USB (Type-A) 2×USB (Type-B) Pass-through/Control Ports 1×LAN (RJ-45) 2×USB (Type-A) Control Ports 1×RS-232 (3-pin Terminal Block) Pass-through/Service Port 1×USB 2.0 (Type-A) *Combined with USB of Keyboard...

  • Page 32: Video Specifications

    8.2 Video Specifications Input Output Supported Resolutions (Hz) HDMI USB-C HDMI 720×400p@70/85    640×480p@60/72/75/85    720×480i@60    720×480p@60    720×576i@50    720×576p@50    800×600p@56/60/72    848×480p@60 ...
  • Page 33 Input Output Supported Resolutions (Hz) HDMI USB-C HDMI 1920×1440p@60    2560×1080p@60    2560×1440p@60/60RB 60RB 60RB 60Hz 2560×1600p@60/60RB 60RB 60RB 60Hz 2048×1080p@24/25/30    2048×1080p@50/60    2048×1152p@60    3840×2160p@24/25/30 30Hz   3840×2160p@50/60 (4:2:0) ...

  • Page 34: Audio Specifications

    8.3 Audio Specifications 8.3.1 Digital Audio HDMI & USB-C Inputs / HDMI Outputs LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream Supported Formats Standard 8.3.2 Analog Audio Analog Outputs Max Audio Level 2Vrms THD+N <...

  • Page 35: Cable Specifications

    8.4 Cable Specifications Cable Length High Speed HDMI Cable HDMI Input  HDMI Output  USB-C Cable USB-C Input  Bandwidth Category Examples: • HD Video - 720p@60Hz - HDMI transmission rates lower than 3Gbps - HD-SDI (SMPTE 292M, 1.485Gbps) •...

  • Page 36: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM 4K UHD 4K Ultra-High-Definition (10.2Gbps max) 4K UHD 4K Ultra-High-Definition (18Gbps max) Analog-to-Digital Converter ASCII American Standard Code for Information Interchange Audio/Video Cat.5e Enhanced Category 5 cable Cat.6 Category 6 cable Cat.6A Augmented Category 6 cable Cat.7 Category 7 cable Consumer Electronics Control...
  • Page 37 ACRONYM COMPLETE TERM Megahertz On-Screen Display Powered Device Picture in Picture Picture outside of Picture Power Sourcing Equipment S/PDIF Sony/Philips Digital Interface Format Signal-to-Noise Ratio Transmission Control Protocol USB Audio Class UHDTV Ultra-High-Definition Television Universal Serial Bus USB Video Class VLAN Virtual LAN WUXGA (RB)
  • Page 40 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
