Summary of Contents for CYP CPLUS-44PLV
Page 1

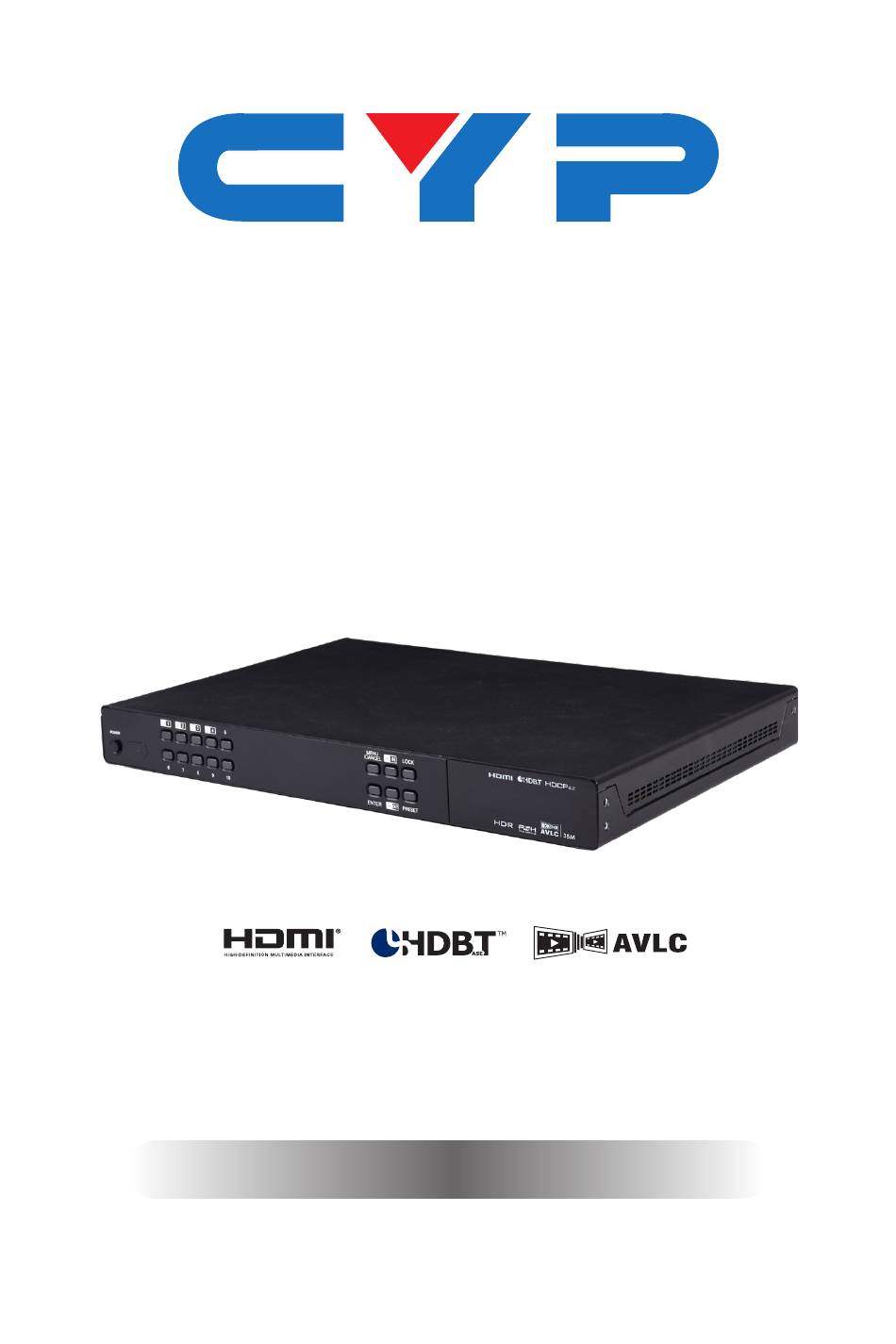

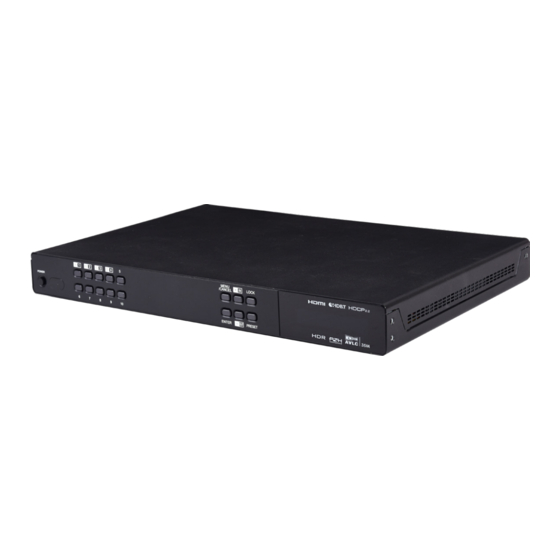

CPLUS-44PLV 4×4 4K UHD+ HDMI over HDBaseT Matrix with AVLC Operation Manual Operation Manual...
Page 3
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
Page 4
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
1. INTRODUCTION This 4×4 HDMI over HDBaseT Matrix with AVLC supports routing and transmission of video (resolutions up to 4K@60Hz w/ HDMI 2.0 & HDCP 2.2) and audio while providing flexible control via IR, RS-232, Telnet or WebGUI. As many as four HD sources may be routed to any of four destinations via single runs of cable up to a distance of 70m.
5. FEATURES • HDMI with HDR & 4K@60Hz support, DVI 1.0 compatible • HDCP 1.x and HDCP 2.2 compliant • Routes four HDMI sources to four displays using four HDBaseT outputs • Supports up to 4K UHD (18Gbps, 4K@60Hz 4:4:4, 8-bit) video input and output •...
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel MENU LOCK /CANCEL POWER AVLC 35M ENTER PRESET 4x4 MATRIX iso lated POWER Button: Press this button to power the unit on or place it into stand-by mode. Note: Network functionality and PoH remains active when the unit is in stand-by mode.
Page 10
+/IN Button: Inside the OLED menu, this button moves you up within the menu tree. Otherwise, in routing mode, this button allows you to make your input source selection. -/OUT Button: Inside the OLED menu, this button moves you down within the menu tree.
6.2 Rear Panel RS232 ZONE AUDIO CONTROL SERVICE MAIN 24V IR IN IR IN IR IN IR IN IR IN IR OUT HDMI CAT5e/6/7 IR OUT HDMI IN IR OUT HDMI IN IR OUT HDMI IN IR OUT HDMI IN INPUTS AUTO DOWN SCALE AUTO DOWN SCALE...
Page 12
Please ensure that the remote being used is within direct line-of- sight of the IR Extender. IR OUT (ALL) Port: Connect an IR Blaster to this port to broadcast IR signals. All IR signals received by any IR Extenders connected to the matrix or HDBaseT receivers will be broadcast.
6.3 Remote Control MUTE LOCK POWER POWER Button: Press to power the unit on or place it into stand-by mode. LOCK Button: Press to lock/unlock the front panel of the matrix unit. MUTE Button: No function. 10/J PATTERN MENU/ CANCEL +/IN PRESET IN 1~4, OUT A~D &...
6.4 IR Cable Pinouts IR Blaster IR Extender Cable Cable Power Infrared Infrared Power Not Used Ground 6.5 RS-232 Pinout and Defaults Serial Port Default Settings Baud Rate 19200 Data Bits DE-9 Female Port Parity Bits None Stop Bits Flow Control None...
6.6 OLED Menu All basic functions of this unit can be controlled by using the front panel’s OLED menu which is activated by pressing the MENU/CANCEL button on the front of the unit. Use the + (PLUS), − (MINUS), and ENTER buttons to navigate the menu.
Page 16
1-EDID 2ND LEVEL 3RD LEVEL 1-FHD/2CH 2-EDID Select 2-FHD/Mch (All or 1~4) 3-UHD/2ch 4-UHD/Mch 5-UHD+/2ch 6-UHD+/Mch 7-Sink A 8-Sink B 9-Sink C 10-Sink D 11-User 1 12-User 2 13-User 3 14-User 4 1) EDID Mode: Select the EDID mode of the unit between All or Independent.
Page 17
2-NETWORK 2ND LEVEL 3RD LEVEL 6-DHCP Mode 1) Link Status: Displays the current Ethernet link status. 2) IP Address: When DHCP is off, the IP address can be set here. The digit currently being edited will flash. The editable digit can be changed by using the +/- buttons.
Page 18
4-FIRMWARE 2ND LEVEL 3RD LEVEL 1-Version [Unit’s current firmware version] Factory Reset? 1) Version: Displays the unit’s current firmware version. 2) Update: Provides a way to update the unit’s firmware. To begin the firmware update process, select “Yes” followed by pressing the “Enter”...
6.7 WebGUI Control • Device Discovery Please obtain the “Device Discovery” software from your authorized dealer and save it in a directory where you can easily find it. Connect the unit and your PC/Laptop to the same active network and execute the “Device Discovery” software. Click on “Find Devices on Network”...
Page 20
• WebGUI Overview After connecting to the WebGUI’s address in a web browser, a login prompt will appear. Please enter the appropriate user name and password then click “Sign In” to log in. Note: The default user name and password is “admin”. On the left side of the browser you will see the following menu tabs where all primary functions of the unit are controllable via the built in WebGUI.
6.7.1 Video Switch Tab This tab provides control over video routing, input and output naming, test pattern configuration, and preset storage/recall. 1) Output and Input Routing: To begin assigning a new video route, please click the button of the HDBaseT output you wish to send video to and then click on the button of the preferred HDMI input port or Pattern.
Page 22
source is routed to the output. Click the “Save” button to confirm a name change. Note: Blank spaces are not allowed in names. ■ Timing: Test patterns can be generated on any HDBaseT output at the following standard resolutions with a variety of refresh rates: 480i/p, 576i/p, 720p, 1080p, 4K.
4) Preset Settings: This matrix can store up to eight routing presets. Presets can be utilized to store multiple different routing states in advance for rapid, hassle-free, recall. To store, recall or view a preset, click the “Preset” icon ( ) in the upper right corner of the tab to open the Preset configuration window.
Page 24
After configuring the button pairing for a zone, the user can change the routing in whichever zone they are currently located simply by pressing a number key on the remote control. The discrete zone pairings can also be activated from within the WebGUI or by using Telnet/RS-232 commands.
2) Quick Button Selection: To activate an audio/video pairing from the WebGUI, select the preferred output zone (A~D) to launch its selection window. The numbers 1~10 correspond to the keys on the remote control and hovering the mouse over each button will reveal the routing currently associated with it.
Page 26
1) Customer EDID Settings ■ Edit Name: Click the “Edit Name” button next to the Customer EDID you wish to rename. Click the “Save” button to confirm the change. ■ Download: To save an existing Customer EDID to your local PC, press the “Download”...
Unit’s Default EDIDs UHD+/2CH 3840×2160p@60Hz (594MHz) & LPCM 2.0 Deep Color (8/10/12-bit) UHD+/MCH 3840×2160p@60Hz (594MHz) & LPCM 7.1 & Deep Color (8/10/12-bit) Bitstream Note: In some rare cases it is possible for custom or external EDIDs to cause compatibility issues with certain sources. If this happens, it is recommended to switch to one of the 6 default EDIDs for maximum compatibility.
6.7.5 User Config Tab The WebGUI username and password are set on this page. Two management levels are available: “Administrator” and “General User”. The administrator username (“admin”) cannot be changed. The “Administrator” user has access to change all settings. The “General User”...
Page 29
1) Power: Press this switch to toggle the unit’s power between ON and OFF (standby mode). Note: While in standby mode the unit’s WebGUI, Telnet and RS-232 controls are still active. 2) Network: The unit’s IP mode may be switched between Static IP or DHCP.
6.8 Telnet Control Before attempting to use Telnet control, please ensure that both the unit and the PC are connected to the same active networks. Unit’s Default EDIDs Click Start, type “cmd” in the search field, and Windows 7 press Enter. Click Start >...
6.9 RS-232 and Telnet Commands COMMAND DESCRIPTION AND PARAMETERS Show the full command list. help Show the full command list. help N1 Show details about the specified command. N1 = {Command name} set factory default Reset the unit to the factory defaults. set factory ipconfig Reset the unit’s network settings to the default...
Page 32
COMMAND DESCRIPTION AND PARAMETERS set uart 1 baudrate N1 Set the baud rate of the RS-232 port. Available values for N1: 4800 [4800 baud] 9600 [9600 baud] 19200 [19200 baud] 38400 [38400 baud] 57600 [57600 baud] 115200 [115200 baud] get uart 1 baudrate Show the current baud rate of the RS-232 port.
Page 33
COMMAND DESCRIPTION AND PARAMETERS get gateway Show the unit's current gateway address. set webgui password N1 Set the WebGUI login password. N1 = {Password} [16 characters max] get webgui password Show the current WebGUI login password. set telnet port N1 Set the unit’s Telnet port.
Page 34
COMMAND DESCRIPTION AND PARAMETERS get out N1 route Show the current input routed to the specified output. N1 = A ~ D [Output port] set out N1 4k2k Enable/disable the 4K to 1080p downscale mode N2 downscale mode used by the specified output and set the behavior to use when enabled.
Page 35
COMMAND DESCRIPTION AND PARAMETERS set out route Set multiple input/output routes N1N2,N1N2,... simultaneously. N1 = A ~ D [Output port] N2 = 1 ~ 4 [Input port] get out route N1,N1,... Show the current routing assignments for all specified outputs. N1 = A ~ D [Output port] set all out route N1...
Page 36
COMMAND DESCRIPTION AND PARAMETERS get out port number Show the total number of outputs on the unit. set all in edid mode N1 Select the EDID management mode to use (All or Appoint) for all inputs. Available values for N1: [All mode] [Appoint mode] get all in edid mode...
Page 37
COMMAND DESCRIPTION AND PARAMETERS get all in edid list List the EDIDs assigned to all inputs. set in N1 edid N2 Set the EDID to use on the specified input in “Appoint” mode. N1 = 1 ~ 4 [Input port] Available values for N2: [FHD/2CH] [FHD/MCH]...
Page 38
COMMAND DESCRIPTION AND PARAMETERS get edid N1 name Show the name for the specified User EDID. N1 = 1 ~ 4 [User EDID] set user N1 edid data N2 Upload a new EDID (in HEX format) for use as the specified User EDID. N1 = 1 ~ 4 [User EDID] N2 = {EDID data}...
Page 39
COMMAND DESCRIPTION AND PARAMETERS get in N1 hdcp mode Show the current HDCP behavior used by the specified input. N1 = 1 ~ 4 [Input port] get in N1 hdcp status Show the current HDCP status of the specified input. N1 = 1 ~ 4 [Input port] Available response values:...
Page 40
COMMAND DESCRIPTION AND PARAMETERS set pattern N1 timing N2 [720p120] [1080p120] [1080p100] [2160p24] [2160p25] [2160p30] [2160p24 DCI] [2160p25 DCI] [2160p30 DCI] [2160p50] [2160p60] get pattern N1 timing Show the test pattern's current resolution for the specified output. N1 = A ~ D [Output port] get pattern timing list List all available test pattern output...
Page 41
COMMAND DESCRIPTION AND PARAMETERS set pattern N1 type N2 Set the test pattern type to use on the specified output. N1 = A ~ D [Output port] Available values for N2: [Red] [Green] [Blue] [Black] [White] [Magenta] [Yellow] [Cyan] [Ramp A] [Ramp B] [Toggle] [Color Bar 80]...
Page 42
COMMAND DESCRIPTION AND PARAMETERS set out N1 osd timeout Set the OSD's timeout value for the specified output (in seconds). N1 = A ~ D [Output port] Available values for N2: [Always on] 1 ~ 60 [Timeout in seconds] get out N1 osd timeout Show the current OSD timeout value for the specified output.
Page 43
COMMAND DESCRIPTION AND PARAMETERS set out N1 osd banner Set the OSD banner location on the location N2 specified output. N1 = A ~ D [Output port] Available values for N2: [Top left] [Middle left] [Bottom left] [Top right] [Middle right] [Bottom right] [Top center] [Middle center]...
Page 44
COMMAND DESCRIPTION AND PARAMETERS set feedback broadcast Enable or disable the broadcast of console command feedback. Available values for N1: [Enabled] [Disabled] get feedback broadcast Show the current console command feedback broadcast state. Note: Commands will not be executed unless followed by a carriage return.
7. CONNECTION DIAGRAM HDMI Source Devices • HDMI Input • IR Output 1.5m 1.5m 60° 60° 1.5m 1.5m 60° 60° Audio Zones • Analog Audio Output RS-232 Equipped RS-232 PC or Control System RS232 ZONE AUDIO CONTROL SERVICE MAIN 24V IR IN IR IN IR IN...
Bandwidth Category Examples: • 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit color - Data rates lower than 5.3Gbps or below 225MHz TMDS clock • 4K30 (UHD Video) - 4K@24/25/30Hz & 4K@50/60Hz (4:2:0), 8-bit color - 4K@50/60Hz (4:4:4, 8-bit) with AVLC active - Data rates higher than 5.3Gbps or above 225MHz TMDS clock but below 10.2Gbps •...
9. ACRONYMS ACRONYM COMPLETE TERM ASCII American Standard Code for Information Interchange AVLC Adaptive Visually Lossless Compression Cat.5e Enhanced Category 5 cable Cat.6 Category 6 cable Cat.6a Augmented Category 6 cable Cat.7 Category 7 cable Command-Line Interface Digital-to-Analog Converter DHCP Dynamic Host Configuration Protocol Digital Visual Interface EDID...
Page 52
ACRONYM COMPLETE TERM Power over HDBaseT Power Sourcing Equipment Signal-to-Noise Ratio Transmission Control Protocol THD+N Total Harmonic Distortion plus Noise Ultra-High-Definition (10.2Gbps) UHD+ Ultra-High-Definition Plus (18Gbps) UHDTV Ultra-High-Definition Television Universal Serial Bus WUXGA (RB) Widescreen Ultra Extended Graphics Array (Reduced Blanking)
