Remote Control - CYP CPLUS-V8H8HP Operation Manual

line-of-sight of the IR Extender.
CONTROL: Connect directly, or through a network switch, to your
5
PC/laptop to control the unit via Telnet/WebGUI.
6 RS-232: Connect directly to a PC, laptop or other serial control
device to send RS-232 commands to control the unit.
SERVICE: This slot is reserved for firmware update use only.
7
8 DC 24V: Plug the 24V DC power adapter into the unit and connect
it to an AC wall outlet for power.

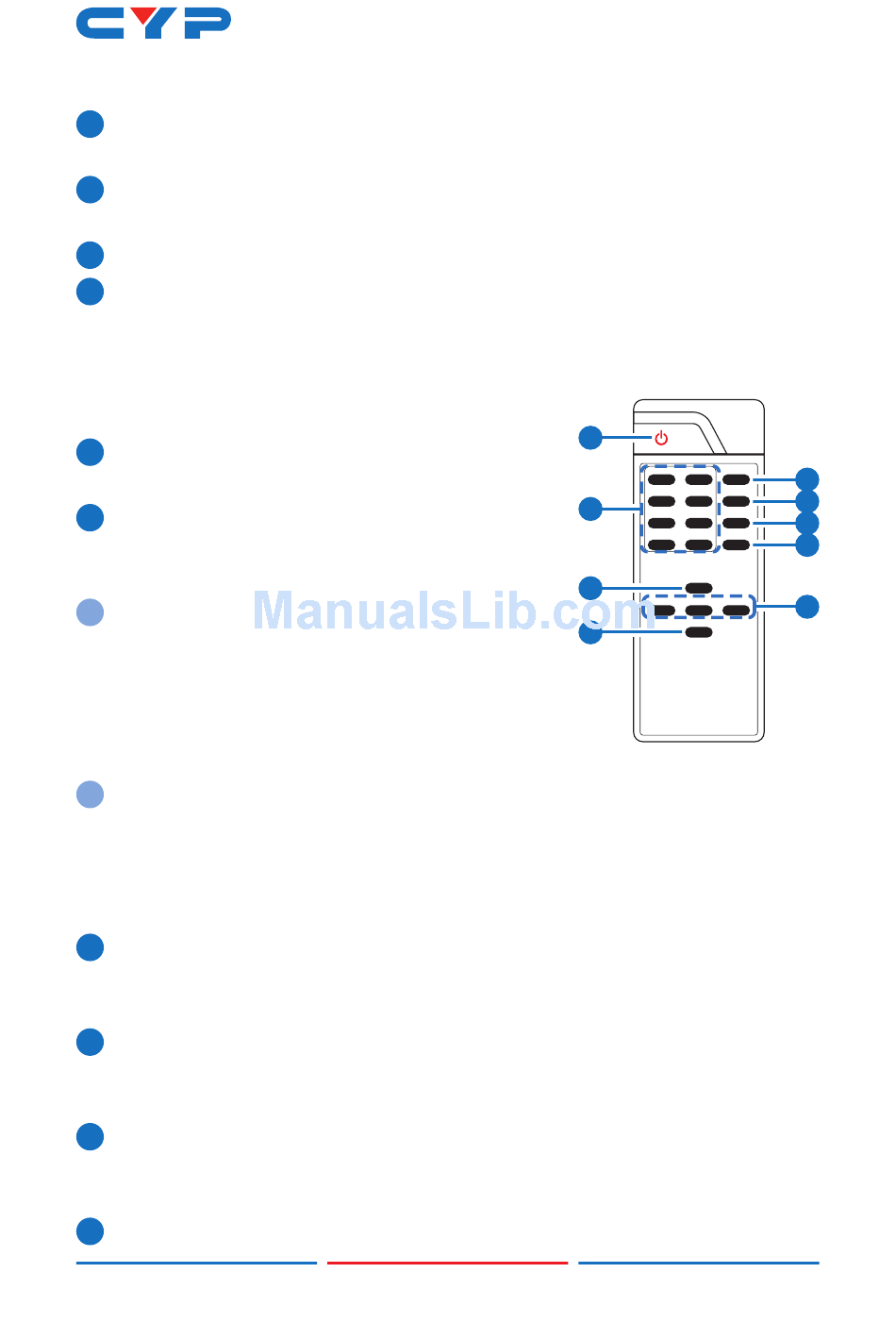

6.3 Remote Control

POWER: Press to power the unit on or place
1
it into stand-by mode.
1/A ~ 8/H: Press these keys to configure the
2
video routing. Behavior depends on the
selected Keypad Action Mode.
In Standard Mode: Press the "OUT" key
2a
followed by the keys (A~H) of the outputs
you wish to route to. Next, press the "IN"
key followed by the input (1~8) you wish to
route to the selected outputs. Finally, press
"ENTER" to confirm your selection.
In User Mode: Press the "OUT" key followed by the key (A~H) of the
2b
output you wish to route to. Next, press the "IN" key followed by
the input (1~8) you wish to route to the selected output. Repeat
this process as many times as needed. Finally, press "ENTER" to
confirm your selection.
3 INFO: Switches the information displayed on each output's OSD
between the user customized text and the current video/Ethernet
details.
MUTE: The "MUTE" button functions as a blank audio/video source.
4
To use it, follow the standard matrix routing instructions, but use the
"MUTE" button as the input to blank out the selected outputs.
PRESET: Press to enter the preset call menu in the LCD window.
5
Press the "+/-" buttons followed by the "ENTER" button to select
and activate the preferred preset.
6 ALL: Press this key to select all outputs simultaneously for routing.
5
1
1 / A 5 / E INFO
2 / B 6 / F MUTE
2
3 / C 7 / G PRESET
4 / D 8 / H ALL
+ /
IN
8
MENU ENTER CANCEL
- /
OUT
9
CR-177
3
4
5
6
7
