Summary of Contents for CYP CPLUS-V4H2HPIP

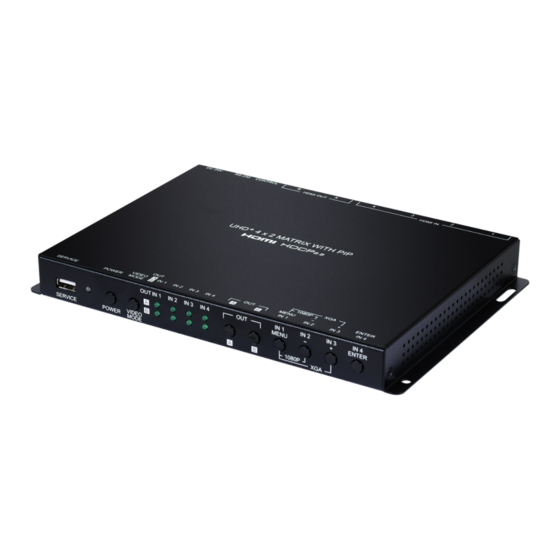

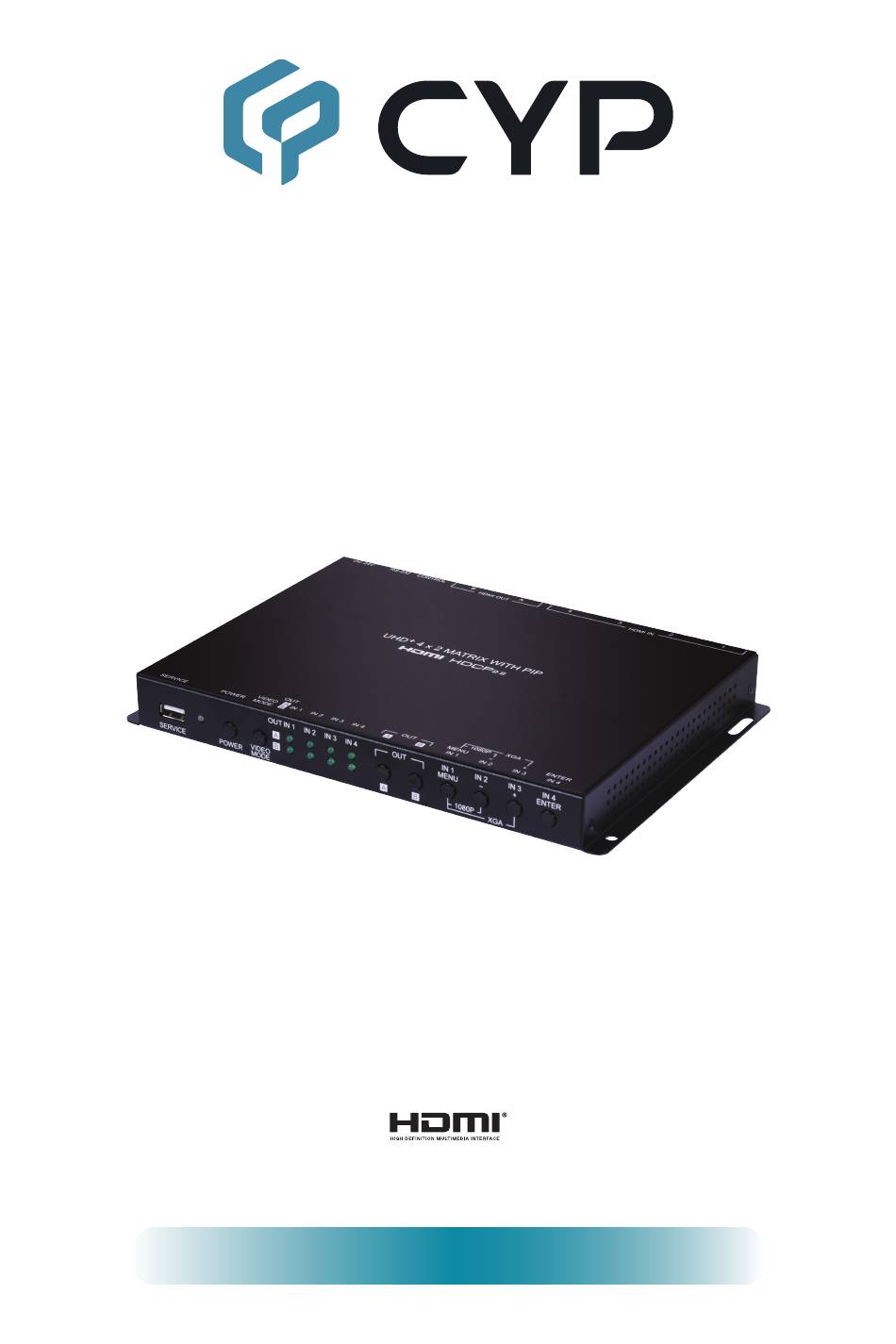

  • Page 1 CPLUS-V4H2HPIP 4×2 HDMI Matrix with PiP Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ............1 2. Applications ............. 1 3. Package Contents ........... 1 4. System Requirements ........2 5. Features............2 6. Operation Controls and Functions ....3 6.1 Front Panel ..........3 6.2 Rear Panel........... 5 6.3 RS-232 Pinout and Defaults ......6 6.4 OSD Menu ...........
  • Page 6: Introduction

    1. INTRODUCTION This 4 by 2 HDMI Matrix with PiP is a high performance HDMI switch with integrated scaling and multi-windowing technology which can connect up to four 4K UHD HDMI sources to up to two 4K UHD HDMI displays and freely switch between them.
  • Page 7: System Requirements

    4. SYSTEM REQUIREMENTS • HDMI source equipment such as media players, video game consoles or set-top boxes. • HDMI receiving equipment such as HDTVs, monitors or audio amplifiers. 5. FEATURES • HDMI 2.0 and DVI 1.0 compliant (with the use of an HDMI-DVI adapter) •...
  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel IN 1 IN 2 IN 3 IN 4 IN 1 IN 2 IN 3 IN 4 MENU ENTER VIDEO 1080P SERVICE POWER MODE SERVICE Port: This port is reserved for firmware update and user EDID/ logo upload use only.
  • Page 9 Note: Pressing “MENU” and “+” together will reset the output resolution to XGA (1024×768@60Hz). Pressing “MENU” and “-” together will reset the output resolution to 1080p@60Hz. IN 2/- (MINUS) Button: When not in source selection mode, press to move down or adjust selections within OSD menus. When source selection is active, pressing this button will either select input 2 (Matrix mode) or sequentially switch through all 4 inputs for window 2 (PiP/PoP/ Quad/Preset modes).
  • Page 10: Rear Panel

    6.2 Rear Panel HDMI IN HDMI OUT CONTROL RS-232 DC 24V HDMI IN 1~4 Ports: Connect to HDMI source equipment such as media players, game consoles, or set-top boxes. Note: Audio support on inputs 3~4 is limited to 2 channel LPCM. HDMI OUT A~B Ports: Connect to HDMI TVs, monitors, or amplifiers for digital video and audio output.
  • Page 11: Rs-232 Pinout And Defaults

    6.3 RS-232 Pinout and Defaults Serial Port Default Settings Baud Rate 19200 Data Bits Parity Bits None Stop Bits Flow Control None 3.5mm to DE-9 Adapter Cable...
  • Page 12: Osd Menu

    6.4 OSD Menu All functions of this unit can be controlled by using the OSD (On Screen Display) which is activated by pressing the MENU button on the front of the unit. Use the + (PLUS), − (MINUS), and ENTER buttons to navigate the OSD menu.
  • Page 13 Video Mode 2ND LEVEL 3RD LEVEL Video Mode Matrix QUAD Preset 1 Preset 2 Preset 3 Preset 4 PiP/PoP/Quad/Preset Mode In 1~4 [1] WIN 1 Source WIN 2 Source In 1~4 [2] In 1~4 [3] WIN 3 Source WIN 4 Source In 1~4 [4] Matrix Mode OUT A Source...
  • Page 14 Window Layout (Matrix Mode) 2ND LEVEL 3RD LEVEL In 1~4 [1] Input Select Aspect Ratio FULL 16:9 16:10 Best Fit Mirror Border On/Off Border Color Black GREEN Blue Yellow Magenta Cyan White Dark Red Dark Green Dark Blue Dark Yellow Dark Magenta Dark Cyan Gray...
  • Page 15 1) Input Select: Select the input to modify. Note: All settings are individually saved, per-input. 2) Aspect Ratio: Select a fixed aspect ratio for the currently selected window. Selecting the “Full” aspect ratio will stretch the source to fill the output, regardless of original aspect.
  • Page 16 Window Layout (PiP/PoP/Quad/Preset Modes) 2ND LEVEL 3RD LEVEL Border Color Black GREEN Blue Yellow Magenta Cyan White Dark Red Dark Green Dark Blue Dark Yellow Dark Magenta Dark Cyan Gray Window Reset 1) Window Select: Select the window to modify. Note: All settings are individually saved, per-window/per-mode.
  • Page 17 mode’s default size and shape for that window. Selecting “Best Fit” will automatically set the ratio based on the window’s current source resolution. 7) Mirror: Selecting “On” will flip the currently selected window horizontally. 8) Border On/Off: Enables or disable the color border around the currently selected window.
  • Page 18 Audio (Matrix Mode) 2ND LEVEL 3RD LEVEL WINDOW OUT A Source In 1 In 2 In 3 In 4 OUT A Mute WINDOW OUT B Source In 1 In 2 In 3 In 4 OUT B Mute 1) OUT A Source: Select the audio source to pair with video output A. 2) OUT A Mute: Enable or disable muting audio output A.
  • Page 19 Audio (PiP/PoP/Quad/Preset Modes) 2ND LEVEL 3RD LEVEL WIN 1 OUT A Source Win 2 Win 3 Win 4 In 1 In 2 In 3 In 4 OUT A Mute OUT B Source WIN 1 Win 2 Win 3 Win 4 In 1 In 2 In 3...
  • Page 20 Input EDID 2ND LEVEL 3RD LEVEL EDID Mode Independent All EDID 1080P60 2CH 4Kp30 2CH 4Kp60 2CH Sink OUT A Sink OUT B User 1 User 2 User 3 User 4 IN 1 EDID Same as [All EDID] IN 2 EDID Same as [All EDID] IN 3 EDID Same as [All EDID]...
  • Page 21 3) In 1~4 EDID: Select the EDID to assign to the specified input. Note: Only available in the “Independent” EDID Mode. 4) User 1~4 EDID: To update any of the unit’s 4 User EDIDs via USB, select “Yes” next to the appropriate User EDID and then insert a USB stick containing the new EDID into the Service port.
  • Page 22 Output Resolution 2ND LEVEL 640×480p59 480p60 576p50 800×600p60 848×480p60 1024×768p60 1280×720p50 1280×720p60 1280×768p60 1280×800p60 1280×960p60 1280×1024p60 1360×768p60 1366×768p60 1400×1050p60 1440×900p60 1600×900p60RB 1600×1200p60 1680×1050p60 1920×1080p24 1920×1080p25 1920×1080p30 1920×1080p50 1920×1080P60 1920×1200RB 2048×1152RB 3840×2160p24 3840×2160p25...
  • Page 23 Output Resolution 2ND LEVEL 3840×2160p30 4K p24 (DCI) 4K p25 (DCI) 4K p30 (DCI) 4K p50 (DCI) 4K p59 (DCI) 4K p60 (DCI) 3840×2160p50 3840×2160p59 3840×2160p60 Native OUT A Native OUT B 1) Output Resolution: Select the preferred video output resolution. Note: Both outputs always share the same resolution selection.
  • Page 24 OSD Settings 2ND LEVEL 3RD LEVEL TOP LEFT Menu Position Top Right Bottom Right Bottom Left Menu Timeout 5~60 [10] Info. Timeout 5~60 [5] Info. Display Transparency 1~10 Background Black GRAY Blue 1) Menu Position: Set the position of the OSD menu on the output. 2) Menu Timeout: Set the length of time, in seconds, that the OSD menu will continue to be displayed if there is no user input, or disable the timeout completely.
  • Page 25 Logo Settings 2ND LEVEL 3RD LEVEL Logo On/Off 0~100 [10] Position X Position Y 0~100 [10] Load Default Logo Logo Update 1) Logo On/Off: Enable or disable displaying the logo graphic. 2) Position X/Y: Sets the position of the logo’s upper left corner, within the output.
  • Page 26 Ethernet 2ND LEVEL 3RD LEVEL STATIC IP Mode DHCP Static IP Config IP Address X.X.X.X [192.168.1.50] Subnet Mask X.X.X.X [255.255.255.0] Gateway X.X.X.X [192.168.1.254] Link Status IP Mode [Current IP Mode] IP Address Subnet Mask [Current Network Info] Gateway MAC Addr. [Unit’s MAC Address] 1) IP Mode: Set the unit’s IP address mode to Static or DHCP.
  • Page 27 Preset 2ND LEVEL 3RD LEVEL PRESET 1 Save Preset 2 Preset 3 Preset 4 Recall PRESET 1 Preset 2 Preset 3 Preset 4 1) Save Preset 1~4: Select a preset and then press the “ENTER” button to store the unit’s current video window configuration to the currently selected preset.
  • Page 28 Setup 2ND LEVEL 3RD LEVEL Firmware Update User EDID Reset Factory Reset 1) Auto Sync Off: Set the amount of time to continue outputting sync with a black screen if there are no live sources and no operations have been executed on the unit.
  • Page 29 Information 2ND LEVEL 3RD LEVEL IN 1 IN 2 [Current Input Resolutions] IN 3 IN 4 [Current Output Resolution] Video Mode [Current Mode] Sink A Native [Native resolutions as reported by EDID] Sink B Native Firmware [Current Firmware Versions] RX3/RX4 Firmware 1) Information: Shows the currently detected details for all inputs and both outputs as well as listing the status of a few critical system settings and relevant firmware versions.
  • Page 30: Webgui Control

    6.5 WebGUI Control • Device Discovery Please obtain the “Device Discovery” software from your authorized dealer and save it in a directory where you can easily find it. Connect the unit and your PC/Laptop to the same active network and execute the “Device Discovery”...
  • Page 31 • WebGUI Overview After connecting to the WebGUI’s address in a web browser, the login screen will appear. Please enter the appropriate user name and password then click “Submit” to log in. Note: The default user name and password is “admin”. On the left side of the browser you will see the following menu tabs where all primary functions of the unit are controllable via the built in WebGUI.
  • Page 32: Upper Tab Windows

    6.5.1 Upper Tab Windows This upper section of the web interface is visible on every tab and provides control over the unit’s operational mode, source selection, and output resolution as well as containing basic information about the currently connected source and display devices. 1) Source: This section displays the currently detected resolution for the sources connected to each input.
  • Page 33: Window Layout Tab

    6.5.2 Window Layout Tab This tab provides control over the position, size, aspect, priority, and other settings of each window in multi-viewer modes. A graphical representation of the layout is also provided. When the unit is in Matrix mode, only a limited selection of controls are available.
  • Page 34 5) Priority: Select the layer priority of the currently selected window. Priority 1 is at the front and priority 4 is at the back. Note: Not available in Matrix mode. 6) Aspect Ratio: Use the dropdown to select a fixed aspect ratio for the currently selected window or input.
  • Page 35: Picture Tab

    6.5.3 Picture Tab This tab provides controls over each input’s contrast, brightness, saturation, hue, and sharpness levels. Note: All picture settings are per-input and are mode-independent. 1) Input Select: Use the dropdown to select the input to modify. 2) Reset: Reset the current input to its default settings. 3) Contrast: This slider provides control over the overall contrast of the currently selected source video.
  • Page 36: Audio Tab

    6.5.4 Audio Tab This tab provides control over the audio output behavior of the unit, including routing selection and muting. Note: Due to Matrix mode only supporting a single “window”, changing modes between a multi-windowing mode and Matrix mode when an audio source is set to windows 2~4 will result in the source reverting to window 1.
  • Page 37: Input Edid Tab

    6.5.5 Input EDID Tab This unit provides the option of three standard EDIDs, two sink sourced EDIDs and four user uploaded EDIDs that can be assigned to all inputs at the same time, or to each input independently. Note: In most cases, assigning a new EDID to an input will cause the affected input to briefly blink out while the source adapts to the new information.
  • Page 38: Hdcp Mode Tab

    6.5.6 HDCP Mode Tab This tab provides control over the HDCP settings for all inputs. 1) HDCP Mode Input 1~4: Use the dropdown to select the HDCP behavior for each input. „ HDCP Support Off: Completely disables support for HDCP on that input.
  • Page 39: Osd Settings Tab

    6.5.7 OSD Settings Tab This tab provides control over the behavior of the OSD menu and informational display. 1) Menu Position: Use the dropdown to set the position of the OSD menu on the output. Available choices are: Top Left, Top Right, Bottom Right, and Bottom Left.
  • Page 40: Logo Settings Tab

    6.5.8 Logo Settings Tab This tab provides control over the user uploaded logo graphic. Controls include positioning, an uploading a new logo directly from the WebGUI and an option to reset the logo to a built in default image that can be used for testing.
  • Page 41: Ethernet Tab

    6.5.9 Ethernet Tab This tab provides controls to change the network settings for the unit. You can manually set the IP address, netmask and gateway address in “Static IP” mode, or you can obtain an IP address automatically by enabling DHCP. Note: The unit’s default Static IP address is 192.168.1.50.
  • Page 42: Setup Tab

    6.5.10 Setup Tab Provides a way to update firmware and reset various sections within the unit. Control over the unit’s Auto Sync Off feature, storing/recalling presets as well as configuring the WebGUI login settings is also provided here. 1) Preset Save: Select a preset from the dropdown list and then click the “Save”...
  • Page 43: Information Tab

    „ Username/Password: To change the login username and password, enter the new information in the spaces provided and press “Save”. Note: The default user name and password is “admin”. „ Timeout: Set the length of time to wait, in minutes, before logging out a user due to inactivity.
  • Page 44: Telnet Control

    6.6 Telnet Control Before attempting to use Telnet control, please ensure that both the unit and the PC are connected to the same active networks. To Access the Command Line Interface (CLI) Windows 7 Click Start, type “cmd” in the search field, and press Enter.
  • Page 45: Serial And Telnet Commands

    6.7 Serial and Telnet Commands COMMAND Description and Parameters help Show the full command list. help N1 Show details about the specified command. N1 = {Command} ? Show the full command list. ? N1 Show details about the specified command. N1 = {Command} get fw ver...
  • Page 46 COMMAND Description and Parameters get feedback broadcast Show the current console command feedback broadcast state. set ip mode N1 Set the IP address assignment mode. Available values for N1: STATIC [Static IP mode] DHCP [DHCP mode] get ip mode Show the current IP address assignment mode. get ipconfig...
  • Page 47 COMMAND Description and Parameters set static gateway N1 Set the unit’s static IP address. N1 = X.X.X.X [X = 0~255, Gateway address] get static gateway Show the unit’s static gateway address. set webgui username N1 Set the WebGUI login username. N1 = {Username} [16 characters max] get webgui username...
  • Page 48 COMMAND Description and Parameters set telnet username N1 Set the Telnet login username. N1 = {Username} [16 characters max] get telnet username Show the current Telnet login username. set telnet password N1 Set the Telnet login password. N1 = {Password} [16 characters max] get telnet password...
  • Page 49 COMMAND Description and Parameters get window N1 route Show the input currently routed to the specified window. N1 = 1~4 [Window number] Note: Valid in multi-windowing modes only. set out N1 route N2 Route the specified input to the specified output. N1 = A~B [Output port] N2 = 1~4...
  • Page 50 COMMAND Description and Parameters set window N1 hposition N2 Set the horizontal position of the specified window. N1 = 1~4 [Window number] N2 = 0~{Max res} [Horizontal size] Note: Valid in multi-windowing modes only. get window N1 hposition Show the current horizontal position of the specified window. N1 = 1~4 [Window number] Note: Valid in multi-windowing modes only.
  • Page 51 COMMAND Description and Parameters set window N1 vsize N2 Set the vertical size of the specified window. N1 = 1~4 [Window number] N2 = 1~{Max res} [Vertical size] Note: Valid in multi-windowing modes only. get window N1 vsize Show the current vertical size of the specified window. N1 = 1~4 [Window number] Note: Valid in multi-windowing modes only.
  • Page 52 COMMAND Description and Parameters get window N1 aspect Show the current aspect of the specified window. N1 = 1~4 [Window number] set window N1 mirror N2 Set the mirror mode of the specified window. N1 = 1~4 [Window number] Available values for N2: [Enabled] [Disabled] get window N1 mirror...
  • Page 53 COMMAND Description and Parameters set window N1 border color N2 Set the border color of the specified window. N1 = 1~4 [Window number] Available values for N2: [Black] [Red] [Green] [Blue] [Yellow] [Magenta] [Cyan] [White] [Dark Red] [Dark Green] [Dark Blue] [Dark Yellow] [Dark Magenta] [Dark Cyan]...
  • Page 54 COMMAND Description and Parameters get in N1 contrast Show the current contrast level of the specified input. N1 = 1~4 [Input port] set in N1 brightness N2 Set the brightness level of the specified input. N1 = 1~4 [Input port] N2 = 0~100 [Brightness level] get in N1 brightness...
  • Page 55 COMMAND Description and Parameters set in N1 sharpness h N2 Set the horizontal sharpness level of the specified input. N1 = 1~4 [Input port] N2 = 0~20 [Horizontal sharpness level] get in N1 sharpness h Show the current horizontal sharpness level of the specified input. N1 = 1~4 [Input port] set in N1 sharpness v N2...
  • Page 56 COMMAND Description and Parameters set audio out N1 route N2 Route the specified audio source to the specified audio output. N1 = A~B [Output port] Available values for N2: [Input 1] [Input 2] [Input 3] [Input 4] [Window 1] [Window 2] [Window 3] [Window 4] get audio out N1 route...
  • Page 57 COMMAND Description and Parameters set all in edid N1 Set the EDID to use when the “All” EDID mode is active. Available values for N1: [1080p60 2-Channel] [4Kp30 2-Channel] [4Kp60 2-Channel] [User 1] [User 2] [User 3] [User 4] [Sink A] [Sink B] get all in edid...
  • Page 58 COMMAND Description and Parameters set in N1 hdcp mode N2 Set the HDCP behavior of the specified input. N1 = 1~4 [Input port] Available values for N2: [HDCP off] [Refer to Source] [Refer to Display] get in N1 hdcp mode Show the current HDCP behavior used by the specified input.
  • Page 59 COMMAND Description and Parameters [1920x1080p60] [1920x1200rb] [2048x1152rb] [3840x2160p24] [3840x2160p25] [3840x2160p30] [4K p24 DCI] [4K p25 DCI] [4K p30 DCI] [4K p50 DCI] [4K p59 DCI] [4K p60 DCI] [3840x2160p50] [3840x2160p59] [3840x2160p60] [Native OUT A] [Native OUT B] get out A timing Show the current resolution used by both outputs.
  • Page 60 COMMAND Description and Parameters set out A osd info display N1 Enable or disable the info OSD. Available values for N1: [Enabled] [Disabled] get out A osd info display Show the current info OSD state. set out A osd info timeout N1 Set the OSD info’s timeout value (in seconds).
  • Page 61 COMMAND Description and Parameters set out A osd logo display N1 Enable or disable the graphical logo overlay. Available values for N1: [Enabled] [Disabled] get out A osd logo display Show the current state of the graphical logo overlay. set out A osd logo hposition N1 Set the horizontal position of the graphical logo overlay.
  • Page 62 COMMAND Description and Parameters set auto sync off N1 Enable or disable the Auto Sync Off function and set the timeout length. Available values for N1: [Always on] [5 seconds] [10 seconds] [15 seconds] [30 seconds] [1 minutes] [1.5 minutes] [2 minutes] [2.5 minutes] [3 minutes]...
  • Page 63: Connection Diagram

    7. CONNECTION DIAGRAM Media Player/Game Console HDMI Input Media Player/Game Console HDMI Input Media Player/Game Console HDMI Input Media Player/Game Console HDMI Input HDMI IN HDMI OUT Power CONTROL RS-232 DC 24V Supply HDMI Output PC/Laptop HDMI Output HDMI TV/Display HDMI TV/Display...
  • Page 64: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 18Gbps Input Ports 4×HDMI (Type-A) Output Ports 2×HDMI (Type-A) Control Ports 1×RS-232 (3.5mm) 1×IP Control (RJ-45) Service Port 1×USB 2.0 (Type A) Baud Rate 19200 Power Supply 24V/2.7A DC (US/EU standards, CE/FCC/UL certified) ESD Protection (HBM) ±8kV (Air Discharge) ±4kV (Contact Discharge)
  • Page 65: Video Specifications

    8.2 Video Specifications Input Output Supported Resolutions (Hz) HDMI HDMI 720×400p@70/85   640×480p@60/72/75/85 60Hz  720×480i@60   720×480p@60   720×576i@50   720×576p@50   800×600p@56/60/72/75/85 60Hz  848×480p@60   1024×768p@60/70/75/85 60Hz  1152×864p@75   1280×720p@50/60 ...
  • Page 66 Input Output Supported Resolutions (Hz) HDMI HDMI 2560×1440p@60RB   2560×1600p@60RB   2048×1080p@24/25/30   2048×1080p@50/60   3840×2160p@24/25/30   3840×2160p@50/60 (4:2:0)   3840×2160p@24, HDR10   3840×2160p@50/60 (4:2:0),   HDR10 3840×2160p@50/60   4096×2160p@24/25/30  ...
  • Page 67: Audio Specifications

    8.3 Audio Specifications 8.3.1 Digital Audio HDMI Inputs 1~2/ All Outputs LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream Supported Formats Standard & High-Definition HDMI Inputs 3~4 LPCM Max Channels 2 Channels Sampling Rate (kHz) Bitstream Supported Formats...
  • Page 68: Cable Specifications

    8.4 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Input HDMI Output Bandwidth Category Examples: • 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit color - Data rates lower than 5.3Gbps or below 225MHz TMDS clock •...
  • Page 69: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM ASCII American Standard Code for Information Interchange Command-Line Interface DHCP Dynamic Host Configuration Protocol Digital Visual Interface EDID Extended Display Identification Data Gbps Gigabits per second Graphical User Interface HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television...
  • Page 70 ACRONYM COMPLETE TERM WUXGA (RB) Widescreen Ultra Extended Graphics Array (Reduced Blanking) Extended Graphics Array...
  • Page 72 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
