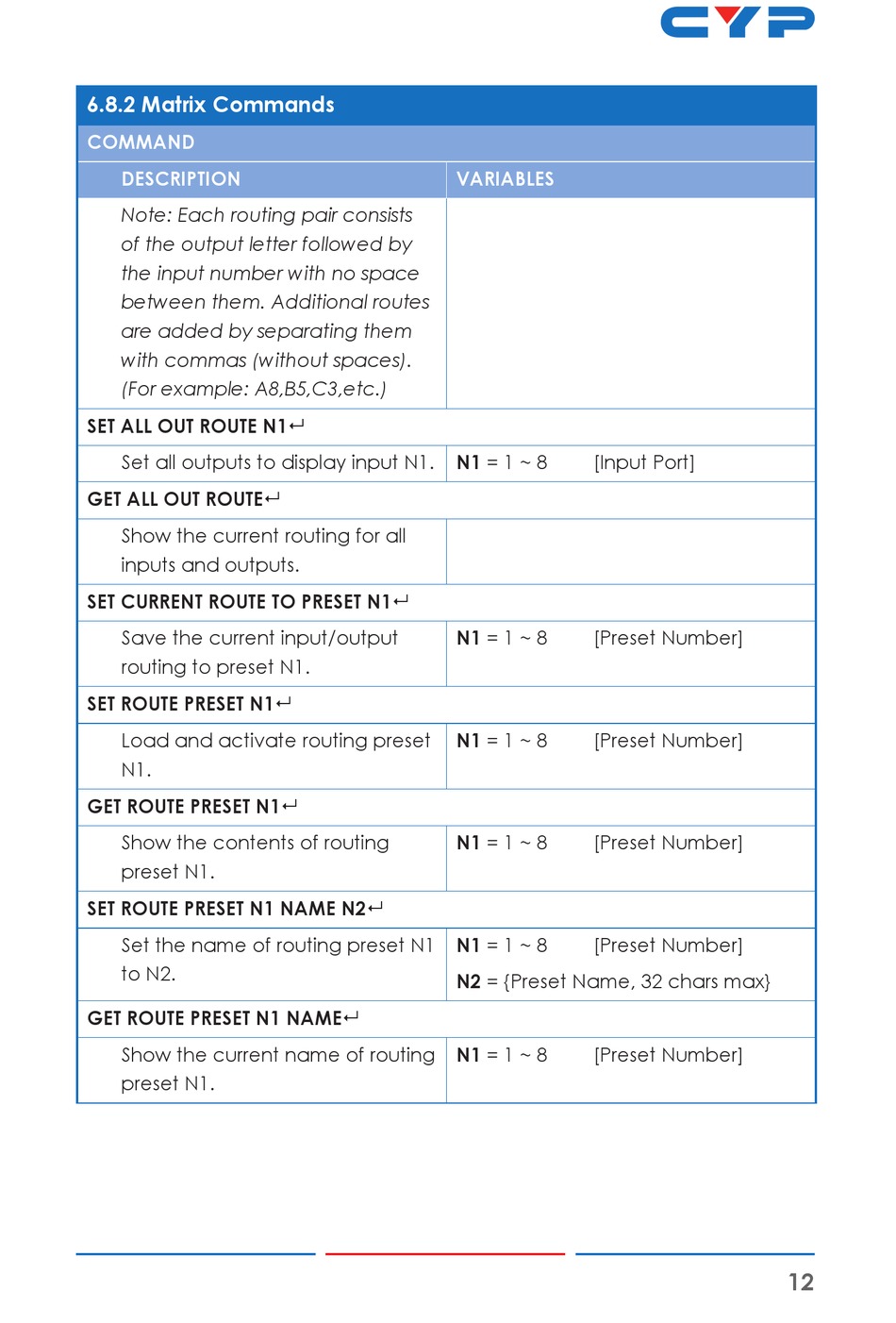

CYP CPLUS-V8H8HP Operation Manual page 17

6.8.2 Matrix Commands
COMMAND
DESCRIPTION
Note: Each routing pair consists
of the output letter followed by
the input number with no space
between them. Additional routes
are added by separating them
with commas (without spaces).
(For example: A8,B5,C3,etc.)
SET ALL OUT ROUTE N1
Set all outputs to display input N1.
GET ALL OUT ROUTE
Show the current routing for all
inputs and outputs.
SET CURRENT ROUTE TO PRESET N1
Save the current input/output
routing to preset N1.
SET ROUTE PRESET N1
Load and activate routing preset
N1.
GET ROUTE PRESET N1
Show the contents of routing
preset N1.
SET ROUTE PRESET N1 NAME N2
Set the name of routing preset N1
to N2.
GET ROUTE PRESET N1 NAME
Show the current name of routing
preset N1.
VARIABLES
N1 = 1 ~ 8
[Input Port]
N1 = 1 ~ 8
[Preset Number]
N1 = 1 ~ 8
[Preset Number]
N1 = 1 ~ 8
[Preset Number]
N1 = 1 ~ 8
[Preset Number]
N2 = {Preset Name, 32 chars max}
N1 = 1 ~ 8
[Preset Number]
12
