CYP CPLUS-662CVAL Operation Manual
  1. Manuals
  2. Brands
  3. CYP Manuals
  4. Matrix Switcher
  5. CPLUS-662CVAL
  6. Operation manual

CYP CPLUS-662CVAL Operation Manual

6×8 hdmi and hdbaset matrix with audio matrixing
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CPLUS-662CVAL
6×8 HDMI and HDBaseT Matrix
with Audio Matrixing
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CPLUS-662CVAL and is the answer not in the manual?

Questions and answers

Related Manuals for CYP CPLUS-662CVAL

Summary of Contents for CYP CPLUS-662CVAL

  • Page 1 CPLUS-662CVAL 6×8 HDMI and HDBaseT Matrix with Audio Matrixing Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ............1 2. Applications .............1 3. Package Contents ..........2 4. System Requirements ........2 5. Features ............2 6. Operation Controls and Functions ....4 6.1 Front Panel ..........4 6.2 Rear Panel ..........5 6.3 Side Panel ..........8 6.4 Remote Control ......... 9 6.5 OLED Menu ..........
  • Page 6 7. Connection Diagram ........53 8. Specifications ..........54 8.1 Technical Specifications ......54 8.2 Video Specifications ....... 55 8.2.1 Supported HDMI Resolutions ..55 8.2.2 Maximum HDMI Cable Length ..56 8.3 Audio Specifications ....... 56 8.3.1 Analog Audio ......... 56 8.3.2 Linear PCM Audio ......

  • Page 7: Introduction

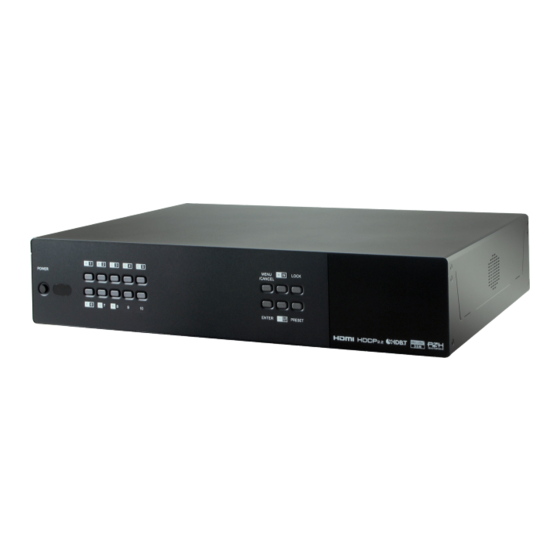

    1. INTRODUCTION This 6×8 HDMI and HDBaseT Matrix supports routing and transmission of video (resolutions up to 4K@60Hz w/ HDMI 2.0 & HDCP 2.2) and audio (multi-channel digital/stereo analog) while providing flexible control via IR, RS-232, Telnet or WebGUI. As many as six UltraHD sources may be routed to any of eight destinations, six via single Cat.5e/6/7 cables (up to 60m at 1080p or up to 35m at 4K@30Hz) and two via HDMI 2.0 outputs.

  • Page 8: Package Contents

    • Retail installation systems 3. PACKAGE CONTENTS • 1× 6 by 8 HDMI and HDBaseT Matrix with Audio Matrixing • 1× Remote Control (CR-163) • 2× IR Blaster Cable • 2× 24V/6.25A DC Power Adaptor • 2× Power Cord • 1× Rack Ear Set •...
  • Page 9 dependent upon the output display’s EDID settings • Supports HDMI output resolutions up to 4K@60Hz (RGB/YUV 4:4:4) • Supports automatic 4K@60Hz RGB/YUV 4:4:4 to YUV 4:2:0 conversion for HDBaseT outputs • 4K@30Hz signals can be transmitted up to 35m via Cat.5e/6 and up to 60m via Cat.6a/7 •...

  • Page 10: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel MENU LOCK /CANCEL POWER ENTER PRESET 3 5M iso lated POWER: Press this button to power the unit on or place it into stand- by mode. Note: Network functionality and PoH (if the second power supply is connected) remain active when the unit is in stand-by mode.

  • Page 11: Rear Panel

    +/IN: Within the menu, this button moves you up within the menu tree. Otherwise, in routing mode, this button allows you to make your input source selection. -/OUT: Within the menu, this button moves you down within the menu tree. Otherwise, this button starts routing mode and allows you to begin your output destination selections.
  • Page 12 transmission. In order for an IR signal to be transmitted along with the HDMI signal an IR extender must be connected to the associated IR In port. IR signals coming back from the connected HDBaseT receiver can be used to control the matrix remotely and will also be broadcast from IR blasters connected to the appropriate IR Out/All IR Out ports.
  • Page 13 These audio ports are capable of independently outputting audio routed from any audio source within the matrix. Treble, bass, volume and audio delay adjustments can be set in the WebGUI (LPCM 2.0 or analog stereo sources only). ANALOG AUDIO IN 1~2: Accepts unbalanced analog audio from sources such as DVD players, PCs, MP3 players, etc.

  • Page 14: Side Panel

    6.3 Side Panel FAN VENT: These are air ventilation areas. DO NOT block these areas or cover them with any objects. Please allow adequate space around the unit for air circulation.

  • Page 15: Remote Control

    6.4 Remote Control MUTE LOCK POWER POWER: Press to power the unit on or place it into stand-by mode. LOCK: Press to lock/unlock the front panel of the matrix unit. MUTE: Mutes Zone Audio outputs. HDBaseT 10/J PATTERN audio can only be muted when an MENU/ CANCEL +/IN...

  • Page 16: Oled Menu

    6.5 OLED Menu 1ST LEVEL 2ND LEVEL 3RD LEVEL EDID EDID Mode Independent EDID Select 1~6 (Default EDID settings) 7~14 (Sink's EDID settings) 15~18 (User's EDID settings) Network Link Status (Idle) IP Address Subnet Mask Gateway Address MAC Address DHCP mode HDMI Mirroring Output G Output H...

  • Page 17: Ir Cable Pin Assignment

    6.6 IR Cable Pin Assignment IR Blaster Power IR Signal IR Extender IR Signal Power Ground 6.7 RS-232 Protocol MATRIX REMOTE CONTROLLER Assignment Assignment ► ◄ Baud Rate: 115200bps Data Bits: 8 Parity: None Flow Control: None Stop Bits: 1...

  • Page 18: Rs-232 And Telnet Commands

    6.8 RS-232 and Telnet Commands 6.8.1 Command Syntax The RS-232/Telnet command structure for this unit is both flexible and powerful, and allows for multiple parameters to be set across multiple ports simultaneously within a single command transmission. This section will detail the command syntax used to send both simple (single port/ single parameter) commands as well as the more complex (multi-port/ parameter) commands.
  • Page 19 for separation. The number of ports allowed in a single command is limited by the number of ports on that specific interface. <Command> {Port1}+{Port2}+{Etc.} {Parameter [= Value]} Examples: ZoneLineOut A+B+C Treble = -12 HDBT_Out A+D+F Mute • Multi-Slot Command Format (ZoneAvPair) The ZoneAvPair command allows for multiple slots on a single HDBaseT or HDMI output to be assigned the same value simultaneously.

  • Page 20: Real World Command Use

    • Complex Multi-Port/Parameter Command Format It is possible to have a single command that affects multiple ports with multiple groupings of parameters. All previously explained syntax rules must be observed and each additional set of ports/parameters are separated by the “&” character. <Command>...
  • Page 21 COMMAND DESCRIPTION ZoneAvPair HDBT_Out A Slot 1 Load Load the 1st A/V pairing for HDBaseT Output A’s zone • Optical Audio Return (OAR) Command Example If you are also using the Zone Audio outputs (Stereo Zones) for any zone we recommend using the Optical Audio Return (OAR) function to set the Zone Audio output to always play the audio coming from the TV itself.
  • Page 22 • Audio Only source selection Command Examples This unit offers 4 direct audio only inputs, while some of these inputs will likely be used for down mixed audio signals from surround sound sources (for stereo only zones) we expect audio only sources to be connected to deliver just audio to both TV zones and Audio Only zones.

  • Page 23: Full Command List

    • Combined Audio and Video Routing Command Example It is also possible to switch audio and video simultaneous by using an advanced command structure. In this case the individual parameters of the “HDBT_Out” command are separated by a comma. Please check section 6.8.1 for additional information on how commands can be combined.
  • Page 24 COMMAND DESCRIPTION ZoneLineOut M AudioSrc=XXX Set the audio source for a zone line output. M = A~F Available XXX values: HDMI_In n [n=1~6] OpticIn n [n=1] CoaxIn n [n=1] AnalogIn n [n=1~2] OAR_In n [n=A~F] ZoneLineOut M Treble=XXX Set the treble value for a zone line output.
  • Page 25 COMMAND DESCRIPTION ZoneLineOut M Volume=Slow XXX Adjust the volume of a zone line output in small steps (0.5dB steps). M = A~F XXX = “Up” or “Down” ZoneLineOut M Delay=XXX Set the audio delay for a zone line output. M = A~F XXX = 0~230 (units: ms) ZoneLineOut M Mute Mute a zone line output.
  • Page 26 COMMAND DESCRIPTION ExtLineOut M AudioSrc=XXX Set the audio source for an extended line output. M = 1~2 Available XXX values: HDMI_In n [n = 1~6] OpticIn n [n = 1] CoaxIn n [n = 1] AnalogIn n [n = 1~2] OAR_In n [n = A~F] ExtLineOut M Treble=XXX Set the treble value for an...
  • Page 27 COMMAND DESCRIPTION ExtLineOut M Volume=Slow XXX Adjust the volume of an extended line output in small steps (0.5dB steps). M = 1~2 XXX = “Up” or “Down” ExtLineOut M Delay=XXX Set the audio delay for an extended line output. M = 1~2 XXX = 0~230 (units: ms) ExtLineOut M Mute Mute an extended line...
  • Page 28 COMMAND DESCRIPTION HDMI_Out M AudioSrc=XXX Set the audio source for an HDMI output. M = G~H Available XXX values: HDMI_In n [n = 1~6] OpticIn n [n = 1] CoaxIn n [n = 1] AnalogIn n [n = 1~2] OAR_In n [n = A~F] FollowVideo HDMI_Out M Mute Mute an HDMI output’s audio.
  • Page 29 COMMAND DESCRIPTION HDMI_Out M Mirroring=XXX Set the audio/video mirroring source for an HDMI output. M = G~H Available XXX values: HDBT_Out n [n = A~F] HDMI_Out M Status Display the status & properties of an HDMI output including audio/video matrix. M = G~H HDMI_Out M Name={NameString} Set the verbose name of an...
  • Page 30 COMMAND DESCRIPTION HDBT_Out M Unmute Unmute an HDBaseT output’s audio. M = A~F HDBT_Out M VideoSrc=XXX Set the video source for an HDBaseT output. M = A~F Available XXX values: HDMI_In n [n=1~6] HDBT_Out M VideoSrc=Pattern Set the video source of an HDBaseT output to the internal test pattern.
  • Page 31 COMMAND DESCRIPTION HDMI_In M Name={NameString} Set the verbose name of an HDMI input. Maximum 32 characters. M = 1~6 Note: Can only rename one port at a time. Multi-port is not supported. SETIP {IP} {Subnet} {Gateway} Set the IP address, subnet and gateway in Static IP mode.
  • Page 32 COMMAND DESCRIPTION PRESET Show [M] List the contents of a stored A/V preset. M = 1~8 (If M is omitted, list all A/V presets.) PRESET name M={NameString} Set the verbose name of a preset. Maximum 32 characters. M = 1~8 EDID All=XXX Set the EDID source for all HDMI input ports.
  • Page 33 COMMAND DESCRIPTION Pattern timing=XXX Set the output resolution and timing used by the internal test pattern generator. Available XXX values: 4K2K30 4K2K25 1080p60 1080p50 720p60 720p50 Pattern type=XXX Set the color to display the test pattern in. Available XXX values: Black Blue Green...
  • Page 34 COMMAND DESCRIPTION ZoneAvPair HDBT_Out M Slot N AudioSrc=XXX Assign an audio source to a Zone A/V Pair slot on an HDBaseT output. M = A~F N = 1~11 Available XXX values: HDMI_In n [n=1~6] OpticIn n [n=1] CoaxIn n [n=1] AnalogIn n [n=1~2] OAR_In n [n=A~F] ZoneAvPair HDBT_Out M Slot N VideoSrc=XXX Assign a video source to...
  • Page 35 COMMAND DESCRIPTION ZoneAvPair HDMI_Out M Slot N Assign an audio source to a AudioSrc=XXX Zone A/V Pair slot on an HDMI output. M = G~H N = 1~11 Available XXX values: HDMI_In n [n=1~6] OpticIn n [n=1] CoaxIn n [n=1] AnalogIn n [n=1~2] OAR_In n [=A~F] ZoneAvPair HDMI_Out M Slot N...
  • Page 36 COMMAND DESCRIPTION IR_Route HDBT_Out M0 M1 M2 Select the IR source(s) for an HDBaseT output. M0 is the output port index. M1 is the function to use. M2 is the IR input source. M0 = A~F (supports multiple port selection by using “+”.) Available M1 values: Add [Add M2 source to M0] Del [Remove M2 source from...
  • Page 37 COMMAND DESCRIPTION IR_Route IR_Out M0 M1 M2 Select the IR source(s) for an IR Output jack (next to each HDMI input). M0 is the output port index. M1 is the function to use. M2 is the IR input source. M0 = 1~6 (supports multiple port selection by using “+”.) Available M1 values: Add [Add M2 source to M0]...

  • Page 38: Telnet Control

    6.9 Telnet Control Before attempting to use Telnet control, please ensure that both the unit and the PC/Laptop are connected to the same active networks. To access Telnet in Windows 7, click on the “Start” menu and type “cmd” in the search field, then press “Enter”. Under Windows XP go to the “Start”...
  • Page 39 Once in the CLI (Command Line Interface) type “Telnet” followed by the IP address of the unit and “23”, then hit “Enter”. This will connect us to the unit we wish to control. Type “help” to list the available commands. Note: Commands will not be executed unless followed by a carriage return.

  • Page 40: Webgui Control

    6.10 WebGUI Control • Install the Device Discovery Tool Please obtain the Device Discovery software from your authorized dealer and save it in a directory where you can easily find it. Note: The unit’s default IP address is 192.168.1.50 Connect the unit and your PC/Laptop to the same active network and execute the Device Discovery software.
  • Page 41 • Login to the WebGUI By default, both the Username and Password are “admin” for the WebGUI. The administrator password can be changed within the “User Config” tab of the WebGUI if desired. The above function tabs will always display on left side of the WebGUI to aid with navigation.

  • Page 42: Video Switch

    6.10.1 Video Switch This page provides video routing settings including HDCP and test pattern configuration. • Output and Input Routing To begin assigning a new video route, please click the button of the HDBaseT output you wish to send video to (e.g. “HDBT_Out A”) and then click on the button of the preferred HDMI input port (e.g.
  • Page 43 • Output and Input Naming All inputs and outputs can be renamed as required. To rename the HDBaseT output ports and HDMI input ports please click the “edit” icon ( ). Click the “Save” button to confirm the change. Note: Blank spaces (“ ”) are not allowed in names.
  • Page 44 • HDMI Output Setting The two HDMI outputs (port G & port H) allow support for the maximum HDMI timing up to 18Gbps (4096×2160@60Hz) and can be used for normal source routing (listed as “Independent” within the WebGUI) and mirroring (listed as “Mirror” within the WebGUI) for local monitoring purposes or zone monitoring (e.g.
  • Page 45 • Internal Test Pattern This advanced matrix system comes with an internal test pattern generation feature which can be used to test connected sink device functionality or be used to self-test matrix unit itself. This is a useful tool for installation engineers to troubleshoot potential issues between the matrix and connected devices.
  • Page 46 • Preset Setting This matrix can store up to eight video and audio routing presets. Presets can be utilized to store multiple different routing states in advance for rapid, hassle-free, recall. - Store: Once you have the matrix set the way you like, you can click the “store”...

  • Page 47: Zone Audio

    6.10.2 Zone Audio This advanced matrix offers a complete audio routing function. The Zone Audio ports offer analog audio breakaway capability. The audio source, treble, bass, volume and audio delay adjustments can be set on this page. • Output and Input Routing Click the buttons from left to right to choose each output’s source.
  • Page 48 • Audio Output Setting Click the “edit” icon ( ) to change the following settings: - Rename: The Zone Audio outputs can be renamed here. - Volume: Adjustable from -100dB to 0dB. - Bass: Adjustable from -12dB to +12dB. - Treble: Adjustable from -12dB to +12dB. - Delay: Adjustable from 0 to 230ms.

  • Page 49: Extended Audio

    6.10.3 Extended Audio The Extended Audio ports offer additional analog audio breakaway capability. The audio source, treble, bass, volume and audio delay adjustments can be set on this page. • Output and Input Routing Click the buttons from left to right to choose each output’s source. Once the new source has been selected, the change will happen immediately.

  • Page 50: Hdmi Audio

    6.10.4 HDMI Audio The audio routed to the two HDMI outputs (ports: G & H) and their associated settings are adjusted on this page. • Output and Input Routing Click the buttons from left to right to choose each output’s source. Once the new source has been selected, the change will happen immediately.

  • Page 51: Hdbaset Audio

    6.10.5 HDBaseT Audio The audio routed to the six HDBaseT outputs (ports: A~F) and their associated settings are adjusted on this page. • Output and Input Routing Click the buttons from left to right to choose each output’s source. Once the new source has been selected, the change will happen immediately.
  • Page 52 • HDBaseT Audio Output Setting Click the “edit” icon ( ) to change the following settings: - Rename: The HDBaseT Audio outputs can be renamed here. - Mute: Mute may be turned on or off. - Follow Video Source: Clicking the selection bar switches between Enable (follow video) or Disable (don’t follow video).

  • Page 53: Zone A/V Pairing

    6.10.6 Zone A/V Pairing The zone A/V pairing function allows the end user to control the matrix, using the supplied remote control, in a customized manner while in remote rooms (zones) containing an HDBaseT receiver and IR extender. Each zone can have a different set of video/audio sources assigned to the buttons on the remote control for easy switching.

  • Page 54: Edid Settings

    • Video and Audio Pairing Edit Please click the “edit” icon ( ) to edit the video and audio routing settings. Once you have completed your selections press “Save”. 6.10.7 EDID Settings This matrix provides the option of six standard EDIDs, eight sink sourced EDIDs and four customer uploaded EDIDs that can be assigned to each input port individually.
  • Page 55 • Sink EDID Download To save an existing custom EDID to your local PC please press the “Download” button next to the Customer EDID Settings item you would like to save. An EDID Download window will appear, allowing you to save the EDID file to your local PC.

  • Page 56: Hdbaset & H/W Info

    The unit comes with the following 6 default EDIDs: - FHD/2CH: 1080p/60Hz(148M), 2.0 LPCM, 8-bit color. - FHD/MCH: 1080p/60Hz(148M), 7.1 LPCM and bitstream, 8-bit color. - 4K UHD/2CH: 3840×2160p/30Hz (297M), 2.0 LPCM, deep color (8/10/12-bit). - 4K UHD/MCH: 3840×2160p/30Hz (297M), 7.1 LPCM and bitstream, Deep Color (8/10/12-bit).

  • Page 57: User Config

    6.10.9 User Config The WebGUI and Telnet username/password are set on this page. Two management levels are available: “Administrator” and “General User”. The administrator username (“admin”) cannot be changed. The “Administrator” user has access to change all settings. The “General User” is not permitted to access or change information on the EDID Settings or System Settings pages.

  • Page 58: Logout

    Click the “Download” button to save the current system configuration to your local PC. The current system configuration will be saved as XML file. The system configuration can also be restored from a saved XML file by clicking the “Choose File” button to locate the saved XML file, then clicking the “Restore”...

  • Page 59: Connection Diagram

    7. CONNECTION DIAGRAM AV Zones • HDMI Out • IR In/Out • PoH • OAR Extended Analog Audio Source Audio Zones Devices Analog CAT5e/6 Stereo Analog Stereo Digital S/PDIF Outputs Outputs Inputs Inputs ZONE EXTENDED ANALOG DIGITAL IR IN IR IN CAT5e/6 OUT CAT5e/6 OUT IR IN...

  • Page 60: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth HDMI: 600MHz/18Gbps HDBaseT: 340MHz/10.2Gbps Input Ports 6×HDMI 4×RCA [Stereo Audio] 1×Coaxial [S/PDIF Audio] 1×Optical [S/PDIF Audio] Output Ports 2×HDMI 6×Cat.5e/6/7 12×RCA [Stereo Audio] 4×RCA [Extended Stereo Audio] Control Ports 7×IR Extender 7×IR Blaster 1×RS-232 (9-pin D-sub) 1×Control (RJ-45) Service Port...

  • Page 61: Video Specifications

    Silkscreen Color Black Operating Temperature 0˚C - 40˚C/32˚F - 104˚F Storage Temperature −20˚C - 60˚C/−4˚F - 140˚F Relative Humidity 20 - 90% RH (No-condensing) Power Consumption 140W 8.2 Video Specifications 8.2.1 Supported HDMI Resolutions HDMI Resolution (Hz) Input Output 480i@60 ...

  • Page 62: Maximum Hdmi Cable Length

    8.2.2 Maximum HDMI Cable Length HDMI Resolution Input Output 8-bit 1080p 10 meters 10 meters 12-bit 1080p 10 meters 10 meters 3840×2160@60Hz (YCbCr 4:2:0) 5 meters 5 meters 3840×2160@60Hz (YCbCr 4:4:4) 3 meters 3 meters Note: 1. 18Gbps (4K@60Hz YCbCr 4:4:4) HDMI signals will be converted to 10.2Gbps (4K@60Hz YCbCr 4:2:0) signals when output over the six HDBaseT ports.

  • Page 63: Linear Pcm Audio

    8.3.2 Linear PCM Audio Channels (kHz) LPCM 2.0@44.1 LPCM 5.1@44.1 LPCM 7.1@44.1 LPCM 2.0@88.2 LPCM 5.1@88.2 LPCM 7.1@88.2 LPCM 2.0@176.4 LPCM 5.1@176.4 LPCM 7.1@176.4 LPCM 2.0@32 LPCM 5.1@32 LPCM 7.1@32 LPCM 2.0@48 LPCM 5.1@48 LPCM 7.1@48 LPCM 2.0@96 LPCM 5.1@96 LPCM 7.1@96 LPCM 2.0@192 LPCM 5.1@192...

  • Page 64: Category Cable Specifications

    8.4 Category Cable Specifications Cable Type Cable Length Supported Video Format Cat.5e/6 60 meters Most common Full HD video: • Up to 1080p@60Hz, 36-bit color • Data rates lower than 5.3Gbps or below 225MHz TMDS clock 35 meters Full HD & Ultra HD video: •...

  • Page 65: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM Cat.5e Category 5 (enhanced) Cable Cat.6 Category 6 Cable Cat.7 Category 7 Cable Command Line Interface Digital Visual Interface EDID Extended Display Identification Data Graphical User Interface High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface High Dynamic Range HTTP HyperText Transfer Protocol...
