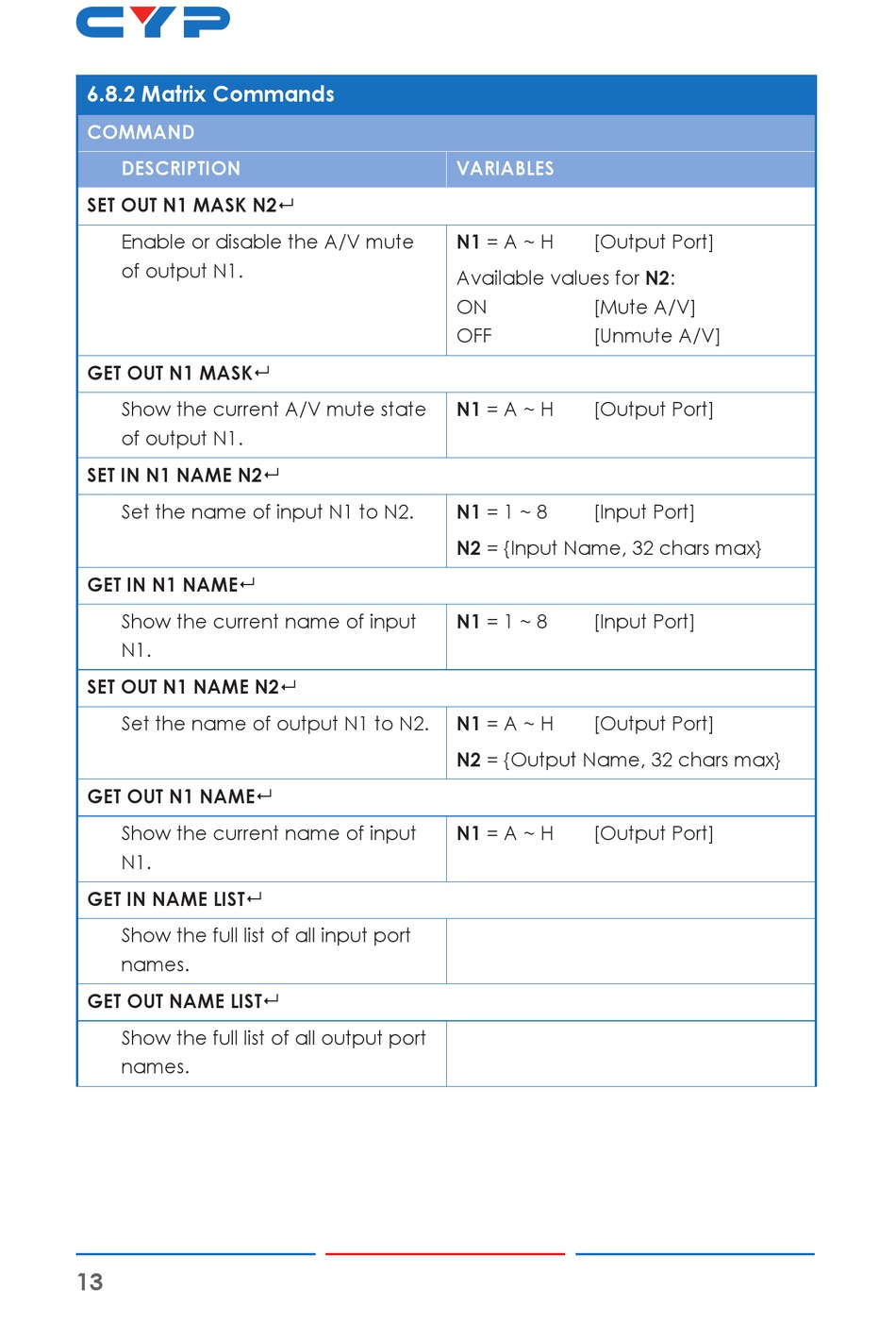

6.8.2 Matrix Commands
COMMAND
DESCRIPTION
SET OUT N1 MASK N2
Enable or disable the A/V mute
of output N1.
GET OUT N1 MASK
Show the current A/V mute state
of output N1.
SET IN N1 NAME N2
Set the name of input N1 to N2.
GET IN N1 NAME
Show the current name of input
N1.
SET OUT N1 NAME N2
Set the name of output N1 to N2.
GET OUT N1 NAME
Show the current name of input
N1.
GET IN NAME LIST
Show the full list of all input port
names.
GET OUT NAME LIST
Show the full list of all output port
names.
13
VARIABLES
N1 = A ~ H
[Output Port]
Available values for N2:
ON [Mute A/V]
OFF [Unmute A/V]
N1 = A ~ H
[Output Port]
N1 = 1 ~ 8
[Input Port]
N2 = {Input Name, 32 chars max}
N1 = 1 ~ 8
[Input Port]
N1 = A ~ H
[Output Port]
N2 = {Output Name, 32 chars max}
N1 = A ~ H
[Output Port]
