6. OPERATION CONTROLS AND FUNCTIONS

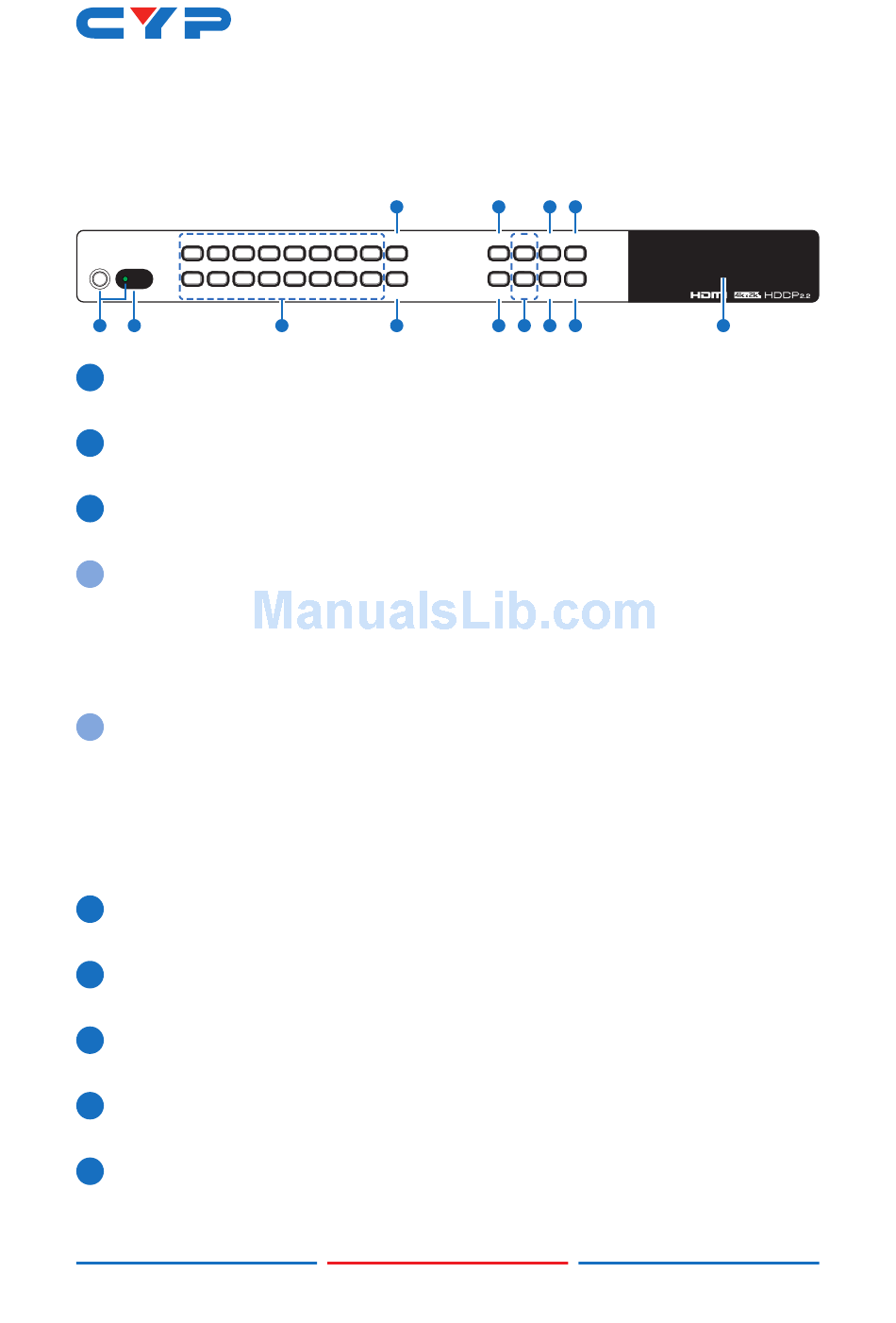

6.1 Front Panel

OUT A OUT B OUT C
POWER
8x8 4K UHD+ Matrix
IN 1 IN 2 IN 3
1 2
1 POWER: Press this button to power the unit on (green LED) or place
it into stand-by mode (red LED).
IR WINDOW: Accepts IR signals from the included IR remote for
2
control of this unit only.
3 IN 1~8 & OUT A~H: Press these buttons to configure the video
routing. Behavior depends on the selected Keypad Action Mode.
In Standard Mode: Press the "OUT" buttons (A~H) of the outputs
3a
you wish to route a source to (the letters will flash in the LCD to
indicate selection). Next, press the "IN" button of the input (1~8)
you wish to route to the selected outputs. Finally, press "CONFIRM"
to confirm your selection and execute the routing change.
In User Mode: Press the "OUT" button (A~H) of an output you wish
3b
to route a source to (the letter will flash in the LCD to indicate
selection). Next, press the "IN" button of the input (1~8) you wish
to route to the selected output. Repeat this process as many times
as needed to select all new routes. Finally, press "CONFIRM" to
confirm your selections and execute the routing changes.
CONFIRM: Press this button to confirm newly made input/output
4
routing selections.
5 CANCEL: Press this button to cancel newly made input/output
routing selections before they have been confirmed.
ENTER: Press to confirm a selection within the LCD menu or to go
6
deeper into a menu item.
7 MENU: Press to enter the LCD menu, or to back out from menu
items.
PLUS (+) & MINUS (−): Press to move up and down or adjust
8
selections within menus.
3
5
OUT D OUT E OUT F OUT G OUT H CANCEL
IN 4 IN 5 IN 6 IN 7 IN 8 CONFIRM
3 4
7 9 11
+
MENU ALL LOCK
-
ENTER PRESET MUTE
6 8 10 12
+
13
