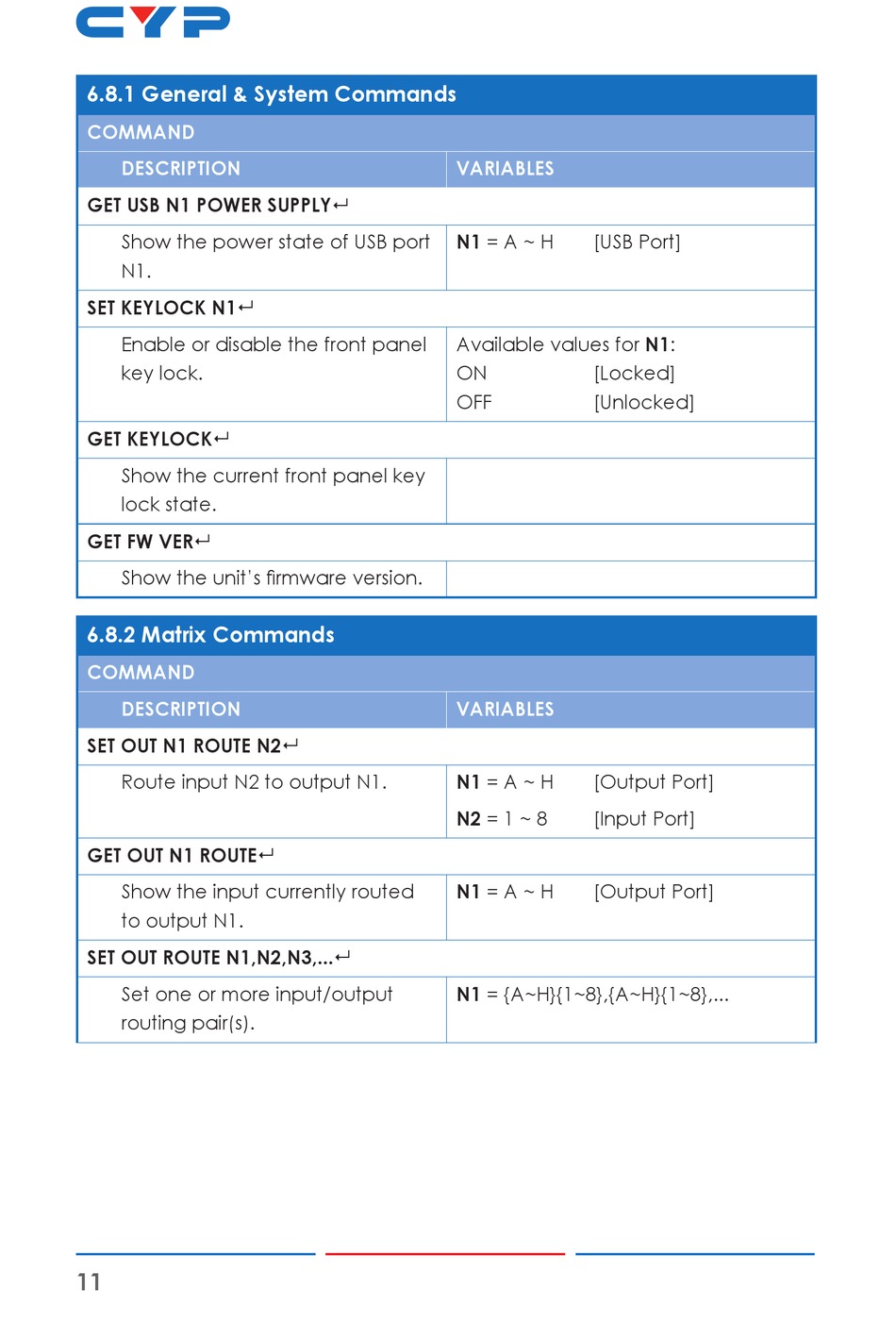

CYP CPLUS-V8H8HP Operation Manual page 16

6.8.1 General & System Commands
COMMAND
DESCRIPTION
GET USB N1 POWER SUPPLY
Show the power state of USB port
N1.
SET KEYLOCK N1
Enable or disable the front panel
key lock.
GET KEYLOCK
Show the current front panel key
lock state.
GET FW VER
Show the unit's firmware version.
6.8.2 Matrix Commands
COMMAND
DESCRIPTION
SET OUT N1 ROUTE N2
Route input N2 to output N1.
GET OUT N1 ROUTE
Show the input currently routed
to output N1.
SET OUT ROUTE N1,N2,N3,...
Set one or more input/output
routing pair(s).
11
VARIABLES
N1 = A ~ H
[USB Port]
Available values for N1:
ON [Locked]
OFF [Unlocked]
VARIABLES
N1 = A ~ H
[Output Port]
N2 = 1 ~ 8
[Input Port]
N1 = A ~ H
[Output Port]
N1 = {A~H}{1~8},{A~H}{1~8},...
