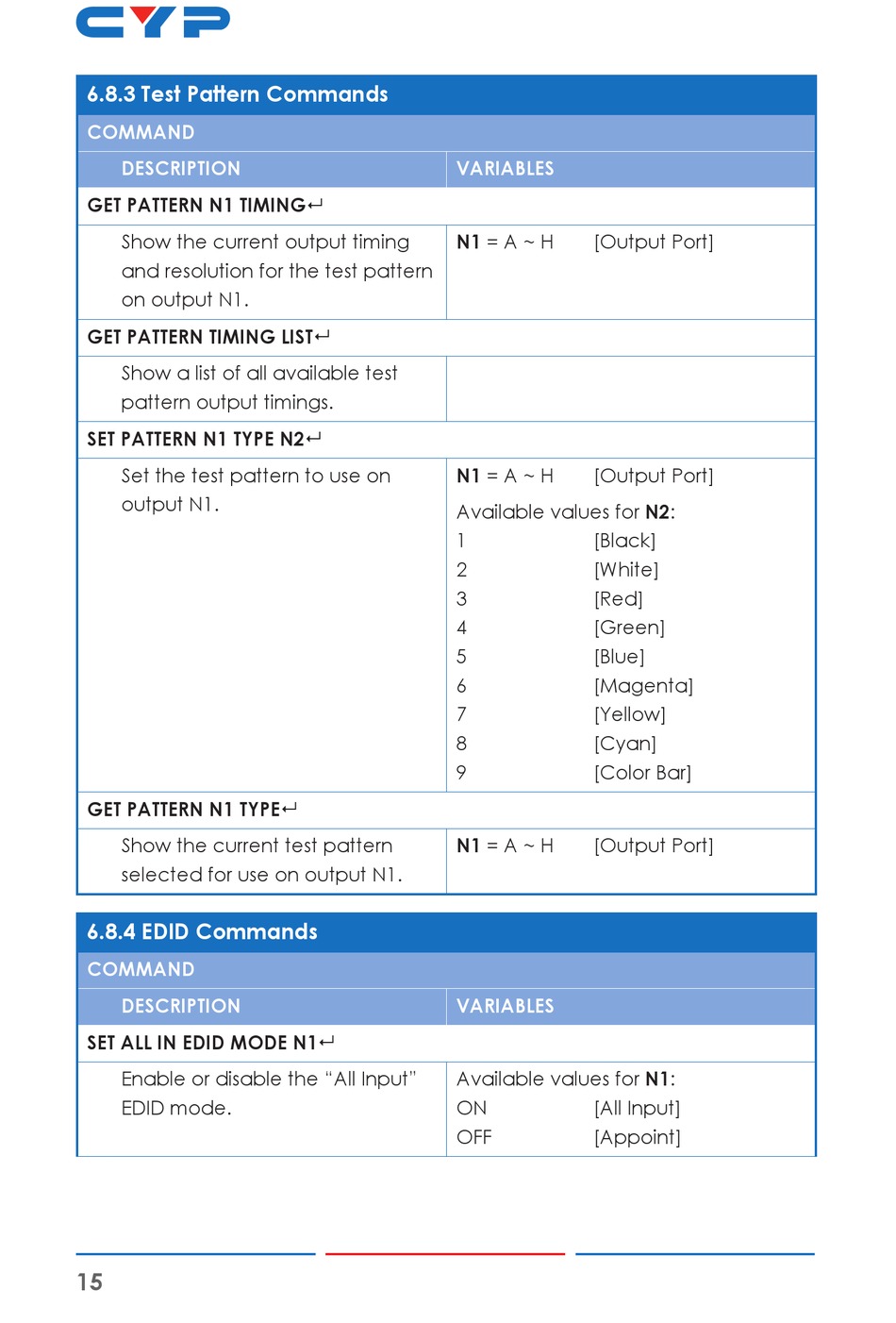

CYP CPLUS-V8H8HP Operation Manual page 20

6.8.3 Test Pattern Commands
COMMAND
DESCRIPTION
GET PATTERN N1 TIMING
Show the current output timing
and resolution for the test pattern
on output N1.
GET PATTERN TIMING LIST
Show a list of all available test
pattern output timings.
SET PATTERN N1 TYPE N2
Set the test pattern to use on
output N1.
GET PATTERN N1 TYPE
Show the current test pattern
selected for use on output N1.
6.8.4 EDID Commands
COMMAND
DESCRIPTION
SET ALL IN EDID MODE N1
Enable or disable the "All Input"
EDID mode.
15
VARIABLES
N1 = A ~ H
[Output Port]
N1 = A ~ H
[Output Port]
Available values for N2:
1 [Black]
2 [White]
3 [Red]
4 [Green]
5 [Blue]
6 [Magenta]
7 [Yellow]
8 [Cyan]
9 [Color Bar]
N1 = A ~ H
[Output Port]
VARIABLES
Available values for N1:
ON [All Input]
OFF [Appoint]
