Note: In some rare cases it is possible for custom or external EDIDs to
cause compatibility issues with certain sources. If this happens, it is
recommended to switch to one of the 6 default EDIDs for maximum
compatibility.

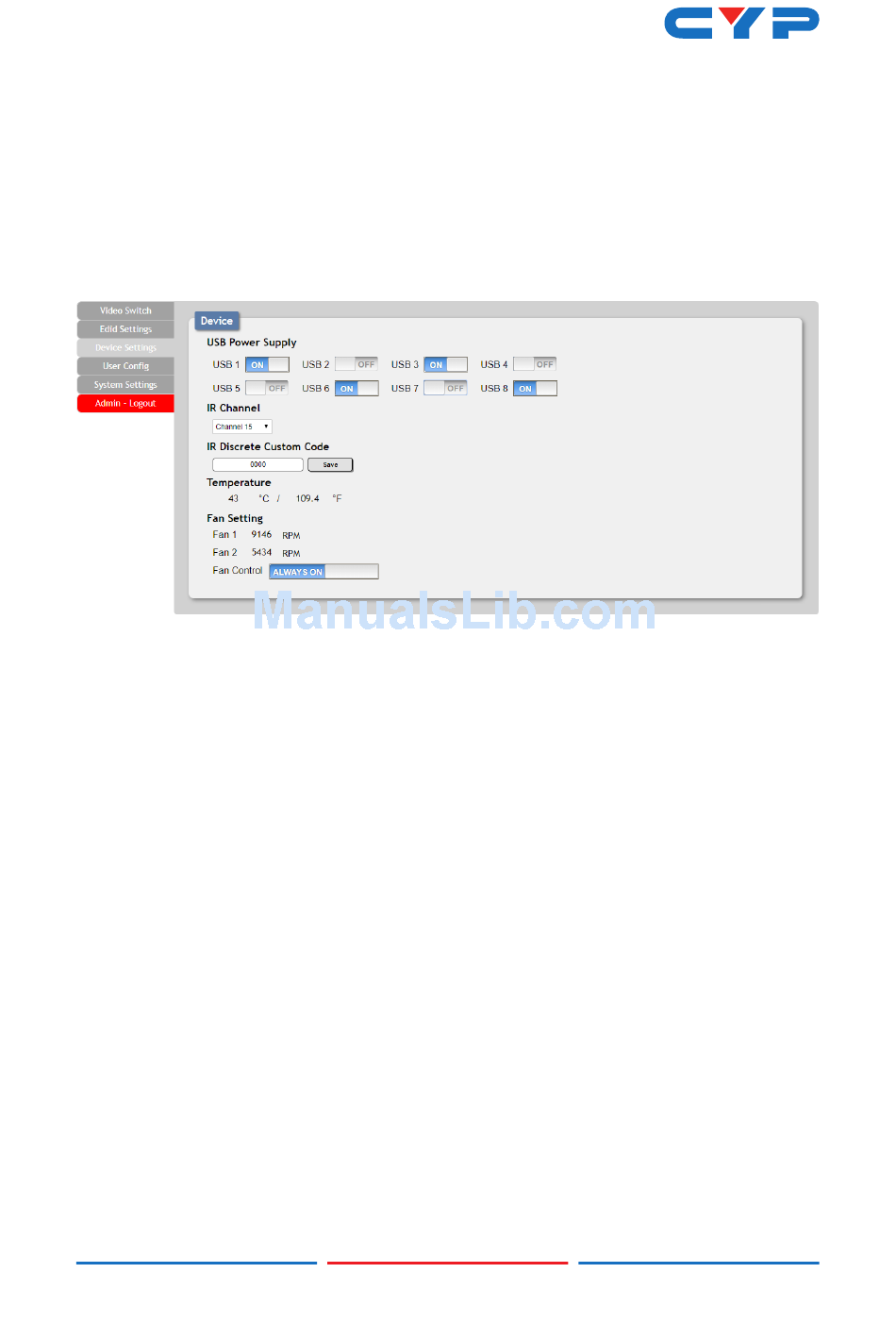

3. Device Settings
This page provides control over the matrix's hardware related settings
and options including USB port power, IR and fan control.
• USB Power Supply
Provides controls to turn the power supplied by each USB port on or
off.
• IR Channel
Use the dropdown to select the IR channel used to control the matrix
using the included remote. If this setting is changed, the dipswitches
inside the remote control's battery compartment must also be
changed to match.
Note: By default both the remote and the unit are set to channel 15.
• IR Discrete Custom Code
Allows setting the discrete IR code prefix, primarily for use with learning
remotes, to control the functions of this matrix.
Note: To obtain a complete list of IR control codes please contact
your authorized dealer.
• Temperature & Fan Settings
Provides information about the unit's current temperature and the
speed of both internal fans. The fan mode can be switched between
"Always On" and "Auto". By default, the fan control is set to "Always
