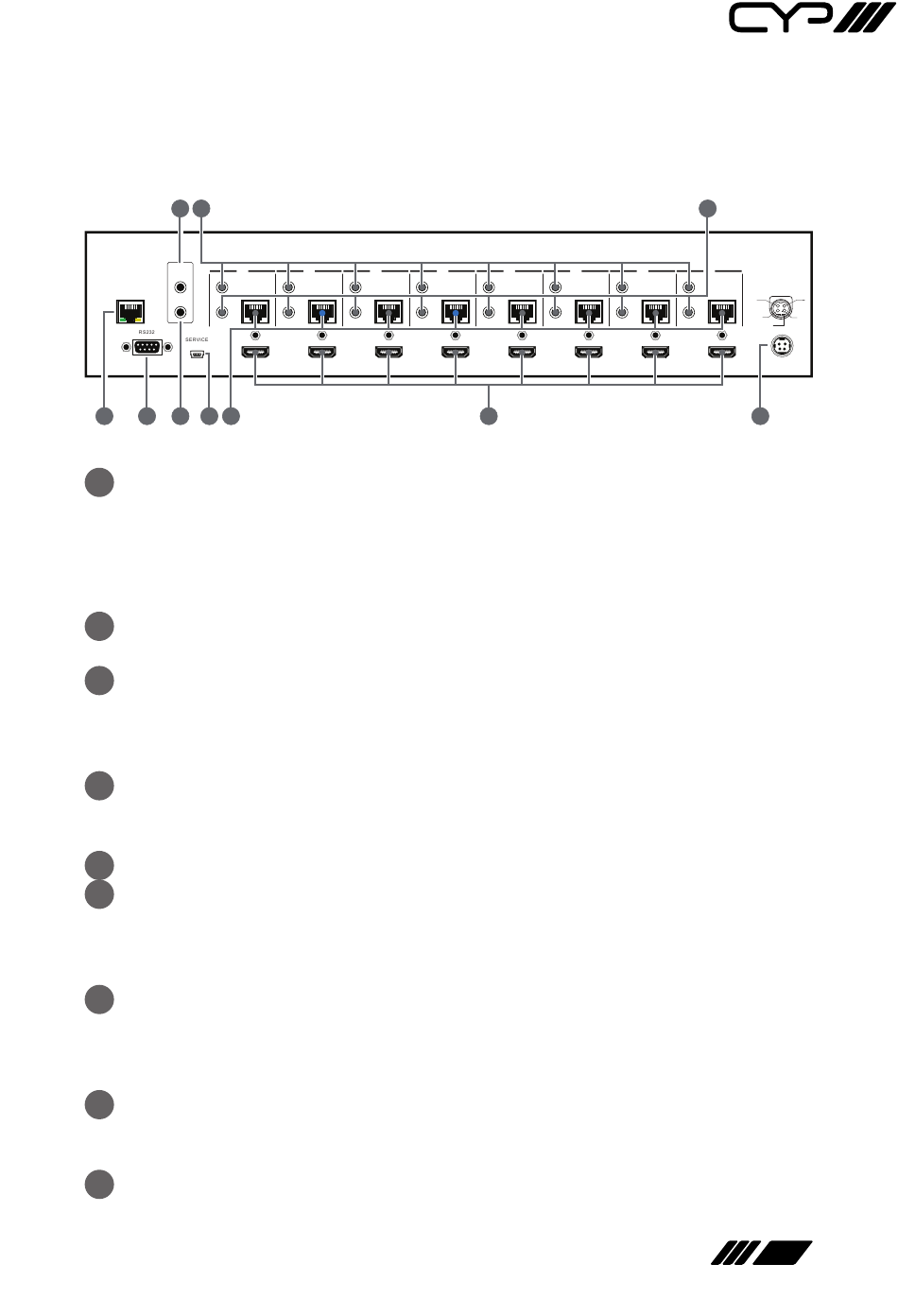

6.2 Rear Panel

3 6
ALL
A
IR OUT IR OUT
CONTROL CAT5e/6 OUT
IR IN IR IN
1
HDMI IN
1 2 4 5 8
1
CONTROL: This port is the link for Telnet or Web GUI controls, connect to
an active Ethernet link with an RJ45 terminated cable (for further details,
please refer to section 6.8 & 6.9).
Warning: Please do not connect this port directly to the PC/Laptop as the
Telnet function will not work.
2
RS-232: Connect to a PC or control system with D-Sub 9-pin cable for
RS-232 control.
3
ALL IR OUT: Connect to the IR blaster for IR signal transmission to the
source side. Place the IR blaster in direct line-of-sight of the equipment
to be controlled. It will transmit all signals received from the IR IN at
the receiver locations.
4
ALL IR IN: Connect to the IR extender for IR signal reception. Ensure that
remote being used is within the direct line-of-sight of the IR extender
for it will send out the signal to all receiver's IR OUT.
5
SERVICE: Manufacturer use only.
6
IR OUT A~H: Connect to the IR blasters for IR signal transmission. Place
the IR blaster in direct line-of-sight of the equipment to be controlled.
It will transmit the IR signal received from the receiver side choosen by
input selection.
7
IR IN 1~8: Connect to the IR extenders for IR signal reception. Ensure
that the remote being used is within the direct line-of-sight of the IR
extender for it will send out the IR signal to the selected receiver's IR
OUT.
8
CAT5e/6/7 OUT A~H: Connect from these CAT outputs to the CAT input
port of the receiver units with a single CAT5e/6/7 cable for HDMI Audio/
Video and IR control signal transmission.
9
HDMI IN 1~8: Connect to the HDMI input source devices such as a DVD
player or a Set-top Box with HDMI cable or DVI to HDMI cable.
