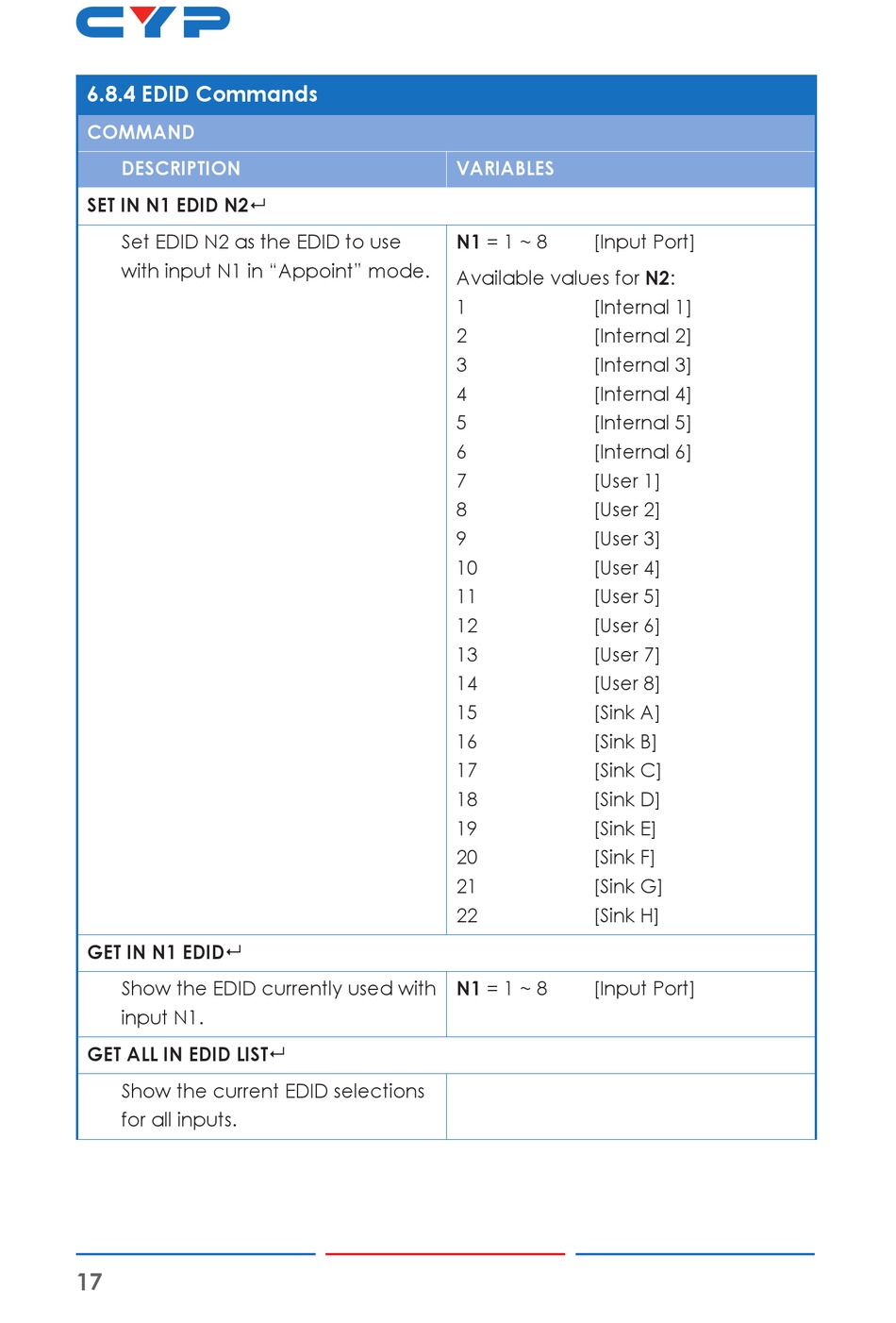

CYP CPLUS-V8H8HP Operation Manual page 22

6.8.4 EDID Commands
COMMAND
DESCRIPTION
SET IN N1 EDID N2
Set EDID N2 as the EDID to use
with input N1 in "Appoint" mode.
GET IN N1 EDID
Show the EDID currently used with
input N1.
GET ALL IN EDID LIST
Show the current EDID selections
for all inputs.
17
VARIABLES
N1 = 1 ~ 8
[Input Port]
Available values for N2:
1 [Internal 1]
2 [Internal 2]
3 [Internal 3]
4 [Internal 4]
5 [Internal 5]
6 [Internal 6]
7 [User 1]
8 [User 2]
9 [User 3]
10 [User 4]
11 [User 5]
12 [User 6]
13 [User 7]
14 [User 8]
15 [Sink A]
16 [Sink B]
17 [Sink C]
18 [Sink D]
19 [Sink E]
20 [Sink F]
21 [Sink G]
22 [Sink H]
N1 = 1 ~ 8
[Input Port]
