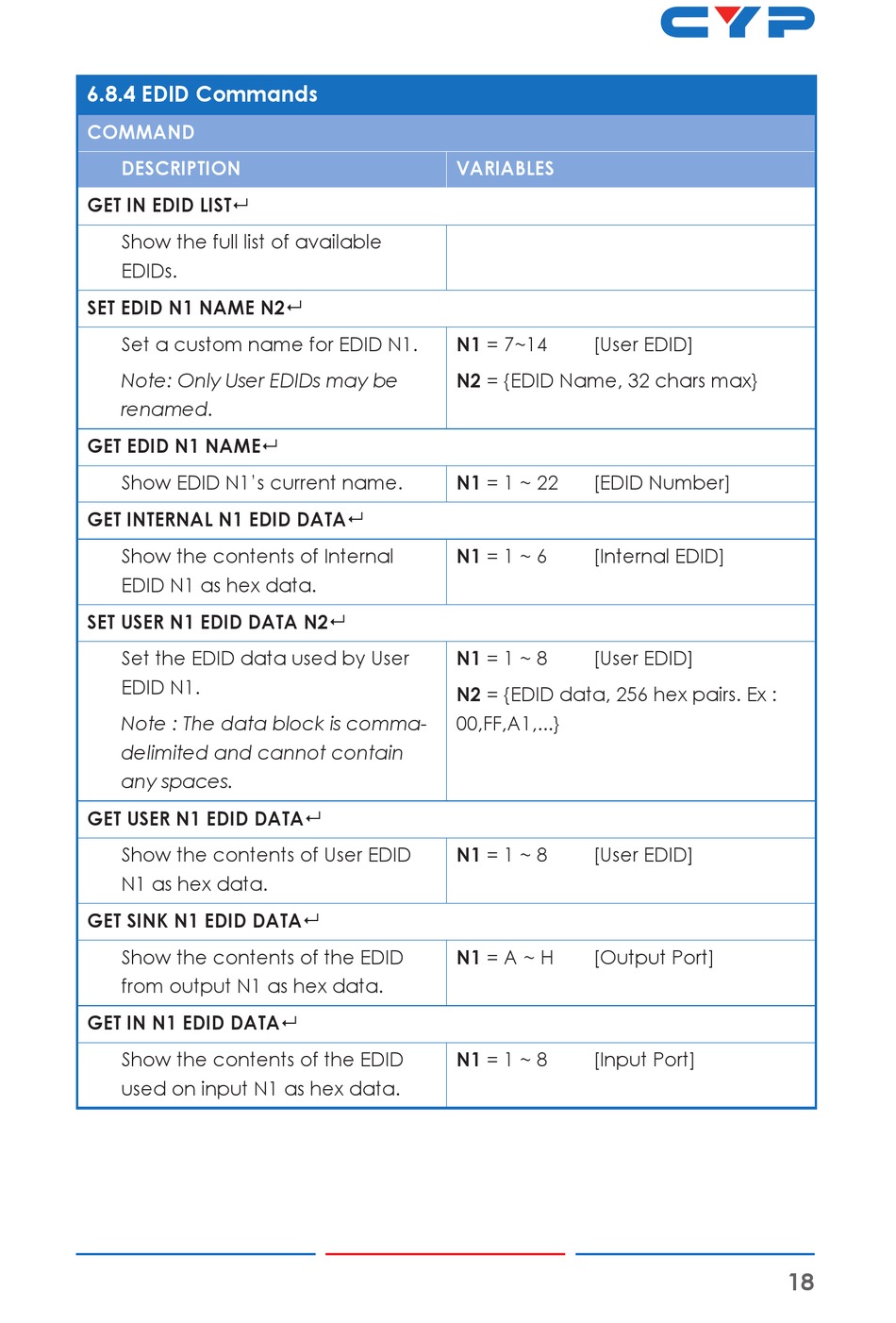

6.8.4 EDID Commands
COMMAND
DESCRIPTION
GET IN EDID LIST
Show the full list of available
EDIDs.
SET EDID N1 NAME N2
Set a custom name for EDID N1.
Note: Only User EDIDs may be
renamed.
GET EDID N1 NAME
Show EDID N1's current name.
GET INTERNAL N1 EDID DATA
Show the contents of Internal
EDID N1 as hex data.
SET USER N1 EDID DATA N2
Set the EDID data used by User
EDID N1.
Note : The data block is comma-
delimited and cannot contain
any spaces.
GET USER N1 EDID DATA
Show the contents of User EDID
N1 as hex data.
GET SINK N1 EDID DATA
Show the contents of the EDID
from output N1 as hex data.
GET IN N1 EDID DATA
Show the contents of the EDID
used on input N1 as hex data.
VARIABLES
N1 = 7~14
[User EDID]
N2 = {EDID Name, 32 chars max}
N1 = 1 ~ 22
[EDID Number]
N1 = 1 ~ 6
[Internal EDID]
N1 = 1 ~ 8
[User EDID]
N2 = {EDID data, 256 hex pairs. Ex :
00,FF,A1,...}
N1 = 1 ~ 8
[User EDID]
N1 = A ~ H
[Output Port]
N1 = 1 ~ 8
[Input Port]
