SBC84820 Pentium

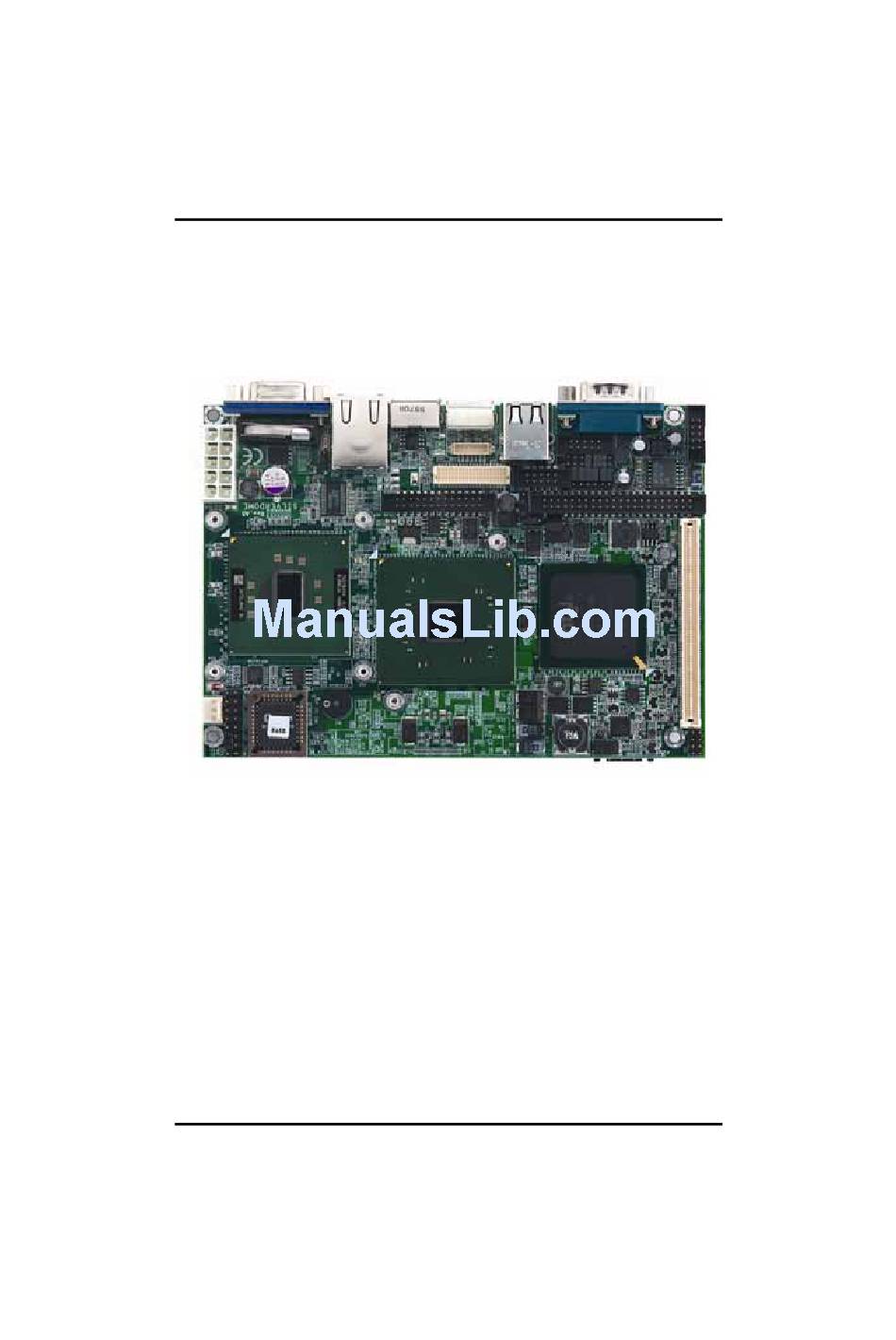

The SBC84820 is an Intel
equipped Capa board with graphics, Fast Ethernet and audio
interface. Designed with the space-limited applications in mind,
the SBC84820 is practically the finest embedded Pentium
board that exists. Using a standardized format conforming to
the size of a 3.5" HARD DISK drive, SBC84820 Series adapt
an Intel ® low power consumption Pentium
To simplify system integration, it packs provisions such as
super I/Os, XVGA, LCD, Ethernet, solid state disk, all on a
single board. Unique embedded features such as 2 serial ports
(1 x RS-232, 1 x RS-232/422/485, COM3/4 are optional) with
+5V/12V power capability and that allow adoption of an
extensive array of
construction of SBC84820 series allows your system to endure
the continuous operation in hostile environments where
stability and reliability

Introduction

®
M All-in-One Capa Board User's Manual
C h a p t e r 1
Pentium M/ Celeron™ M CPU
® ®
®
PC peripherals. The
are basic requirements.
Introduction
® M
M microprocessors.
industrial-grade
System
