SBC84820 Pentium

3.12 USB Connector

The SBC84820 Series features four Universal Serial Bus (USB)
connectors as USB 2.0 compliant (480Mbps) that can adapt
any USB peripherals, such as monitor, keyboard and mouse
etc. The SBC84820 Series has a box-header connectors (CN5)
and two USB connectors (CN12).

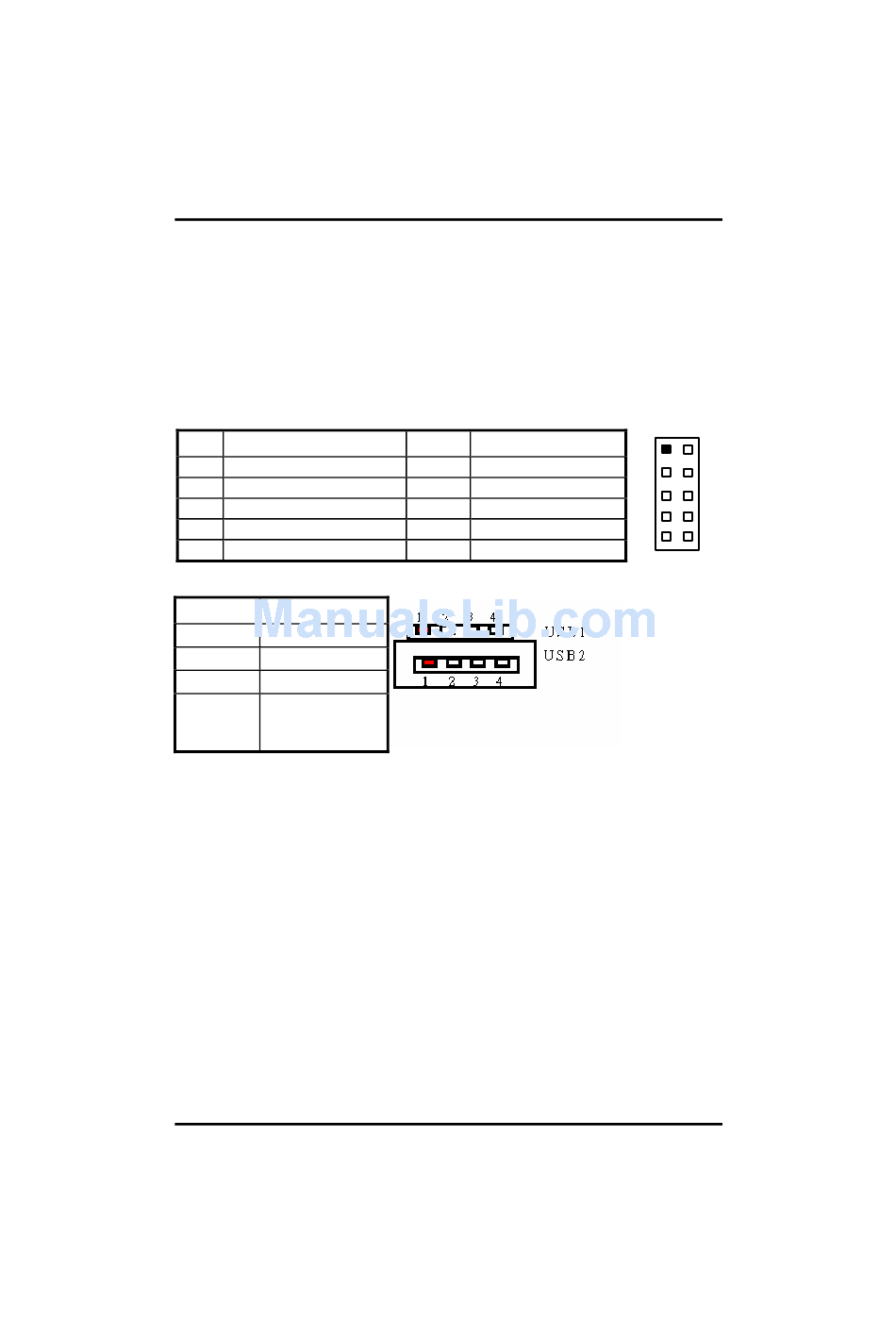

CN5: USB Connector Pin Assignment
Pin Description
1
VCC
3
D2-
5
D2+
7
Ground (GND)
9 Ground (GND)
CN12: USB Connector Pin Assignment
Pin Signal Name
USB VCC
1
2 USB -
USB +
3
4 USB GND

3.13 Ethernet RJ-45 Connector

The RJ-45 connector is used for Ethernet. To connect the
SBC84820 to a 100/10 Base-T hub, just plug one end of the
cable into the CN10 connect.
Hardware Description
®
M All-in-One Capa Board User's Manual
Pin Description
2
VCC
4
D3-
6
D3+
8
Ground (GND)
10 Ground (GND)
2
1
3 4
6
5
8
7
9 10
