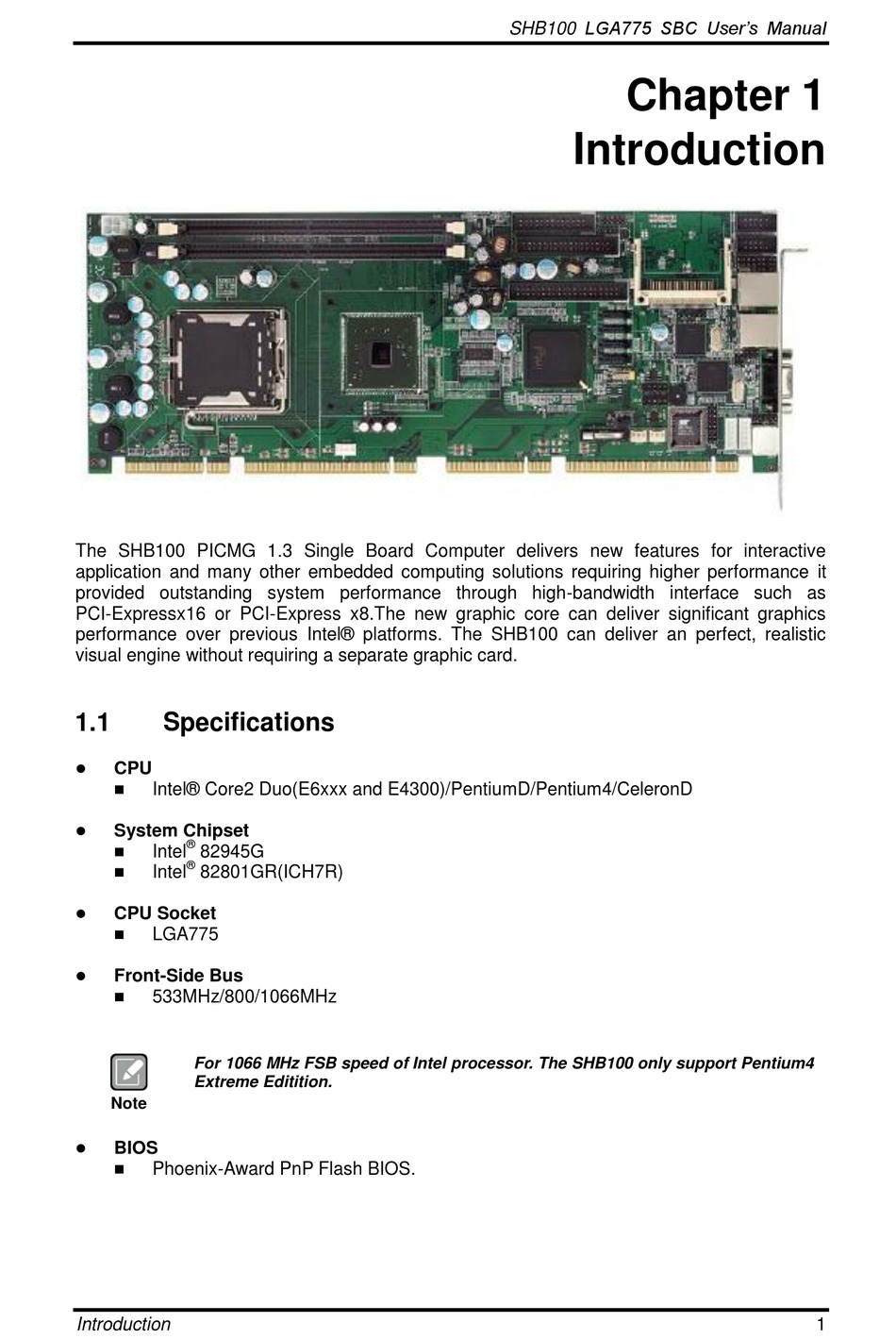

The SHB100 PICMG 1.3 Single Board Computer delivers new features for interactive
application and many other embedded computing solutions requiring higher performance it
provided outstanding system performance through high-bandwidth interface such as
PCI-Expressx16 or PCI-Express x8.The new graphic core can deliver significant graphics
performance over previous Intel® platforms. The SHB100 can deliver an perfect, realistic
visual engine without requiring a separate graphic card.
1.1 Specifications
 CPU
 Intel® Core2 Duo(E6xxx and E4300)/PentiumD/Pentium4/CeleronD
 System Chipset
®
 Intel 82945G
®
 Intel 82801GR(ICH7R)
 CPU Socket
 LGA775
 Front-Side Bus
 533MHz/800/1066MHz
For 1066 MHz FSB speed of Intel processor. The SHB100 only support Pentium4
Extreme Editition.
Note
 BIOS
 Phoenix-Award PnP Flash BIOS.
