SHB111 Arrandale Full-Size SBC User's Manual

CHAPTER 1

INTRODUCTION

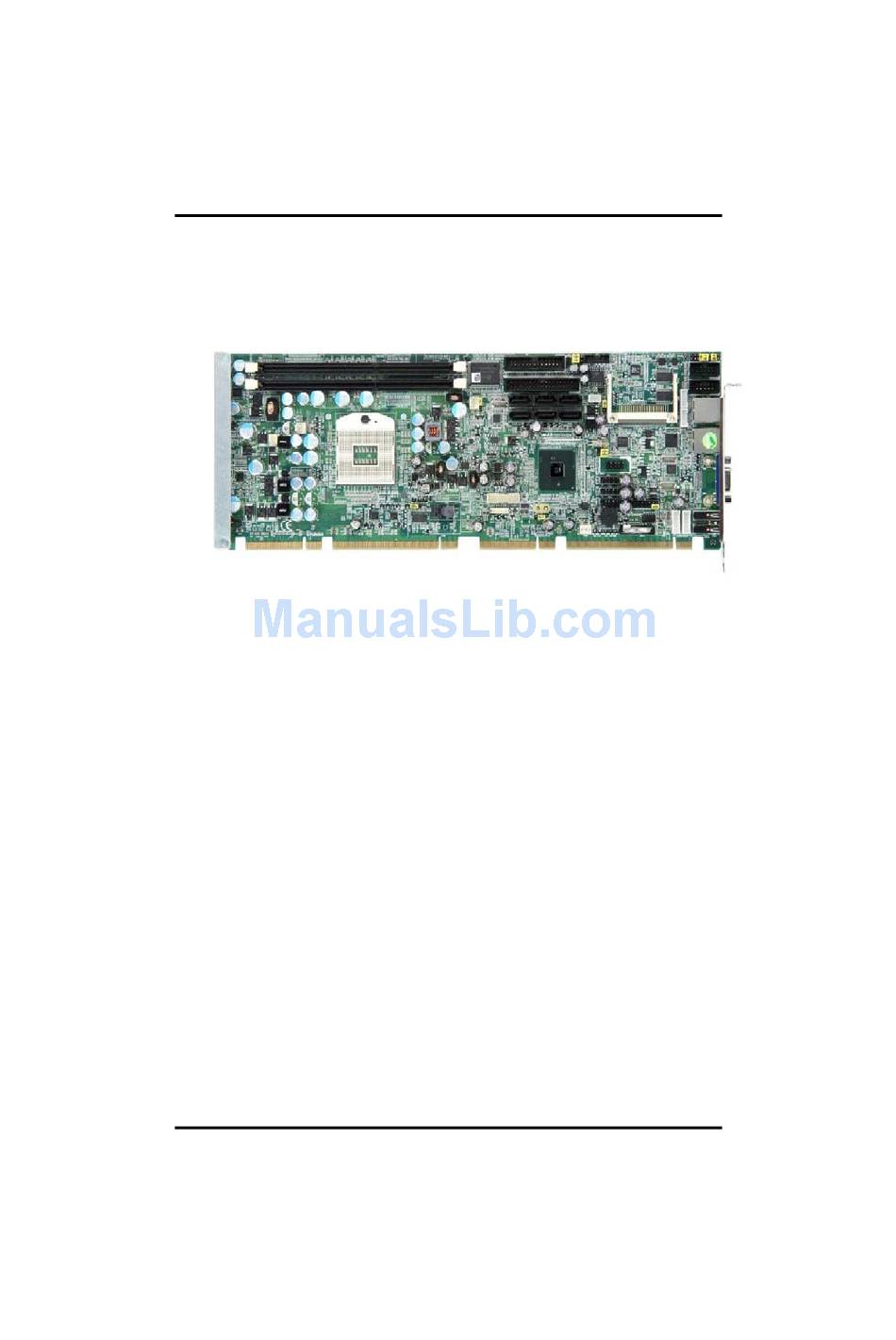

The SHB111 PICMG 1.3 full-size Single Board Computer supports
rPGA988 socket for Intel® Core™ i7 Mobile Processor, Intel®
Core™ i5 Mobile Processor and Intel® Core™ i3 Mobile
Processor and Intel® Celeron® Processor
with 32nm technology and Transfer Rate 800/1066 MHz. The board
®
integrates Intel
QM57 chipset that delivers outstanding system
performance through high-bandwidth interfaces, multiple I/O functions
for interactive applications and various embedded computing
solutions. There are two 240-pin DDR3 DIMM sockets for dual
channel DDR3 800/1066, maximum memory capacity up to
8GB(Assuming Dual Channel Mode with two x8 double sided
unbuffered, non-ECC DIMM memory configuration). The board
also features dual Gigabit Ethernet, six serial ATA ports at maximum
transfer rate up to 3Gbs, and SATA RAID 0/1/5/10 by PCH. Foreteen
®
USB 2.0 high speed compliant ports and built-in Intel
HD Audio
Digital Header can achieve the best stability and reliability for
industrial applications.
Introduction
1
