SHB103 LAG1156 Full-Size SBC User's Manual

CHAPTER 1

INTRODUCTION

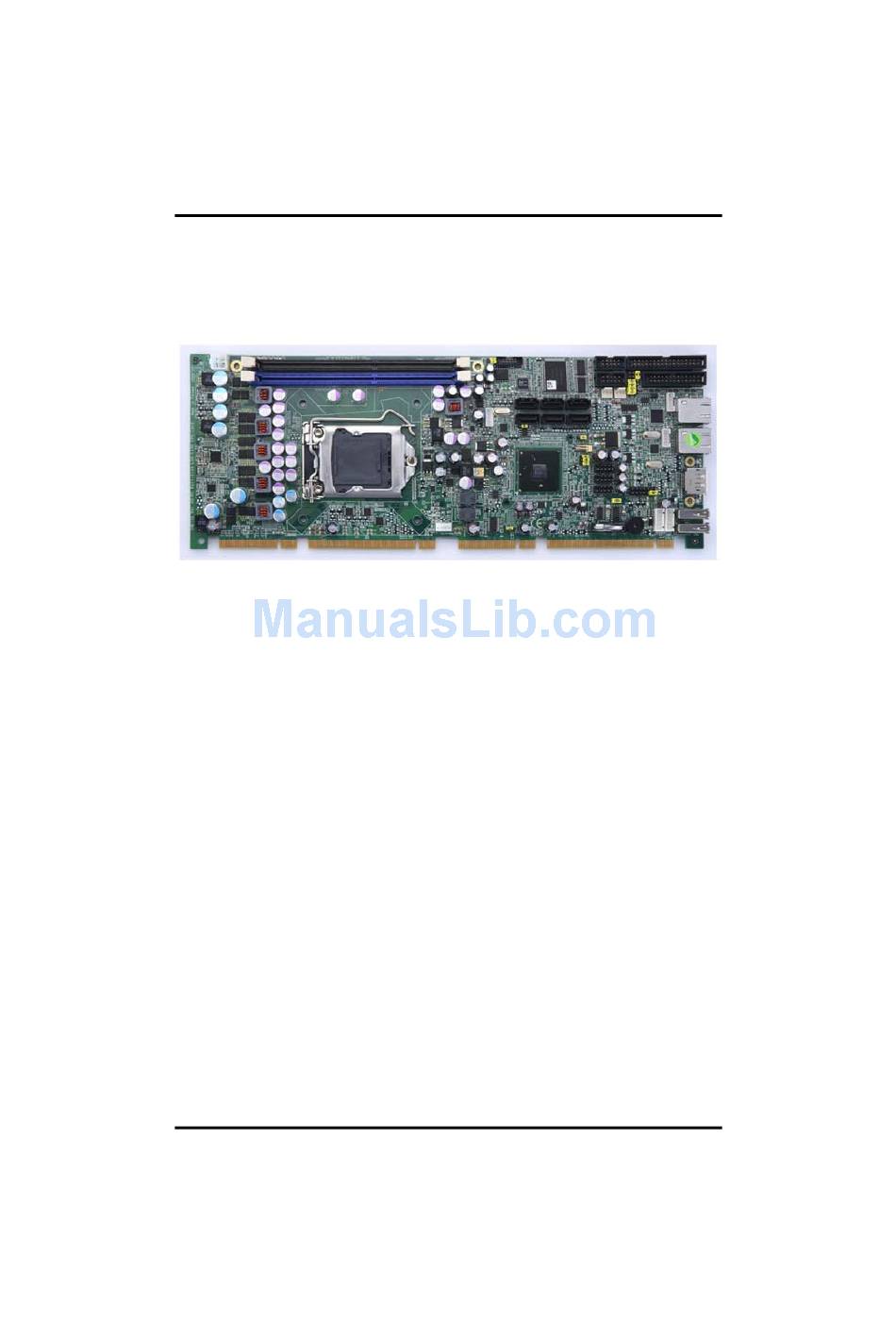

The SHB103 PICMG 1.3 full-size Single Board Computer supports
LAG1156 socket for Intel® Pentium® Desktop Processor(G6950),
Intel® Core™ i3 Desktop Processor, Intel® Core™ i5 Desktop
Processor, Intel® Core™ i7-800 series Desktop Processor with
32/45nm technology and Transfer Rate 1066/1333 MHz. The board
®
integrates Intel Q57 chipset that delivers outstanding system
performance through high-bandwidth interfaces, multiple I/O functions
for interactive applications and various embedded computing
solutions. There are four 240-pin DDR3 DIMM sockets for dual
channel DDR3 1066/1333, maximum memory capacity up to
8GB(Assuming Dual Channel Mode with two x8 double sided
unbuffered, non-ECC DIMM memory configuration). The board
also features dual Gigabit Ethernet, six serial ATA ports at maximum
transfer rate up to 3Gbs, and SATA RAID 0/1/5/10 byICH. Ten USB
®
2.0 high speed compliant ports and built-in Intel HD Audio Digital
Header can achieve the best stability and reliability for industrial
applications.
