Page 1: Digital Video Recorder
DIGITAL VIDEO RECORDER User’s Manual V1.0.0...
Page 2: Cybersecurity Recommendations
Cybersecurity Recommendations Mandatory actions to be taken towards cybersecurity 1. Change Passwords and Use Strong Passwords: The number one reason systems get “hacked” is due to having weak or default passwords. It is recommended to change default passwords immediately and choose a strong password whenever possible.
Page 3 In the event that your social media, bank, email, etc. account is compromised, you would not want someone collecting those passwords and trying them out on your video surveillance system. Using a different username and password for your security system will make it more difficult for someone to guess their way into your system.
Page 4: Foreword
This user’s manual (hereinafter referred to be "the Manual") introduces the functions and operations of the DVR devices (hereinafter referred to be "the Device"). DVR Models Smart 1U, E Model, Compact 1U, Mini 1U, 1U Safety Instructions The following categorized signal words with defined meaning might appear in the Manual.
Page 5 There still might be deviation between the actual value of some data and the value  provided, if there is any doubt or dispute, please refer to our final explanation. Please contact the supplier or customer service if there is any problem occurred when ...
Page 6: Important Safeguards And Warnings
Important Safeguards and Warnings Electrical safety All installation and operation here should conform to your local electrical safety codes.  The product must be grounded to reduce the risk of electric shock.  We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation.
Page 7: Table Of Contents
1.2 Functions ............................1 2 Getting Started ............................3 2.1 Checking the Components ......................3 2.2 Installing HDD ..........................3 2.2.1 Smart 1U ..........................4 2.2.2 E Model ..........................5 2.2.3 MINI 1U and Compact 1U ....................6 2.2.4 1U ............................6 2.3 Installing Device into Rack ......................
Page 8 4.4 Connecting to RS485 Port ......................25 4.5 Replacing Battery ........................25 5 Local Configurations .......................... 26 5.1 Initial Settings ..........................26 5.1.1 Booting up ......................... 26 5.1.2 Initializing the Device ......................26 5.1.3 Resetting Password ......................29 5.1.4 Setting Up with the Startup Wizard .................. 34 5.2 Live View .............................
Page 9 5.9.6 Playing Back Snapshots ....................121 5.9.7 Playing Back Splices ...................... 121 5.9.8 Using the File List ......................122 5.10 Alarm Events Settings ......................124 5.10.1 Video Detection ......................124 5.10.2 IVS Function ......................... 133 5.10.3 Face Detection ......................146 5.10.4 System Events ......................
Page 10 5.19 Viewing Information ......................... 246 5.19.1 Viewing Version Details ....................246 5.19.2 Viewing Log Information ....................247 5.19.3 Viewing Event Information .................... 249 5.19.4 Viewing Network Information ..................250 5.19.5 Viewing HDD Information ..................... 252 5.19.6 Viewing Device Status ....................253 5.19.7 Viewing Channel Information ..................
Page 11: Introduction
Introduction Overview The Device is an excellent digital monitor product for security industry. The embedded LINUX OS assures the stable operation. The H.264 and G.711 technologies assure the high quality image and low bit stream. The frame-by-frame play function displays more details for analysis, and provides the functions such as record, playback, and monitor and assures the synchronization for audio and video.
Page 12 Support multiple-channel audio and video signal. An independent hardware decodes the audio and video signal from each channel to maintain video and audio synchronization. Backup Function Support backup operation through USB port (such as USB storage disk, portable HDD,  and burner).
Page 13: Getting Started
Getting Started Checking the Components When you receive the Device, please check against the following checking list. If any of the items are missing or damaged, contact the local retailer or after-sales engineer immediately. Sequence Checking items Requirement Appearance No obvious damage. Package No broken or distorted positions that Packing materials...
Page 14: Smart 1U

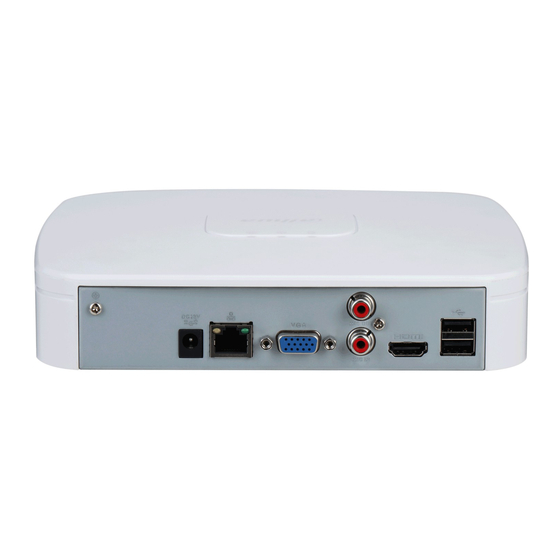

2.2.1 Smart 1U 1. Remove the screws to take 2. Fix the screws on the HDD 3. Match the screws with off the cover. but do not fasten them. the holes on the DVR to place the HDD. 4. Turn the DVR upside down 5.
Page 15: E Model
2.2.2 E Model 2.2.2.1 Installing Battery The battery is only provided with some models. 1. Put the battery cable through the hole. 2. Connect to the cable into the port. 2.2.2.2 Installing HDD Skip step 6 if the battery is not equipped with the model you purchased. 1.
Page 16: Mini 1U And Compact 1U
7. Use the HDD cable and 8. Install the bracket back and 9. Put back the cover and power cable to connect then fasten the screws. fasten the screws. HDD and mainboard. 2.2.3 MINI 1U and Compact 1U 1. Remove the screws on the 2.
Page 17: Installing Device Into Rack
4. Turn the device to see the 5. Use the HDD cable and 6. Put back the cover and fix back side of it. Aim the power cable to connect the screws. screws of the HDD at the HDD and mainboard. holes on the back of the device, and then fix the screws.
Page 18: The Grand Tour
The Grand Tour This chapter introduces various components of the Device, remote control and mouse operations, and typical connection. Front Panel 3.1.1 Smart 1U Icon Name Function The indicator is off when the HDD is running normally. HDD status indicator The indicator glows blue when the HDD is in malfunction.
Page 19: E Model
3.1.2 E Model Button/Icon Function Turns on/off the DVR. The indicator glows blue when the DVR is POWER turned on. HDD status The indicator glows blue when the HDD is in malfunction. indicator Network status The indicator glows blue when the network connection is indicator abnormal.
Page 20: Mini 1U
Port Name Function POWER Glows blue when the power is connected properly. Connects to peripheral devices such as USB storage device, USB port keyboard and mouse. 3.1.4 MINI 1U Port Name Function Glows blue when HDD status is abnormal. Glows blue when network status is abnormal. POWER Glows blue when the power is connected properly.
Page 21: Rear Panel
Rear Panel 3.2.1 Smart 1U Port Name Function Video input port Connects to analog camera to input video signal. Connects to external devices such as USB storage device, USB port keyboard and mouse. Outputs analog video data to the connected display with VGA VGA port port.
Page 22: Compact 1U
Port Name Function Video input port Connects to analog camera to input video signal. Receives audio signal output from the devices such as Audio input port microphone. Outputs audio signal to the devices such as the sound box. Audio output port RS485 Connects to the control devices such as speed dome PTZ.
Page 23: Mini 1Ｕ
Port Name Function Video input port Connects to analog camera to input video signal. Receives audio signal output from the devices such as Audio input port microphone. Audio output port Outputs audio signal to the devices such as the sound box. High definition audio and video signal output port.
Page 24 Port Name Function 4 groups of alarm input ports (Group 1: port 1 to port 4; Group 2: port 5 to port 8; Group 3: port 9 to port 12; Group 4: port 13 to port 16). These ports receive the signal from the external alarm source.
Page 25 3.2.5 1U Port Name Function Ground terminal. 4 groups of alarm input ports (Group 1: port 1 to port 4; Group 2: port 5 to port 8; Group 3: port 9 to port 12; Group 4: port 13 to port 16). These ports receive the signal from the external alarm source.
Page 26: Remote Control Operations
Port Name Function Outputs analog video data to the connected display with VGA VGA port port. Power button Turns on/off the DVR. Power cable Use clamp to secure the power cable on the DVR in case there is fastener any loss. Remote Control Operations Please note the remote control is not our standard accessory and might not be included in the accessary bag.
Page 27: Mouse Operations
Name Function In normal playback state, press this button to pause playback. In pause state, press this button to resume to normal Play/Pause playback. In live view window interface, press this button to enter video search menu. In the reverse playback state, press this button to pause reverse playback.
Page 28 Operation Function Password input dialogue box pops up if you have not logged in yet. In live view window interface, you can go to the main menu. When you have selected one menu item, click it to view menu content. Implement the control operation.
Page 29: Connecting Basics
Connecting Basics This chapter introduces various components of the Device, remote control and mouse operations, and typical connection. Typical Connection Diagram The following figure is for reference only. The actual product shall govern. Connecting Basics 19...
Page 30 Connecting Basics 20...
Page 31: Connecting To Video And Audio Input And Output
Connecting to Video and Audio Input and Output 4.2.1 Video Input The video input interface is BNC. The input video format includes: PAL/NTSC BNC (1.0V 75Ω.). The video signal should comply with your national standards. The input video signal shall have high SNR, low distortion; low interference, natural color and suitable lightness.
Page 32: Audio Input
4.2.3 Audio Input These series products audio input port adopt BNC port. Due to high impedance of audio input, please use active sound pick-up. Audio transmission is similar to video transmission. Try to avoid interference, dry joint, loose contact and it shall be away from high tension current. 4.2.4 Audio Output The audio output signal parameter is usually over 200mv 1KΩ...
Page 33: Introducing Alarm Port
Please make sure the front-end device has soundly earthed Improper grounding may result in chip damage. 4.3.1 Introducing Alarm Port The alarm input ports are dependent on the model you purchased. Icon Description 1，2，3，4，5，6， 7，8，9，10，11， ALARM 1 to ALARM 16. The alarm becomes active in low voltage. 12，13，14，15，16 NO1 C1, NO2 C2, There are four groups of normal open activation output (on/off button).
Page 34: Alarm Output
Please parallel connect the Ground of the DVR and the ground of the alarm detector.  Please connect the NC port of the alarm sensor to the DVR alarm input(ALARM)  Use the same ground with that of DVR if you use external power to the alarm device. ...
Page 35: Connecting To Rs485 Port
Connecting to RS485 Port Connect the RS485 cable of the PTZ camera to the RS485 port on the Device. Ensure the match of A and B interfaces. Connect the video out cable of the PTZ camera to the video input port on the Device. Turn on the PTZ camera.
Page 36: Local Configurations
Local Configurations Please read the following notes prior to using your Device. The interfaces in the Manual are used for introducing the operations and only for reference.  The actual interface might be different dependent on the model you purchased. If there is inconsistency between the Manual and the actual product, the actual product shall govern.
Page 37 To secure the Device, it is strongly recommended for you to properly keep the password for admin and modify it regularly. Turn on the Device. The Device Initialization interface is displayed. See Figure 5-1. Configure the password information for admin. For details, see Table 5-1. Parameter Description User...
Page 38 Draw a unlock pattern. After the setting is completed, the password protection settings interface is displayed. See Figure 5-3. The pattern that you want to set must cross at least four points.  If you do not want to configure the unlock pattern, click Skip. ...
Page 39: Resetting Password
Configure the protection parameters for password. For details, see Table 5-2. After configuration, if you forgot the password for admin user, you can reset the password through the reserved email address or security questions. For details about resetting the password, see "5.1.3 Resetting Password." If you do not want to configure the settings, disable the email address and security questions functions on the interface.
Page 40 Click If you did not set the reserved email address, the email entering interface is  displayed. See Figure 5-6. Enter the email address, and then click Next, the Reset the password interface is displayed. See Figure 5-7. If you have set the reserved email address, the Reset the password interface is ...
Page 41 Rest the password. QR code  Follow the onscreen instructions to get the security code in your reserved email address. In the Security code box, enter the security code. Local Configurations 31...
Page 42 You are given the limited times to get the security code by scanning the QR  code within 24 hours. Please operate carefully. Please use the security code received in your email box to reset the password  within 24 hours; otherwise the security code becomes invalid. Security questions ...
Page 43 In the New Password box, enter the new password and enter it again in the Confirm Password box. Click Save. The password resetting is started. After resetting is completed, a pop-up message is displayed. Click OK. A pop-up message is displayed asking if you want to sync the password with the remote devices, see Figure 5-10.
Page 44: Setting Up With The Startup Wizard
This message appears only when there are digital channels instead of complete analog channels. 5.1.4 Setting Up with the Startup Wizard 5.1.4.1 Entering Startup Wizard The Startup Wizard helps you configure the basic settings to set up the Device. After you have initialized the Device, the Startup Wizard interface is displayed. See Figure 5-12.
Page 45: Configuring General Settings
If you select the Auto-check for updates check box, the system will notify you automatically when updates are available. 5.1.4.2 Configuring General Settings You can configure the general settings for the Device such as Device name, language, and settings for instant playback. You can also configure general settings by selecting Main Menu >...
Page 46 Configure the general settings parameters. See Table 5-3. Parameter Description Device Name In the Device Name box, enter the Device name. Device No. In the Device No. box, enter a number for the Device. Language In the Language list, select a language for the Device system. In the Video Standard list, select PAL or NTSC according to your actual Video Standard situation.
Page 47 5.1.4.3 Configuring Date and Time Settings You can configure the system time, choose the time zone, set the daylight saving time, and enable the NTP server. You can also configure date and time settings by selecting Main Menu > SYSTEM > GENERAL >...
Page 48 Parameter Description Enable the NTP function to sync the Device time with the NTP server. In the Server box, enter the IP address or domain name of the corresponding NTP server. Server Click Manual Update, the Device starts syncing with the server immediately.
Page 49 Parameter Description Ethernet ports is disconnected as detected by networking testing, the system network status is regarded as offline. Fault Tolerance: Two Ethernet ports share one IP address. Normally only one Ethernet port is working and when this port fails, the other port will start working automatically to ensure the network connection.
Page 50 Parameter Description which interrupt the network service. There is a pop-up message to let you confirm if you want to save the modification, if yes, the modification takes effect. Suggested MTU values are as below.  1500: The biggest value of Ethernet information package. This ...
Page 51 Click Apply. You can start adding the device. Cell Phone Client: Use your mobile phone to scan the QR code to add the device  into the Cell Phone Client, and then you can start accessing the Device. Platform: Obtain the Device SN by scanning the QR code. Go to the P2P ...
Page 52  If the Device has not been initialized, Tap Device Initialization to perform initializing by following the onscreen instructions.  If the Device has been initialized, you can start adding it directly. Tap Add Device. The Add Device interface is displayed. See Figure 5-18. You can add wireless device or wired device.
Page 53 Enter a name for the DVR, the username and password, scan the QR code under Device SN. Tap Start Live Preview. The Device is added and displayed on the live view interface of the cell phone. See Figure 5-20. Local Configurations 43...
Page 54 5.1.4.6 Configuring Encode Settings You can configure the settings of main stream and sub stream for the Device. You can also configure encode settings by selecting Main Menu > CAMERA > ENCODE > Encode. After you have configured the P2P settings, on the P2P interface, click Next. The Encode interface is displayed.
Page 55 Parameter Description Configure the frames per second for the video. The higher the value, the clearer and smoother the image will become. Frame rate changes along with the resolution. Frame Rate Generally, in PAL format, you can select the value from 1 through 25; (FPS) in NTSC format, you can select the value from 1 through 30.
Page 56 Configure the settings for the snapshot parameters. See Table 5-7. Parameter Description In the Manual Snap list, select how many snapshots you want to take Manual Snap each time. In the Channel list, select the channel that you want to configure the Channel settings for.
Page 57 Configure the basic storage settings parameters. See Table 5-8. Parameter Description Configure the settings for the situation when all the read/write discs are full, and there is no more free disc. HDD Full Select Stop Record to stop recording Select Overwrite to overwrite the recorded video files always from the earliest time.
Page 58 Configure the record settings parameters. See Table 5-9. Parameter Description Channel In the Channel list, select a channel to record the video. In the Pre-record list, enter the amount of time that you want to start Pre-record the recording in advance. If there are several HDDs installed to the Device, you can set one of the HDDs as the redundant HDD to save the recorded files into different HDDs.
Page 59 Parameter Description Define a period during which the configured recording setting is active. Period The system only activates the alarm in the defined period. Copy Click Copy to copy the settings to other channels. Define the video recording period by drawing or editing. By default, it is active all the time.
Page 60 Select the check box of event type, and then click to clear the defined  period. When selecting MD&Alarm, the respective check box of MD and Alarm will be  cleared. Define the period by editing. Take Sunday as an example. ...
Page 61: Live View
After you have configured the video recording settings, on the Record interface, click Next. The SNAPSHOT interface is displayed. See Figure 5-28. Configure the snapshot settings parameters. See Table 5-10. Parameter Description Channel In the Channel list, select a channel to take a snapshot. Select the check box of the event type which includes General, MD, Event type Alarm, MD&Alarm, Intel, and POS.
Page 62: Live View Screen
5.2.1 Live View Screen You can view the live video from the connected cameras through each channel on the screen. By default, the system time, channel name and channel number are displayed on each  channel window. This setting can be configured by selecting Main Menu > CAMERA > OVERLAY.
Page 63: Live View Control Bar
5.2.2 Live View Control bar The live view control bar provides you access to perform the operations such as playback, zoom, real-time backup, manual snapshot, voice talk, adding remote devices, and streams switch. When you move the pointer to the top middle position of a channel window, the live view control bar is displayed.
Page 64: Instant Playback
Function Function Function Real-time Audio Talk Backup 5.2.2.1 Instant Playback You can play back the previous five minutes to sixty minutes of the recorded video. By clicking , the instant playback interface is displayed. The instant playback has the following features: Move the slider to choose the time you want to start playing.
Page 65: Manual Snapshot
Click , the icon switches to . Hold down the left mouse button to select the area  you want to enlarge. The area is enlarged after the left mouse button is released. Point to the center that you want to enlarge, rotate the wheel button to enlarge the area. ...
Page 66: Navigation Bar
5.2.2.7 Remote Devices (Digital channel only) You can view the information of remote devices and add new remote devices to replace the current connected devices. By clicking , the Camera Registration interface is displayed. For details about adding the remote devices, see "5.6 Configuring Remote Devices." 5.2.3 Navigation Bar You can access the functions to perform operations through the function icons on the navigation bar.
Page 67: Shortcut Menu
Icon Function Open the CHANNEL INFO interface to display the information of each channel. Open the CAMERA REGISTRATION interface. For details, see "5.6.1 Adding Remote Devices." Open the NETWORK interface. For details, see "5.14.1 Configuring Network Settings." Open the HDD MANAGER interface. For details, see "5.17.3 Configuring HDD Manager."...
Page 68 Function Description Main Menu Open Main Menu interface. Open the PLAYBACK interface where you can search and play Search back record files. Open the PTZ interface. Configure the live view screen as a single-channel layout or View Layout multi-channel layout. Previous Screen Click Previous Screen to go to the previous screen.
Page 69: Color Setting
Function Description Not all cameras support this function. Open the COLOR interface where you can adjust the video image Color Setting color. Image Click to modify the camera properties. 5.2.5 Color Setting You can adjust the video image color effect such as sharpness, brightness, and contrast. The parameters are different according to the connected camera type.
Page 70 Parameter Description Adjust the hue of image. The value ranges from 0 to 100. The default value is 50. Adjust the image brightness. The value ranges from 0 to 100. The default value is 50. The bigger the value is, the brighter the image will become. You Brightness can adjust this value when the image as a whole looks dark or bright.
Page 71: Live View Display
Parameter Description Customized You can customize four color modes. Click Customized. The Customized Color interface is displayed. In the Color Mode list, select Customized 1, for example. Then configure the settings for sharpness, hue, brightness, contrast and saturation. If you select All, the configuration will applies to all four customized color modes.
Page 72 Parameter Description Out Port Indicates the main screen port. Time Title Select the Time Title check box, the current system time displays in each channel window in live view screen. To hide the time, clear the check box. Channel Title Select the Channel Title check box, the channel name, channel number and recording status display in each channel window in live view screen.
Page 73 5.2.6.2 Configuring Viewing Layout You can configure the view layout in the live view screen. Select Main Menu > DISPLAY > VIEW. The View Setting interface is displayed. See Figure 5-37. Configure the view layout by clicking the layout buttons on the bottom. See Figure 5-38. For example, click and select 9-16, the view layout changes immediately, see Figure 5-39.
Page 74 Adjust the position of channels if needed. In the channel list, for example, in the channel 9 list, you can select 10, and then the channel 9 and channel 10 exchange positions. Click Apply to complete the settings. The live view screen displays the same layout as configured in this section. 5.2.6.3 Configuring Zero-Channel Settings You can view several video sources on one channel on the web end.
Page 75 Configure the settings for the zero-channel parameters. See Table 5-16. Parameter Description Enable Enable zero-channel function. In the Compression list, select the video compression standard Compression according to the device capability. The default is H.264. In the Resolution list, select the video resolution. The default is Resolution 704×576 (D1).
Page 76: Configuring Tour Settings
You can adjust the border margins in top, bottom, left and right directions as well as the brightness of the monitor connected to the Video out port of the Device. Select Main Menu > DISPLAY > TV ADJUST. The TV ADJUST interface is displayed. See Figure 5-41. Configure the parameters according to your actual situation.
Page 77 Configure the settings for the tour parameters for both Main Screen and Extra Screen. See Table 5-17. Local Configurations 67...
Page 78 Parameter Description Enable Enable tour function. Enter the amount of time that you want each channel group displays Interval (Sec.) on the screen. The value ranges from 5 seconds to 120 seconds, and the default value is 5 seconds. Video Detect, Select the View 1 or View 8 for Motion Detect tour and Alarm Tour Alarm (system alarm events).
Page 79: Entering Main Menu
Select the channels that you want to group for tour. See Figure 5-45. If you want to select more than one channel, in the Window Split list, do not select View 1. Click OK to complete the settings. Modifying a Channel Group Double-click on a channel group, the Modify Channel Group interface is displayed.
Page 80 Description Icon Local Configurations 70...
Page 81 Description Icon Includes eight function tiles: VIDEO, ALARM, IVS, POS, IoT, AI, BACKUP, DISPLAY, and AUDIO. Click each tile to open the configuration interface of the tile. VIDEO: Search for and play back the recorded video saved on the Device. ALARM: Search for alarm information and configure alarm event actions.
Page 82: Controlling Ptz Cameras
Description Icon Displays Cell Phone Client and Device SN QR Code. Cell Phone Client: Use your mobile phone to scan the QR code to add the device into the Cell Phone Client, and then you can start accessing the Device from your cell phone. Device SN: Obtain the Device SN by scanning the QR code.
Page 83 Configure the settings for the PTZ connection parameters. See Table 5-19. Parameter Description In the Channel list, select the channel that you want to connect the PTZ Channel camera to. Local: Connect through RS485 port or coaxial cable. PTZ Type Remote: Connect through network by adding IP address of PTZ camera to the Device.
Page 84: Working With Ptz Control Panel
Click Apply to save the settings. Click Copy to copy the settings to other channels. 5.4.2 Working with PTZ Control Panel PTZ control panel performs the operations such as directing camera in eight directions, adjusting zoom, focus and iris settings, and quick positioning. Basic PTZ Control Panel Right-click on the live view screen and then select PTZ.
Page 85 Parameter Description the view. The square supports zooming.  Dragging upward is to zoom out, and dragging downward is to zoom in.  The smaller the square, the larger the zoom effect. Not all models support this function and can only be controlled through mouse operations.
Page 86: Configuring Ptz Functions
5.4.3 Configuring PTZ Functions 5.4.3.1 Configuring Presets On the Expanded PTZ Control Panel, click The Preset interface is displayed. See Figure 5-51. Click the direction arrows to the required position. In the Preset box, enter the value to represent the required position. Click Setting to complete the preset settings.
Page 87 In the Preset box, enter the preset value. Click Add Preset. A preset will be added for this tour. You can repeat adding more presets.  Click Del Preset to delete the preset for this tour. This operation can be repeated ...
Page 88: Calling Ptz Functions
Click the direction arrows to position the left and right borders. 5.4.4 Calling PTZ Functions After you have configured the PTZ settings, you can call the PTZ functions for monitoring from the Expanded PTZ Control Panel. See Figure 5-55. 5.4.4.1 Calling Presets On the Expanded PTZ Control Panel, in the No.
Page 89: Calling Osd Menu
5.4.4.3 Calling Patterns On the Expanded PTZ Control Panel, in the No. box, enter the value of the pattern that you want to call. Call to call the pattern. The PTZ camera moves according to the configured pattern repeatedly. Click again to stop calling the pattern.
Page 90: Configuring Camera Settings
On the Expanded PTZ Control Panel, click The MENU OPERATION interface is displayed. See Figure 5-57. Click Enter. The OSD menu is displayed. See Figure 5-58. On the MENU OPERATION interface, click the arrow button to select the onscreen parameters. Click Enter to complete the settings.
Page 91 Configure the settings for the image parameters. See Table 5-22. On the digital channel interface, click More Setting to display more parameters. Local Configurations 81...
Page 92 Parameter Description Channel In the Channel list, select the channel that you want to configure. In the Cable Type list, select the cable type that the camera uses. Cable Type Not all models support this function. In the Period list, select a time period for the image settings. The Period image settings will be only used during the selected period.
Page 93: Configuring Encode Settings
Parameter Description Enable the function, the left and right side of the video image will be Mirror switched. It is disabled by default. This function specially applies to the image which frame rate is configured as 2 at least. It reduces the noises by making use of the 3D Denoise information between two frames.
Page 94 Configure the settings for the main/sub streams parameters. See Table 5-23. Parameter Description In the Channel list, select the channel that you want to configure the Channel settings for. Enable the smart codec function. This function can reduce the video Smart Codec bit stream for non-important recorded video to maximize the storage space.
Page 95: Configuring Snapshot Settings
Parameter Description Configure the frames per second for the video. The higher the value, the clearer and smoother the image will become. Frame rate changes along with the resolution. Frame Rate Generally, in PAL format, you can select the value from 1 through 25; (FPS) in NTSC format, you can select the value from 1 through 30.
Page 96: Configuring Overlay Settings
Configure the settings for the snapshot parameters. See Table 5-24. Parameter Description In the Manual Snap list, select how many snapshots you want to take Manual Snap each time. In the Channel list, select the channel that you want to configure the Channel settings for.
Page 97: Configuring Covered Area Settings
Configure the settings for the text overlay parameters. See Table 5-25. Parameter Description In the Channel list, select the channel that you want to configure the Channel settings for. Select the Time Display check box to display the system time on Time Display each channel window in the live view screen.
Page 98: Configuring Channel Type
Configure the settings for the covered area parameters. See Table 5-26. Parameter Description In the Channel list, select the channel that you want to configure the Channel settings for. Preview: Select the Preview check box to apply the configured covered block to the selected channel window in the live view Preview screen.
Page 99: Upgrading Coaxial Camera
The CHANNEL TYPE interface is displayed. See Figure 5-65. Configure the channels. Analog Channel: Select the transmission medium such as CVI, CVBS, and then  follow the onscreen instructions to complete the settings. IP Channel: Select a channel for IP camera from the last channel number, for ...
Page 100: Configuring Remote Devices
Click Browse. The Browse interface is displayed. Select the upgrade file and click OK. The COAXIAL UPGRADE interface is displayed. You need to insert the USB storage device that contains the upgrading files. Select the check box of the channel that you want to upgrade. Click Start Upgrade.
Page 101 Parameter Description Enable the Uninitialized function, the uninitialized devices out of the Uninitialized searched devices are displayed in the searched device list. Select the uninitialized device from the uninitialized device list, and Initialize the click Initialize to start initializing device. In the Show Filter list, select the remote device type that you want to display in the searched device list.
Page 102 Parameter Description Add the device by manually configuring settings such as IP address, Manual Add channel selection. For details, see "5.6.1.4 Adding Remote Devices Manually." Added Device Displays the added devices. You can edit and delete the device, and List view the device information.
Page 103 Select the uninitialized device that you want to initialize. Click Initialize. The Enter Password interface is displayed. See Figure 5-70 Configure the password and email information. If you select the Using current device password and email info check box, the remote device automatically uses the current password and email information, so you do not need to set the password and email address again and can go to Step 6.
Page 104 Configure the settings for the password setting parameters. See Table 5-28. Parameter Description User The default is admin. The new password can be set from 8 characters through 32 Password characters and contains at least two types from number, letter and special characters (excluding"'", """, ";", ":"...
Page 105 Configure the IP address. Select the DHCP check box, you do not need to enter the IP address information,  because the system will allocate one IP address to the remote device. Select the STATIC check box, you need to enter the IP address, subnet mast, ...
Page 106 Click Finished to complete the settings. 5.6.1.3 Adding Remote Devices Automatically On the Registration interface, click Device Search The searched devices are displayed. See Figure 5-75. Local Configurations 96...
Page 107 Select the check box of the device. Click Add. The device is added into the Added Device area. You can also double-click the device to add it into the Added Device area.  You can add devices in batches.  5.6.1.4 Adding Remote Devices Manually On the Registration interface, click Manual Add.
Page 108 Parameter Description Enter the remote channel number of the remote device that you want Remote Channel to add. Decoder Buffer In the Decoder Buffer list, select Default, Realtime, or Fluent. Protocol Type Select Auto, TCP, UDP, or MULTICAST. The default is TCP. Click Apply to save the settings.
Page 109 5.6.1.6 Modifying IP Address You can modify a single IP address or multiple IP addresses of remote devices at the one time. To modify a single IP address, do the following:  In the Searched Device list area, click for the device that you want to modify IP. The Modify IP interface is displayed.
Page 110 Configure the settings for start IP address (the IP address is allocated in sequence), subnet mask, default gateway, user name, and password. Enable the Add function to add the devices into the Added Device area. Click Apply to save the settings. 5.6.1.7 Exporting IP Address You can export the added IP address to the USB storage device.
Page 111: Managing Remote Devices
Select the file that you want to import. Click OK to start importing. After importing is completed, a pop-up message indicating "The import succeeded" is displayed. If the IP address that you want to import already exists in the Device, the system will pop up a message to ask you whether to overwrite the existing content.
Page 112 5.6.2.2 Viewing Firmware Information You can view the device firmware information such as channel number, IP address, manufacturer, system version, video input, audio input, and alarm in. Select Main Menu > CAMERA > REGISTRATION > Firmware, the Firmware interface is displayed.
Page 113 5.6.2.3 Upgrading Remote Devices Select Main Menu > CAMERA > REGISTRATION > Upgrade. The Upgrade interface is displayed. See Figure 5-84. Local Configurations 103...
Page 114: Configuring Record Settings
Upgrade the device. File Upgrade  Insert a USB storage device containing the upgrade files into the USB port of the Device. Select the devices that you want to upgrade. Click File upgrade. The File Upgrade interface is displayed. Select the upgrading files and click Apply. Online Upgrade ...
Page 115: Enabling Record Control
5.7.1 Enabling Record Control Manual recording operation requires the user have the permission to access STORAGE  settings. Check to ensure the HDD installed in the Device has been formatted properly.  To enter the record control interface, do the following: Right-click on the live view screen, the shortcut menu is displayed.
Page 116: Configuring Recorded Video Storage Schedule
5.7.2 Configuring Recorded Video Storage Schedule You need to configure the storage schedule for the recorded video so that the recorded video can be saved. For details, see "5.1.4.9 Configuring Recorded Video Storage Schedule." Configuring Snapshot Settings 5.8.1 Configuring Snapshot Trigger The snapshot is divided into scheduled snapshot, event triggered snapshot, and face detection triggered snapshot.
Page 117 Click Apply to save the settings. If you have configured the snapshot schedule, the configuration has been  completed. If you have not configured the snapshot schedule, see "5.1.4.10 Configuring  Snapshot Storage Schedule." 5.8.1.2 Configuring Event Triggered Snapshot Select Main Menu > CAMERA > ENCODE > Snapshot. The Snapshot interface is displayed.
Page 118 Select Main Menu > ALARM > VIDEO DETECT, and select the event type to configure, for example, select the Motion Detect tab. See Figure 5-89. Local Configurations 108...
Page 119 Select the Snapshot check box and select the corresponding channel. Click Apply. 5.8.1.3 Configuring Face Detection Triggered Snapshot Select Main Menu > CAMERA > ENCODE > Snapshot. The Snapshot interface is displayed. In the Mode list, select Human Face, and then configure other parameters. See Figure 5-90.
Page 120 Select Main Menu > FACE DETECT > PARAMETERS > Human Face. The Human Face interface is displayed. See Figure 5-91. Local Configurations 110...
Page 121: Configuring Snapshot Storage Schedule
Select the Snapshot check box and select the corresponding channel. Click Apply. 5.8.2 Configuring Snapshot Storage Schedule You need to configure the storage schedule for the snapshot so that the snapshot can be saved. For details, see "5.1.4.10 Configuring Snapshot Storage Schedule." 5.8.3 Backing up Snapshots to FTP Select Main Menu >...
Page 122: Playing Back Video
Playing Back Video 5.9.1 Enabling Record Control Manual recording operation requires the user have the permission to access STORAGE  settings. Check to ensure the HDD installed in the Device has been formatted properly.  To enter the record control interface, do the following: Right-click on the live view screen, the shortcut menu is displayed.
Page 123: Instant Playback
5.9.2 Instant Playback You can use the instant playback function to play back the previous five minutes to sixty minutes of the recorded video in any channel. For details about instant playback function, see "5.2.2.1 Instant Playback." 5.9.3 Main Interface of Video Playback You can search for and play back the recorded video saved on the Device.
Page 124 Function Description Click on the colored area to start playback from a certain time. In the situation when you are configuring the settings, rotate the wheel button on the time bar, the time bar is zooming in from 0. In the situation when playback is ongoing, rotate the wheel button on the time bar, the time bar is zooming from the time point where the playback is located.
Page 125 Function Description Click to display in full screen. In the full screen mode, point to Full Screen the bottom of the screen, the time bar is displayed. Right-click on the screen to exit full screen mode. You can select 24hr, 2hr, 1hr, or 30min as the unit of time bar. The Time Bar Unit time bar display changes with the setting.
Page 126 Icon Function Fast Playback. During playing back, click to set the speed of fast playback as FastX2, FastX4, FastX8, or FastX16. During slow playback, click to speed up slow playback. Previous Day/Next Day. Click or click to play the previous day or next day of the current recorded video.
Page 127: Backing Up Recorded Video
5.9.3.4 Clipping Recorded Video During playback, clip sections of recorded video and save to the USB storage device. For the video clip interface, see Figure 5-98. Select a recorded video that you want to play. Click to start playing from the beginning. ...
Page 128: Smart Search
Click Backup. If you do not want to back the file, clear the check box. 5.9.4 Smart Search During playback, you can analyze a certain area to find if there was any motion detection event occurred. The system will display the images with motion events of the recorded video. Not all models support this function.
Page 129: Marking And Playing Back Video
The grid area supports 22×18(PAL) and 22×15(NTSC). Click The screen starts playing back the motional splices of recorded video for the selected searching area. Click to exit the playback. 5.9.5 Marking and Playing Back Video You can mark the recording for somewhere important. Then you can easily find the marked recording by searching time and mark name.
Page 130 Double-click the file that you want to play back. To search the marked video by time, in the SEARCH box on the top of the interface, enter the time, and then click Playing Back Time before the Mark You can configure to play N seconds of the marked video before the marked time. In the Name box, enter the name of a marked video.
Page 131: Playing Back Snapshots
Be default, it manages all the marked videos of the selected channel.  To search the marked video, select channel number from the Channel list, enter time in  Start Time box and End Time box, and then click Search. All the marked videos display in time order.
Page 132: Using The File List
Not all models support this function. Select Main Menu > VIDEO, the video search interface is displayed. In the Search Type list, select Splice Playback; In the Split Mode list, select 4, 9, or 16. See Figure 5-103. In the Calendar area, select a date. In the CAM NAME list, select a channel.
Page 133 Start playback. Click , the playback starts from the first file by default.  Click any file, the system plays back this file.  In the time box on the top of the file list interface, you can enter the specific time ...
Page 134: Alarm Events Settings
To unlock the recorded video, in the FILE LOCKED interface, select the video, and then  click Unlock. See Figure 5-106. Alarm Events Settings 5.10 5.10.1 Video Detection Video detection adopts computer vision and image processing technology. The technology analyzes the video images to detect the obvious changes such as moving objects and blurriness.
Page 135 Configure the settings for the motion detection parameters. See Table 5-34. Parameter Description Channel In the Channel list, select a channel to set the motion detection. Region Click Setting to define the motion detection region. Enable MD Enable or disable the motion detection function. PIR function helps enhancing the accuracy and validity of motion detect.
Page 136 Parameter Description Configure the event detection lasting time. The system records Anti-Dither only one event during this period. The value ranges from 5 seconds to 300 seconds. Click Setting to display setting interface. General Alarm: Enable alarm activation through the alarm devices connected to the selected output port.
Page 137 Parameter Description Select the Snapshot check box to take a snapshot of the selected channel. To use this function, make sure the following settings are Snapshot configured: The snapshot function is enabled for motion detect alarms in  Main Menu > STORAGE > SCHEDULE > Snapshot. Select Main Menu >...
Page 138 Drag on the screen to select the region that you want to detect. The selected area shows the color that represents the region. Configure the parameters. Parameter Description Name Enter a name for the region. Every region of every channel has an individual sensitivity value. Sensitivity The bigger the value is, the easier the alarms can be activated.
Page 139: Configuring Video Loss Settings
 Define for several days of a week: Click before each day, the icon switches to . On the timeline of any selected day, click the half-hour blocks to select the active periods, all the days with will take the same settings. ...
Page 140 To configure the settings for the video loss detection parameters, see “5.10.1.1 Configuring Motion Detect Settings.” For PTZ activation, different from motion detection, the video loss detection can activate PTZ preset, tour, and pattern. Click Apply to complete the settings. Click Default to restore the default setting.
Page 141 To configure the settings for the tampering detection parameters, see “5.10.1.1 Configuring Motion Detect Settings.” For PTZ activation, different from motion detection, the video loss detection can activate PTZ preset, tour, and pattern. Click Apply to complete the settings. Click Default to restore the default setting. ...
Page 142 To configure the settings for the diagnosis parameters, see "5.10.1.1 Configuring Motion Detect Settings." Click Apply to complete the settings. Click Default to restore the default setting. Setting the Types for Diagnosing Targets Next to Rule, click Setting. The Diagnosis interface is displayed. See Figure 5-115. Select the items that you want to diagnose and set the threshold (30 by default).
Page 143: Ivs Function
Parameter Description A horizontal, vertical or diagonal stripe that might appear in the Stripe video because of device aging or electronic interruption. Such stripe brings visual interruption. Video noises such as blurriness or quality reduction that is caused Noise by optical distortion or device problem during camera shooting. Color Cast Variances in the normal proportions of RGB colors.
Page 144 In the Channel list, select the channel number that you want to configure the IVS function for. Click Add. One line of rule is displayed. See Figure 5-117. Local Configurations 134...
Page 145 Configure the parameters for the rule that you selected. Select the check box of the rule to enable it. Click Apply to complete the settings. 5.10.2.1 Configuring Tripwire Rules When the target object crosses the tripwire in the defined direction, the system activates alarms.
Page 146 Draw a tripwire. In the Channel list, select the channel that you want to configure the rules for. Click The monitoring screen to configure the tripwire rules is displayed. See Figure 5-119. Local Configurations 136...
Page 147 Configure the settings for the parameters of drawing rules. See Table 5-36. Parameter Description Name Enter the customized rule name. Set the direction of the tripwire. You can choose A to B (left to Direction right), B to A (right to left), and Both. Click to draw areas to filter the target.
Page 148 Configure the triggering parameters. See Table 5-37. Parameter Description Click Set to display set interface. Define a period during which the motion detection is active. For Period details, see "Setting Motion Detection Period” section in "5.10.1.1 Configuring Motion Detect Settings." Click Setting to display setting interface.
Page 149 Parameter Description channel(s) starts recording after an alarm event occurs. The recording for intelligence event and auto recording function must be enabled. For details, see "5.1.4.9 Configuring Recorded Video Storage Schedule" and "5.9.1 Enabling Record Control." Click Set to display the PTZ interface. Enable PTZ activation function.
Page 150 5.10.2.2 Configuring Intrusion Rules When the target enters and leaves the area, or the target appears in the defined area, the system activates alarms. You can define the shape and quantity of intrusion areas.  Supports detecting the behaviors that enter and leave the intrusion areas. ...
Page 151 Configure the settings for the parameters of drawing rules. See Table 5-38Table 5-36. Parameter Description Name Enter the customized rule name. Configure the actions that are defined as intrusion. You can select Action the Appear check box and the Cross check box. In the Direction list, select the direction of crossing the configured Direction area.
Page 152 The intrusion detecting function is active. When the target enters and leaves the area, or the target appears in the defined area, the system activates alarms. 5.10.2.3 Configuring Abandoned Rules When the object is placed in the defined detection area for more than the set time, the system activates alarms.
Page 153 Configure the settings for the parameters of drawing rules. See Table 5-39. Parameter Description Name Enter the customized rule name. Configure the minimum time period for activating alarms by Period detecting the abandoned objects. Click to draw areas to filter the target. You can configure two filtering targets (maximum size and Filtering Target minimum size).
Page 154 5.10.2.4 Configuring Missing Rules When the target is taken away from the defined area exceeds the set time, the system activates alarms. On the rule line that you added, in the Type list, select Missing. The Missing interface is displayed. See Figure 5-125. Draw an area.
Page 155 Configure the settings for the parameters of drawing rules. See Table 5-40. Parameter Description Name Enter the customized rule name. Configure the minimum time period for activating alarms by Period detecting the missing objects. Click to draw areas to filter the target. You can configure two filtering targets (maximum size and Filtering Target minimum size).
Page 156: Face Detection
5.10.3 Face Detection You can configure the face detection settings and search the detected faces in the defined time period. 5.10.3.1 Configuring Face Detection Settings When the Device detects the human faces, the system activates alarms. Not all models support this function. ...
Page 157 Parameter Description Period Define a period during which the motion detection is active. Click Setting to display setting interface. Enable alarm activation function. Select the alarm output port(s) to Alarm Out which the peripheral alarm devices are connected. When an alarm event occurs, the system activates the peripheral alarm devices connected to the selected output port.
Page 158 5.10.3.2 Searching for Detected Faces Select Main Menu > FACE DETECT > SMART SEARCH. The SMART SEARCH interface is displayed. See Figure 5-128. In the Begin Time box and End Time box, enter the time. Click Search. The faces searched in the defined period display. See Figure 5-129. Local Configurations 148...
Page 159: System Events
5.10.4 System Events You can configure the alarm output for three types of system event (HDD, Network, and User). When there is an abnormal system event occurs, the system activates alarms in the way that you configure in this section. 5.10.4.1 Configuring HDD Event Settings Select Main Menu >...
Page 160 Configure the settings for the HDD event. See Table 5-42. Parameter Description In the Event Type list, select No HDD, HDD Error, or HDD No Space Event Type as the event type. Enable Enable or disable the HDD event detection function. Click Setting to display setting interface.
Page 161 Parameter Description Select the Send Email check box to enable the system to send an email notification when an alarm event occurs. Send Email To use this function, make sure the email function is enabled in Main Menu > NETWORK > EMAIL. Buzzer Select the check box to activate a buzzer noise at the Device.
Page 162 Parameter Description Click Setting to display setting interface. General Alarm: Enable alarm activation through the alarm devices connected to the selected output port. Alarm Out External Alarm: Enable alarm activation through the connected alarm box. Wireless Siren: Enable alarm activation through devices connected by USB gateway or camera gateway.
Page 163 Configure the settings for the User event. See Table 5-44. Parameter Description Event Type In the Event Type list, select Illegal Login. Enable the user error detection function. If you do not enable this function, there will be no limit for wrong Enable password entry and the account cannot be locked because of the wrong password.
Page 164 Parameter Description Select the Send Email check box to enable the system to send an email notification when an alarm event occurs. Send Email To use this function, make sure the email function is enabled in Main Menu > NETWORK > EMAIL. Buzzer Select the check box to activate a buzzer noise at the Device.
Page 165: Alarm Input Settings
Parameter Description Max Temperature In the Max Temperature box, enter the max temperature value. Click Setting to display setting interface. General Alarm: Enable alarm activation through the alarm devices connected to the selected output port. Alarm Out External Alarm: Enable alarm activation through the connected alarm box.
Page 166 Configure the settings for the local alarms. See Table 5-46. Parameter Description Alarm In Select the channel number. Alarm Name Enter the customized alarm name. Enable Enable or disable the local alarm function. Type In the Type list, select NO or select NC as the voltage output type. Click Setting to display setting interface.
Page 167 Parameter Description Select the Show Message check box to enable a pop-up message in Show Message your local host PC. Select the Alarm Upload check box to enable the system to upload the Alarm Upload alarm signal to the network (including alarm center) when an alarm event occurs.
Page 168 Click Default to restore the default setting.  Click Copy, in the Copy dialog box, select the additional channel(s) that you want  to copy the local alarm settings to, and then click Apply. 5.10.5.2 Configuring Alarms from Alarm Box You can connect the alarm box to the RS485 port of the Device.
Page 169 The IPC Ext interface is displayed. See Figure 5-136. Configure the alarm input settings from the external IPC. For details, see Table 5-46. Click Apply to complete the settings. Click Default to restore the default setting.  Click Copy to copy the settings to other channels. ...
Page 170 Configure the alarm input settings from the external IPC. For details, see Table 5-46. Click Apply to complete the settings. Click Default to restore the default setting.  Click Copy to copy the settings to other channels.  5.10.5.5 Configuring Alarms from External Devices Select Main Menu >...
Page 171 In the Channel list, select a channel or all. Click The Setting interface is displayed. See Figure 5-139. Configure the settings for other parameters of the Alarm Box. For details, see Table 5-46. Click OK to complete the settings. Local Configurations 161...
Page 172: Alarm Output Settings
5.10.6 Alarm Output Settings When the Device activates alarms, the connected alarm device generates alarms in the way that you can configure in this section. You can connect to the output port of the Device or connect wirelessly. Auto: When an alarm event is triggered on the Device, the connected alarm device ...
Page 173: Iot Function
IoT Function 5.11 5.11.1 Configuring Sensor Settings You can connect external sensors wirelessly through the Device with USB gateway or through connecting to a camera gateway. After connection, you can activate alarm events through external sensors. 5.11.1.1 Connecting Sensor through Device Only the Device with USB gateway supports this function.
Page 174 Click Pair. The Device starts pairing with the sensor. After pairing is completed, see Figure 5-143. Click Back to exit the pairing interface. The added sensor information is displayed. See Figure 5-144. Click to modify the sensor name; click to delete sensor information. Local Configurations 164...
Page 175 5.11.1.2 Connecting Sensor through Camera with Gateway Only the camera with gateway supports this function. Select Main Menu > IoT > MANAGER > Sensor Pairing. The Sensor Pairing interface is displayed. See Figure 5-145. Local Configurations 165...
Page 176 In the Access Type list, select Camera Gateway. In the Channel list, select the channel that is connected to the camera. Click Add. The Add interface is displayed. See Figure 5-146. Click Pair. The Device starts pairing with the sensor. After pairing is completed, see Figure 5-147.
Page 177 Click Back to exit the pairing interface. The added sensor information is displayed. See Figure 5-148. Click to modify the sensor name; click to delete sensor information. 5.11.1.3 Configuring Alarm Linkage Select Main Menu > IoT > MANAGER > Wireless Detector. Local Configurations 167...
Page 178 The Wireless Detector interface is displayed. See Figure 5-149. In the Access Type list, select USB, Camera, or All. Click The Setting interface is displayed. See Figure 5-139. Configure the settings for alarm linkage. For details, see Table 5-48. Parameter Description Local Configurations 168...
Page 179 Parameter Description Name Enter the customized alarm name. Click Setting to display setting interface. Define a period during which the motion detection is active. For details, Period see "Setting Motion Detection Period" section in "5.10.1.1 Configuring Motion Detect Settings." Click Setting to display the PTZ interface. Enable PTZ activation function.
Page 180: Configuring Temperature And Humidity Camera
Parameter Description Show Message: Select the Show Message check box to enable a pop-up message in your local host PC. Buzzer: Select the check box to activate a buzzer noise at the Device. Video Matrix: Select the check box to enable the function. When an alarm event occurs, the video output port outputs the settings configured in "Main Menu >...
Page 181 Select the Enable check boxes to enable IoT function. See Figure 5-152. Local Configurations 171...
Page 182 The Device starts detecting the temperature and humidity data from the camera and display on the Realtime Display interface. 5.11.2.2 Viewing Temperature and Humidity Data You can view the temperature and humidity data on the Realtime Display interface after the IoT function is enabled.
Page 183 Click Locked to lock the data. The export button is enabled. Click Export. The system starts exporting the data. After exporting is finished, a Message dialog box is displayed. Click OK. You can find the exported data on your USB device. 5.11.2.4 Configuring Alarm Linkage You can configure alarm linkage settings for temperature and humidity data.
Page 184 On the temperature information line, click The Setting interface is displayed. See Figure 5-156. Configure the settings for alarm linkage. See Table 5-49. Parameter Description Access Point Indicates the channel that the camera is connected to. Local Configurations 174...
Page 185 Parameter Description Type Temperature by default. Detect Position Set the detect position name. Name Select the channel that you want to preview to help monitor the channel of access point. This channel could be the channel of Preview Channel access point or any other channels according to your actual situation.
Page 186 Parameter Description Select the channel(s) that you want to record. The selected channel(s) starts recording after an alarm occurs. Record CH The recording for IoT alarms and auto recording function must be enabled. For details, see "5.1.4.9 Configuring Recorded Video Storage Schedule"...
Page 187 On the humidity information line, click The Setting interface is displayed. See Figure 5-158. Configure the settings for the following parameters. See Table 5-50. Parameter Description Access Point Indicates the channel that the camera is connected to. Local Configurations 177...
Page 188 Parameter Description Type Humidity by default. Detect Position Set the detect position name. Name Select the channel that you want to preview to help monitor the channel of access point. This channel could be the channel of Preview Channel access point or any other channels according to your actual situation.
Page 189 Parameter Description Select the channel(s) that you want to record. The selected channel(s) starts recording after an alarm occurs. Record CH The recording for IoT alarms and auto recording function must be enabled. For details, see "5.1.4.9 Configuring Recorded Video Storage Schedule"...
Page 190 Configure the parameters settings. See Table 5-51. Parameter Description Access Point Indicates the channel that the camera is connected to. Display Type In the Display Type list, select List or Graph. Select the information type that you want to search. You can select Type Humidity or Temperature.
Page 191 For the data displayed in graph, see Figure 5-161.  Click Backup. The system starts exporting the data. Local Configurations 181...
Page 192: Configuring Wireless Siren
After exporting is finished, a Message dialog box is displayed. Click OK. You can find the exported data on your USB device. 5.11.3 Configuring Wireless Siren You can connect the wireless siren to the Device, when there is an alarm event activated on the Device, the wireless siren generate alarms.
Page 193: Configuring Pos Settings
Configuring POS Settings 5.12 You can connect the Device to the POS (Point of Sale) machine and receive the information from it. This function applies to the scenarios such as supermarket POS machine. After connection is established, the Device can access the POS information and display the overlaid text in the channel window.
Page 194: Configuring Pos Settings
5.12.2 Configuring POS Settings Select Main Menu > POS > POS SETUP. The POS SETUP interface is displayed. See Figure 5-164. Configure the settings for the POS parameters. See Table 5-53. Parameter Description In the POS Name list, select the POS machine that you want to configures settings for.
Page 195: Configuring Backup Settings
In the Connect Type list, select the connection protocol type. Click , the IP Address interface is displayed. Connect Type In the Source IP box, enter the IP address (the machine that is connected to the Device) that sends messages. Convert Select a character encoding mode.
Page 196: Backing Up Files
5.13.2 Backing up Files You can back up the recorded videos and snapshots. Select Main Menu > BACKUP. The BACKUP interface is displayed. See Figure 5-166. Configure the settings for the backup parameters. See Table 5-54. Parameter Description In the Device Name list, select the device that you want to back up Device Name the files to.
Page 197: Network Management
Parameter Description Click Browse, the Browse interface is displayed. Select the route Path where you want to search for the files. In the Record CH list, select the channel where you want to search Record CH for the files. Type In the Type list, select the file type that you want to search.
Page 198: Configuring Port Settings
5.14.1.2 Configuring Port Settings You can configure the maximum connection accessing the Device from Client such as WEB, Platform, and Mobile Phone and configure each port settings. Select Main Menu > NETWORK > CONNECTION. The CONNECTION interface is displayed. See Figure 5-168. Local Configurations 188...
Page 199 Configure the settings for the connection parameters. See Table 5-55. The connection parameters except Max Connection cannot take effects until the Device has been restarted. Parameter Description The allowable maximum clients accessing the Device at the same Max Connection time, such as WEB, Platform, and Mobile Phone. Select a value between 1 and 128.
Page 200 Click Apply to complete the settings. 5.14.1.3 Configuring Wi-Fi Connection Settings You can make wireless connection between the Device and the other devices in the same network through Wi-Fi settings, facilitating the devices connection and mobility. Only the Device with Wi-Fi module supports this function. Select Main Menu >...
Page 201: Configuring Pppoe Settings
Click Apply to complete the settings. After the Device is connected to a Wi-Fi hotspot, in the Wi-Fi Working Info area, the current hotspot, IP address, subnet mask, and default gateway are displayed. 5.14.1.4 Configuring PPPoE Settings PPPoE is another way for the Device to access the network. You can establish network connection by configuring PPPoE settings to give the Device a dynamic IP address in the WAN.
Page 202: Configuring Ddns Settings
5.14.1.5 Configuring DDNS Settings When the IP address of the Device changes frequently, the DDNS function can dynamically refresh the correspondence between the domain on DNS and the IP address, ensuring you access the Device by using the domain. Preparing for Configuration Please confirm if the Device supports the DDNS Type and log in the website provided by the DDNS service provider to register the information such as domain from PC located in the WAN.
Page 203: Configuring Email Settings
Parameter Description Enable Enable the DDNS function. DDNS Type Type and address of DDNS service provider. Type: Dyndns DDNS; address: members.dyndns.org Type: NO-IP DDNS; address: dynupdate.no-ip.com Host IP Type: CN99 DDNS; address: members.3322.org The domain name for registering on the website of DDNS service Domain Name provider.
Page 204 Configure the settings for the email parameters. See Table 5-59. Parameter Description Enable Enable the email function. SMTP Server Enter the address of SMTP server of sender’s email account. Enter the port value of SMTP server. The default value setting is Port 25.
Page 205: Configuring Upnp Settings
This is the interval that the system sends an email for the same type of alarm event, which means, the system does not send an email upon any alarm event. Interval (Sec.) This setting helps to avoid the large amount of emails caused by frequent alarm events.
Page 206 Configure the settings for the UPnP parameters. See Table 5-60. Parameter Description Enable the UPnP function. Indicates the status of UPnP function. Status Offline: Failed. Online: Succeeded. Enter IP address of router on the LAN. LAN IP After mapping succeeded, the system obtains IP address automatically without performing any configurations.
Page 207: Configuring Snmp Settings
The settings in PAT table correspond to the UPnP PAT table on the router. Service Name: Name of network server. Protocol: Type of protocol. Int. Port: Internal port that is mapped on the Device. Ext. Port: External port that is mapped on the router. To avoid the conflict, when setting the external port, try to use ...
Page 208: Configuring Multicast Settings
Configure the settings for the SNMP parameters. See Table 5-61. Parameter Description Enable Enable the SNMP function. Version Select the check box of SNMP version(s) that you are using. SNMP Port Indicates the monitoring port on the agent program. Read Community Indicates the read/write strings supported by the agent program.
Page 209 The MULTICAST interface is displayed. See Figure 5-175. Configure the settings for the multicast parameters. See Table 5-62. Parameter Description Enable Enable the multicast function. Enter the IP address that you want to use as the multicast IP. IP Address The IP address ranges from 224.0.0.0 through 239.255.255.255.
Page 210 5.14.1.10 Configuring Register Settings You can register the Device into the specified proxy server which acts as the transit to make it easier for the client software to access the Device. Select Main Menu > NETWORK > REGISTER. The REGISTER interface is displayed. See Figure 5-177. Configure the settings for the register parameters.
Page 211 Select a number. Enter the server IP address or the server domain that you want to Server IP Address register to. Port Enter the port of the server. Sub Service ID This ID is allocated by the server and used for the Device. Click Apply to complete the settings.
Page 212: Configuring Network Testing Settings
Parameter Description In the Self-Report Time list, select time cycle and specific time for Self-Report Time uploading alarm. Click Apply to complete the settings. 5.14.1.12 Configuring P2P Settings You can manage the devices by using P2P technology to download the application and register the devices.
Page 213 5.14.2.2 Capturing Packet and Backing up Packet capture means the operations such as capturing, resending, and editing data that are sent and received during network transmission. When there is network abnormality, you can perform packet capturing and back up into the USB storage device. This date can be provided to the technical support for analyzing the network condition.
Page 214 Connect a USB storage device to the Device. Click Fresh. The Device starts detecting the USB storage device and displays its name in the Device Name box. Select the route of the data that you want to capture and back up. In the Network Sniffer Packet Backup, click Browse.
Page 215 Select the route. If there are several USB storage devices are connected to the Device, you can  select from the Device Name list. Click Refresh to total space, free space and the file list in the selected USB  storage device.
Page 216: Configuring Account Settings
Configuring Account Settings 5.15 You can add, modify and delete user accounts, groups, and ONVIF users, and set security questions for admin account. The user name supports 31 characters and group name supports 15 characters. The user  name can be consisted of letter, number, "_", "@", ".". You can set maximum 64 users and 20 groups.
Page 217 Click Add User. The Add User interface is displayed. See Figure 5-185. Configure the settings for the parameters of adding a user account. See Table 5-65. Parameter Description User Name Enter a user name and password for the account. Password Confirm Password Re-enter the password.
Page 218 Optional. Memo Enter a description of the account. User MAC Enter user MAC address Select a group for the account. Group The user rights must be within the group permission. Click Set to display Set interface. Define a period during which the new account can login the device. Period The new account cannot login the device during the time beyond the set period.
Page 219  Define for several days of a week: Click before each day, the icon switches to . On the timeline of any selected day, click the half-hour blocks to select the active periods, all the days with will take the same settings. ...
Page 220 Click for the user account that you want to modify. The Modify User interface is displayed. See Figure 5-189. Change the settings for password, user name, user group, user MAC, memo, period, and authority. The new password can be set from 8 digits through 32 digits and contains at least two types from number, letter and special characters (excluding"'", """, ";", ":"...
Page 221: Deleting A User Account
For the admin account, you can enter or modify email address, enable/disable the unlock pattern, modify the security questions. In the Email Address box, enter the email address, and the click Save to save the  setting. To use the unlock pattern, enable Unlock Pattern, click , draw a pattern in the ...
Page 222: Configuring Group Account
Click for the user account that you want to delete. A Message is displayed. Click OK to delete a user account. 5.15.2 Configuring Group Account 5.15.2.1 Adding a Group Select Main Menu > ACCOUNT > GROUP. The GROUP interface is displayed. See Figure 5-192. Local Configurations 212...
Page 223 Click Add Group. The Add Group interface is displayed. See Figure 5-193. Configure the settings for the parameters of adding a group. See Table 5-66. Parameter Description Group Name Enter a name for the group. Optional. Memo Enter a description of the account. Local Configurations 213...
Page 224 Parameter Description In the Authority area, select the check boxes in the System tab, Authority Playback tab, and Monitor tab. Click OK to complete the settings. 5.15.2.2 Modifying a Group Select Main Menu > ACCOUNT > GROUP. The GROUP interface is displayed. See Figure 5-194. Click for the group account that you want to modify.
Page 225: Deleting A Group
Change the settings for group name, memo, and authority. Click OK to complete the settings. 5.15.2.3 Deleting a Group Select Main Menu > ACCOUNT > GROUP. The GROUP interface is displayed. See Figure 5-196. Local Configurations 215...
Page 226: Configuring Onvif Users
Click for the user account that you want to delete. A Message is displayed. Click OK to delete a group. 5.15.3 Configuring Onvif Users The device manufactured by other company can connect to the Device through Onvif protocol by an authorized Onvif account. The admin account is created for Onvif users right after the Device has been initialized Select Main Menu >...
Page 227: Audio Management
Enter user name, password, and select the group that you want this account to belong Click OK to save the settings. Click to modify the account; Click to delete the account. Audio Management 5.16 Audio management function manages audio files and configures the playing schedule. When there is an alarm event, the audio file can be activated.
Page 228 Click Add. The Add interface is displayed. See Figure 5-200. Select the audio files that you want to import. Click OK to start importing audio files from the USB storage device. Local Configurations 218...
Page 229: Configuring Playing Schedule For Audio Files
If the importing is successful, the audio files will display in the FILE MANAGER interface. See Figure 5-201. The imported audio files are automatically saved into the HDD, so you do not need to connect to the USB storage device to get the file next time. Click to play the audio file.
Page 230 Configure the settings for the schedule parameters. See Table 5-67. Parameter Description In the Period box, enter the time. Select the check box to enable Period the settings. You can configure up to six periods. In the File Name list, select the audio file that you want to play for File Name this configured period.
Page 231: Storage Management
Storage Management 5.17 Storage management function manages the stored resources such as recorded video files and storage space. The function aims at providing easier operation and improving the storage efficiency. 5.17.1 Configuring Basic Settings Select Main Menu > STORAGE > BASIC. The BASIC interface is displayed.
Page 232: Configuring The Recording And Snapshot Schedule
5.17.2 Configuring the Recording and Snapshot Schedule The system starts recording and taking snapshot according to the configured schedule. For details, see "5.1.4.9 Configuring Recorded Video Storage Schedule" and "5.1.4.10 Configuring Snapshot Storage ScheduleConfiguring Snapshot Storage Schedule" 5.17.3 Configuring HDD Manager You can view the HDD information, format HDD, and configure the HDD type through HDD manager.
Page 233: Configuring Hdd Group
5.17.4 Configuring HDD Group You can configure the HDD group to save the specified main stream, sub stream and snapshots to the designated HDD group. If "Current HDD Mode is Quota Mode" is shown on the interface, you need to switch to ...
Page 234 Local Configurations 224...
Page 235: Configuring Hdd Detecting Settings
Click Apply to complete the settings. 5.17.5 Configuring HDD Detecting Settings Not all models support this function. HDD detecting function detects the current status of HDD to let you know the HDD performance and replace the defective HDD. 5.17.5.1 Detecting HDD You can detect HDD by quick detect and global detect.
Page 236 In the Type list, select Quick Detect or Global Detect; and in the HDD list, select the HDD that you want to detect. Click Start Detect. The system starts detecting the HDD. After detecting is completed, see Figure 5-210. During detecting, click Pause to pause detecting, click Continue to restart detecting, and click Stop Detect to stop detecting.
Page 237 5.17.5.2 View Detecting Results After the detecting is completed, you can view the detecting reports to find out the problem and replace the defective HDD to avoid data loss. Select Main Menu > STORAGE > HDD DETECT > Report. The Report interface is displayed. See Figure 5-211. Local Configurations 227...
Page 238 Click The Details interface is displayed. You can view detecting results and S.M.A.R.T reports. See Figure 5-212 and Figure 5-213. Local Configurations 228...
Page 239: Configuring Quota Settings
5.17.6 Configuring Quota Settings You can configure the quote for each channel to be saved into each HDD. If "Current HDD Mode is HDD Mode" is shown on the interface, you need to switch to  Quota mode. You can enable either HDD Mode or Quota Mode at one time. The system reboots to ...
Page 240 In the Channel list, select the channel that you want to configure. In the SATA list, select the quota for the selected channel. Click Apply to complete the settings. Click Statistics to view the quota of each channel. See Figure 5-215. Local Configurations 230...
Page 241: Configuring Record Estimate
5.17.7 Configuring Record Estimate Record estimate function can calculate how long you can record video according to the HDD capacity, and calculate the required HDD capacity according to the record period. Select Main Menu > STORAGE > REC ESTIMATE. The REC ESTIMATE interface is displayed. See Figure 5-216. Click The Edit dialog box is displayed.
Page 242 Then the system will calculate the time period that can be used for storage according to the channels settings and HDD capacity. Click Copy to copy the settings to other channels. Calculating Recording Time On the REC ESTIMATE interface, click the Known Space tab. The Known Space interface is displayed.
Page 243: Configuring Ftp Storage Settings
5.17.8 Configuring FTP Storage Settings You can store and view the recorded videos and snapshots on the FTP server. Preparation for Configuration Purchase or download a FTP server and install it on your PC. For the created FTP user, you need to set the write permission; otherwise the upload of recorded videos and snapshots will be failed.
Page 244 Parameter Description Enable Enable the FTP upload function. Host IP IP address of the PC that is installed with FTP server. Port The default is 21. Anonymity Enter the user name and password to login the FTP server. User Name Enable the anonymity function, and then you can login anonymously without entering the user name and password.
Page 245: Configuring System Settings
Configuring System Settings 5.18 5.18.1 Configuring General System Settings You can configure the device basic settings, time settings, and holiday settings. For details about basic and time settings, see "5.1.4.2 Configuring General Settings" and "5.1.4.3 Configuring Date and Time Settings." To configure the holiday settings, do the following: Select Main Menu >...
Page 246: Configuring Rs232 Port Settings
Configure the holiday name, repeat mode, time range according to your actual situation. Click Add. The added holiday information is displayed. See Figure 5-225. Enable the Add More function, so you can continue adding holiday information. 5.18.2 Configuring RS232 Port Settings Select Main Menu >...
Page 247 The RS232 interface is displayed. See Figure 5-226. Configure the settings for RS232 port parameters. See Table 5-70. Parameter Description In the Function list, select the protocol for the port. Console: Debug by connecting a mini terminal software. Keyboard: Control the Device by connecting a dedicated keyboard.
Page 248: Configuring Security Settings
5.18.3 Configuring Security Settings To ensure the network security and protect data, you can configure the access permission to the Device from host IP (host IP means the PC or server that has an IP). White list includes the host IP that are permitted to access the Device. ...
Page 249: Configuring System Maintenance Settings
Click Add IP Segment to add the IP addresses from the start IP through the end IP. Add IP Segment The system supports up to 64 IP addresses. Click Apply to complete the settings. 5.18.3.2 Enabling Password Reset Select Main Menu > SYSTEM > SECURITY > Password Reset, the Password Reset interface is displayed.
Page 250: Exporting And Importing System Settings
Configure the settings for the system maintenance parameters. See Table 5-72. Parameter Description Auto Reboot In the Auto Reboot list, select the reboot time. In the Case Fan Mode list, you can select Always run or Auto. If you select Auto, the case fan will stop or start according to the external conditions such as the Device temperature.
Page 251 Exporting System Settings Select Main Menu > SYSTEM > IMP/EXP. The IMP/EXP interface is displayed. See Figure 5-230. Insert a USB storage device into one of the USB ports on the Device. Click Refresh to refresh the interface. The connected USB storage device is displayed. See Figure 5-231. Local Configurations 241...
Page 252: Restoring Default Settings
Click Export. There is a folder under the name style of "Config_[YYYYMMDDhhmmss]". Double-click this folder to view the backup files. Importing System Settings Insert a USB storage device containing the exported configuration files from another Device) into one of the USB ports on the Device. Select Main Menu >...
Page 253: Upgrading The Device
Restore the settings. Select the settings that you want to restore, and then click Apply. The system  starts restoring the selected settings. Click Factory Default, and then click OK. The system starts restoring the whole  settings. 5.18.7 Upgrading the Device 5.18.7.1 Upgrading File Insert a USB storage device containing the upgrade files into the USB port of the Device.
Page 254 Click System Upgrade. The System Upgrade interface is displayed. See Figure 5-234. Click the file that you want to upgrade. The selected file is displayed in the Update File box. Click Start. Local Configurations 244...
Page 255 5.18.7.2 Performing Online Upgrade When the Device is connected to Internet, you can use online upgrade function to upgrade the system. Before using this function, you need to check if there is any new version by auto check or manual check. Auto check: The Device checks if there is any new version available at intervals.
Page 256: Viewing Information
Click Upgrade now. 5.18.7.3 Uboot Upgrading Under the root directory in the USB storage device, there must be "u-boot.bin.img" file and  "update.img" file saved, and the USB storage device must be in FAT32 format. Make sure the USB storage device is inserted; otherwise the upgrading cannot be ...
Page 257: Viewing Log Information
5.19.2 Viewing Log Information You can view and search the log information. If there is no HDD installed, the system can save up to 10,000 logs.  If there is HDD installed and has been formatted, the system can save up to 500,000 logs. ...
Page 258 In the Type list, select the log type that you want to view (System, Config, Storage, Record, Account, Clear, Playback, and Connection) or select All to view all logs. In the Start Time box and End Time box, enter the time period to search, and then click Search.
Page 259: Viewing Event Information
Click Details or double-click the log that you want to view, the Detailed  Information interface is displayed. Click Next or Previous to view more log information. Click Backup to back up the logs into the USB storage device.  Click Clear to remove all logs.
Page 260: Viewing Network Information
5.19.4 Viewing Network Information You can view the online users, network data transmission details, and test network. For details about testing network, see "5.14.2.1 Testing the Network." 5.19.4.1 Viewing Online Users You can view the online user information and block any user for a period of time. Select Main Menu >...
Page 261 To block an online user, click and then enter the time that you want to block this user. The maximum value you can set is 65535. The system detects every 5 seconds to check if there is any user added or deleted, and update the user list timely.
Page 262: Viewing Hdd Information
Click the LAN name that you want to view, for example, LAN1. The system displays the information of data sending speed and receiving speed. The default display is LAN1 load.  Only one LAN load can be displayed at one time. ...
Page 263: Viewing Device Status
Parameter Description Indicates the quantity of HDD that can be installed. The total quantity is different depending on the model you purchased. SATA ○: HDD is in normal working status. -: No HDD is installed. Indicates the number of the currently connected HDD.﹡means the current working HDD.
Page 264: Viewing Channel Information
5.19.7 Viewing Channel Information You can view the camera information connected to each channel. Select Main Menu > INFO > CHANNEL INFO, the CHANNEL INFO interface is displayed. See Figure 5-245. Local Configurations 254...
Page 265: Viewing Data Stream Information
5.19.8 Viewing Data Stream Information You can view the real-time data stream rate and resolution of each channel. Select Main Menu > INFO > BPS, the BPS interface is displayed. See Figure 5-246. Local Configurations 255...
Page 266: Logout The Device
Logout the Device 5.20 On the top right of the Main Menu interface or on any interface after you have entered the Main Menu, click Select Logout, you will log out the device.  Select Reboot, the Device will be rebooted. ...
Page 267: Web Operations
Web Operations The interfaces in the Manual are used for introducing the operations and only for reference.  The actual interface might be different dependent on the model you purchased. If there is inconsistency between the Manual and the actual product, the actual product shall govern. The Manual is a general document for introducing the product, so there might be some ...
Page 268: Resetting Password
Enter the user name and password. The default administrator account is admin. The password is the one that was  configured during initial settings. To security your account, it is recommended to keep the password properly and change it regularly. Click to display the password.
Page 269 Click Forgot Password? The Reset the password interface is displayed. See Figure 6-3. Follow the onscreen instructions to scan the QR code and get the security code. You can get the security code twice by scanning the same QR code. If you need ...
Page 270 The new password resetting interface is displayed. See Figure 6-4 In the Password box, enter the new password and enter it again in the Confirm Password box. The new password can be set from 8 characters through 32 characters and contain at least two types from number, letter and special characters (excluding"'", """, ";", ":"...
Page 271: Introducing Web Main Menu
Introducing Web Main Menu After you have logged in the Web, the main menu is displayed. See Figure 6-5. For detailed operations, you can refer to "5 Local Configurations." Description Icon Includes configuration menu through which you can configure camera settings, network settings, storage settings, system settings, account settings, and view information.
Page 272 Includes eight function tiles: LIVE, VIDEO, ALARM, IVS, IoT, BACKUP, DISPLAY, and AUDIO. Click each tile to open the configuration interface of the tile. LIVE: You can perform the operations such as viewing real-time video, configuring channel layout, setting PTZ controls, and using smart talk and instant record functions if needed.
Page 273: Faq
1. DVR cannot boot up properly. There are following possibilities: Input power is not correct.  Power connection is not correct.  Power switch button is damaged.  Program upgrade is wrong.  HDD malfunction or something wrong with HDD jumper configuration. ...
Page 274 There are following possibilities: HDD jumper is damaged.  HDD is broken.  Upgraded program is not compatible.  The recorded file has been overwritten.  Record function has been disabled.  7. Video is distorted when searching local records. There are following possibilities: Video quality setup is too low.
Page 275 Sensitivity is too low.  For some versions, there is hardware limit.  13. Cannot log in client-end or web. There are following possibilities: For Windows 98 or Windows ME user, please update your system to Windows 2000 sp4.  Or you can install client-end software of lower version.
Page 276 Some program versions may have this problem. Please upgrade your system.  19. Alarm function is null. There are following possibilities: Alarm setup is not correct.  Alarm cable connection is not correct.  Alarm input signal is not correct. ...
Page 277 For the product supports analog standard definition camera/HD camera, you need to go to  the Main Menu > CAMERA > CHANNEL TYPE to select corresponding channel type and then restart the DVR. 29. I cannot connect to the IP channel. There are following possibilities: Check the camera is online or not.
Page 278 Check the device P2P function is enabled or not. (Main menu->Setting->Network->P2P)  Check the device is in the WAN or not.  Check cell phone P2P login mode is right or not.  It is the specified device P2P login port or not when you are using P2P client. ...
Page 279: Glossary
Glossary The abbreviations in this glossary are related to the Manual. Abbreviations Full term Bayonet Nut Connector Constant Bit Rate Common Intermediate Format DDNS Dynamic Domain Name Service DHCP Dynamic Host Configuration Protocol Domain Name System Daylight Saving Time Digital Video Recorder File Transfer Protocol Hard Disk Drive HDMI...
Page 280 Abbreviations Full term Video Graphics Array Wide Area Network Glossary 270...
Page 281: Hdd Capacity Calculation
HDD Capacity Calculation Calculate total capacity needed by each DVR according to video recording (video recording type and video file storage time). According to Formula (1) to calculate storage capacity that is the capacity of each channel needed for each hour, unit MB. Formula (1): In the formula: means the bit rate, unit Kbit/s...
Page 282 Bit stream size（max） File size Bit stream size（max） File size 640Kbps 281MB 768Kbps 337MB 896Kbps 393MB 1024Kbps 450MB 1280Kbps 562MB 1536Kbps 675MB 1792Kbps 787MB 2048Kbps 900MB HDD Capacity Calculation 272...
Page 283: Compatible Backup Devices
Compatible Backup Devices Appendix 3.1 Compatible USB list Manufacturer Model Capacity Sandisk Cruzer Micro 512MB Sandisk Cruzer Micro Sandisk Cruzer Micro Sandisk Cruzer Freedom 256MB Sandisk Cruzer Freedom 512MB Sandisk Cruzer Freedom Sandisk Cruzer Freedom Kingston DataTraveler Ⅱ Kingston DataTraveler Ⅱ Kingston DataTraveler Kingston...
Page 284: Appendix 3.2 Compatible Sd Card List
Manufacturer Model Capacity Kingston Data Traveler Kingston Data Traveler 16GB Kingston Data Traveler 32GB Aigo L8315 16GB Sandisk 16GB Kingston Data Traveler Locker+ 32GB Netac U228 Appendix 3.2 Compatible SD Card list Manufacturer Standard Capacity Card type Transcend SDHC6 16GB Kingston SDHC4 Kingston...
Page 285: Appendix 3.6 Compatible Sata Hdd List
Manufacturer Model Samsung TS-H653 Ver.A Samsung TS-H653 Ver.F Samsung SH-224BB/CHXH SONY DRU-V200S SONY DRU-845S SONY AW-G170S Pioneer DVR-217CH Appendix 3.6 Compatible SATA HDD List Please upgrade the DVR firmware to latest version to ensure the accuracy of the table below. Here we recommend HDD of 500GB to 4TB capacity.
Page 286 Manufacturer Series Model Capacity Port Mode SkyHawk HDD SATA Seagate ST100000VX0004 10TB SkyHawk HDD SATA Seagate ST1000VX003 (Support HDD data recovery offered by Seagate) (Support HDD data SATA Seagate ST2000VX005 recovery offered by Seagate) (Support HDD data SATA Seagate ST3000VX005 recovery offered by Seagate) (Support HDD data...
Page 287 Manufacturer Series Model Capacity Port Mode Mars SATA TOSHIBA DT01ABA300V Sonance SATA TOSHIBA MD03ACA200V Sonance SATA TOSHIBA MD03ACA300V Sonance SATA TOSHIBA MD03ACA400V Sonance SATA TOSHIBA MD04ABA400V Sonance SATA TOSHIBA MD04ABA500V Constellation ES series SATA Seagate ST1000NM0033 (SATA interface) Constellation ES series SATA Seagate ST2000NM0033...
Page 288 Manufacturer Series Model Capacity Port Mode Constellation ES series SATA Seagate ST2000NM0045 (SAS interface) Constellation ES series SATA Seagate ST3000NM0025 (SAS interface) Constellation ES series SATA Seagate ST4000NM0025 (SAS interface) Constellation ES series SATA Seagate ST6000NM0095 (SAS interface) Constellation ES series SATA Seagate ST6000NM0034...
Page 289 Manufacturer Series Model Capacity Port Mode Ultrastar series (SAS SATA HITACHI HUS726060AL5210 interface) Pipeline HD Mini SATA Seagate ST320VT000 320GB Pipeline HD Mini SATA Seagate ST500VT000 500GB Pipeline HD Mini SATA Seagate ST2000LM003 (EOL) 2.5-inch PC series SATA TOSHIBA MQ01ABD050V 500GB 2.5-inch PC series SATA...
Page 290: Compatible Cd/Dvd Burner List
Compatible CD/DVD Burner List Please upgrade the DVR firmware to latest version to ensure the accuracy of the table below. And you can use the USB cable with the model recommended to set USB burner. Manufacturer Model Port Type Type Sony DRX-S50U DVD-RW...
Page 291: Compatible Displayer List
Compatible Displayer List Please refer to the following table form compatible displayer list. Brand Model Dimension (Unit: inch) BENQ (LCD) ET-0007-TA 19-inch (wide screen) DELL (LCD) E178FPc 17-inch BENQ (LCD) Q7T4 17-inch BENQ (LCD) Q7T3 17-inch HFNOVO (LCD) LXB-L17C 17-inch SANGSUNG (LCD) 225BW 22-inch (wide screen)
Page 292: Compatible Switcher
Compatible Switcher Brand Model network working mode D-LinK DES-1016D 10/100M self-adaptive D-LinK DES-1008D 10/100M self-adaptive Five network modes: AUTO HALF-10M Ruijie RG-S1926S FULL-10M HALF-100M FULL-100M H3C-S1024 10/100M self-adaptive TP-LINK TL-SF1016 10/100M self-adaptive TP-LINK TL-SF1008+ 10/100M self-adaptive Compatible Switcher 282...
Page 293: Earthing
Earthing Appendix 7.1 What Is the Surge Surge is a short current or voltage change during a very short time. In the circuit, it lasts for microsecond. In a 220V circuit, the 5KV or 10KV voltage change during a very short time (about microseconds) can be called a surge.
Page 294: Appendix 7.2 The Earthing Modes
arrestor with the signal port, it can cut the channel of the thunderstorm to the device, and on the other hand, it can discharge the current to the ground to guarantee the device proper work. The signal lightning arrester has many specifications, and widely used in many devices such as telephone, network, analog communication, digital communication, cable TV and satellite antenna.
Page 295: Appendix 7.3 Thunder Proof Ground Method In The Monitor System
Mixed ground: The mix ground consists of the feature of the one-point ground and  multiple-point ground. For example, the power in the system needs to use the one-point ground mode while the radio frequency signal requires the multiple-point ground. So, you can use the following figure to earth.
Page 296: Appendix 7.4 The Shortcut Way To Check The Electric System By Digital Multimeter
other monitor devices, please use the copper resistance soft cable and its section shall be more than 4mm The monitor system usually can adopt the one-point ground.  Please connect the ground end of 3-pin socket in the monitor system to the ground port of ...
Page 297 For L (live cable) Turn the digital multimeter to 750V AC, use your one hand to hold the metal end, and then the other hand insert the pen to the L port of the socket. See the following figure. If the multimeter shows 125, then you can see current live cable connection is standard.
Page 298 Earthing 288...
Page 299: Rj45-Rs232 Connection Cable Definition
RJ45-RS232 Connection Cable Definition Here we are going to make standard RS232 port and standard RJ45 (T568B). Please refer to the following figure for RJ45 cable definition. Please refer to the following figure for RS232 pin definition. Cross Connection Please refer to the following figure for connection information. Please refer to the following table for detailed crossover cable connection information.
Page 300 RJ45 (T568B) RJ45 (Network cable) RS232 Signal Description Blue White and blue White and green Straight Connection Please refer to the following figure for straight cable connection information. Please refer to the following table for straight connection information. RJ45 (T568B) RJ45 (Network cable) RS232 Signal Description...
