5.3 SeaTalk connections

The SeaTalk connections on the ST7001+ provide it with its 12 V DC
power supply and allow it to share data with SeaTalk equipment.
Connecting to a course computer
If you are using the ST7001+ as the main control unit for a course
computer autopilot system, connect it directly to the course computer
SeaTalk terminals. To do this:
•
•
•

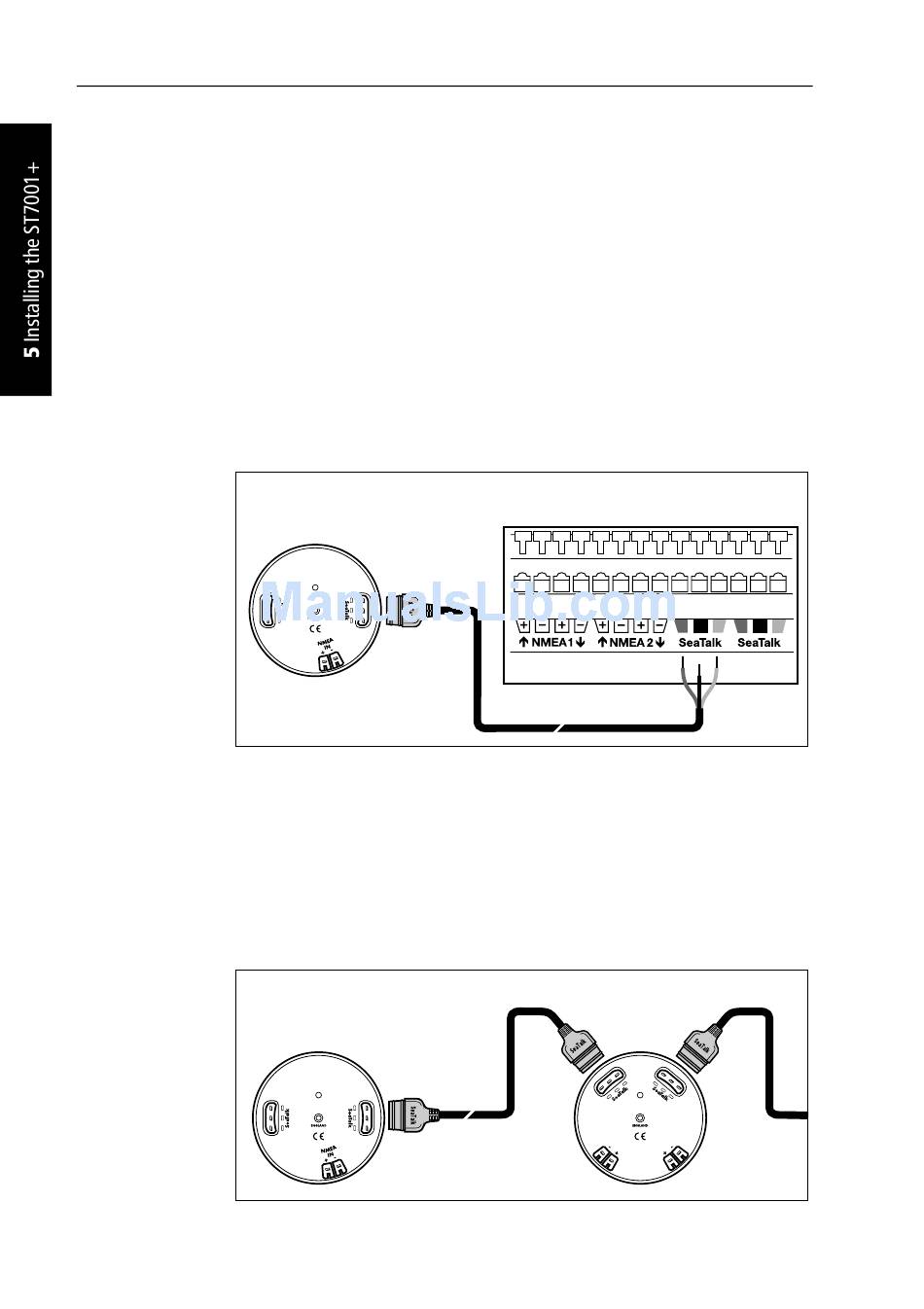

Connecting to course computer as main control unit
Note: If you are connecting the ST7001+ to a course computer
autopilot system that includes other control units, refer to the
information contained in the Autopilot System Installation Guide.

Connecting to SeaTalk

If you are using the ST7001+ as an additional control unit, use a
SeaTalk cable to connect it to another SeaTalk unit as shown.
Connecting to SeaTalk as additional control unit
ST7001+ Autopilot Control Unit - Owner's Handbook
cut off the moulded plug at one end of the SeaTalk cable
1
strip 5 mm ( / in) of insulation from each wire
2
then connect to the course computer terminals as shown
ST7001+ or ST6001+
control unit (rear)
ST7001+ or ST6001+
control unit (rear)
Type 150/400 course computer terminals
Red
Screen
SeaTalk
unit (rear)
Yellow
D5500-1
To SeaTalk
power supply
D5501-1
