Chapter 7: Adjusting Autopilot Settings
Setting up an instrument group
1. At the ST7001+:
2. At the ST7001+, use the arrow keys to select an instrument.
Note: The currently-selected instrument is indicated as follows:
•
•
•
3. Press both the up and down arrow keys on the ST7001+ for
4. At the ST7001+, use the up or down arrow key to select an
5. Use the ST7001+ to allocate a group letter and sequence number
select the INST REM data page to group standard instruments
•
select the MAXI REM data page to group Maxiview instruments
•
on ST80 instruments (including Maxiview), the characters are
displayed as white characters on a black background (instead of
the standard black on white)
on ST60 digital instruments, you will see a REMOTE message
on ST60 analogue instruments, you will see the TRUE/MAG and/or
TRUE/APP message flashing
4 seconds, to put the instruments and the ST7001+ into
Group Setup mode.
When you enter Group Setup mode:
• one instrument will be selected with a flashing cursor (and
inverse characters on ST80 instruments, including Maxiview)
• the ST7001+ screen text will alternate between:
INST REM and DSP SETUP for standard instruments
•
MAXI REM and DSP SETUP for Maxiview instruments
•
instrument to be the first in the group, i.e. so the required
instrument shows it has been selected (as described above).

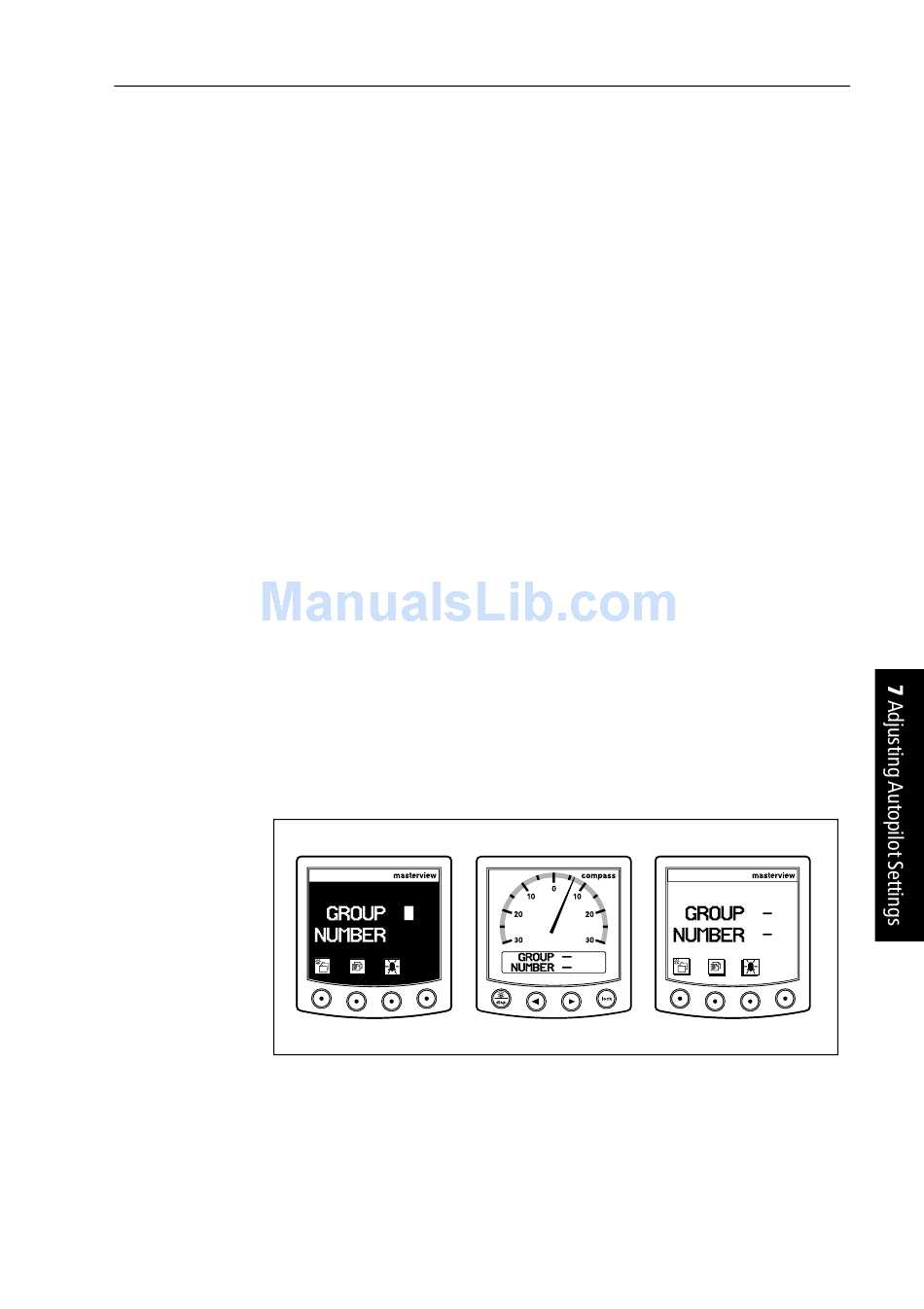

Standard instruments: group setup mode
Selected instrument
to the selected instrument. To do this:
Standard instruments: use the track key to toggle between
•
group letter and sequence number, and the set crs key to set
the identifying character.
