Raymarine A18084 Installation Instructions

Clutch kit

Download this manual

3. Turn the clutch knob either 4 clicks clockwise to tighten the

clutch, or 4 clicks anti-clockwise to loosen the clutch.

4. Use the allen key to re-tighten the clutch knob screw.

5. Check that the wheel still moves freely with the clutch off.

Note: If the wheel does not move freely, reduce the clutch tension by

turning the clutch knob 2 clicks anti-clockwise and check again

6. Check the drive's operation with the clutch engaged.

This procedure is usually sufficient to correct a slipping or dragging

drive belt. In some cases, however, you may need to repeat the steps

to adjust the clutch further.

Document number: 84105-3

Date: August 2001

Clutch Kit (A18084) Installation Instructions

4000 mk2 Wheel Drive

Clutch Kit (A18084) Installation Instructions

Introduction

This leaflet explains how to use the clutch kit (A18084) to replace the

clutch eccentric and/or roller on the 4000 mk2 wheel drive.

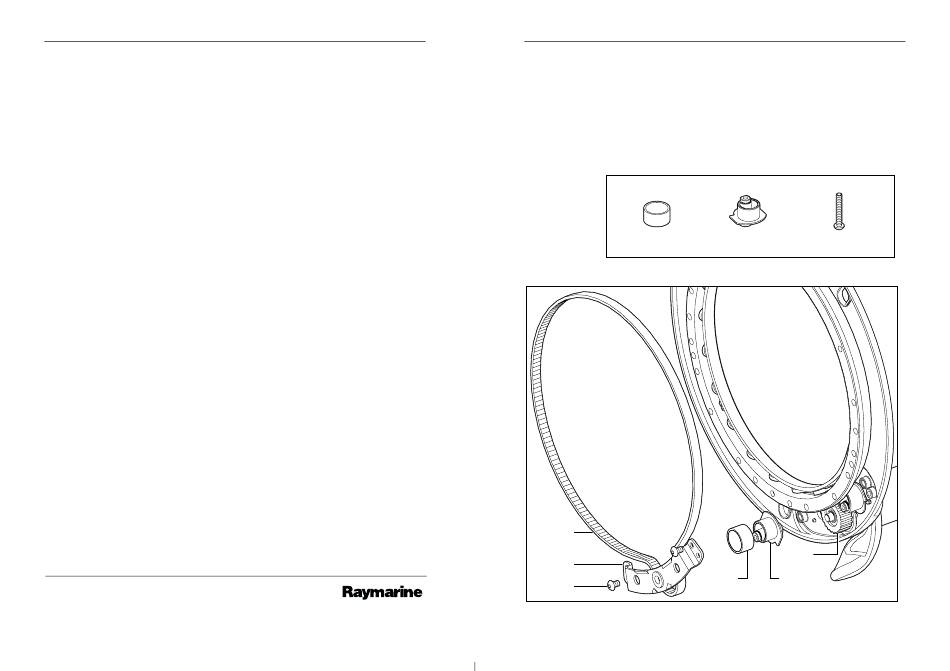

Parts supplied

Clutch roller

Removing the clutch eccentric and roller

Drive belt

Support plate

screws (x2)

Clutch eccentric

M5 x 30 mm screw

D5754-1

Belt pulley

Clutch

roller (x2)

eccentric (x2)

D5752-1

Page 1 Note: If the wheel does not move freely, reduce the clutch tension by turning the clutch knob 2 clicks anti-clockwise and check again This leaflet explains how to use the clutch kit (A18084) to replace the 6. Check the drive’s operation with the clutch engaged.
Page 2 Clutch Kit (A18084) Installation Instructions Clutch Kit (A18084) Installation Instructions 1. Remove the wheel drive from the wheel and release the clutch. Pre-drilled holes Pair of threaded inserts 2. Remove the front cover by pulling it up and away from the...
