Chapter 5: Installing the ST7001+

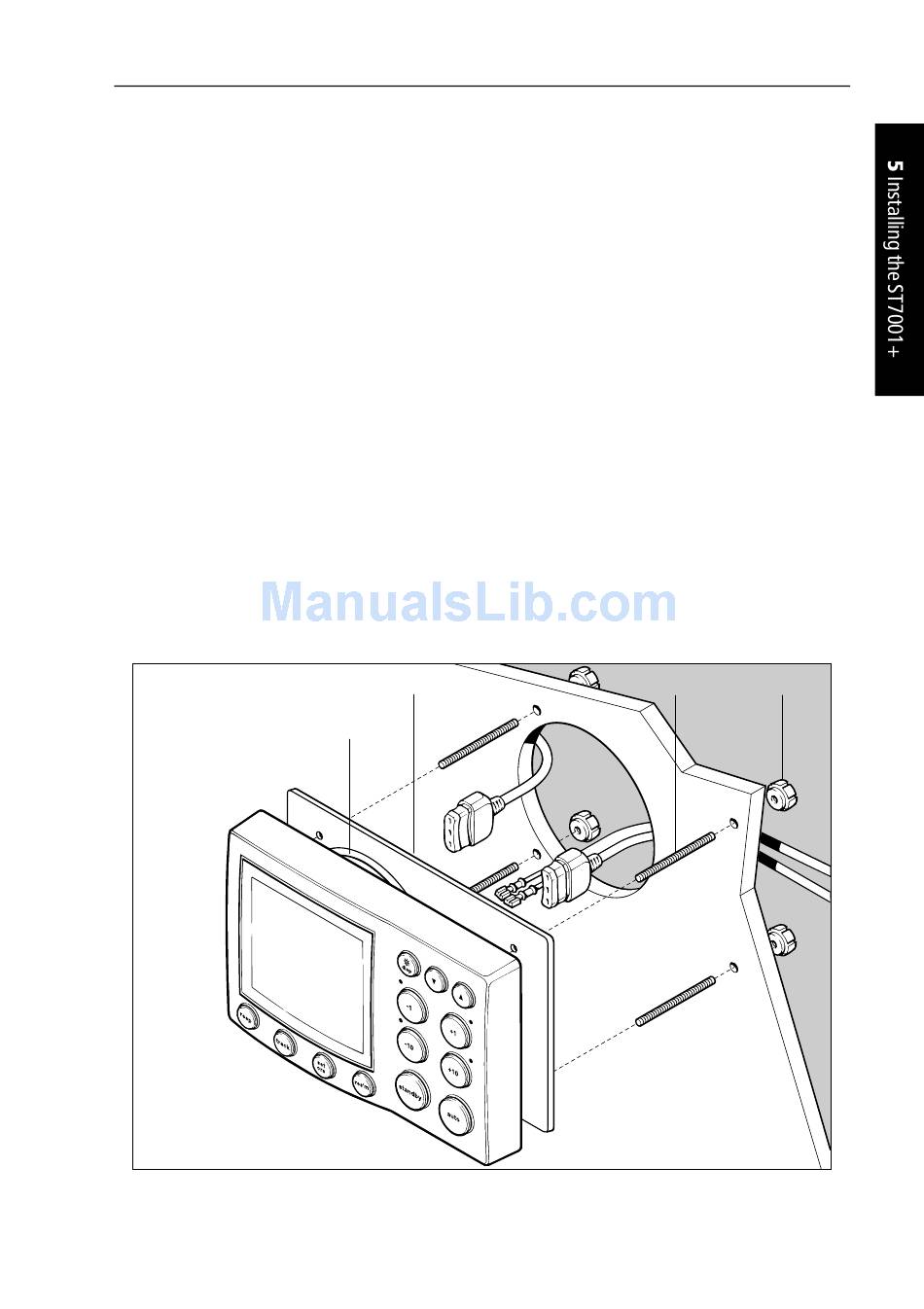

5.2 Control unit installation

To fit the control unit:
1. Apply the template (supplied at the back of this handbook) to the
2. Mark the centers of the four fixing holes and the cable boss.
3. Drill four 5 mm (
4. Use a 90 mm (3.55 in) diameter cutter to drill the hole for the
5. Peel the protective sheets from the self-adhesive gasket, then stick
6. Screw the four fixing studs into the threaded sockets on the rear of
7. Pass the SeaTalk/NMEA cables through the bulkhead and
8. Assemble the control unit to the bulkhead.
9. Secure the control unit with the thumb nuts provided.
selected bulkhead.
3
/
16
cable boss.
the gasket into position on the rear of the control unit.
the control unit.
connect them to the appropriate terminals (as described later in
this chapter).
Hand-tighten the thumb nuts – do NOT use a wrench.
Self-adhesive gasket
Cable boss
in) diameter holes for the fixing studs.
Fixing stud
49
Thumb nut
D4226-2
