Chapter 5: Installing the ST7001+

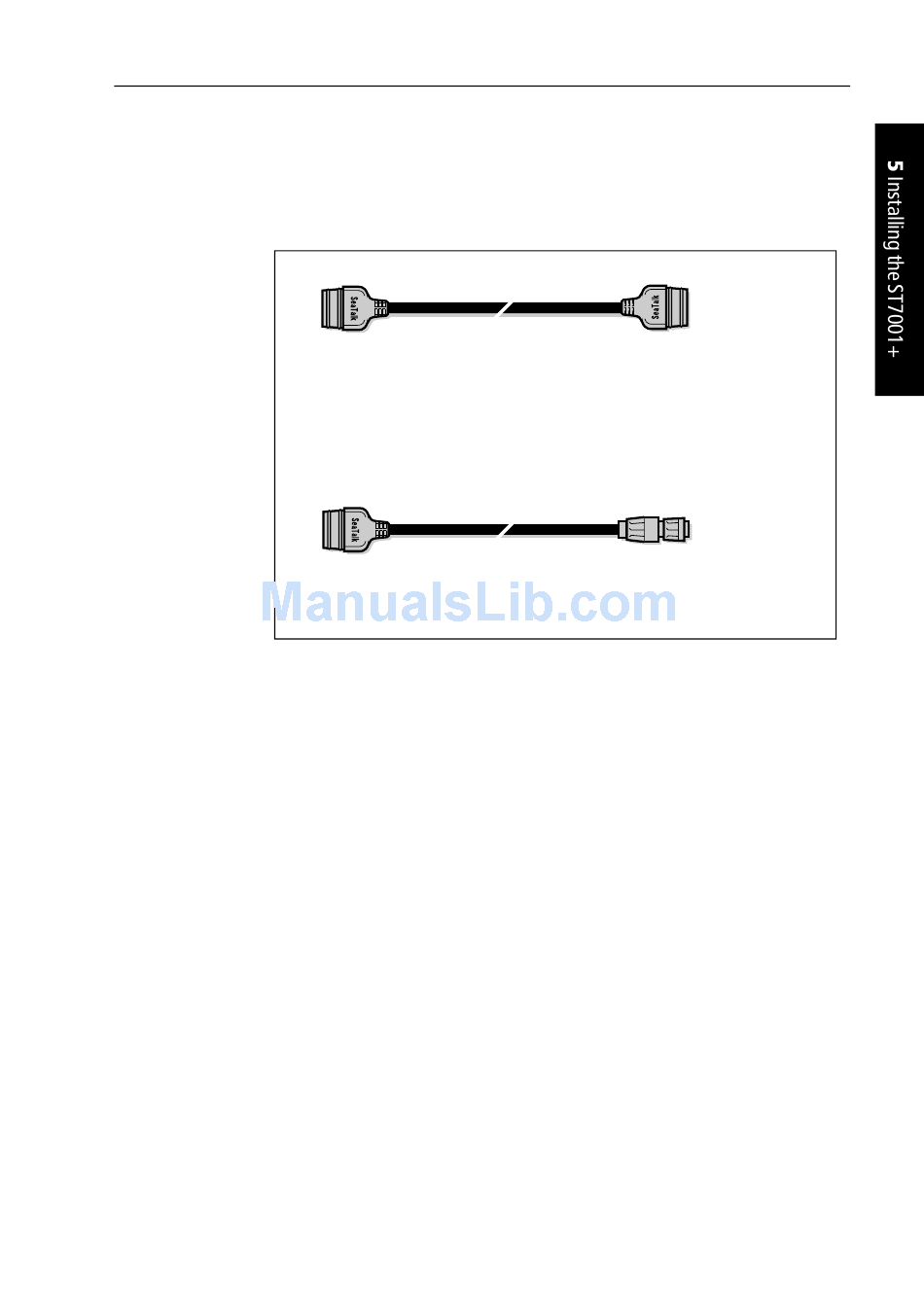

We supply the ST7001+ with a 9 m (29 ft 6 in) SeaTalk cable as
standard. Depending on your installation, you may need to obtain
alternative or additional SeaTalk cables (as shown in the following
illustration).

5.4 NMEA connections

The ST7001+ has a set of NMEA inputs so it can receive data in
NMEA 0183 format from navigation or wind instruments. It can use
this data to operate in Track or Wind Vane modes.
Note: If your ST7001+ control unit is part of a course computer
system, you can connect additional NMEA equipment to other parts
of the system. To decode the maximum amount of NMEA data (so it
can be transmitted onto SeaTalk), connect the navigator to the course
computer NMEA terminals. Refer to the Autopilot System Installation
Guide for more information.

Receiving NMEA data

NMEA data formats
The ST7001+ can decode the following NMEA 0183 navigation and
wind data received:
Flat moulded plugs at each end
Part no. Type
D284 Flat moulded plugs at each end
D285 Flat moulded plugs at each end
D286 Flat moulded plugs at each end
D287 Flat moulded plugs at each end
D288 Flat moulded plugs at each end
Flat moulded plug to round plug
Part no. Type
D187 Flat moulded plug to male round plug
D188 Flat moulded plug to female round plug
51
Length
1 m (3 ft 3 in)
3 m (9 ft 10 in)
5 m (16 ft 5 in)
9 m (29 ft 6 in)
20 m (65 ft 6 in)
Length
0.15 m (6 in)
0.3 m (12 in)
D5417-1
